Tugger Cart 48 x 33 inch
Tugger Cart 48 x 33 inch
Tugger Cart 48 x 33 inch
Q-007-3074

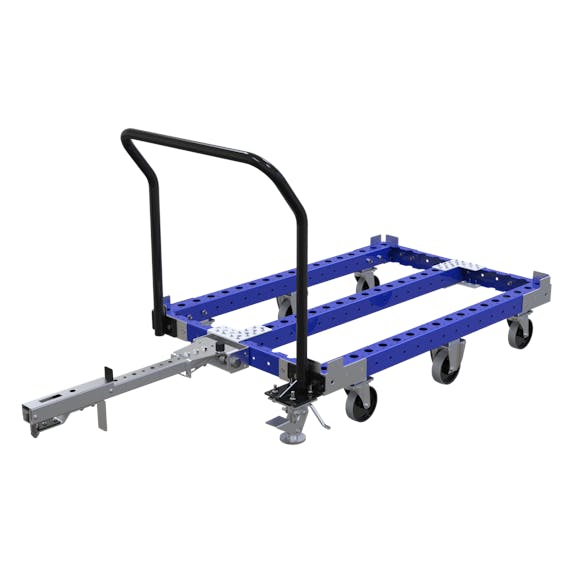

Tugger Cart 48 x 33 inch

Standard pallet cart for transporting pallets and containers.

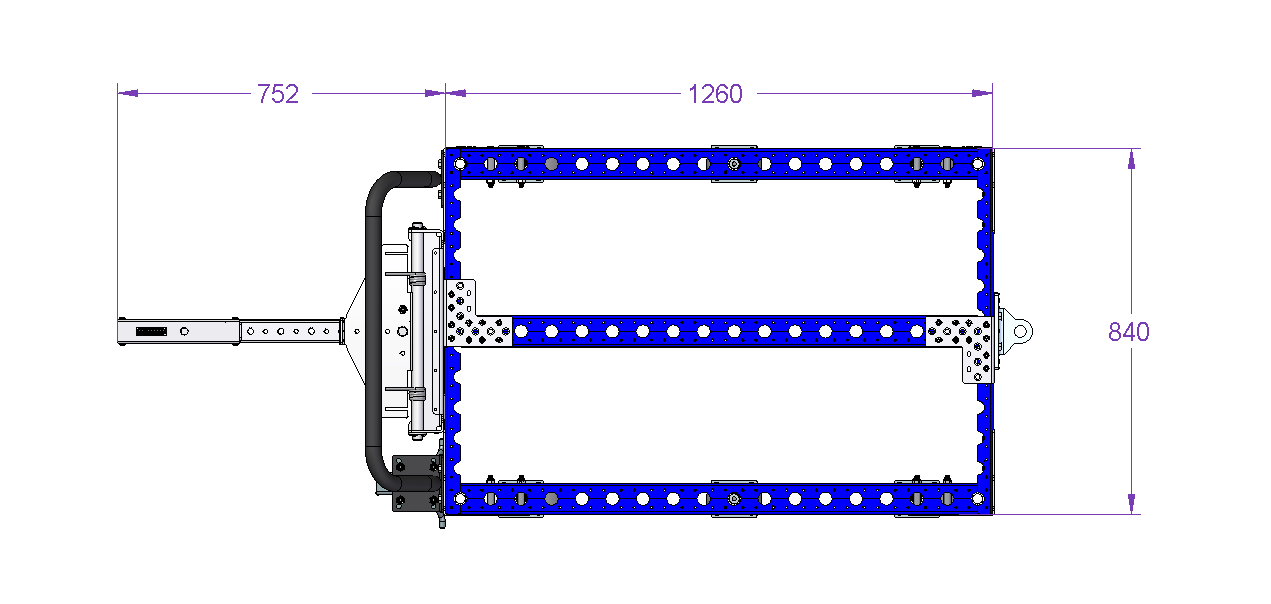

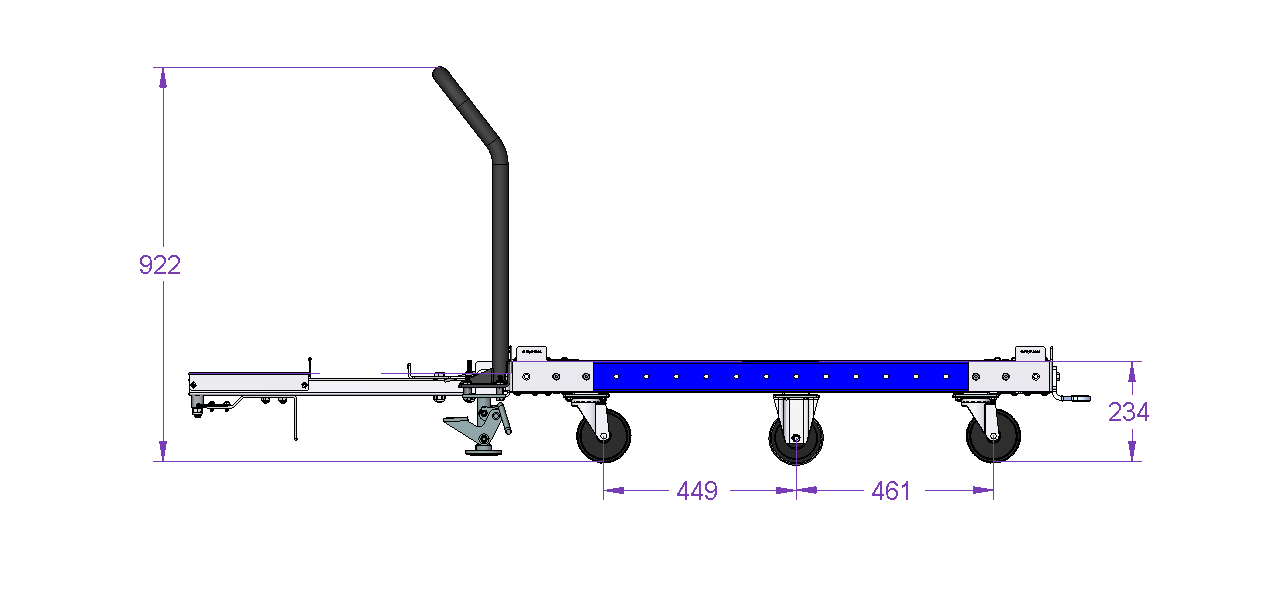

Technical specifications

Category: Standard

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Type of tow bar: Ergonomic Foot release

Width: 33 inch

Length: 50 inch

Load capacity: 1499 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

This tugger cart was designed for holding containers, but can also transport pallets. It is equipped with a foot-release tow bar but can be modified with either a wire-release tow bar or a drop-pin tow bar. Also equipped with a removable handlebar and floor brake for keeping the cart secure when not in use. The caster configuration enables great tracking properties when being transported on a train.

Parts included
FlexBeam™ 1190 mm 6 Q-001-1300
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 18 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Swivel Caster - 125 mm 4 Q-004-1363
Fixed Caster - 125 mm 2 Q-004-1365
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Spring Cover Plate 1 Q-005-1025
Spring for Tow Bar 2 Q-005-1070
Pallet Guide Corner Plate 4 Q-005-1096
Caster Distance Collet - 18 mm 4 Q-005-1396
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 8 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Wheel Attachment - 80 x 60 mm 6 Q-005-1722
Washer M20 2 Q-006-0016
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 3 Q-006-1039
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 29 Q-006-1042
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 24 Q-006-1181
Nut M10 1 Q-006-1195
M8 x 16 mm Countersunk 24 Q-006-1214
Hex Head Fully Threaded - M10 x 50 mm 5 Q-006-1343
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 62 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 24 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Handle With Bent Top + Floor Brake (North America) 1 Q-015-1060
US Modular Tow Bar VKR - Foot Release - 670 mm 1 Q-017-0012
Cotter Pin - 3,2 x 32 mm 2 Q-017-0023
Foot Release Locking Lip 1 Q-017-0024
Locking lip attachment 1 Q-017-1043
Tow Bar Lock Tube - 498 mm 1 Q-017-1061
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
