Pallet & Container Carts
A pallet cart or flatbed trolley as they can be referred to is a standard piece of equipment used for transporting materials in either distribution or manufacturing environments. We offer pallet and container carts in any size! The tough, adjustable, modular solution for all of your material handling needs. Browse our carts today.
-
Pallet Tugger Cart – 1260 x 1260 mm
Q-100-0112
-

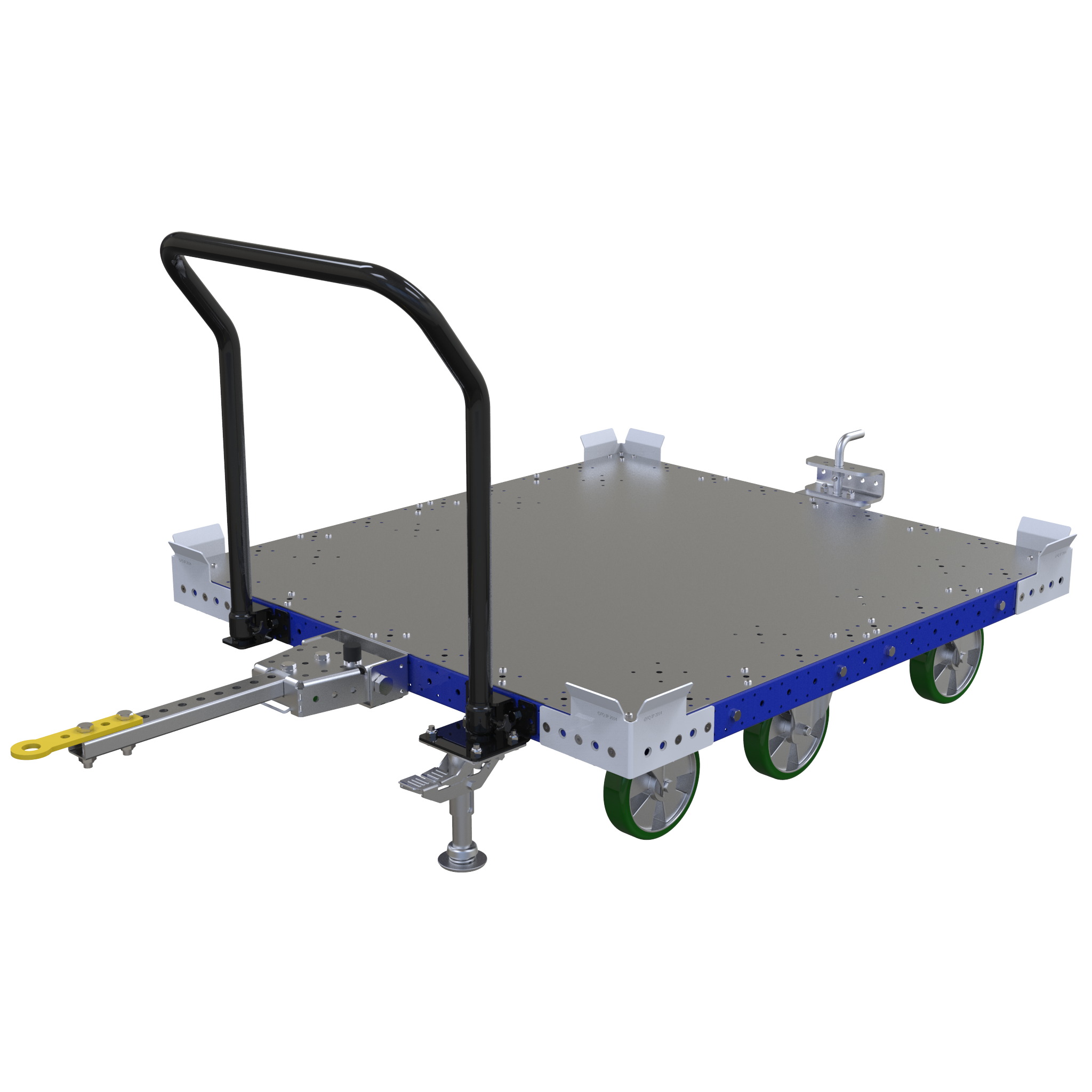

Pallet Tugger Cart – 1260 x 1190 mm
Q-100-1844
-
Tugger Cart 48 x 45 inch
Q-007-1840
-

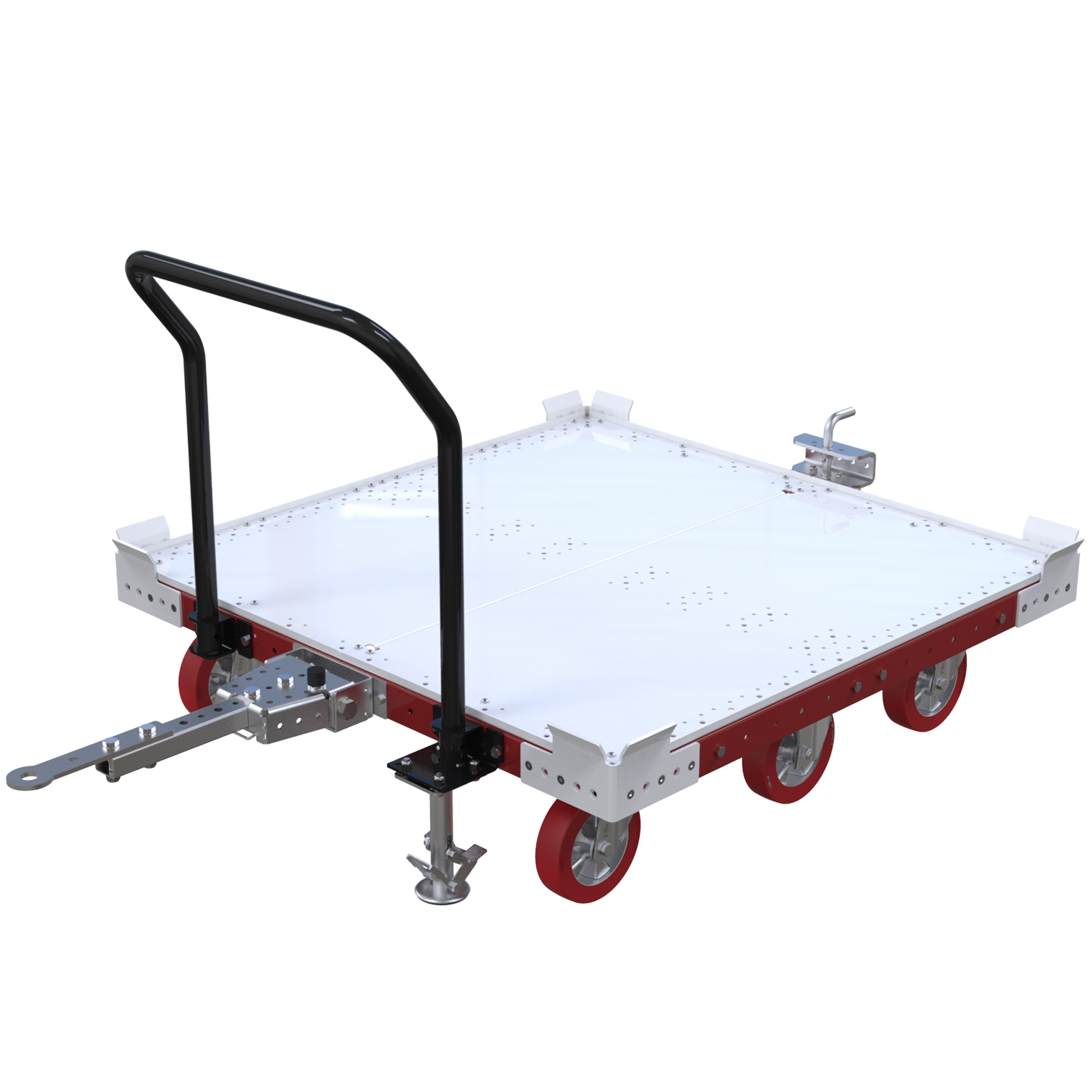

Tugger Cart – 1260 x 1260 mm
Q-100-1259
-

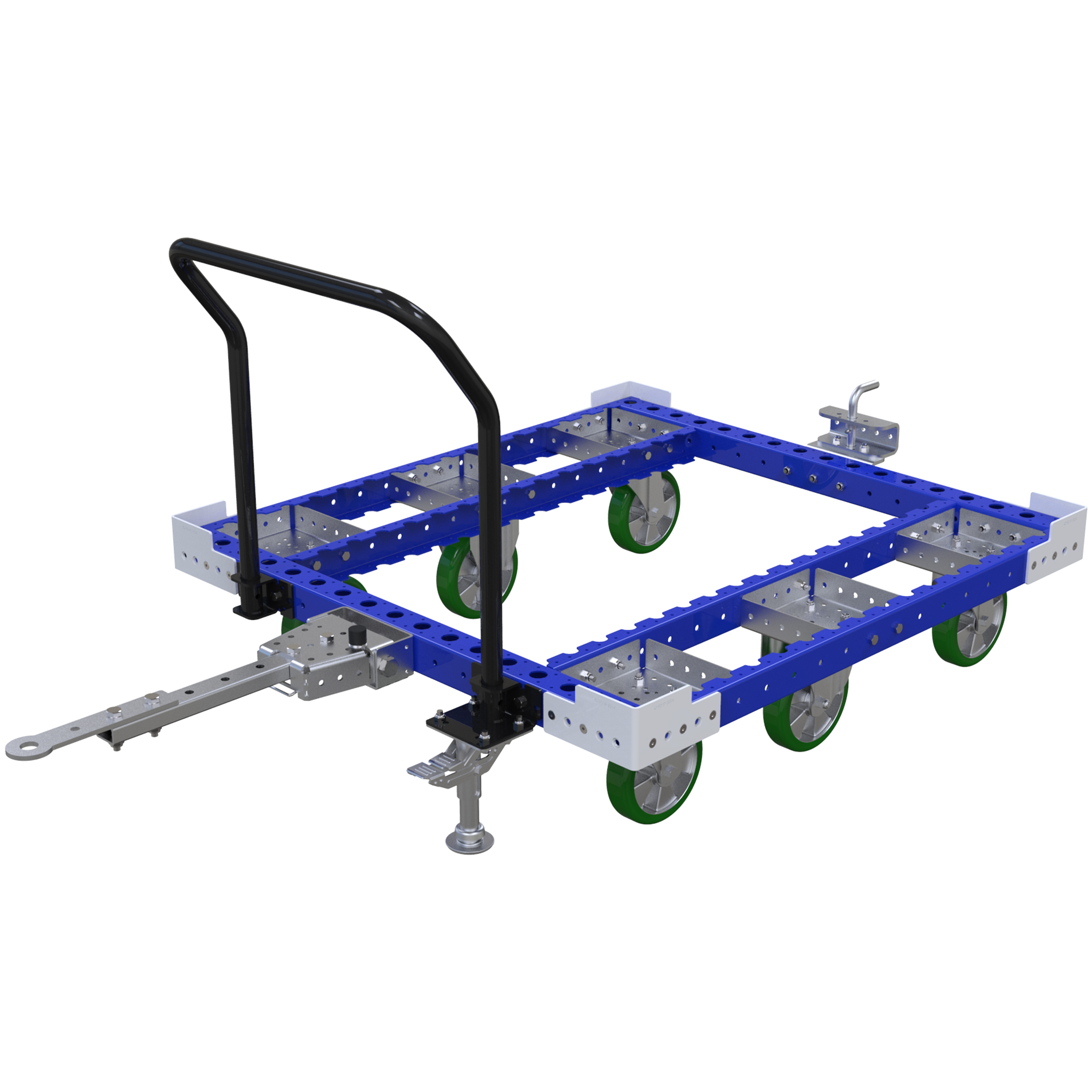

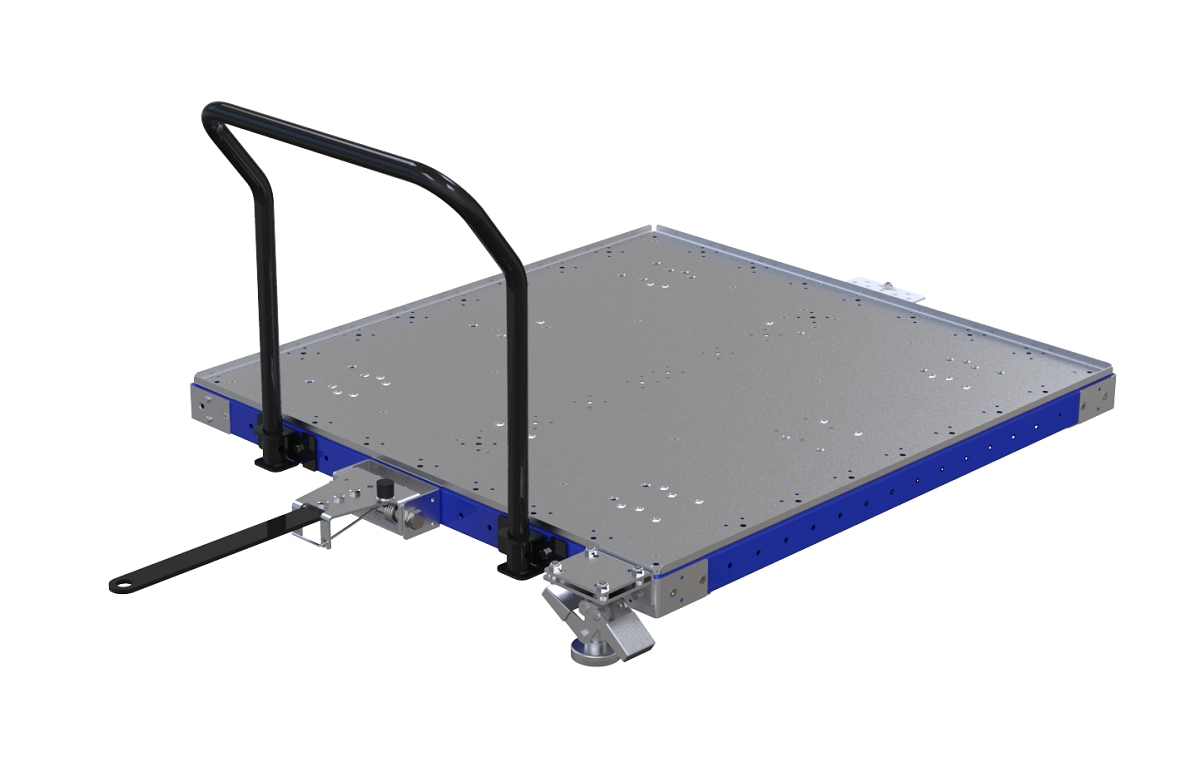

Tugger Cart – 1260 x 1190 mm
Q-100-0708
-
Tilt Cart – 1260 x 840 mm
Q-100-0758
-

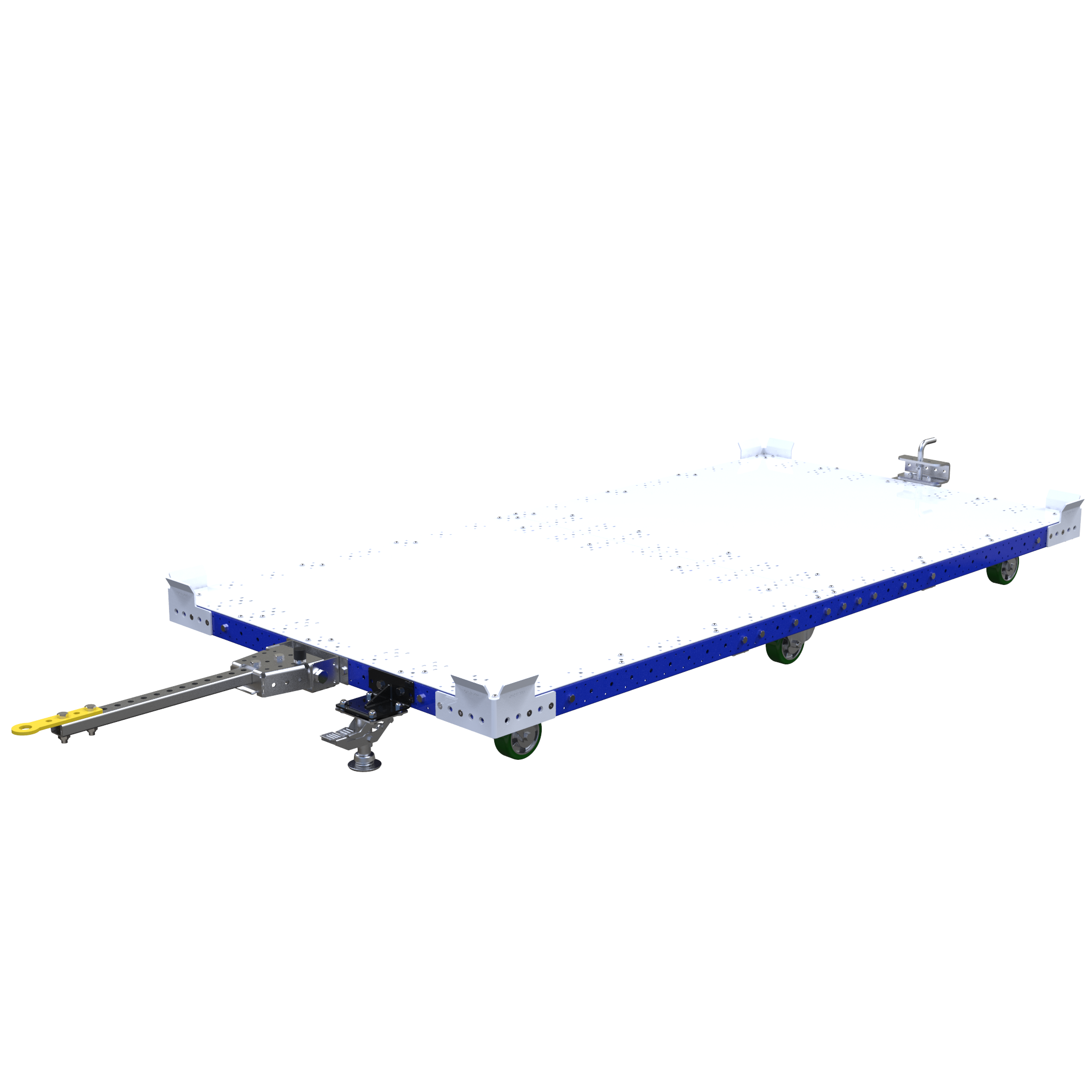

Tugger cart – 2520 x 1260 mm
Q-100-0521
-
EUR Pallet Cart 1260 x 840 mm
Q-007-1080
-
Tugger Cart – 1260 x 1190 mm
Q-100-0987
-

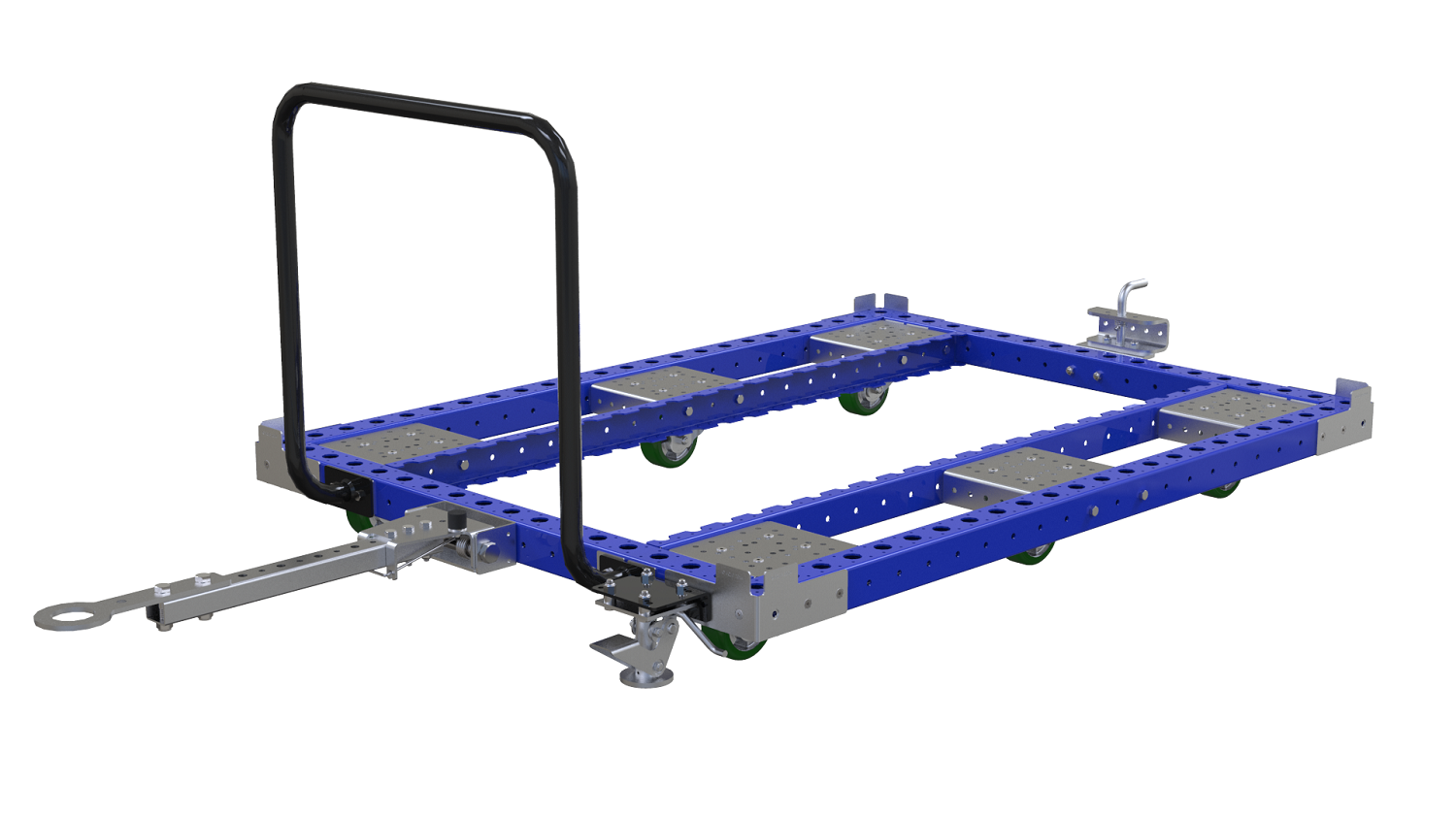

Tugger Cart 1680 x 1260 mm
Q-100-0606
-
Tugger Cart Standard 3710 x 1610 mm
Q-100-0531
-
Roller Cart – 1050 x 1260 mm
Q-100-1500
-

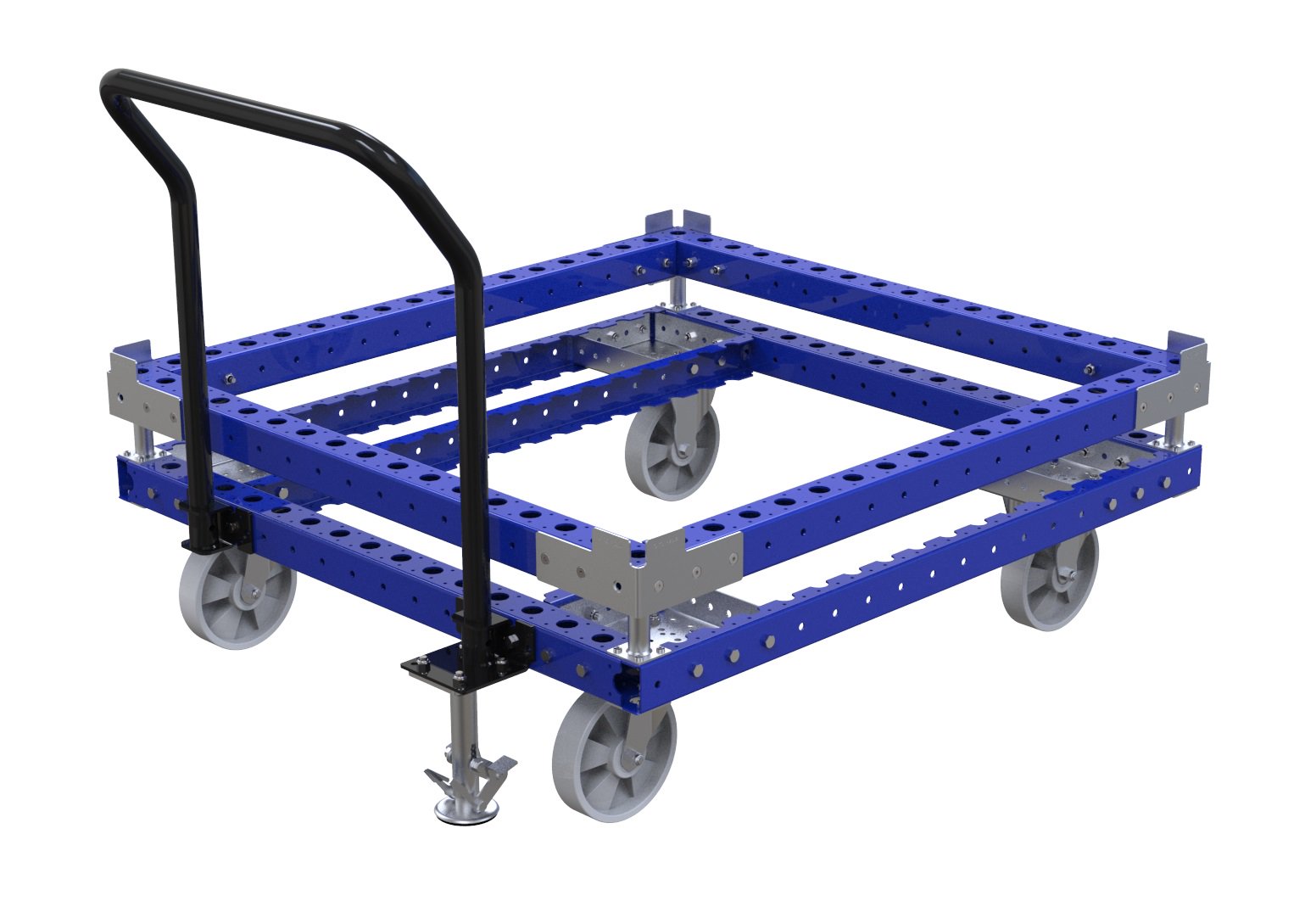

Pallet cart – 50 x 47 inch
Q-100-0701
-

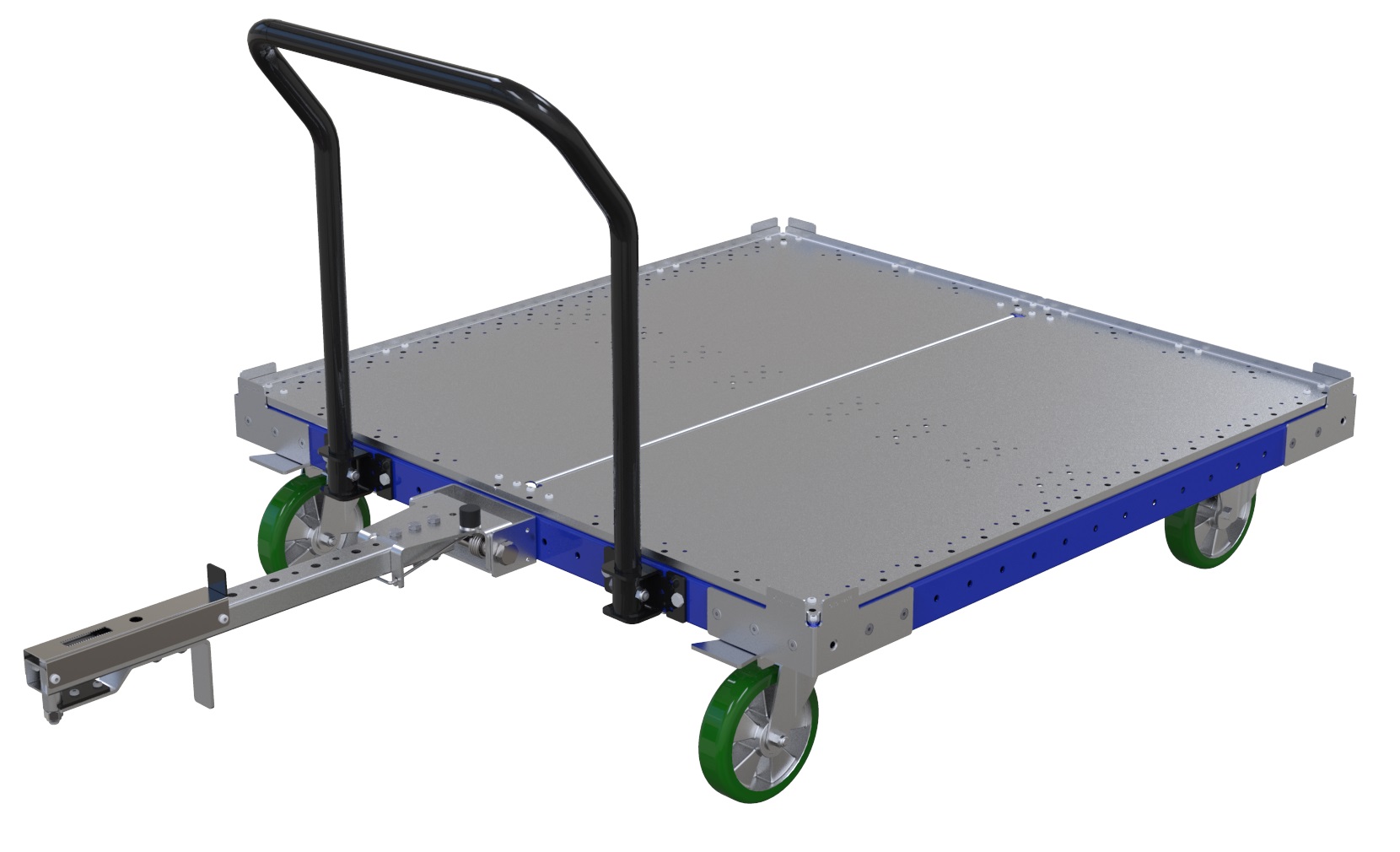

Flat Deck Tugger Cart 50 x 50 inch
Q-100-0389
-

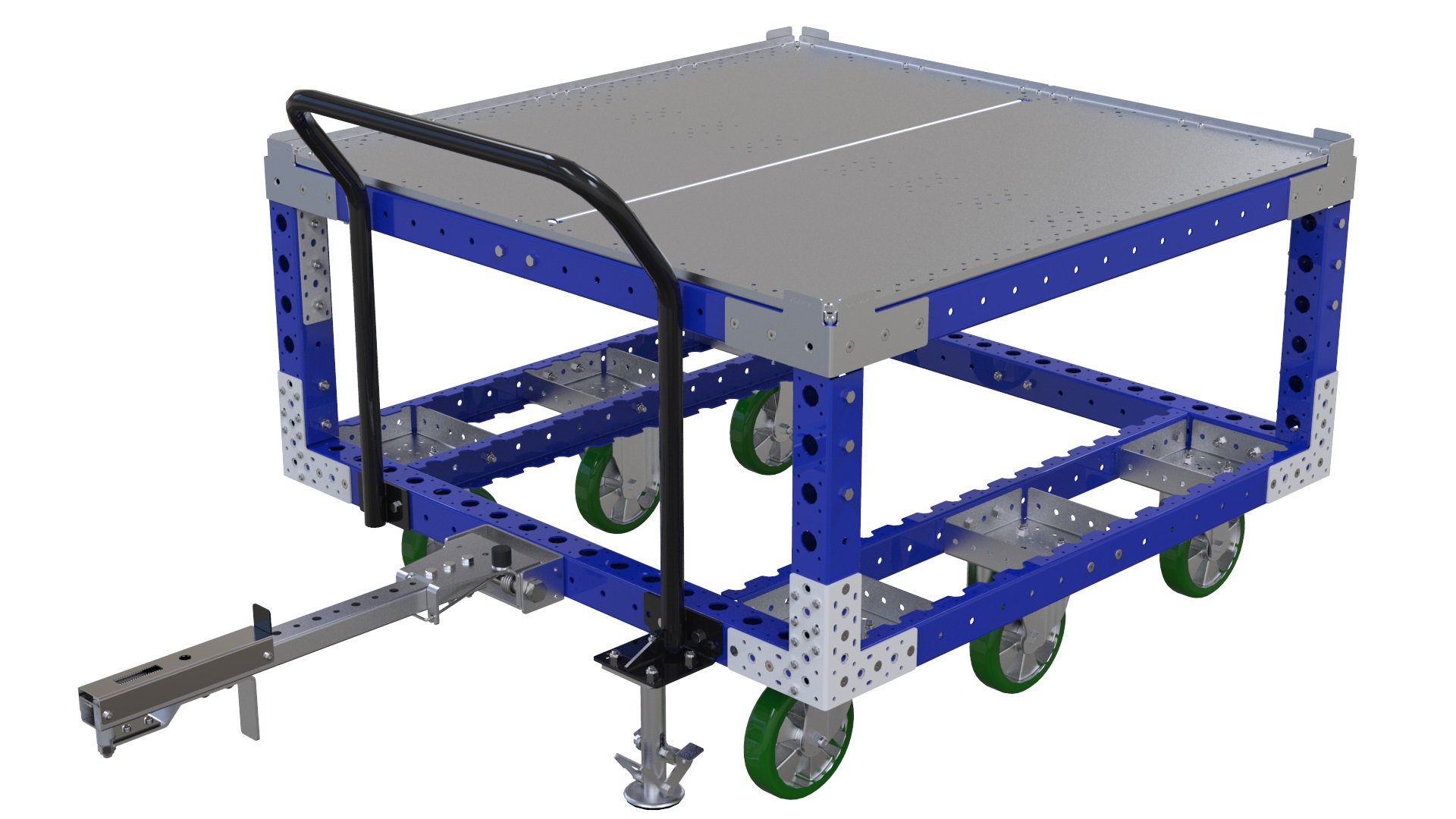

50 x 50 inch Industrial Modular Cart
Q-100-0194
-

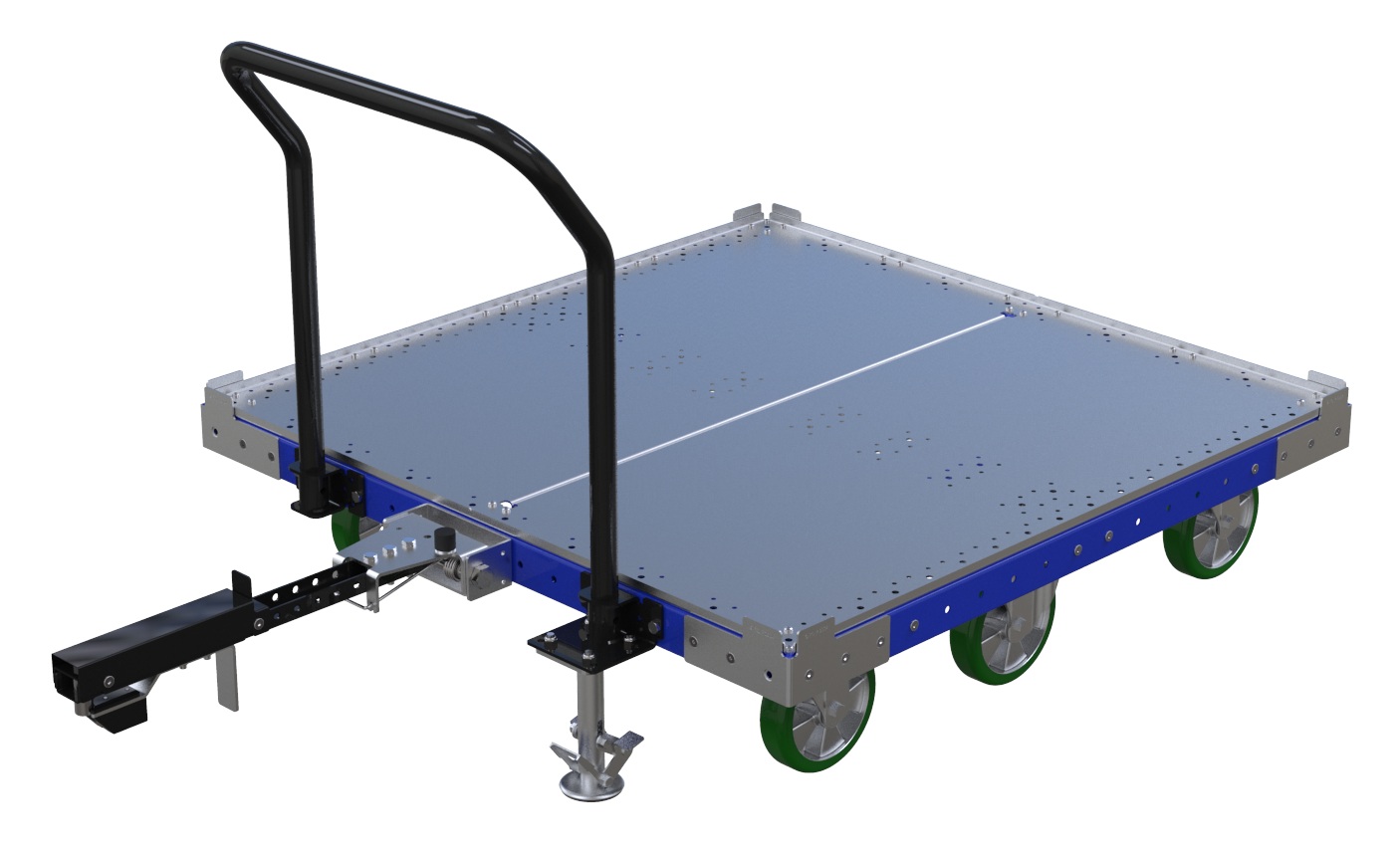

Cart with Foot Release Tow Bar 50 x 50 inch
Q-100-0121
-
Pallet Cart – 1190 x 910 mm
Q-100-7340
-

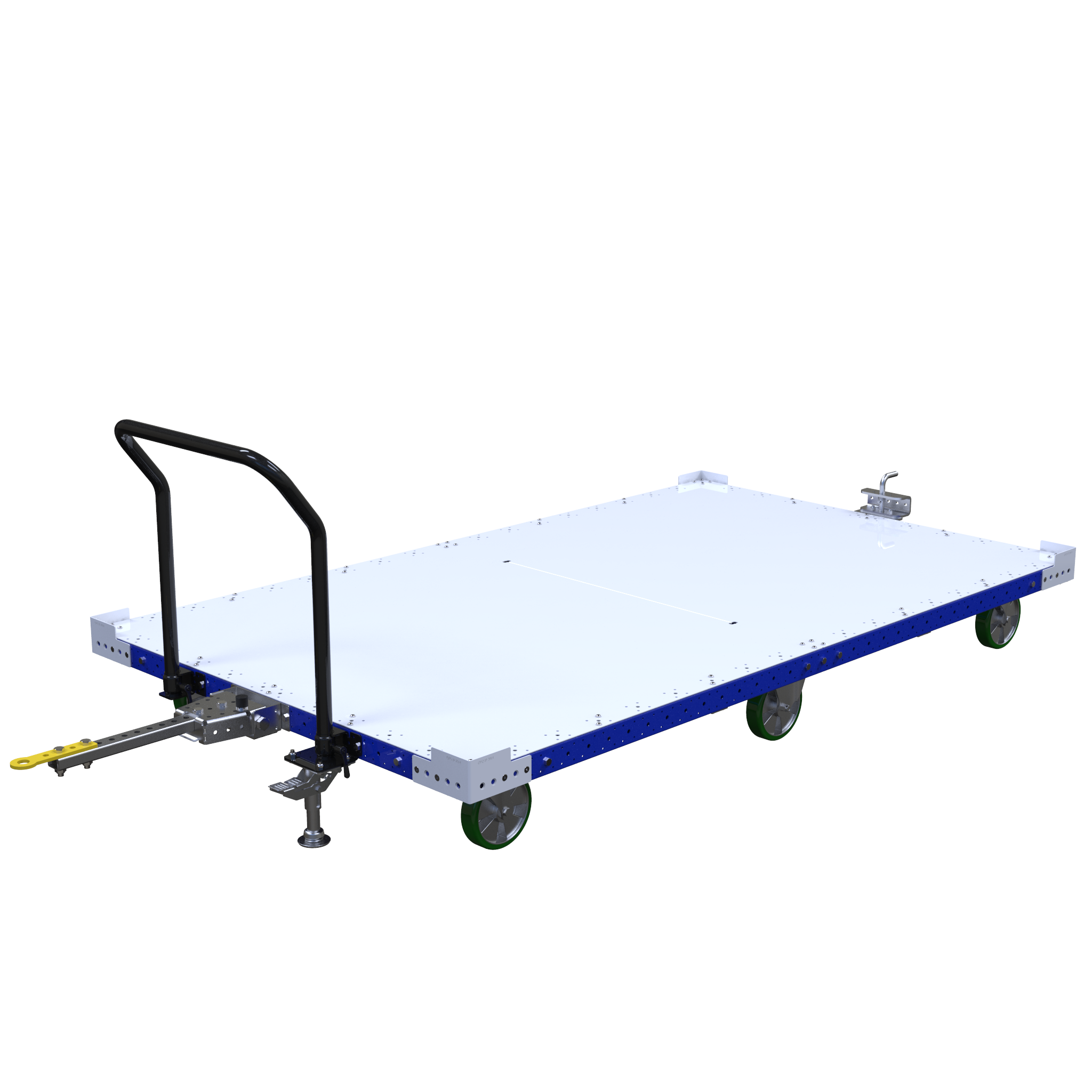

Tugger Cart – 2590 x 1540 mm
Q-100-7121
-
Dollie Rack – 1260 x 1260 mm
Q-100-7390
-
Tugger Cart – 840 x 910 mm
Q-100-4400
-
Tugger Cart w. Sub Frame – 840 x 910 mm
Q-100-4402
-
Sub Frame – 840 x 910 mm
Q-100-4401
-

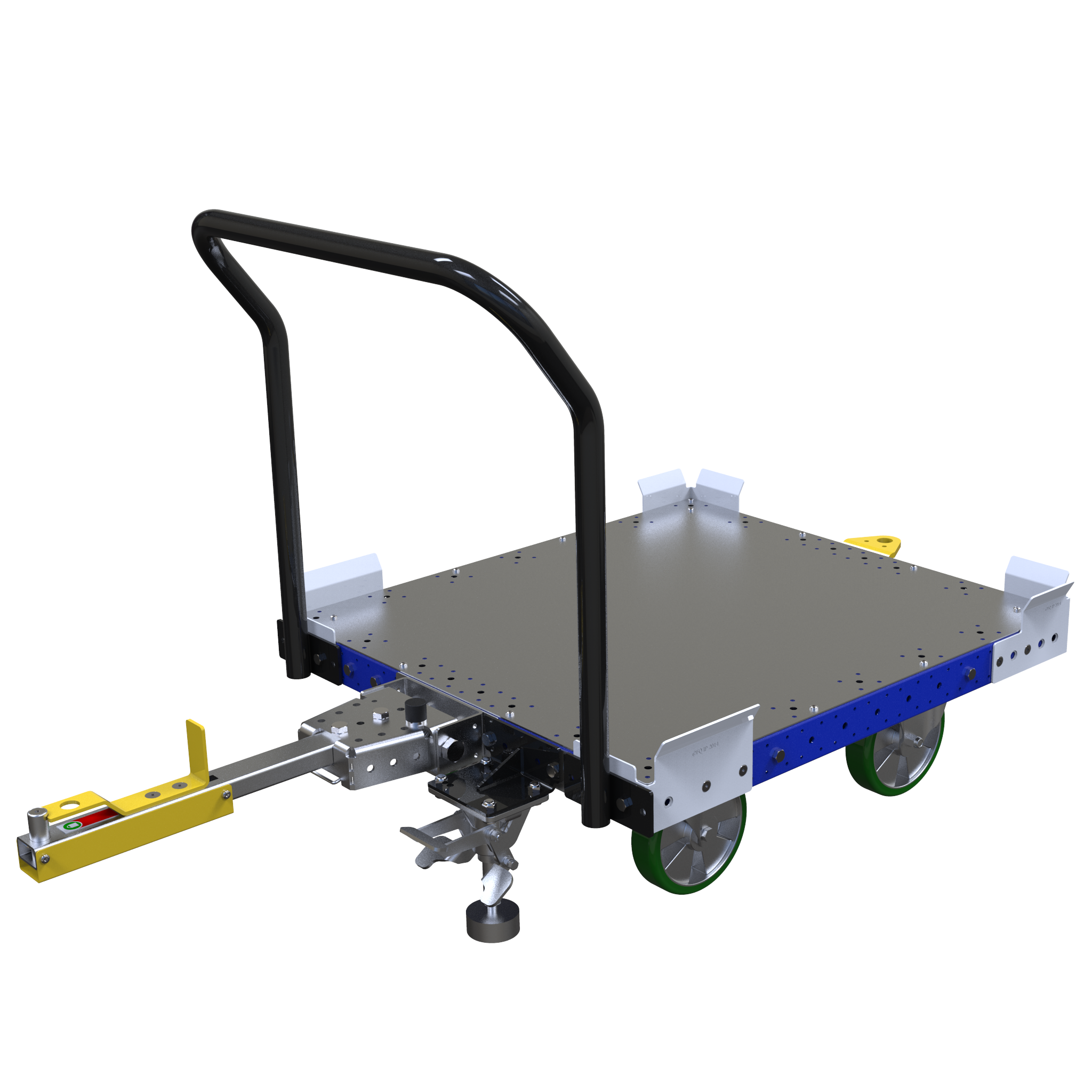

Pallet Tugger Cart – 910 x 840 mm
Q-100-6573
-

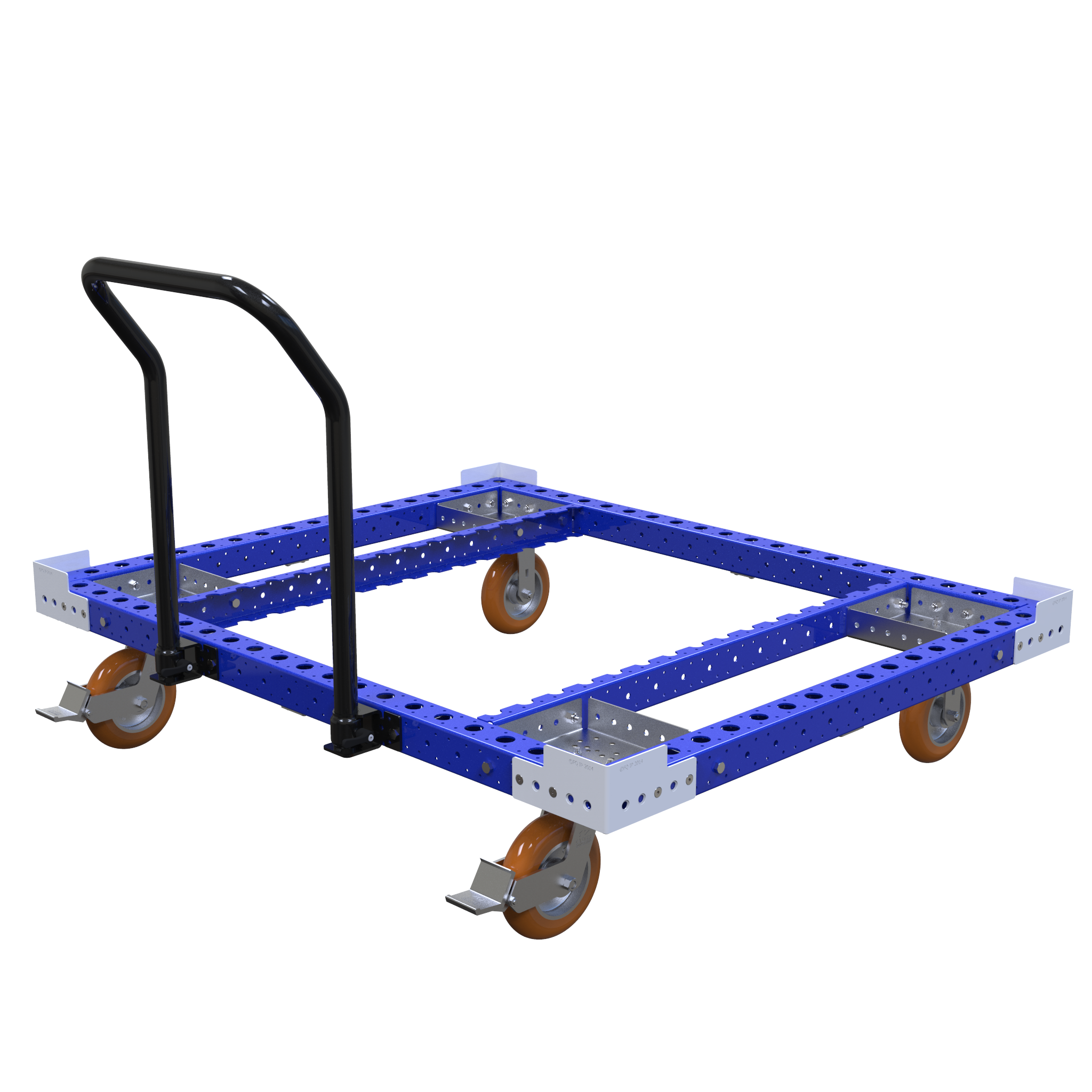

Pallet Cart – 1260 x 1540 mm
Q-100-6830
-

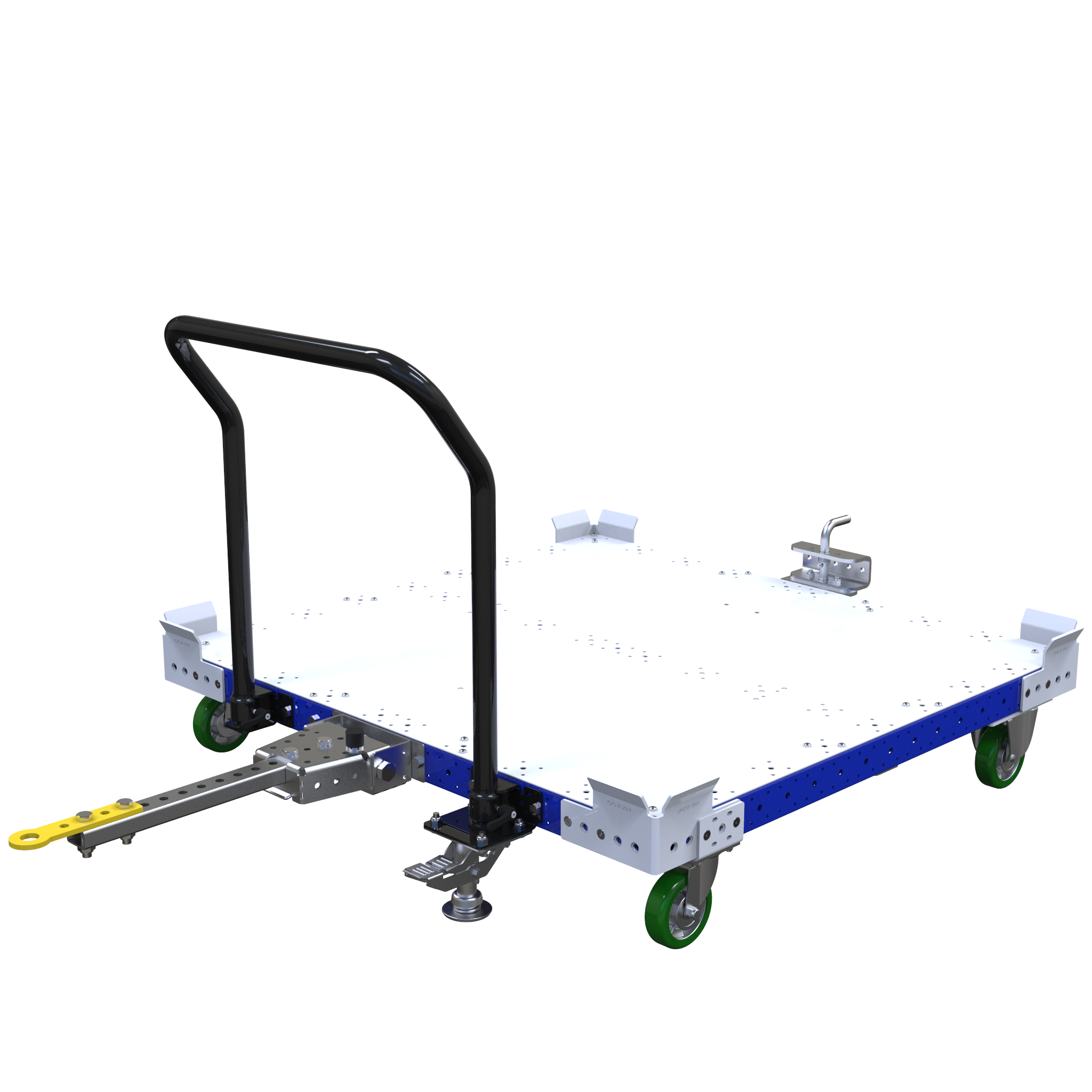

Pallet Tugger Cart – 1190 x 1260 mm
Q-100-6833
-
Tugger Cart – 2520 x 1260 mm
Q-100-6831
-

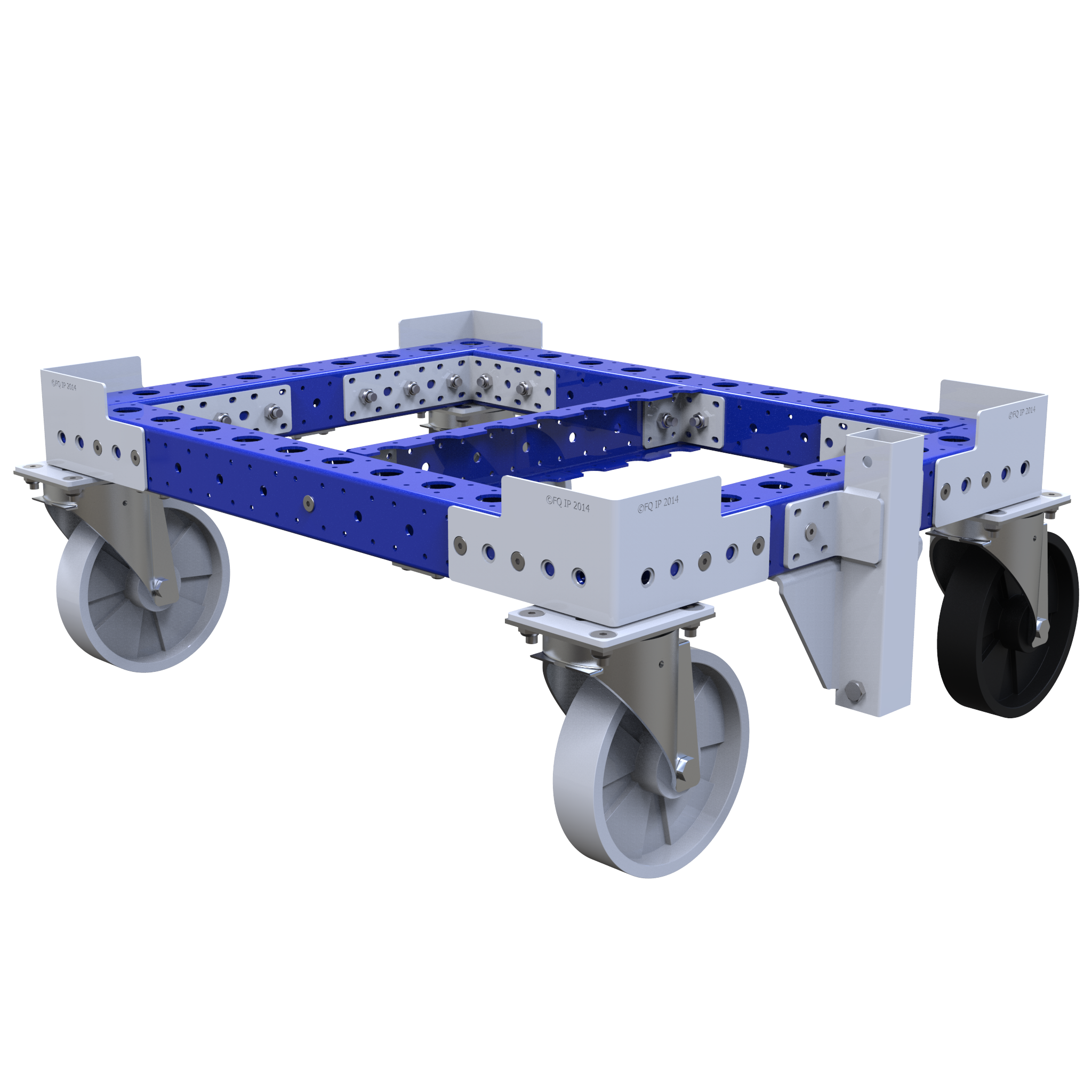

Pallet Cart – 630 x 840 mm
Q-100-6243
-

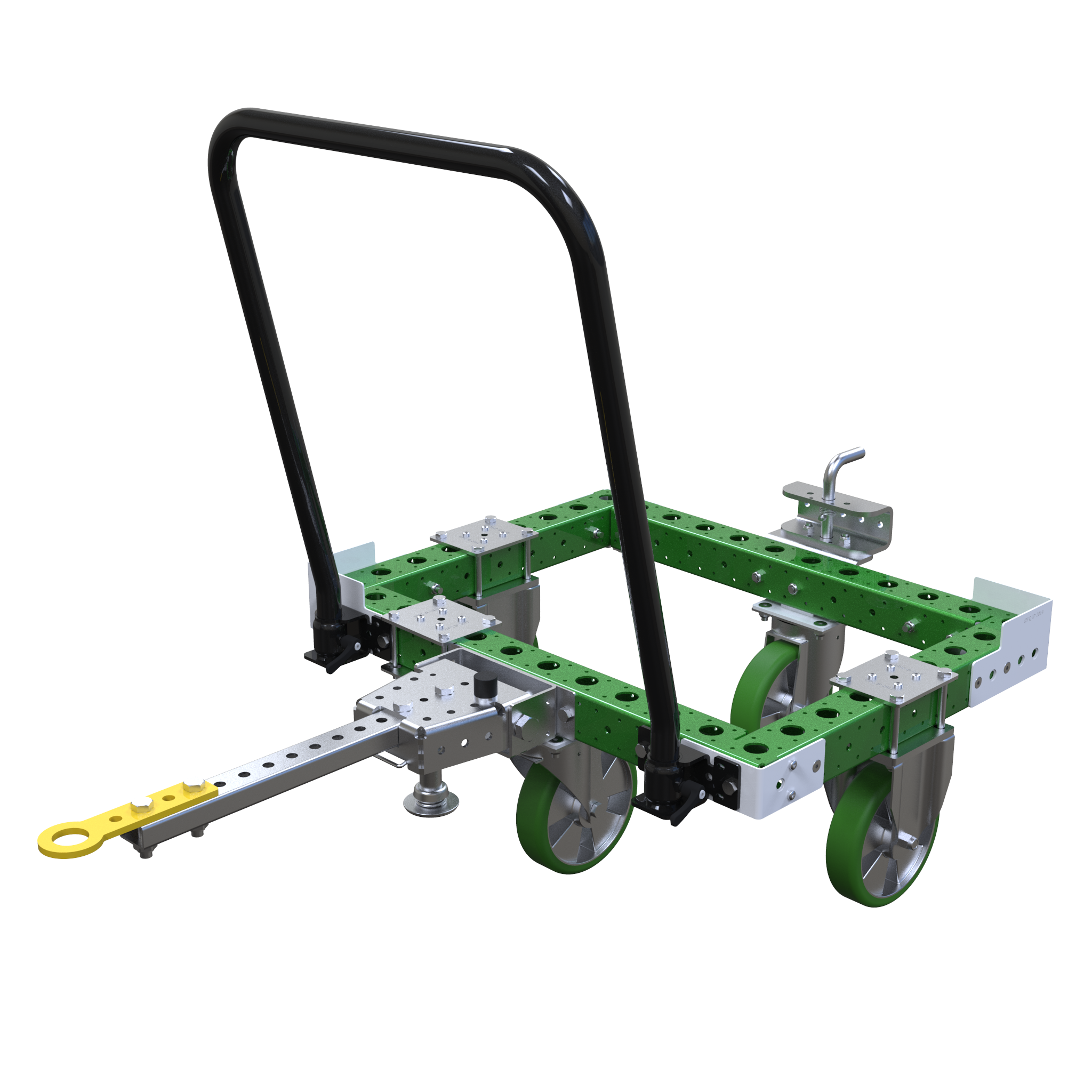

Pallet Cart – 630 x 840 mm
Q-100-6926
-

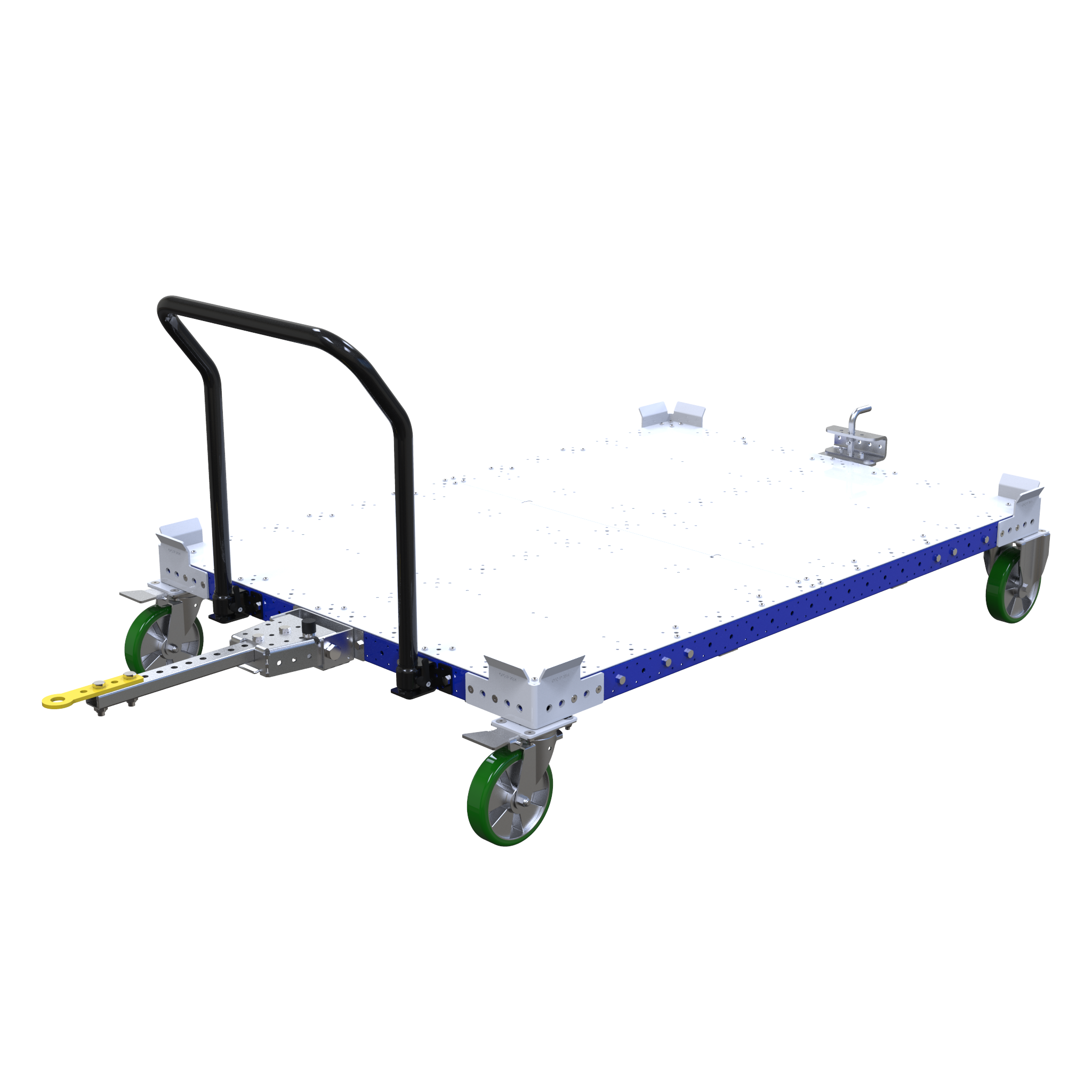

Pallet Tugger Cart – 1820 x 1260 mm
Q-100-6714
-

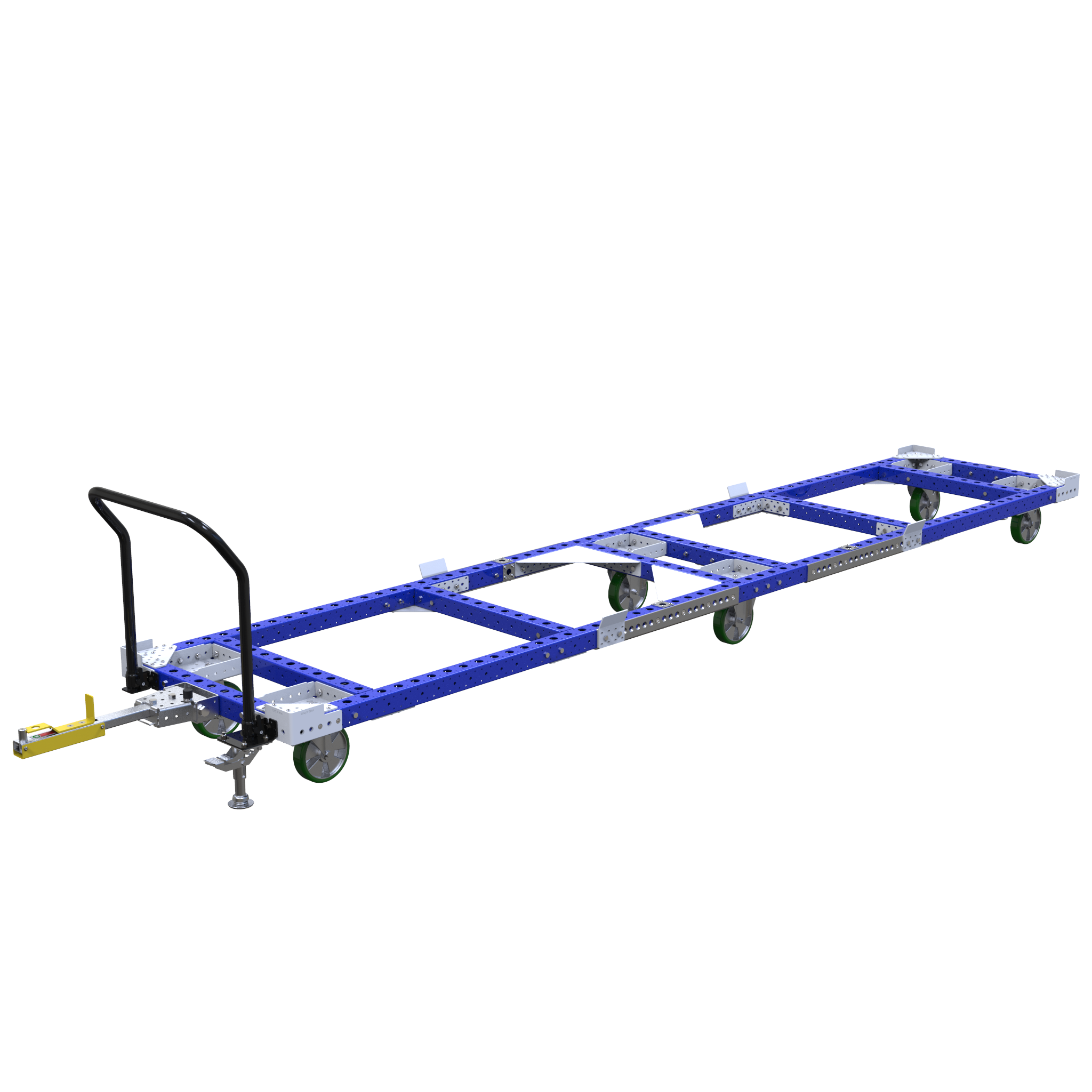

Pallet Tugger Cart – 4550 x 910 mm
Q-100-6751
-
Roller Rack – 2660 x 1330 mm
Q-100-6355
-
Steel Roller Rack – 1260 x 1260 mm
Q-100-6598
-

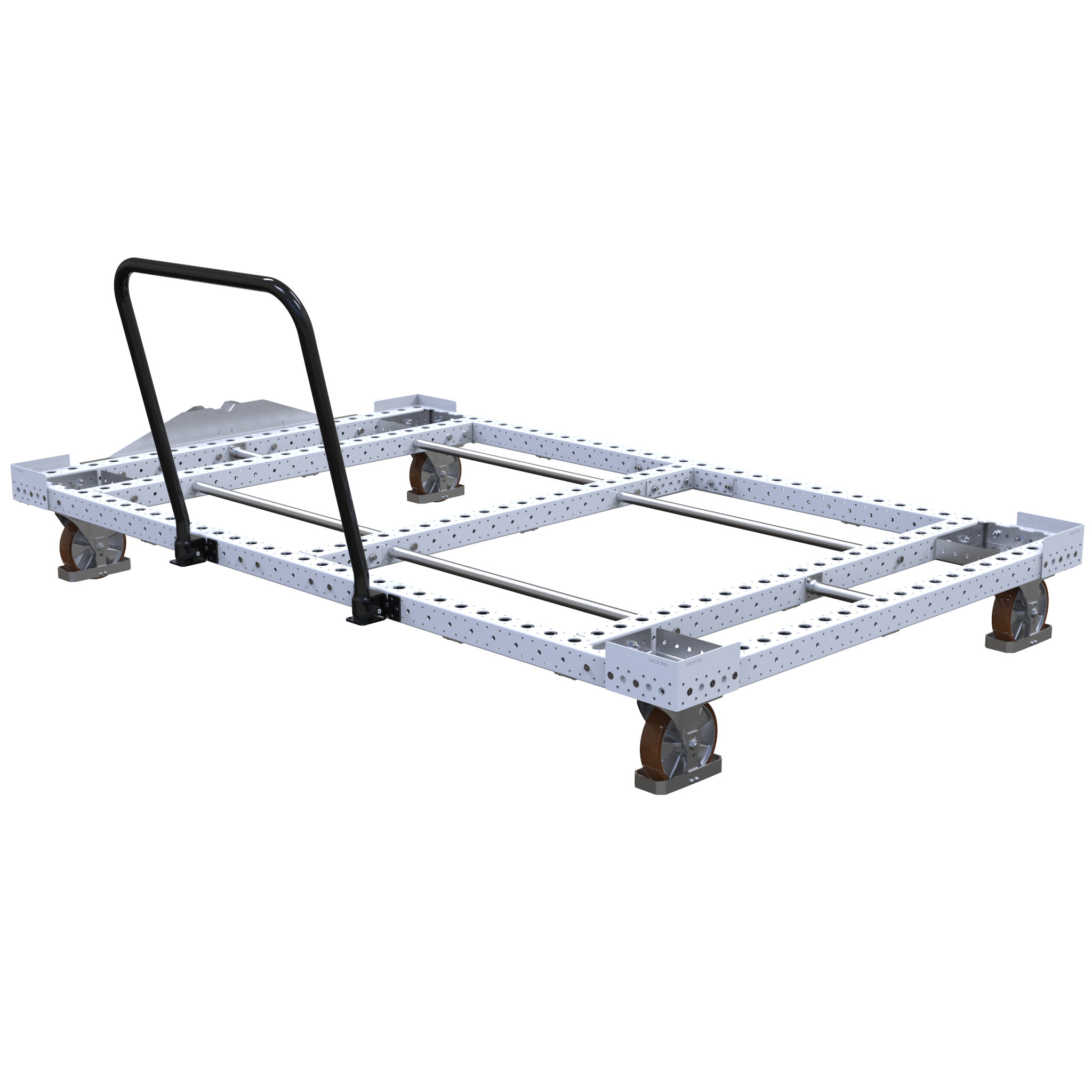

Dollie for I-frame – 2520 x 1540 mm
Q-100-5509
-

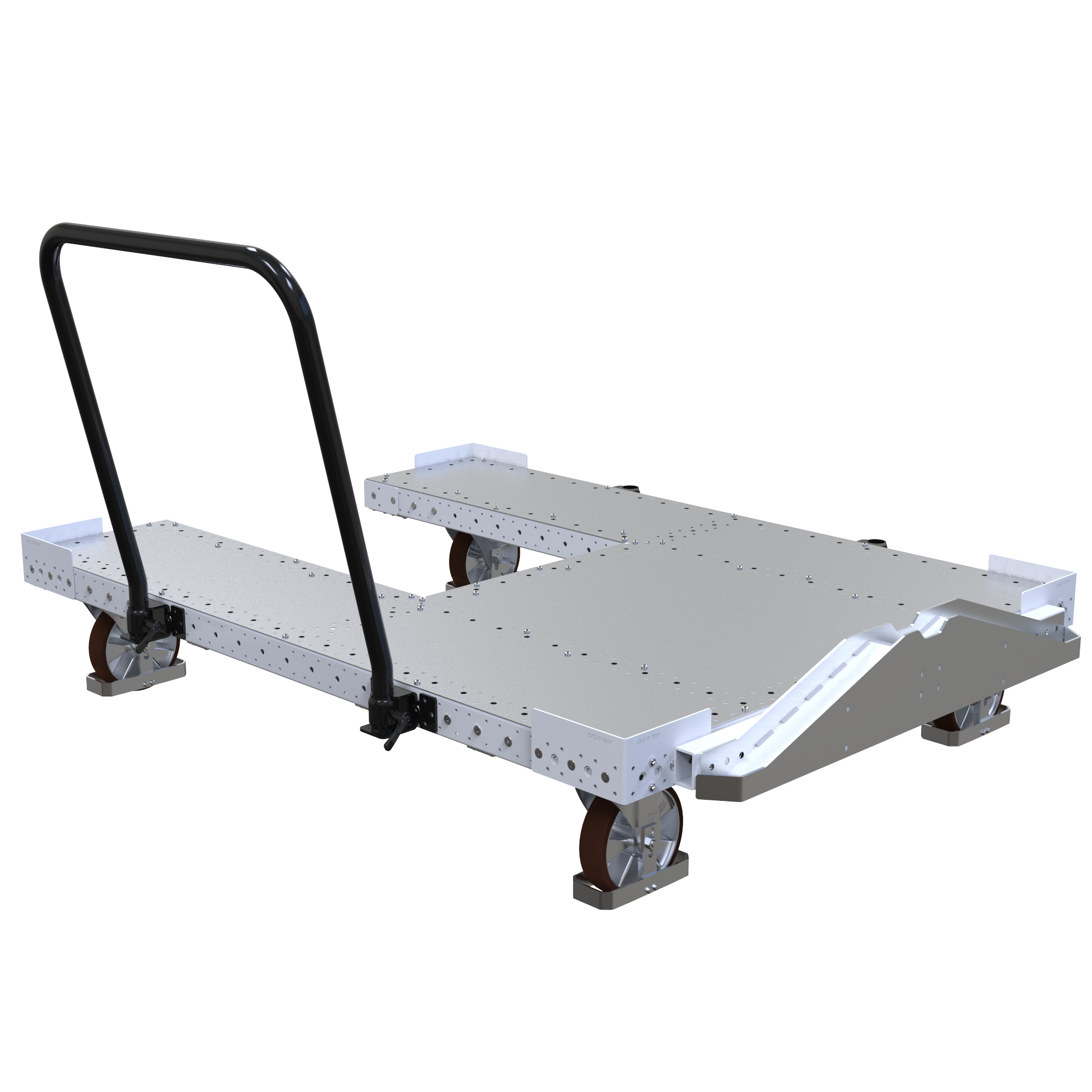

Dollie for I-Frame- 1680 x 1260 mm
Q-100-5178
-

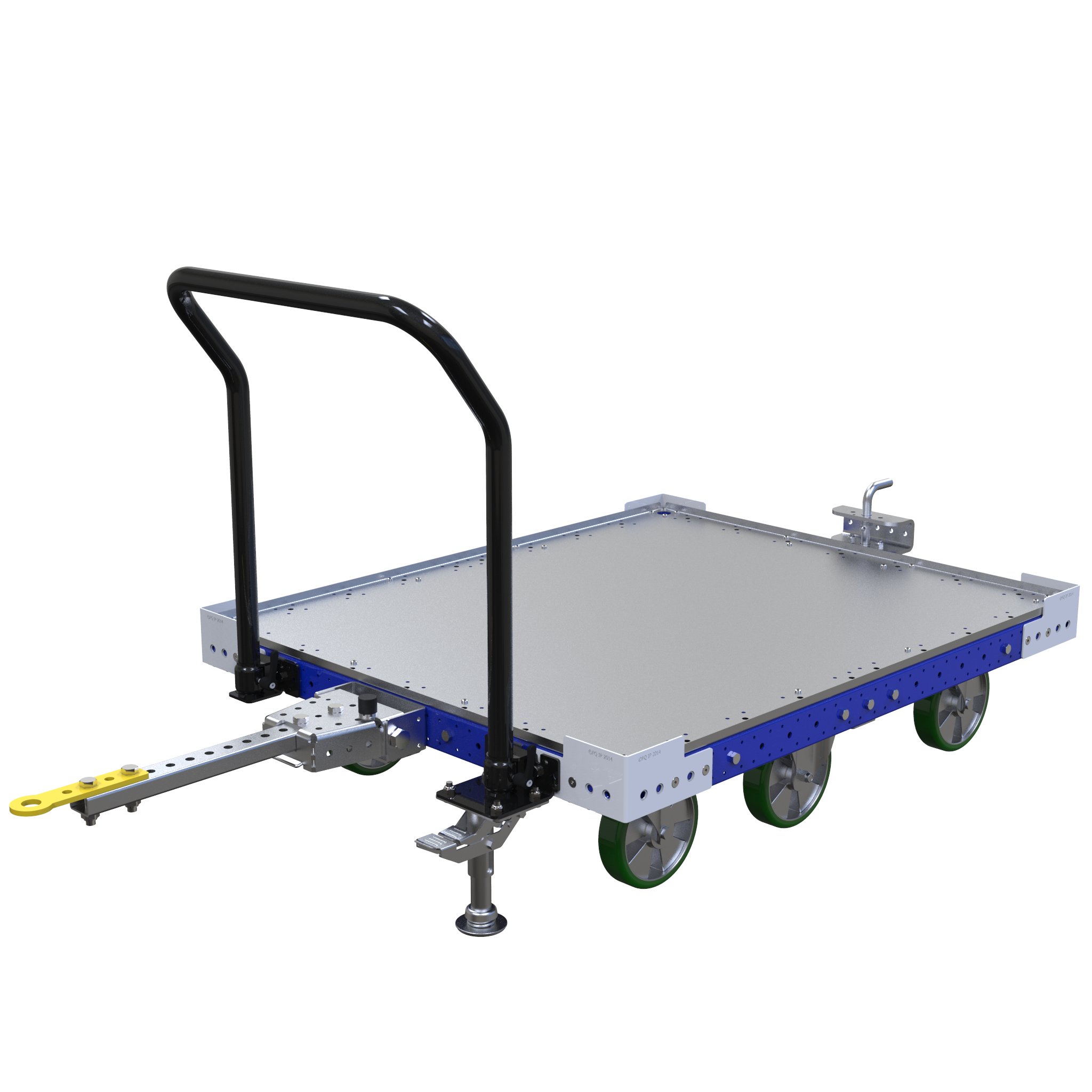

Pallet Tugger Cart – 1260 x 1050 mm
Q-100-6827
-

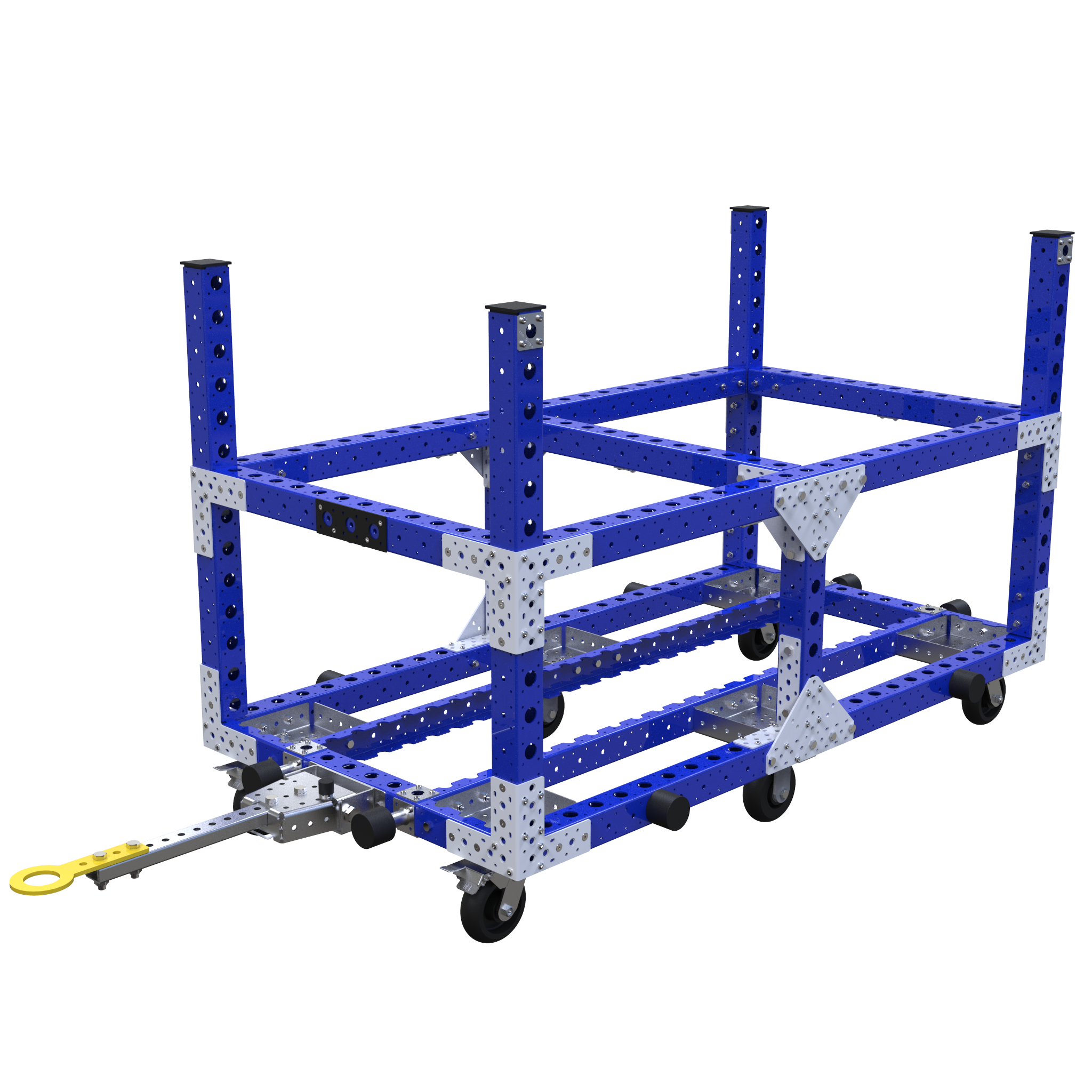

Carts for Rails- 1820 x 980 mm
Q-100-6811
-
Rotating Top Cart – 1260 x 840 mm
Q-100-6679
-
Roller Cart – 1400 x 1400 mm
Q-100-6665
-

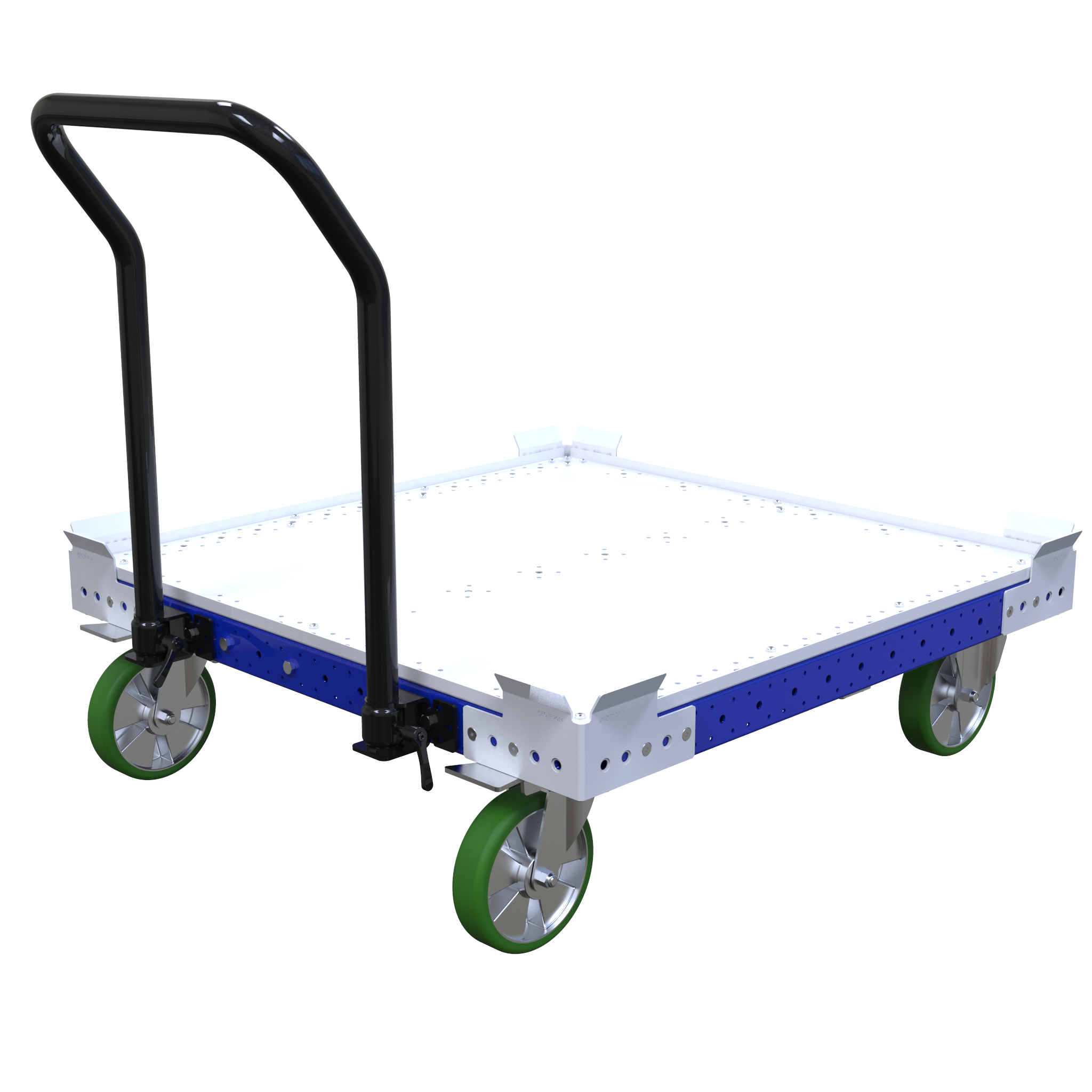

Pallet Cart – 1050 x 1050 mm
Q-100-6349
-

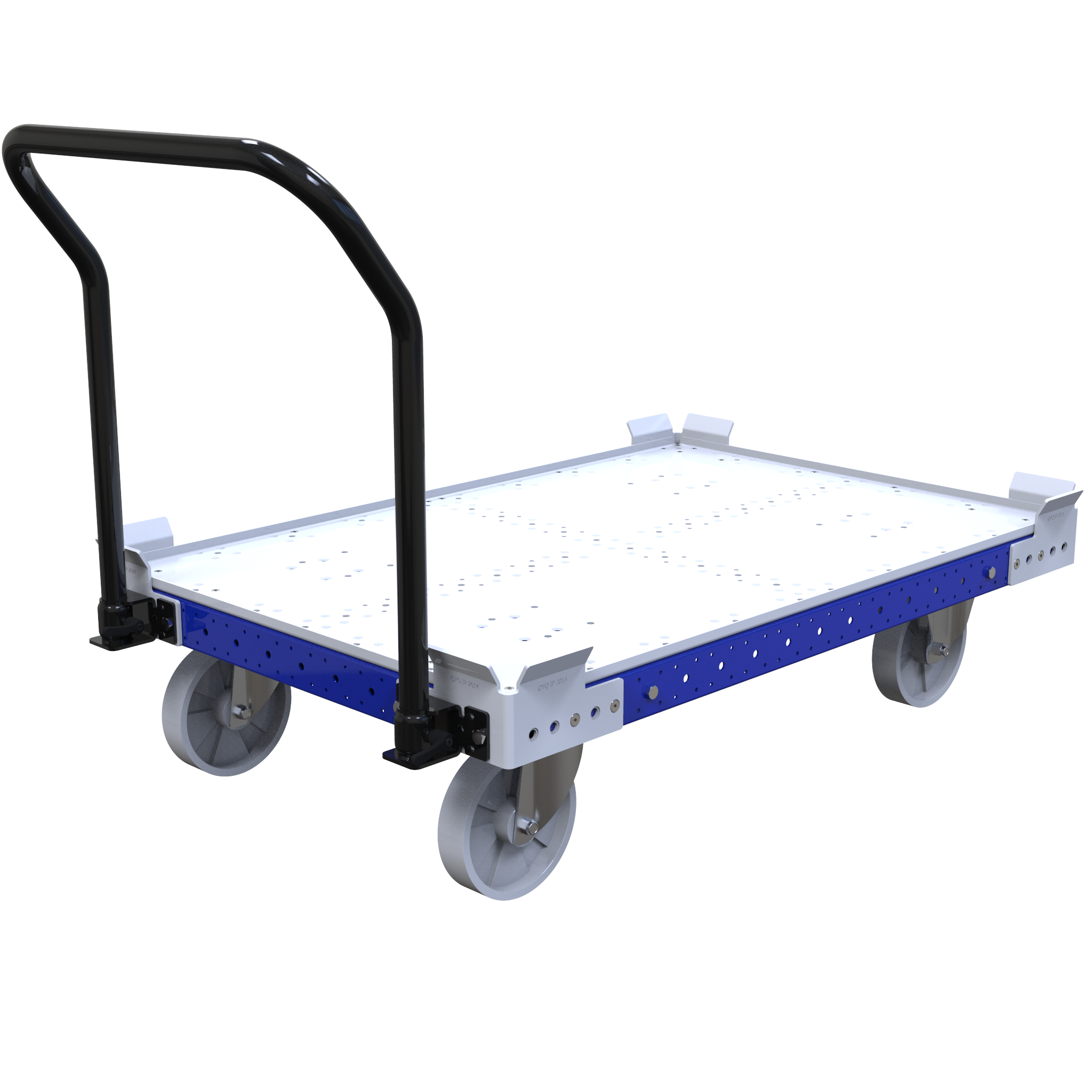

Pallet Cart – 1260 x 840 mm
Q-100-6778
-
Roller cart – 1260 x 840 mm
Q-100-6695
-

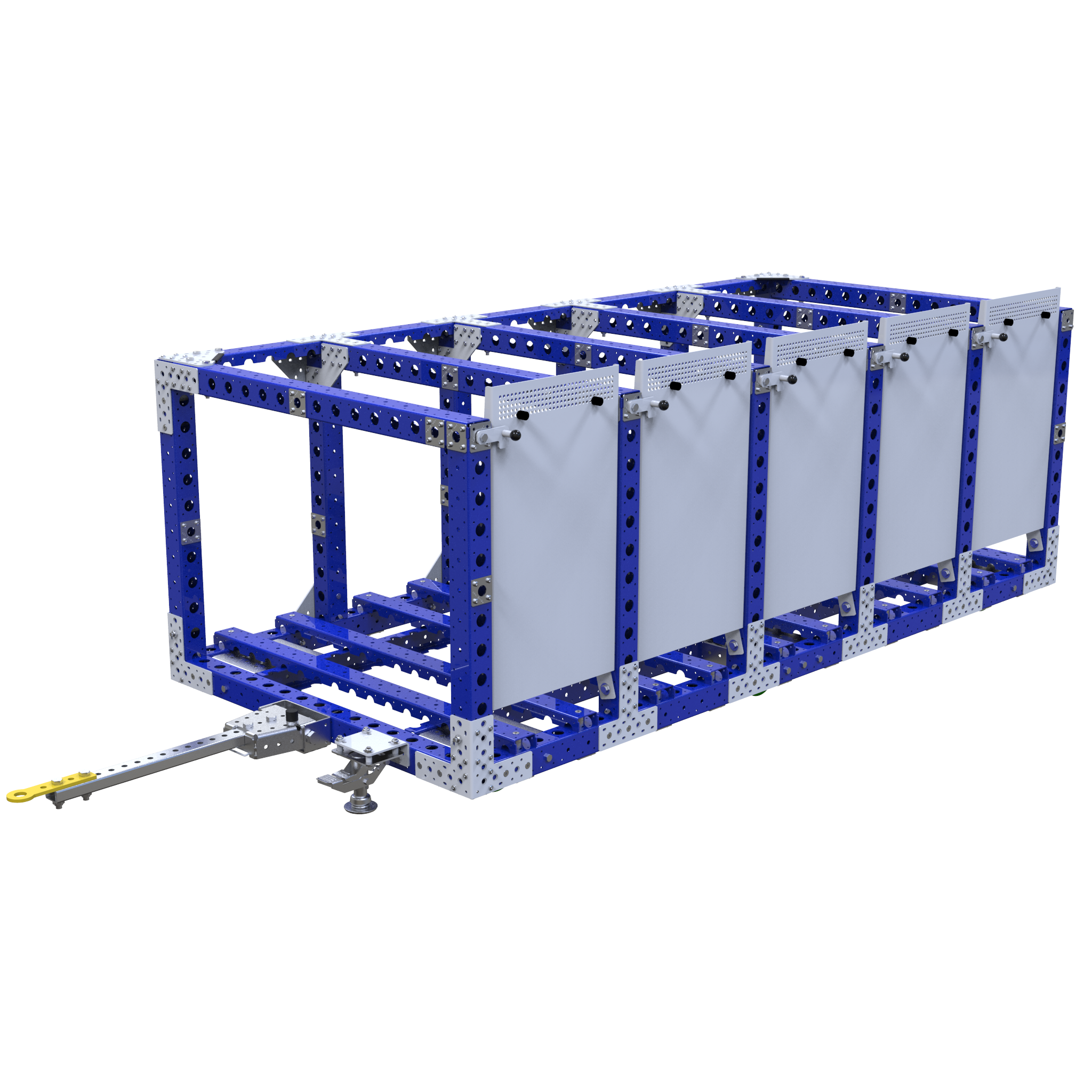

Tire Cart – 2520 x 1190 mm
Q-100-5645
-
Roller Rack – 3640 x 840 mm
Q-100-6181
-
Roller Rack – 3460 x 840 mm
Q-100-6170
-
Roller Cart – 700 x 840 mm
Q-100-6172
-

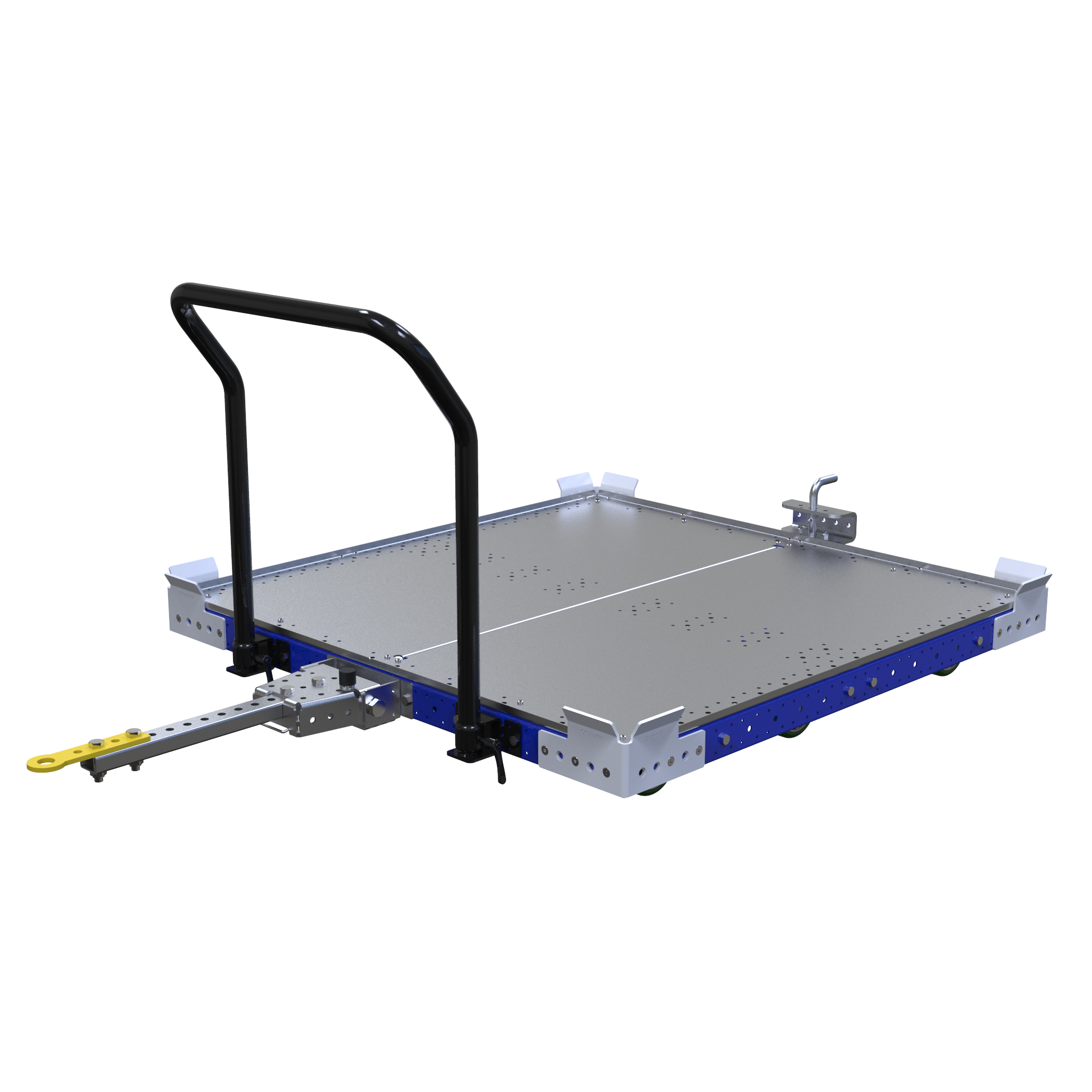

Low Rider Tugger Cart -1260 x 1260 mm
Q-100-6698
-

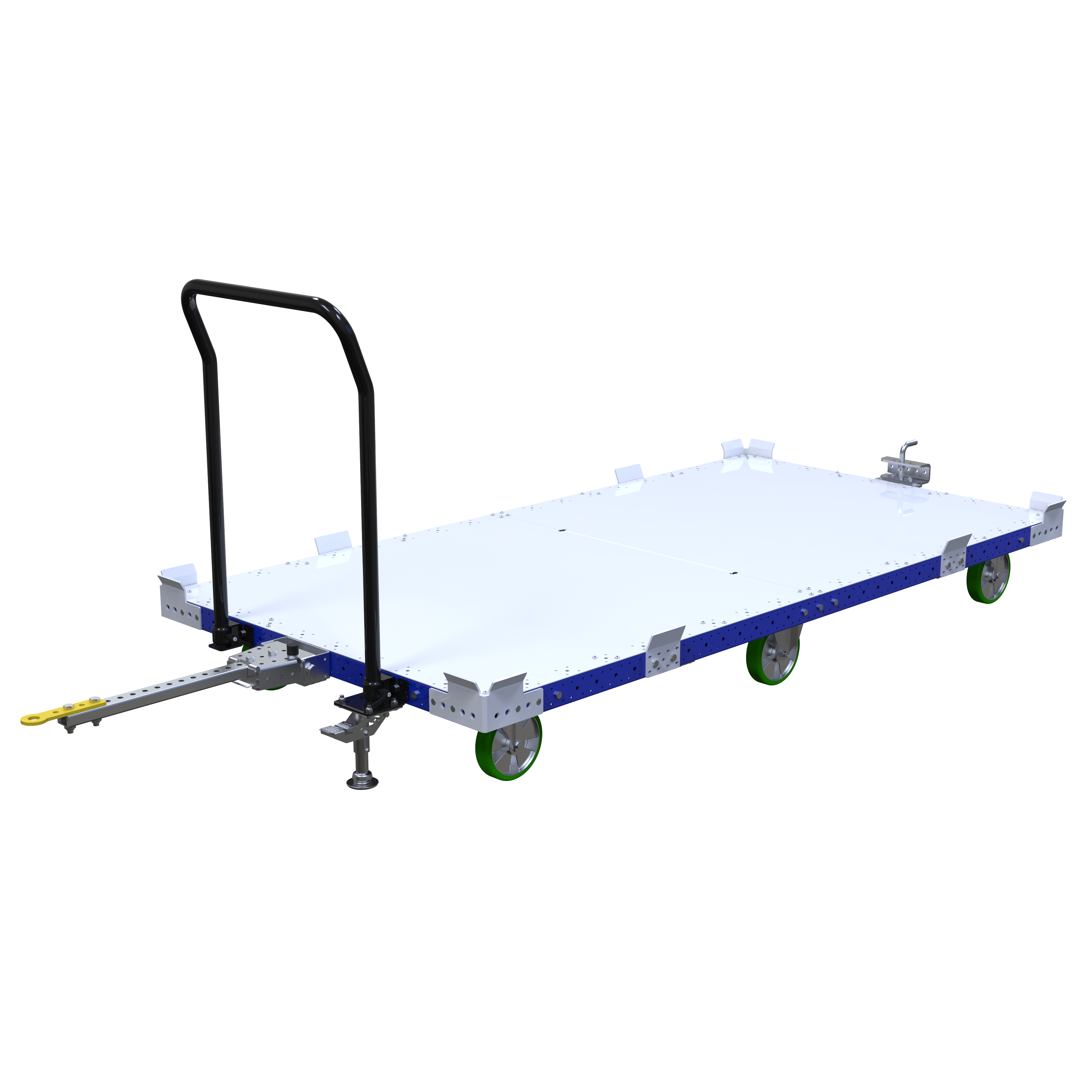

Pallet Tugger Cart – 2590 x 1330 mm
Q-100-6323
-

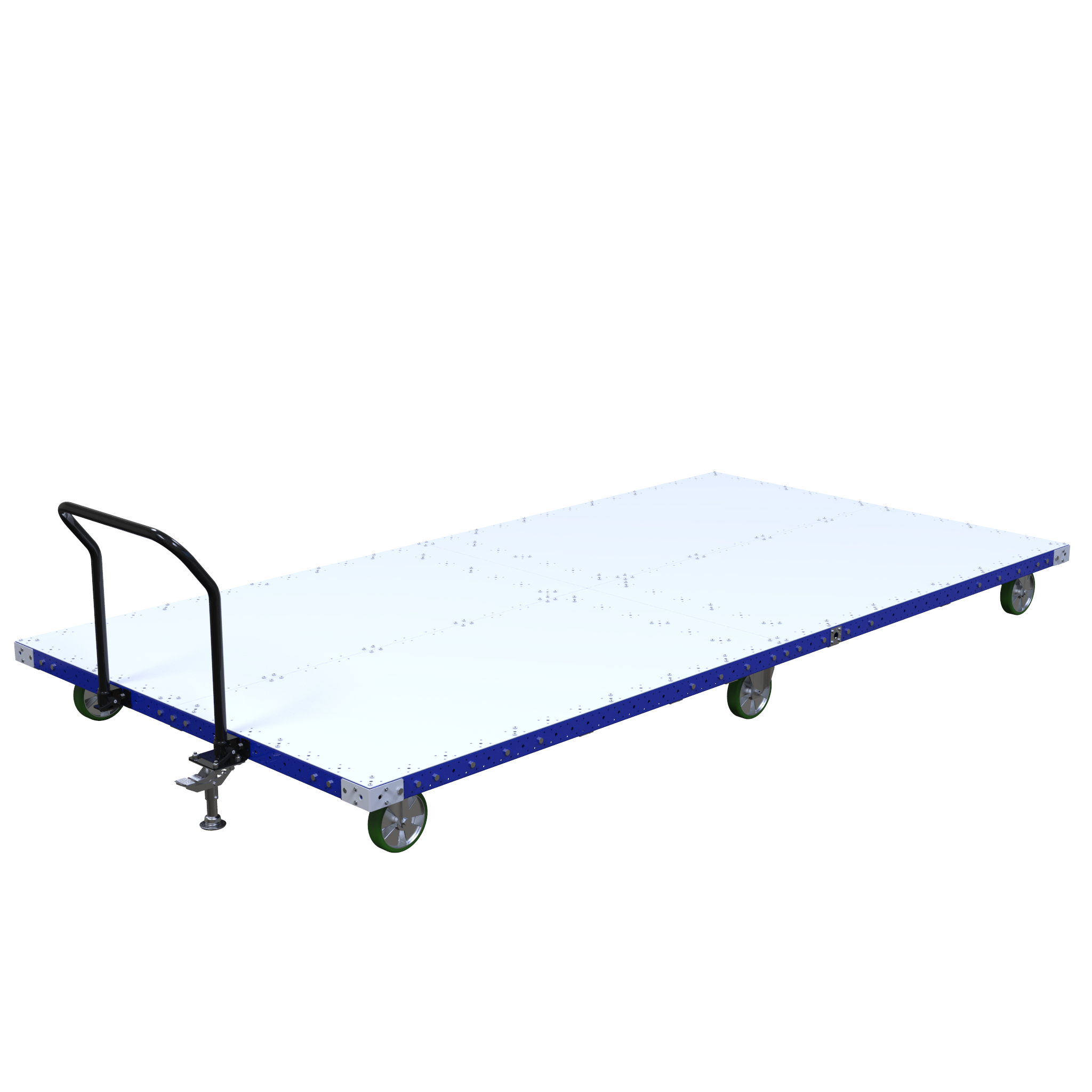

Pallet Tugger Cart – 3710 x 1890 mm
Q-100-6586
-

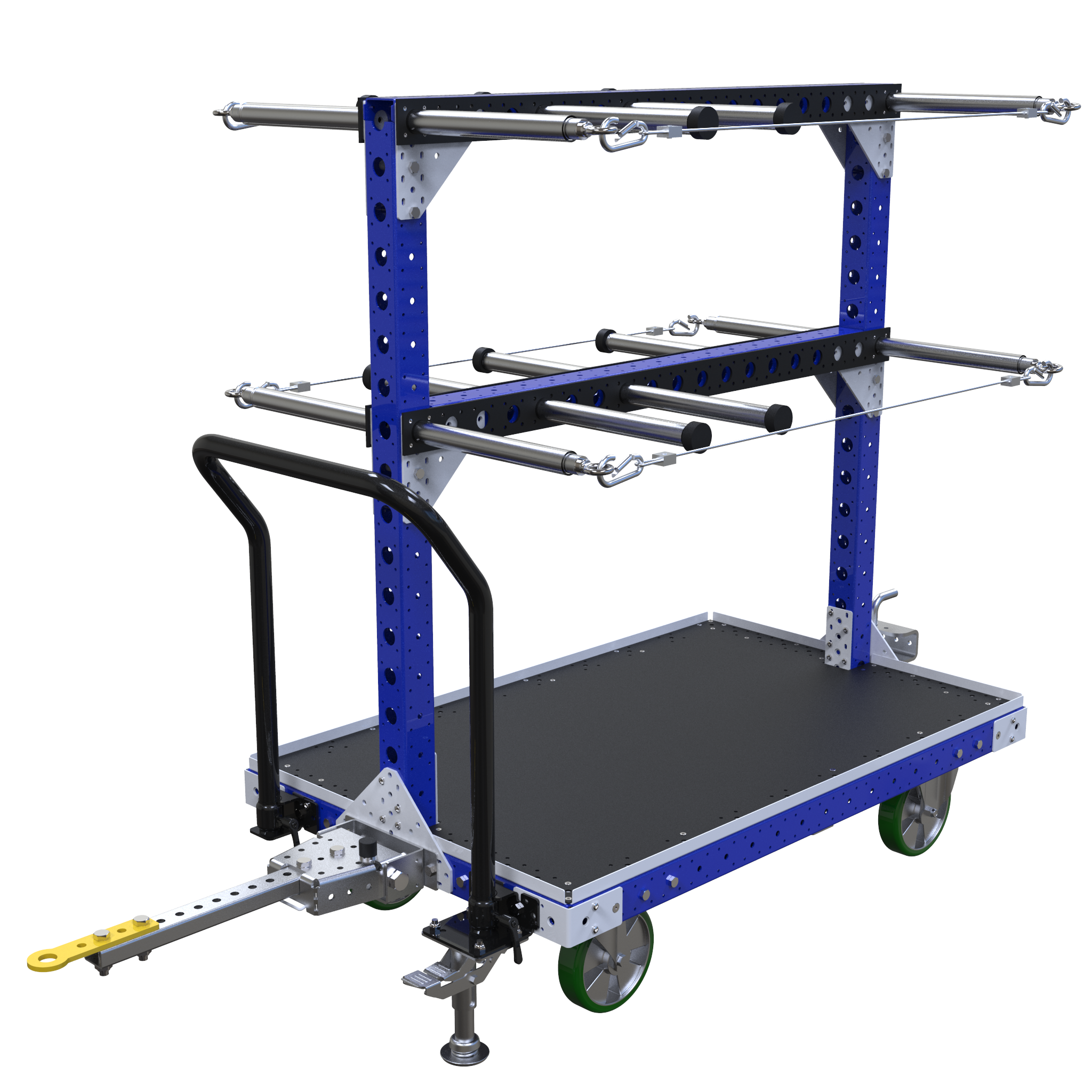

Pallet Cart – 1330x 840 mm
Q-100-6077
-

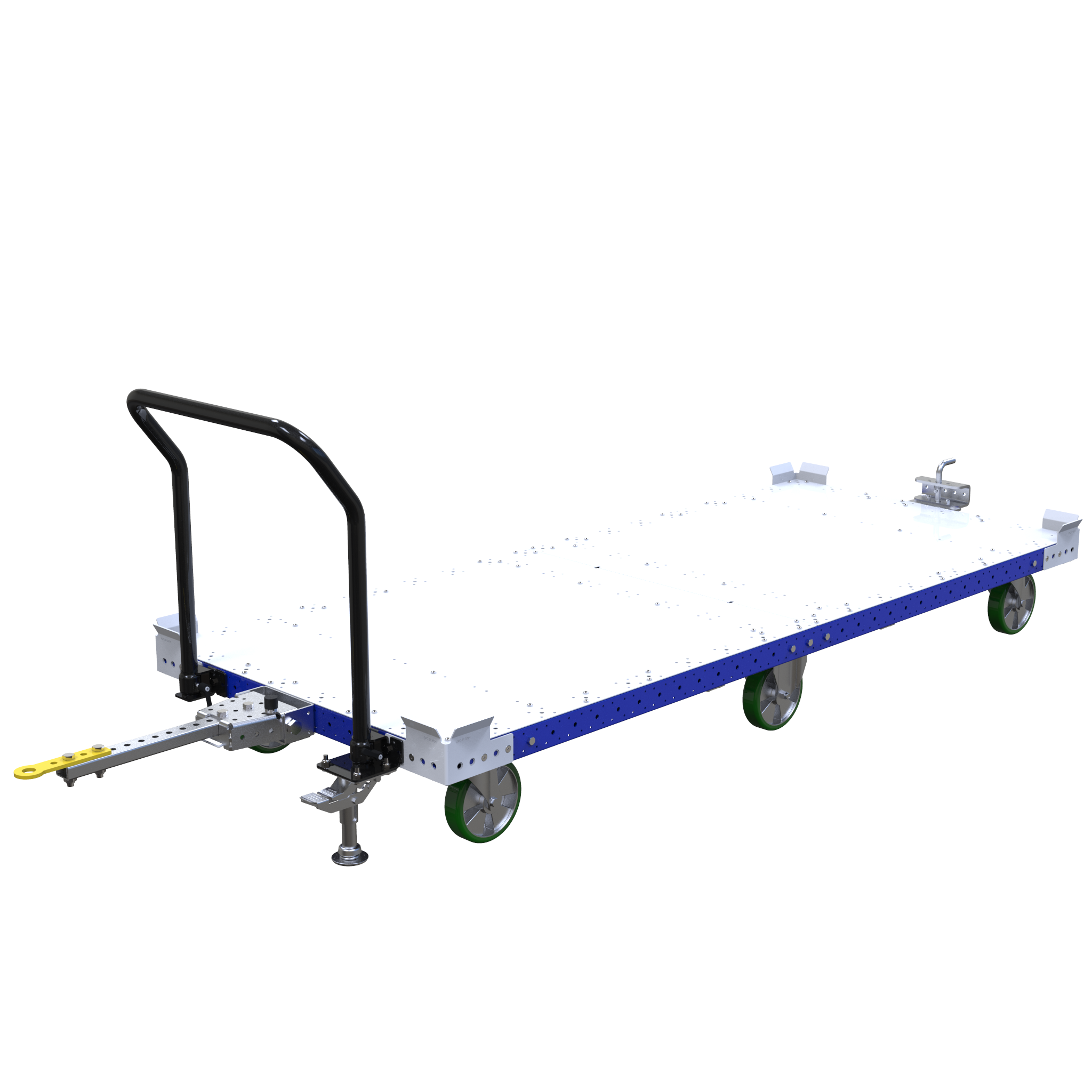

Pallet Tugger Cart – 2520 x 1050 mm
Q-100-6650
-

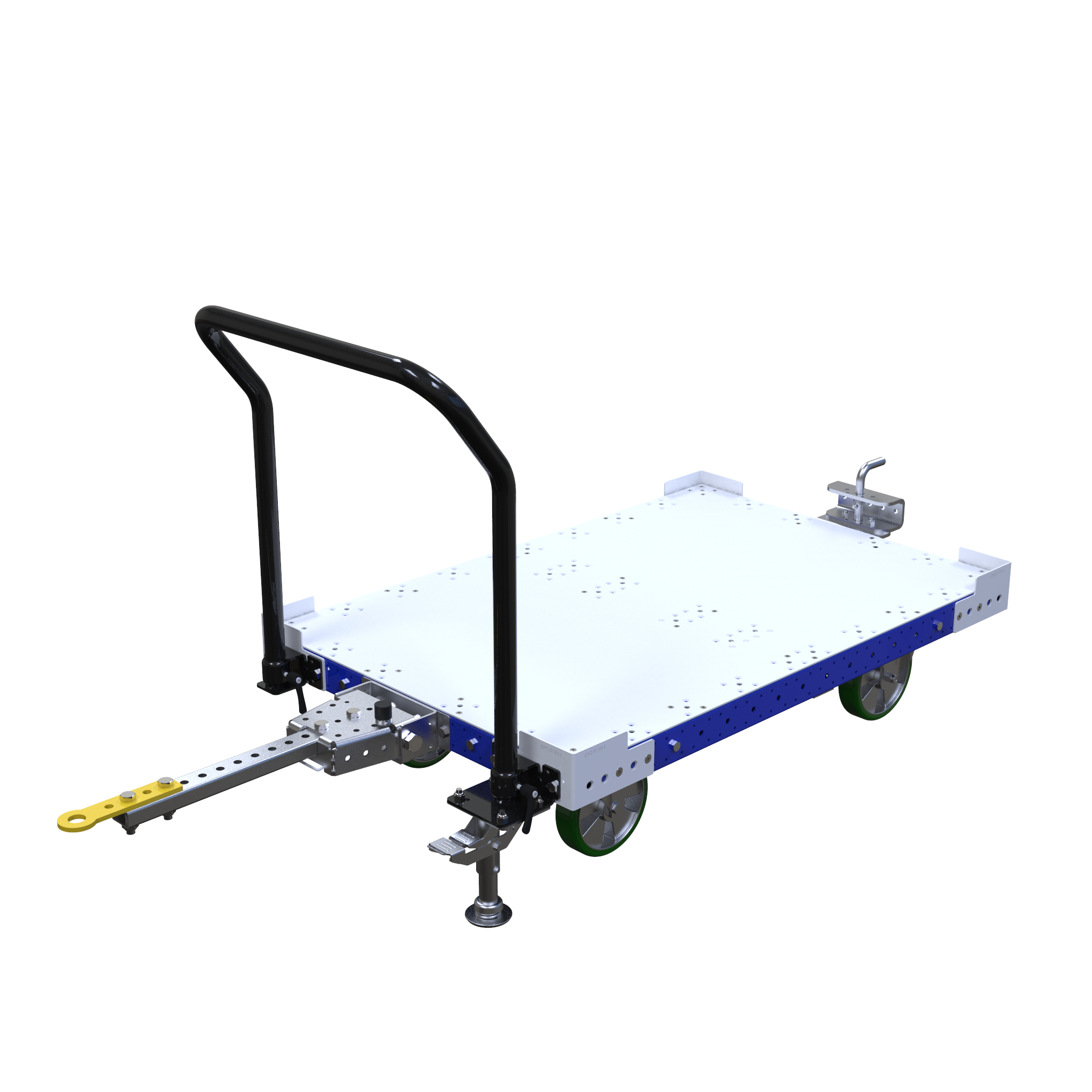

Pallet Tugger Cart – 1260 x 840 mm
Q-100-6601
-

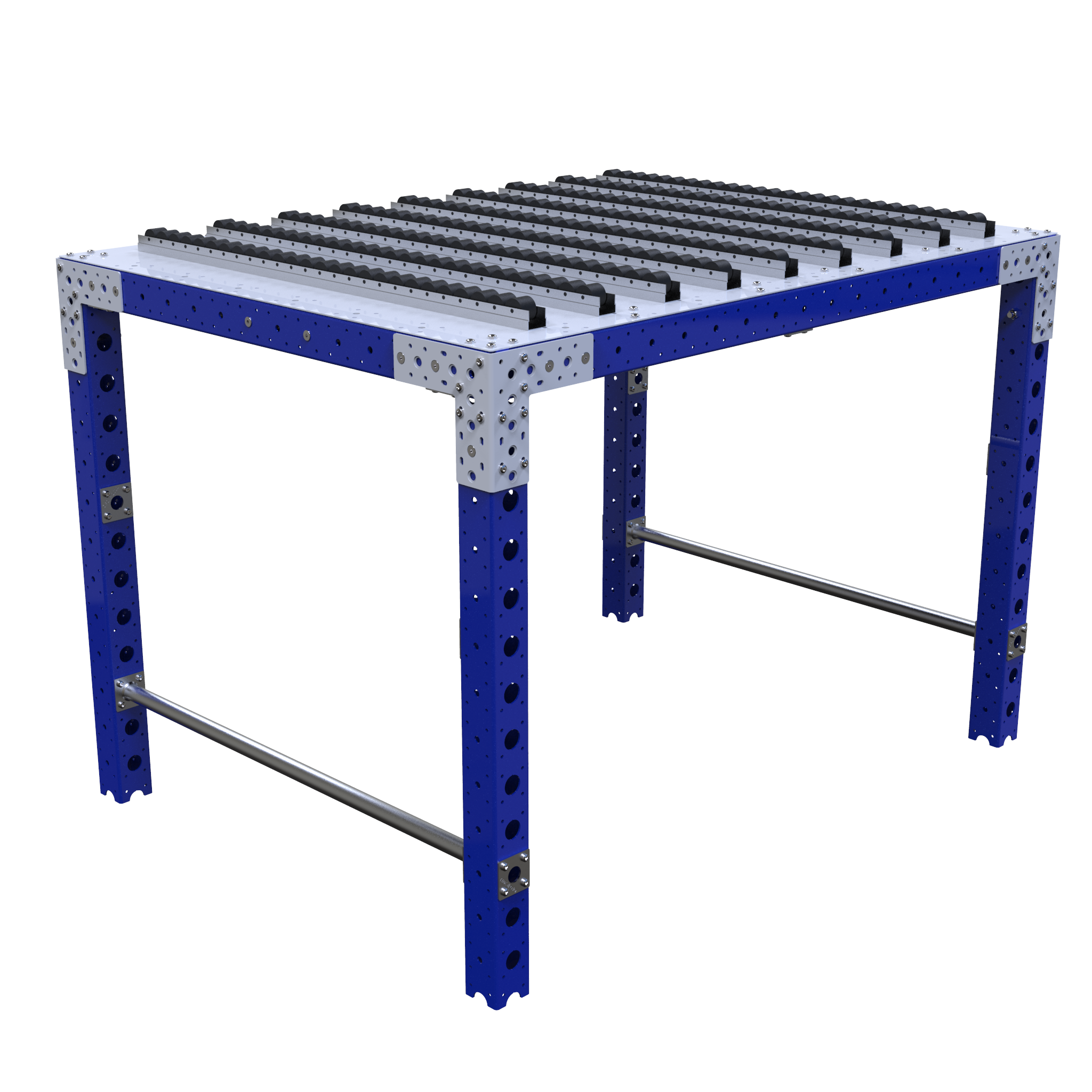

Table Top – 1400 x 1050 mm
Q-100-6460
-

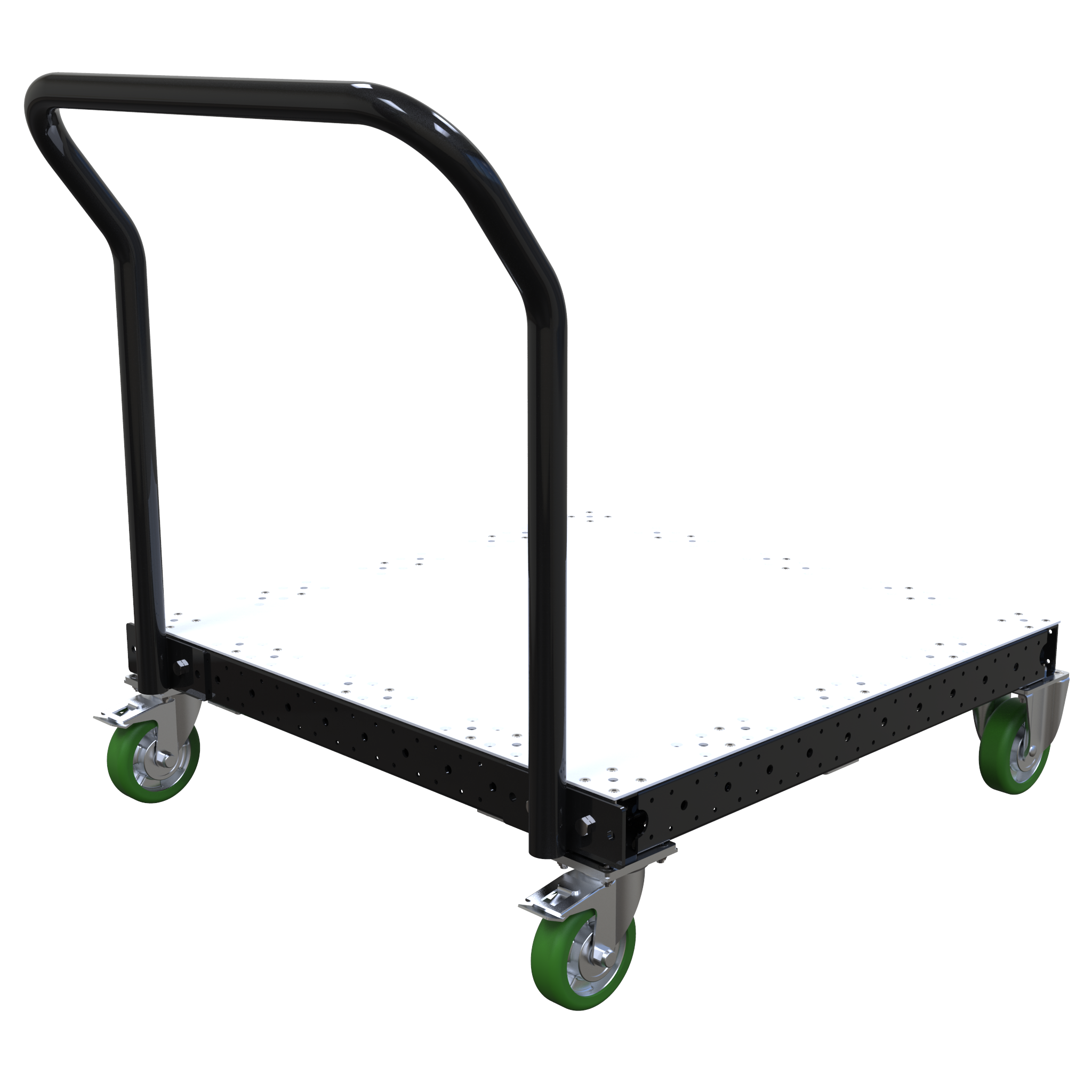

Push Cart – 840 x 840 mm
Q-100-6524
-
Tugger Cart -2030 x 1260 mm
-

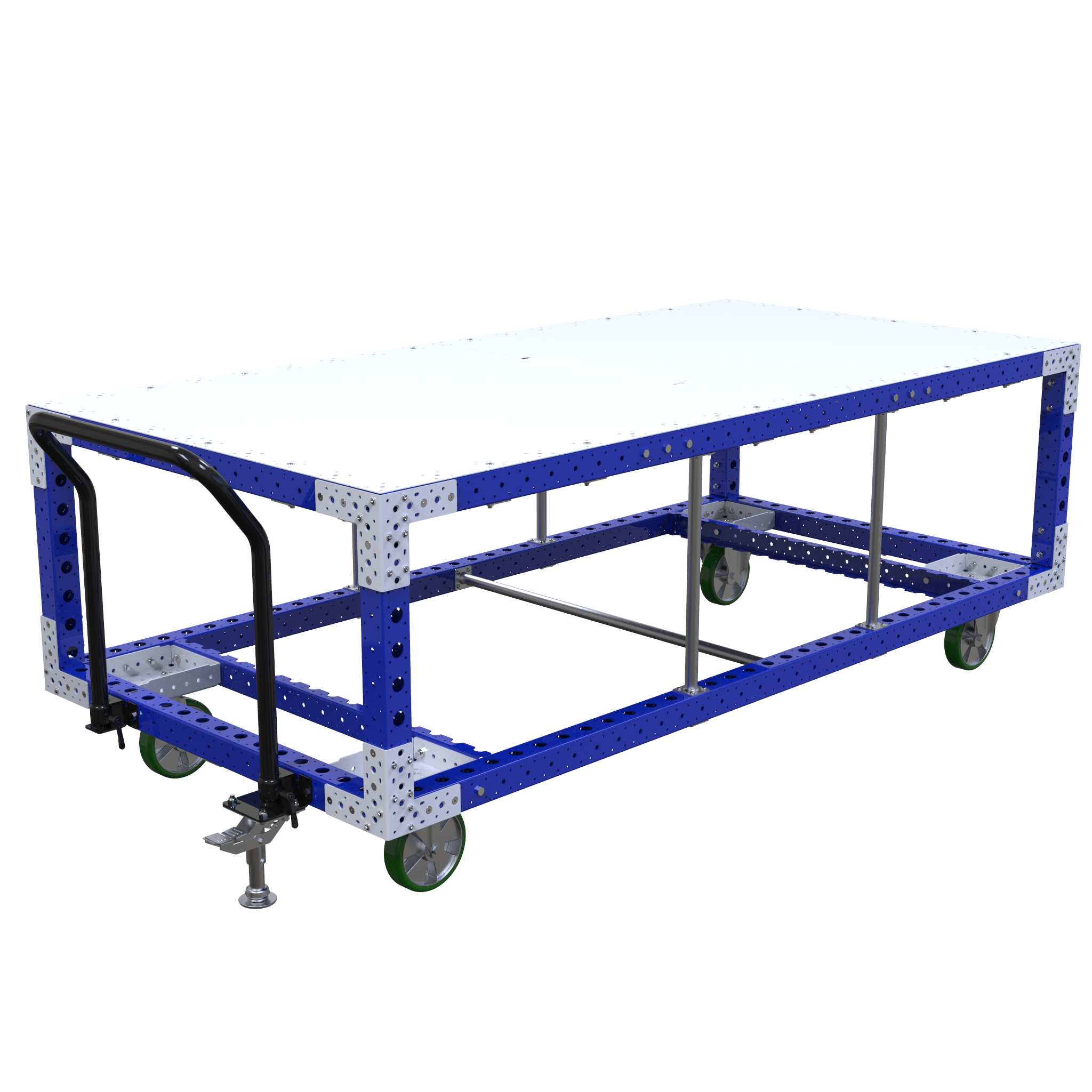

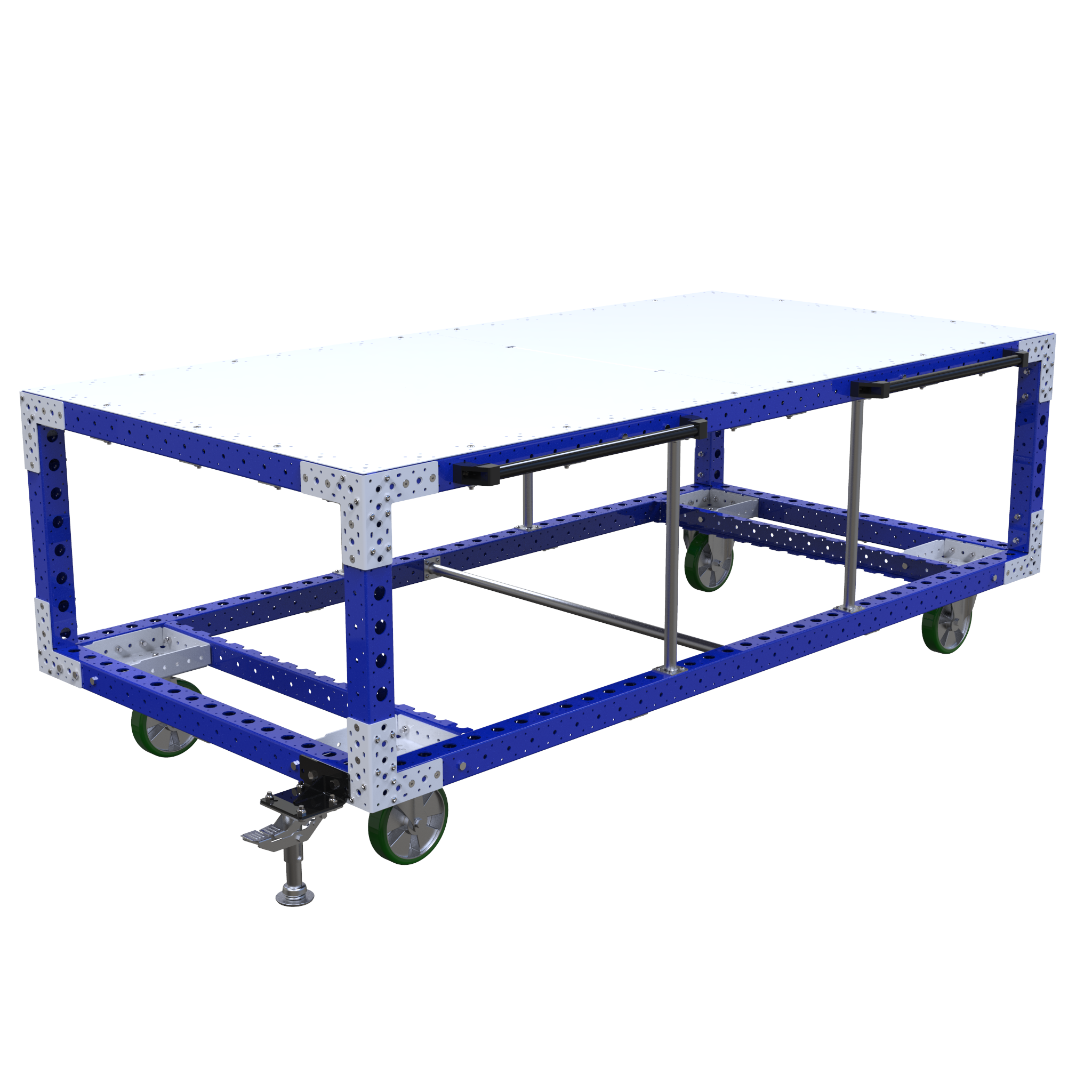

Table Cart – 2520 x 1260 mm
Q-100-6330
-
Table Cart – 2520 x 1260 mm
Q-100-6339
-

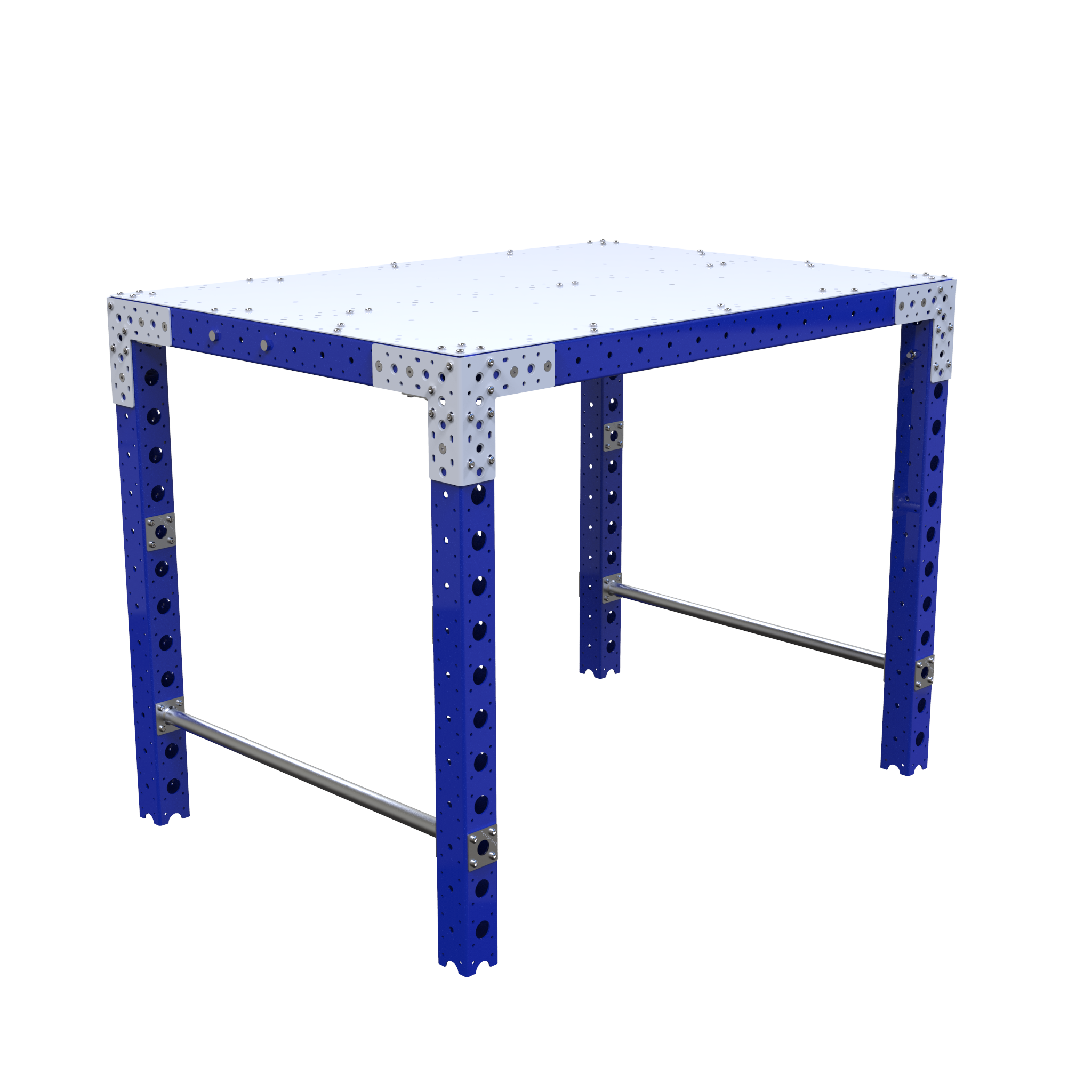

Work Table – 1260 x 910 mm
Q-100-6459
-
Pallet Cart – 1260 x 1050 mm
Q-100-6103
-

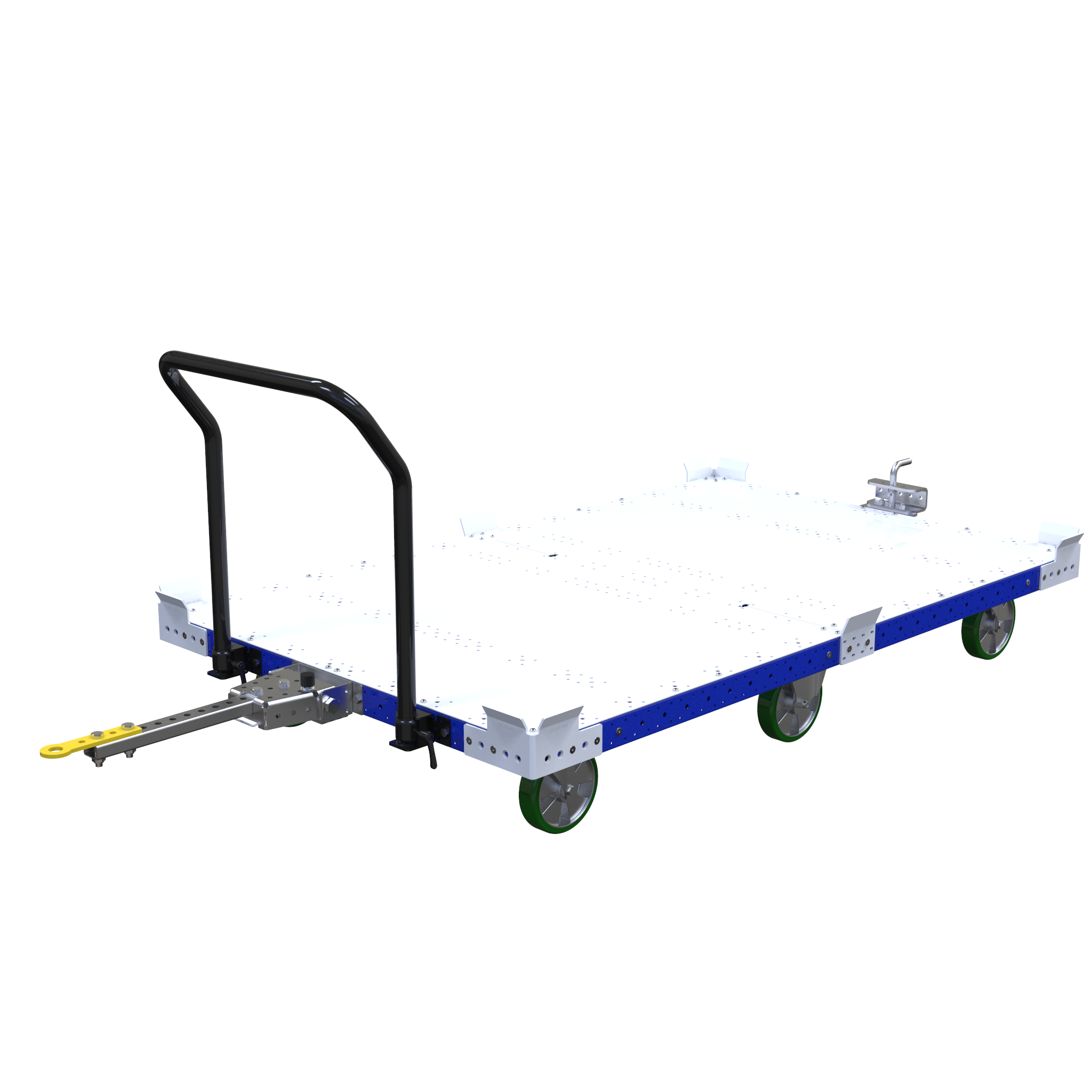

Tugger Cart -2030 x 1260 mm
Q-100-6585
-

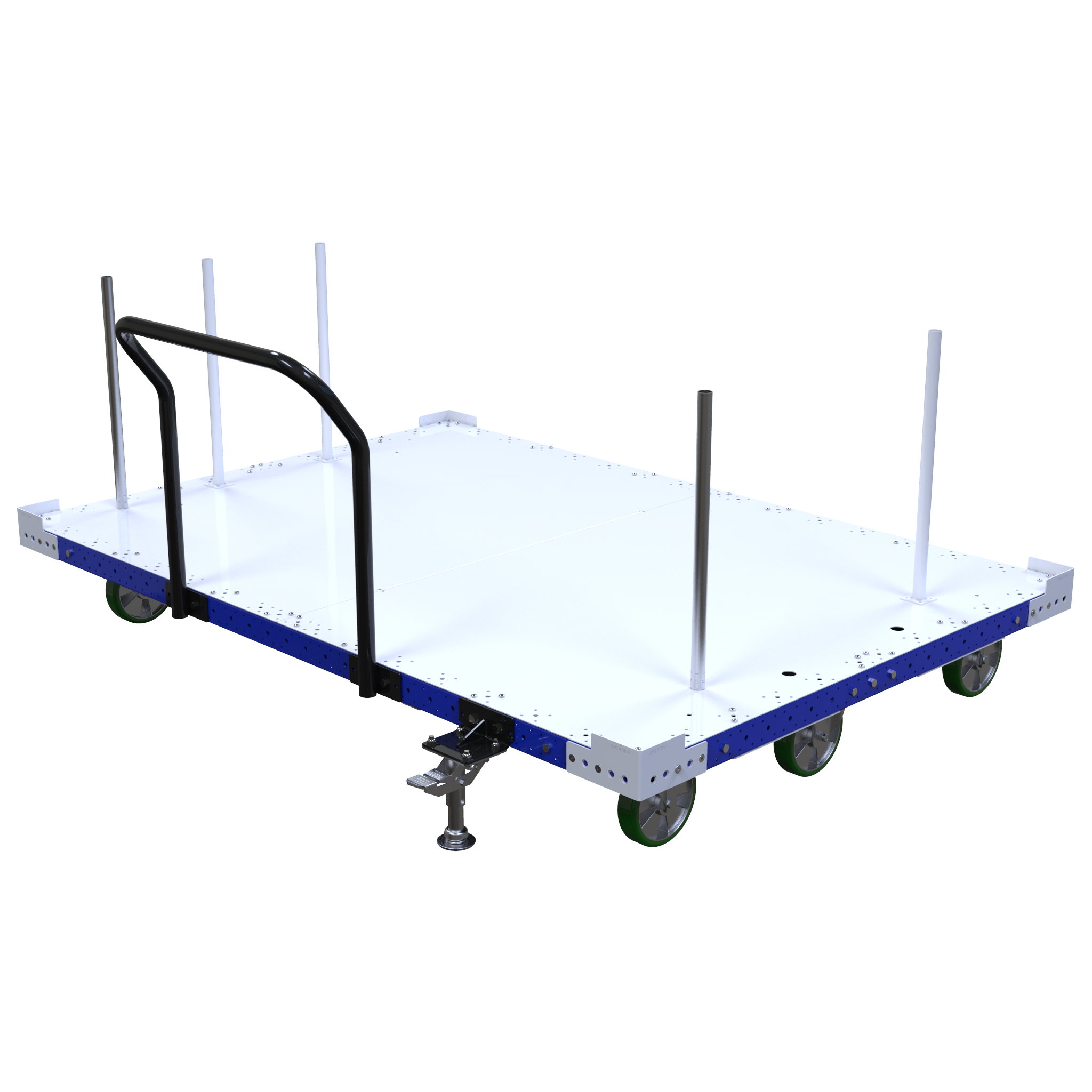

Pallet Cart – 1540 x 2240 mm
Q-100-6085
-
Pallet Tugger Cart – 2240 x 1540 mm
Q-100-6340
-

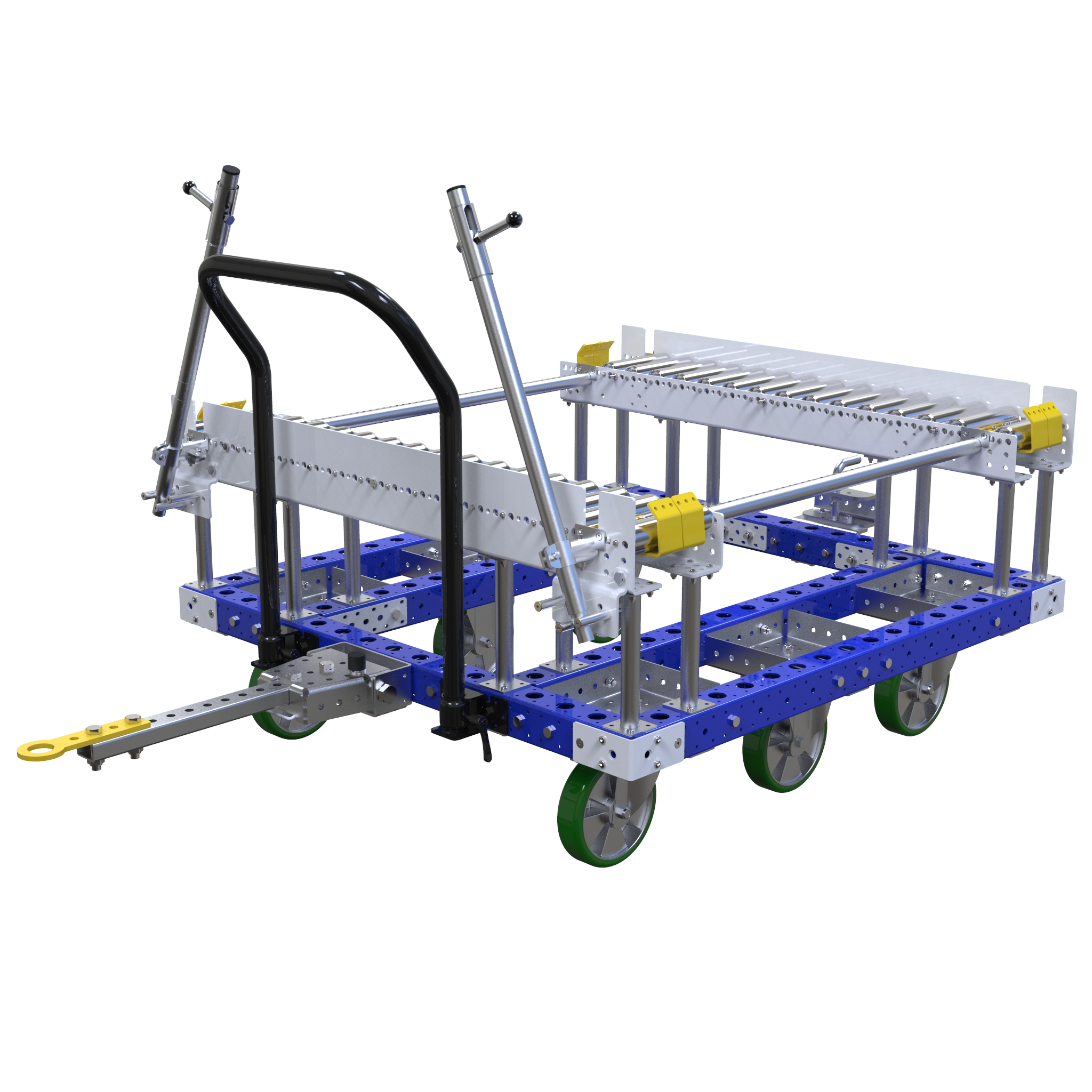

Roller Cart – 1260 x 1190 mm
Q-100-6547
-
Roller Cart – 1260 x 1190 mm
Q-100-6546
-
Roller Cart – 1260 x 1190 mm
Q-100-6436
-

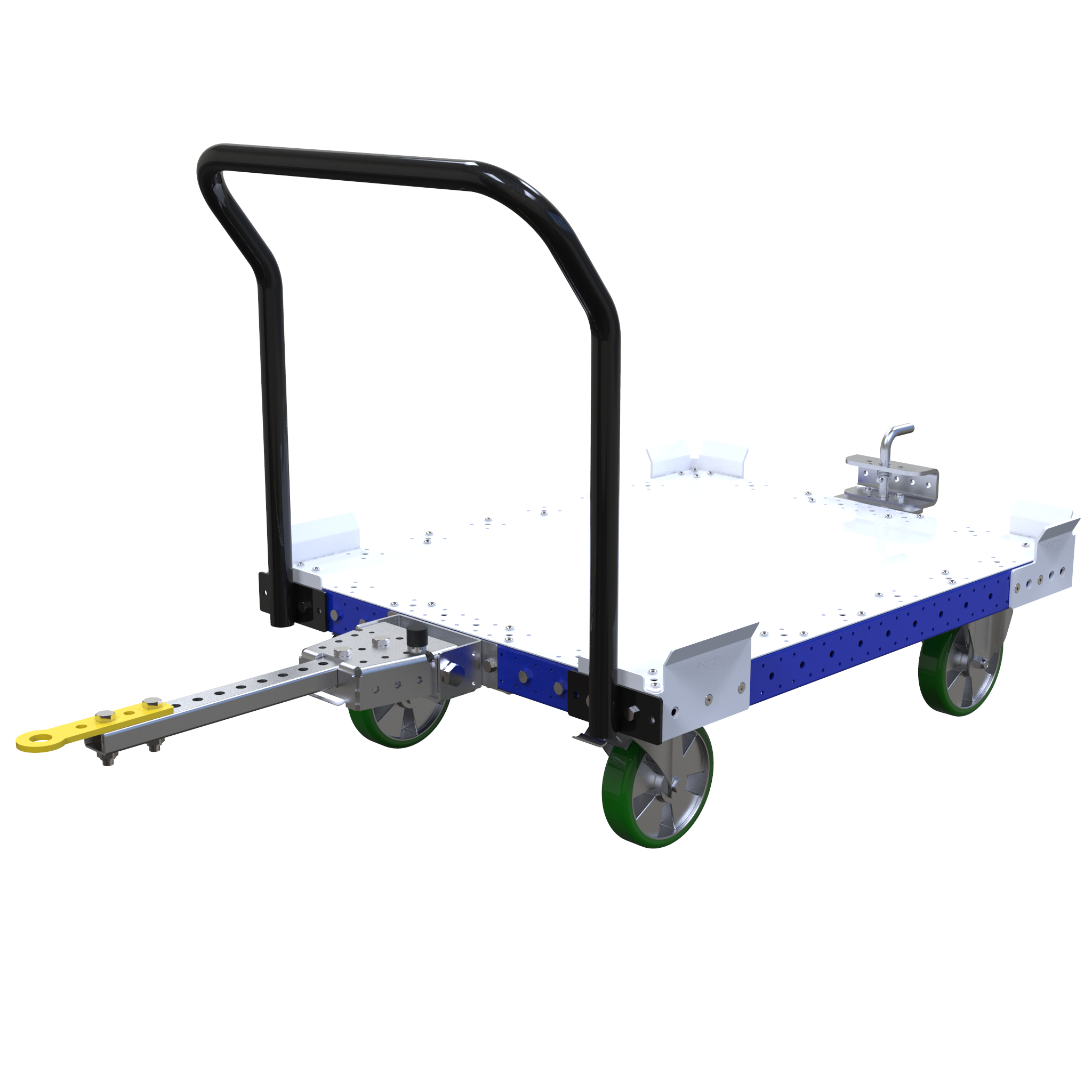

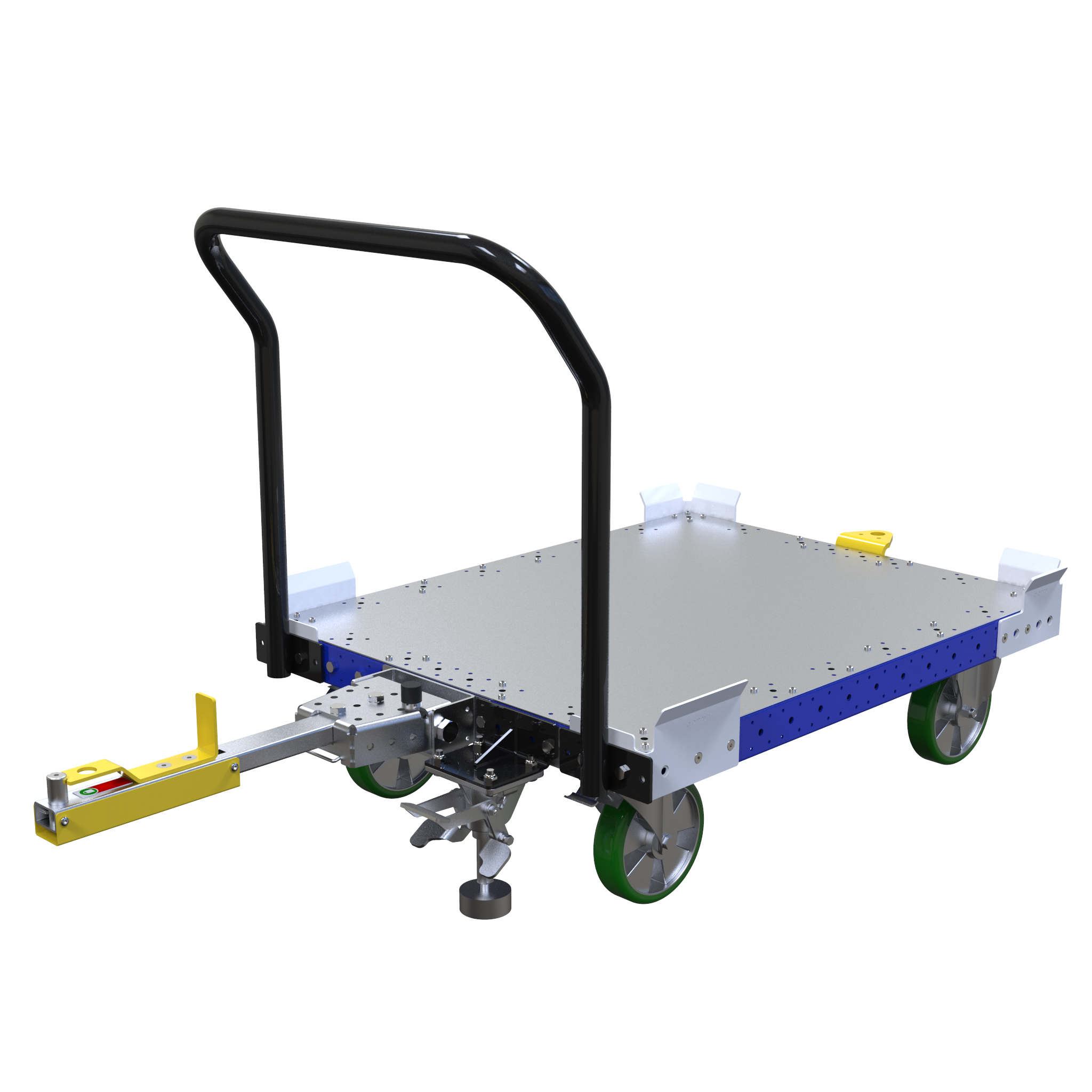

Pallet Tugger Cart – 1050 x 840 mm
Q-100-6580
-

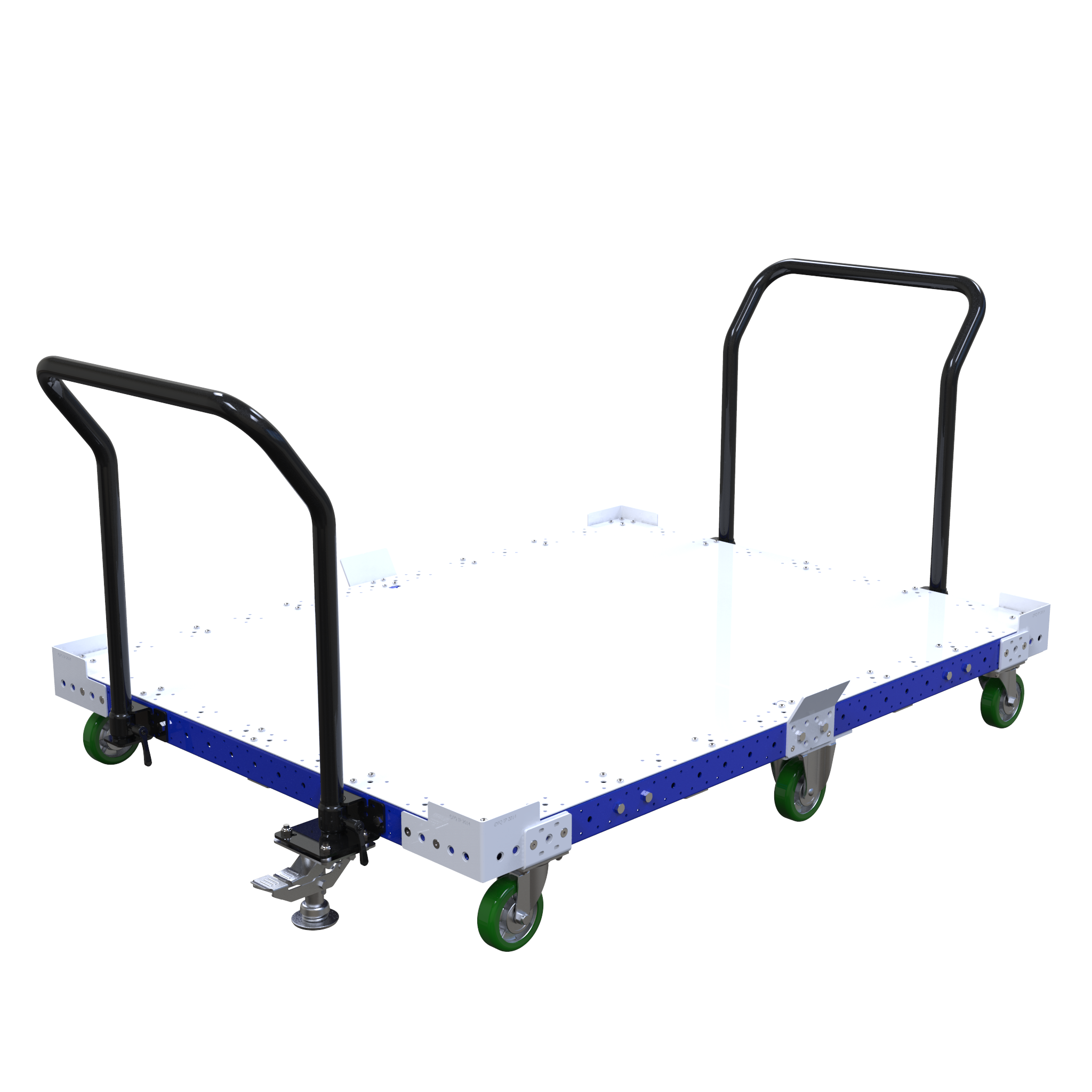

Pallet Cart – 1680 x 1260 mm
Q-100-6552
-
Roller Pallet Cart – 1260 x 1050 mm
Q-100-5896
-
Roller Rack – 2520 x 1050 mm
Q-100-5903
-

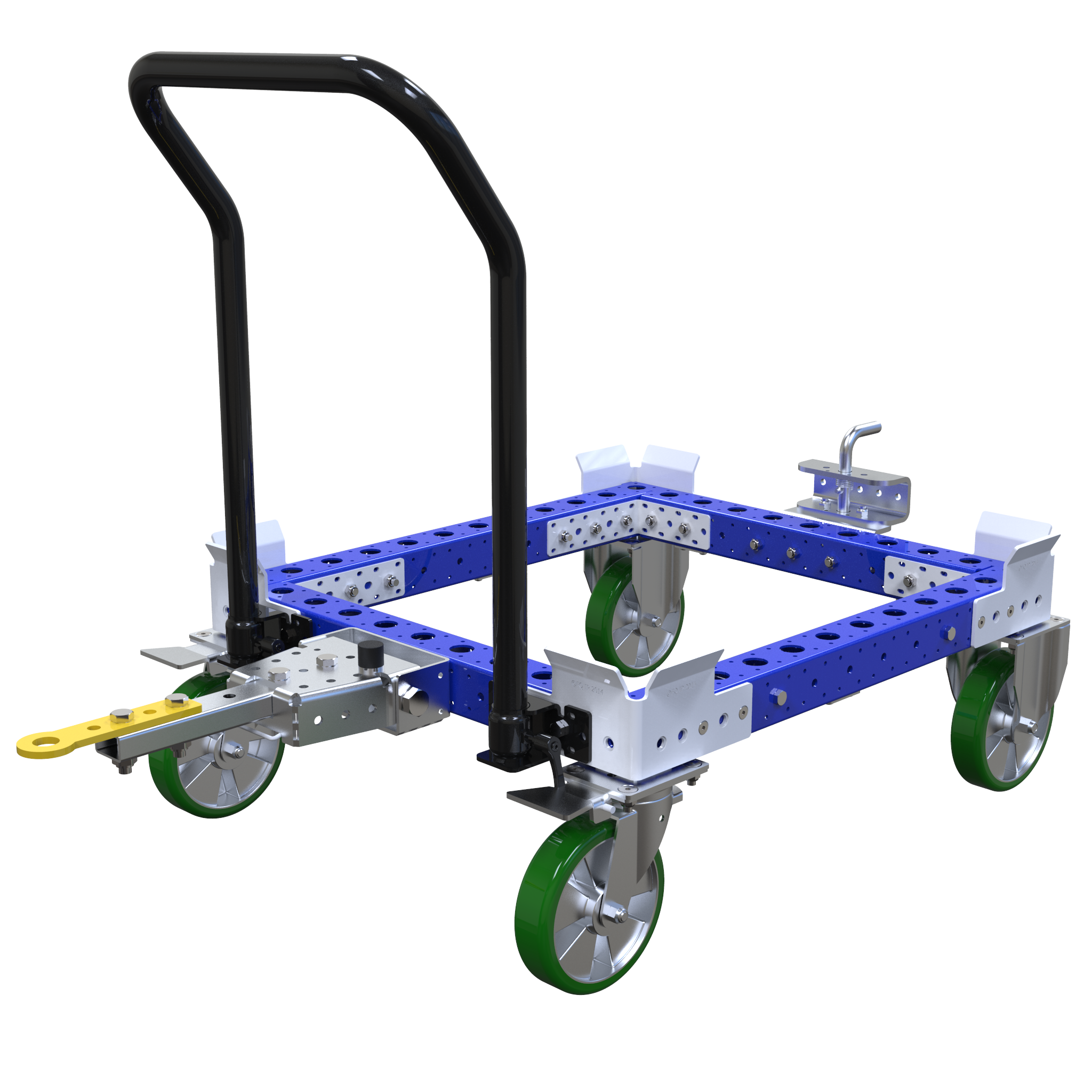

Pallet Cart – 840 x 770 mm
Q-100-6464
-
Pallet Tugger Cart – 1050 x 840 mm
Q-100-6509
-

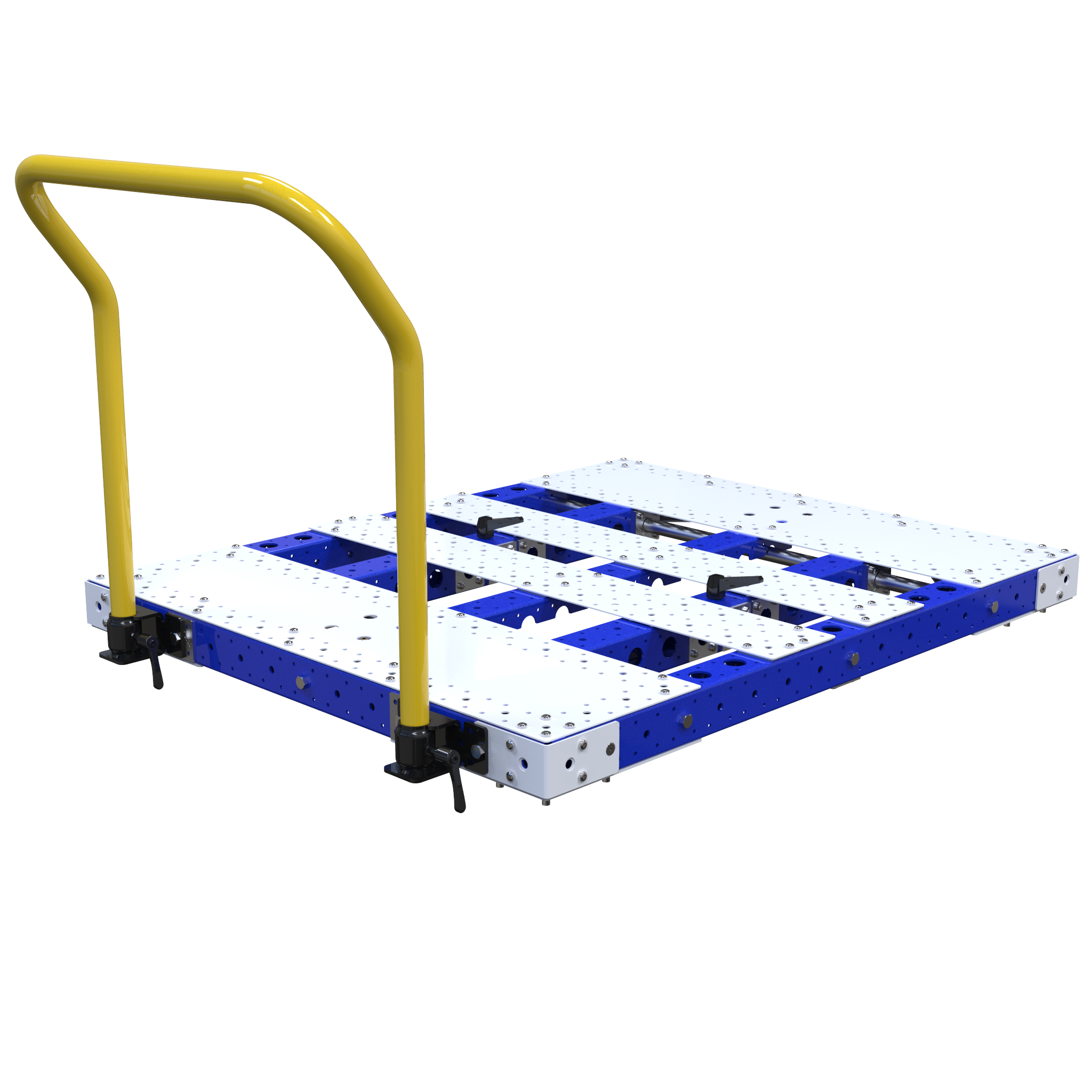

Pallet Cart – 1190 x 1050 mm
Q-100-6471
-

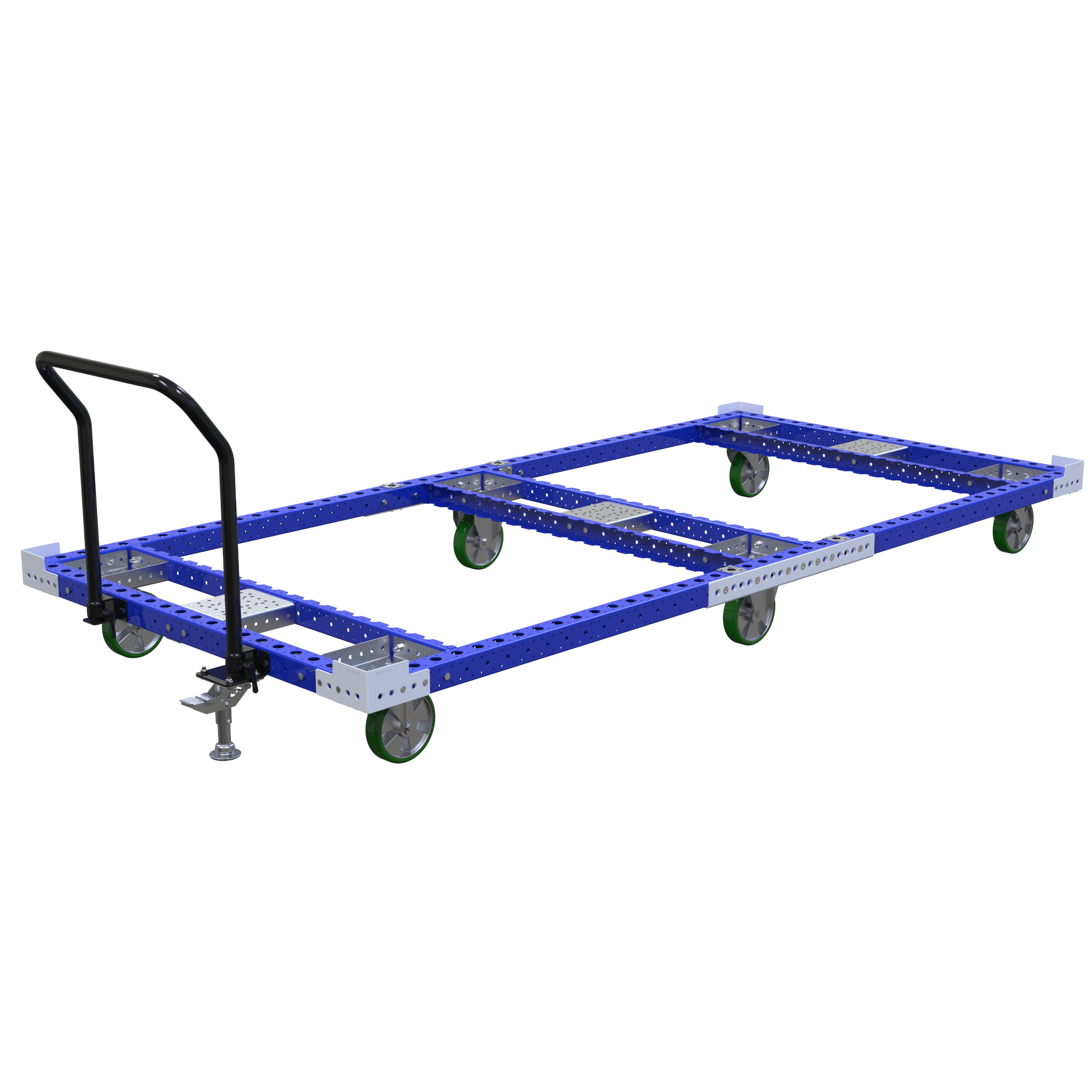

Pallet Cart – 3220 x 1540 mm
Q-100-6469
-
Conveyor Cart – 1260 x 1260 mm
Q-100-6453
-

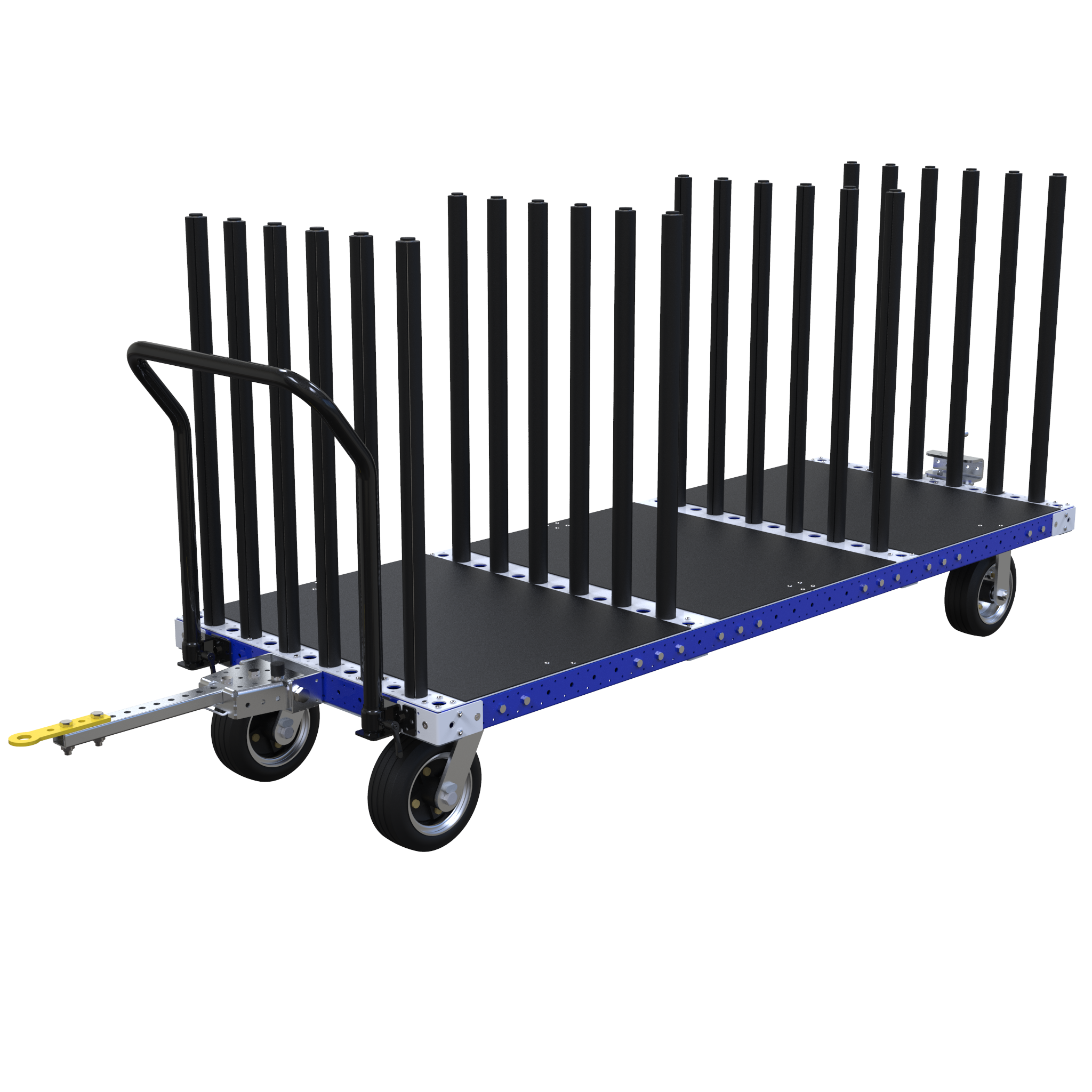

Stage Tugger Cart – 2450 x 910
Q-100-6470
-

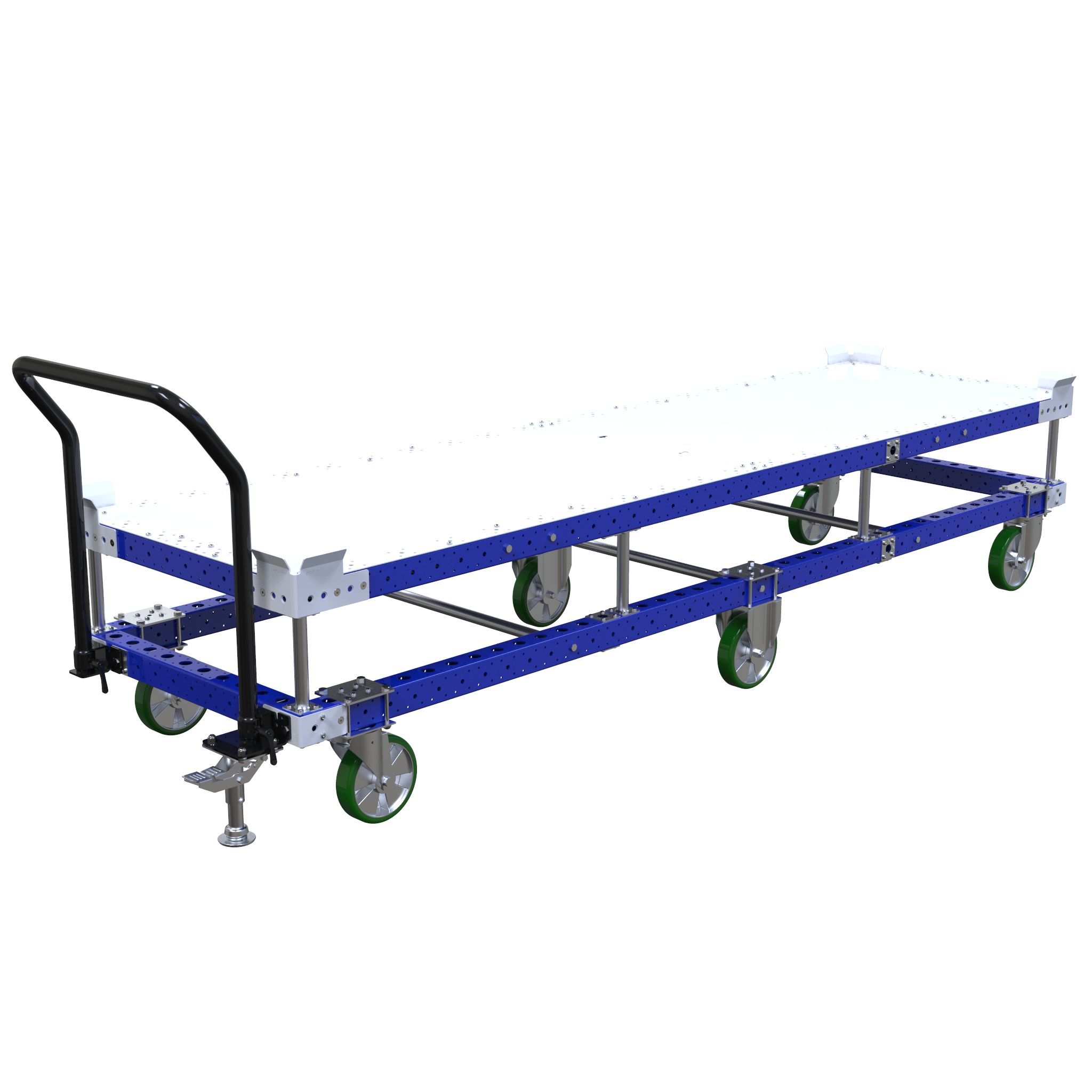

Pallet Cart- 3010 x 840 mm
Q-100-6407
-
Tilt Cart – 1260 x 1260 mm
Q-100-6458
-

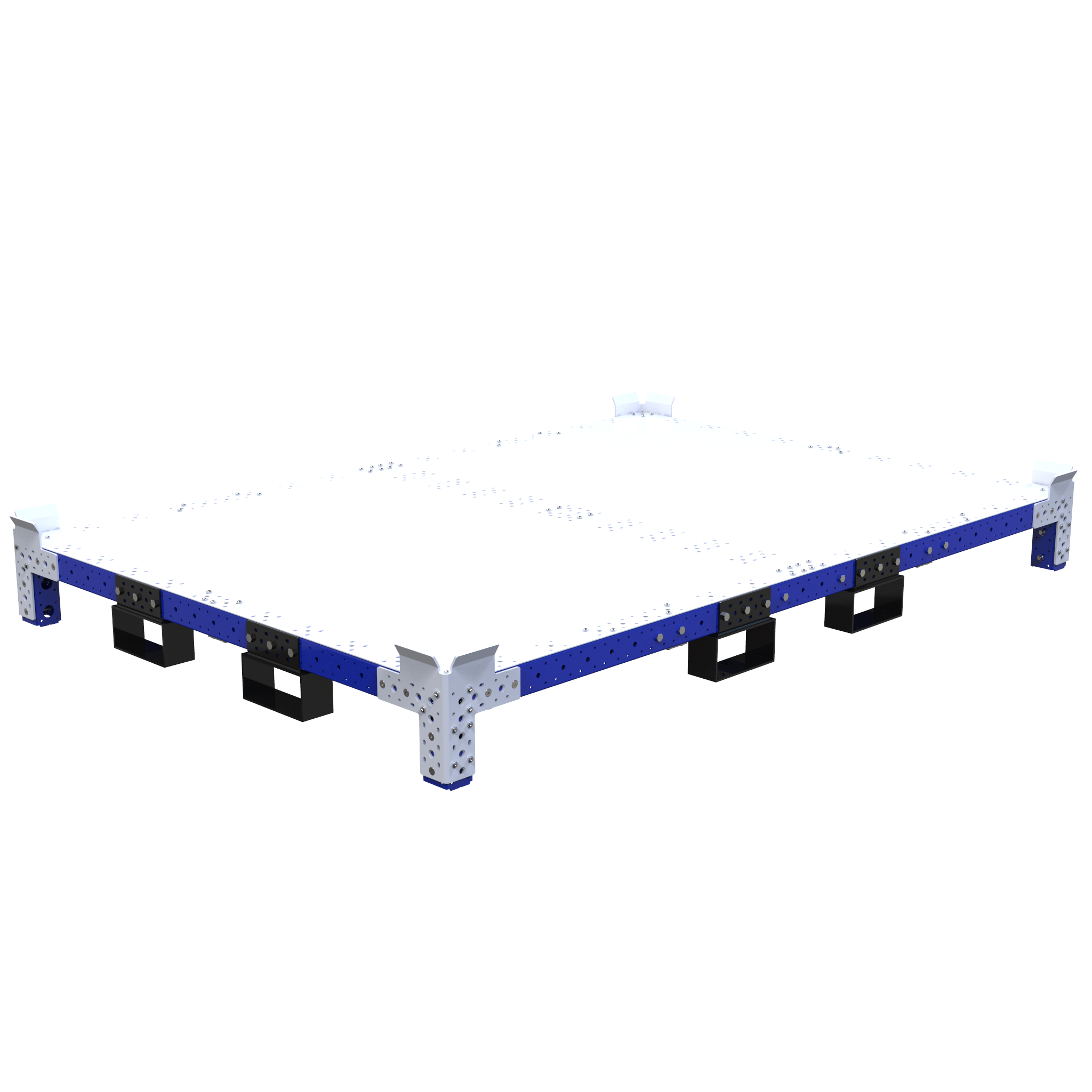

Order Picker Platform -2240×1540 mm
Q-100-6260
-
Pallet Cart – 1260 x 1050 mm
Q-100-6244
-
Pallet Tugger Cart – 2590 x 1540 mm
Q-100-6261
-
Pallet Tugger Cart – 4060 x 1260 mm
Q-100-6253
-

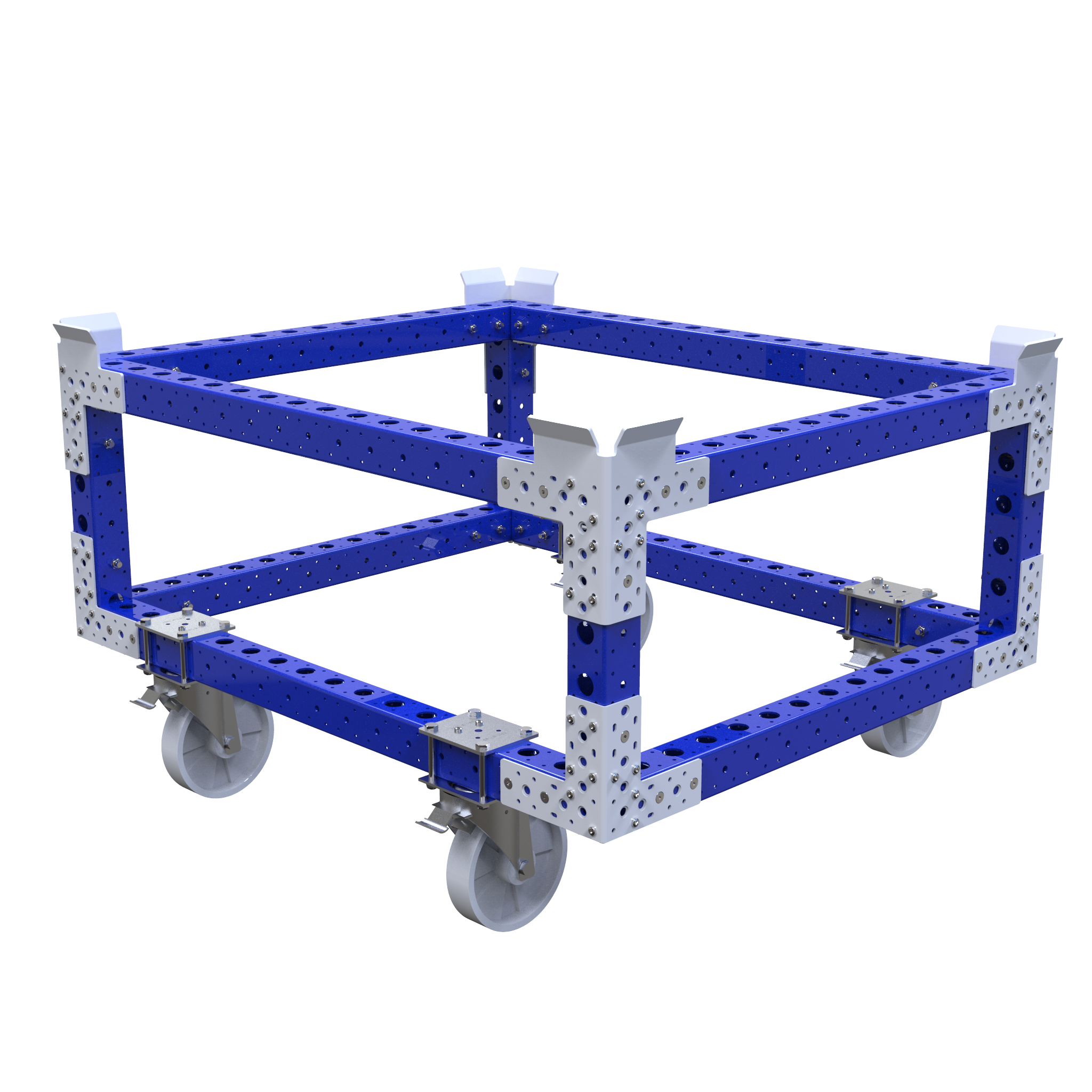

Pallet Cart – 1050 x 1260 mm
Q-100-6416
-
Pallet Cart – 1330 x 910 mm
Q-100-6382
-

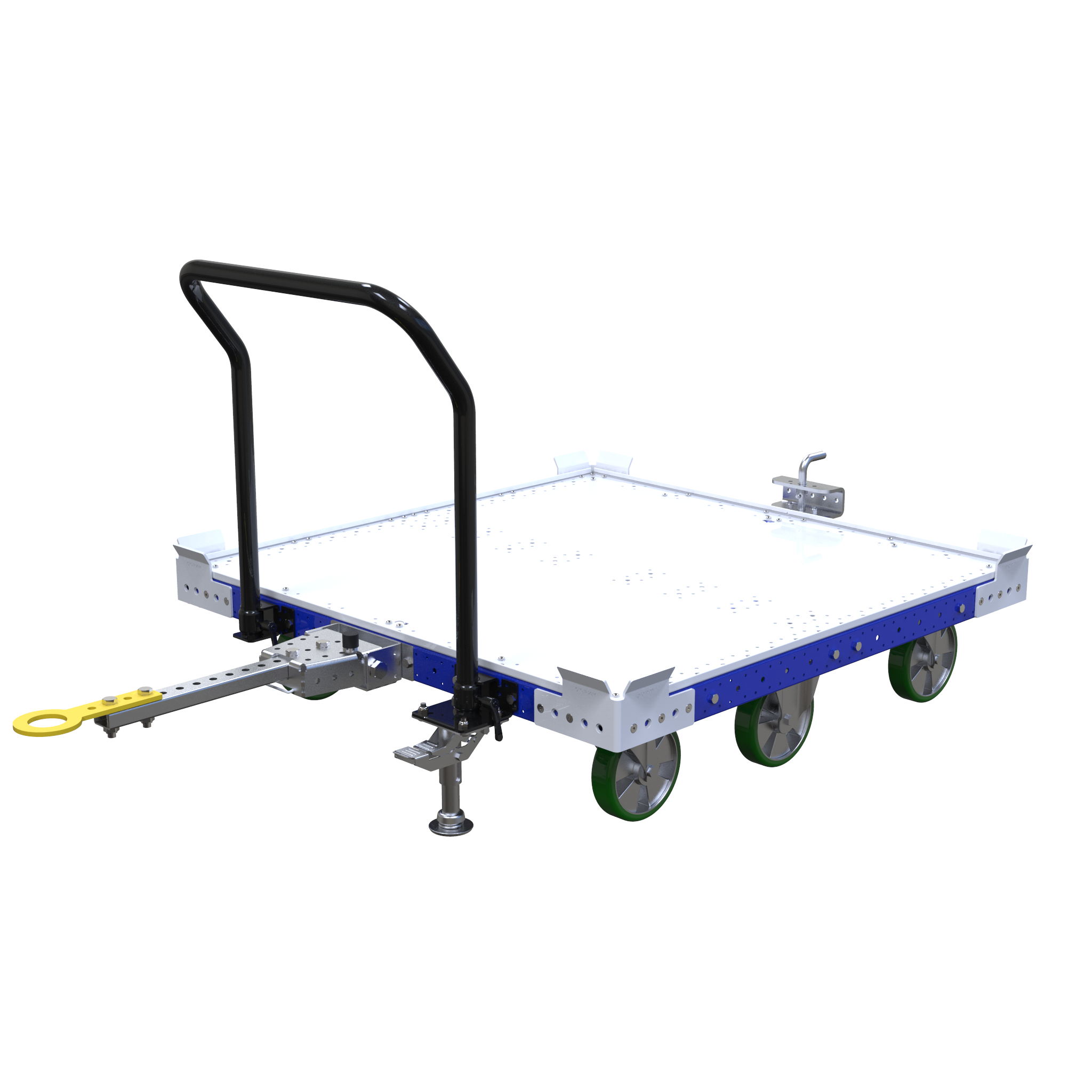

Pallet Tugger Cart – 1260 x 1260 mm
Q-100-6364
-

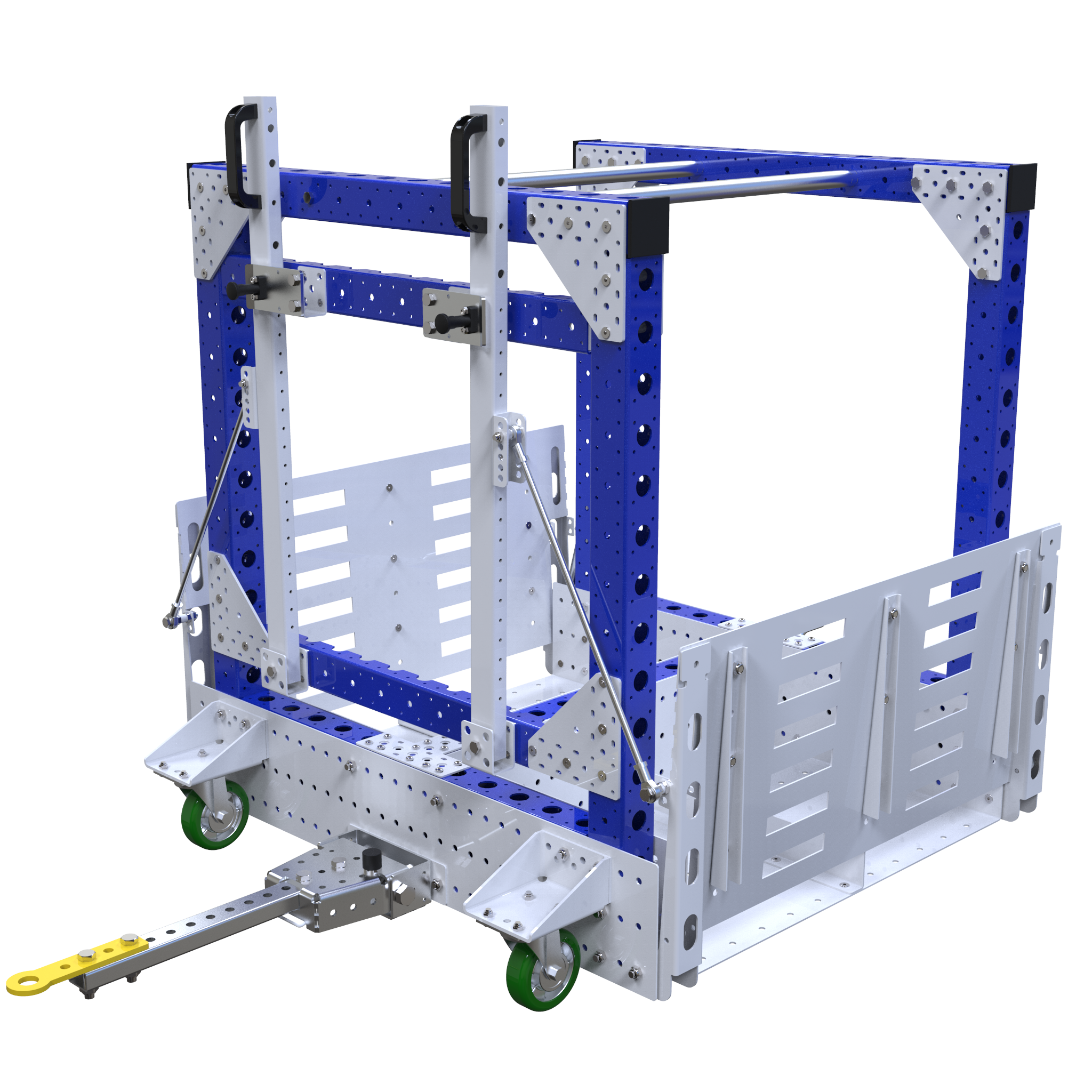

Mother Cart – 1120 x 980 mm
Q-100-6211
-
Pallet Cart – 1260 x 4200 mm
Q-100-6360
-

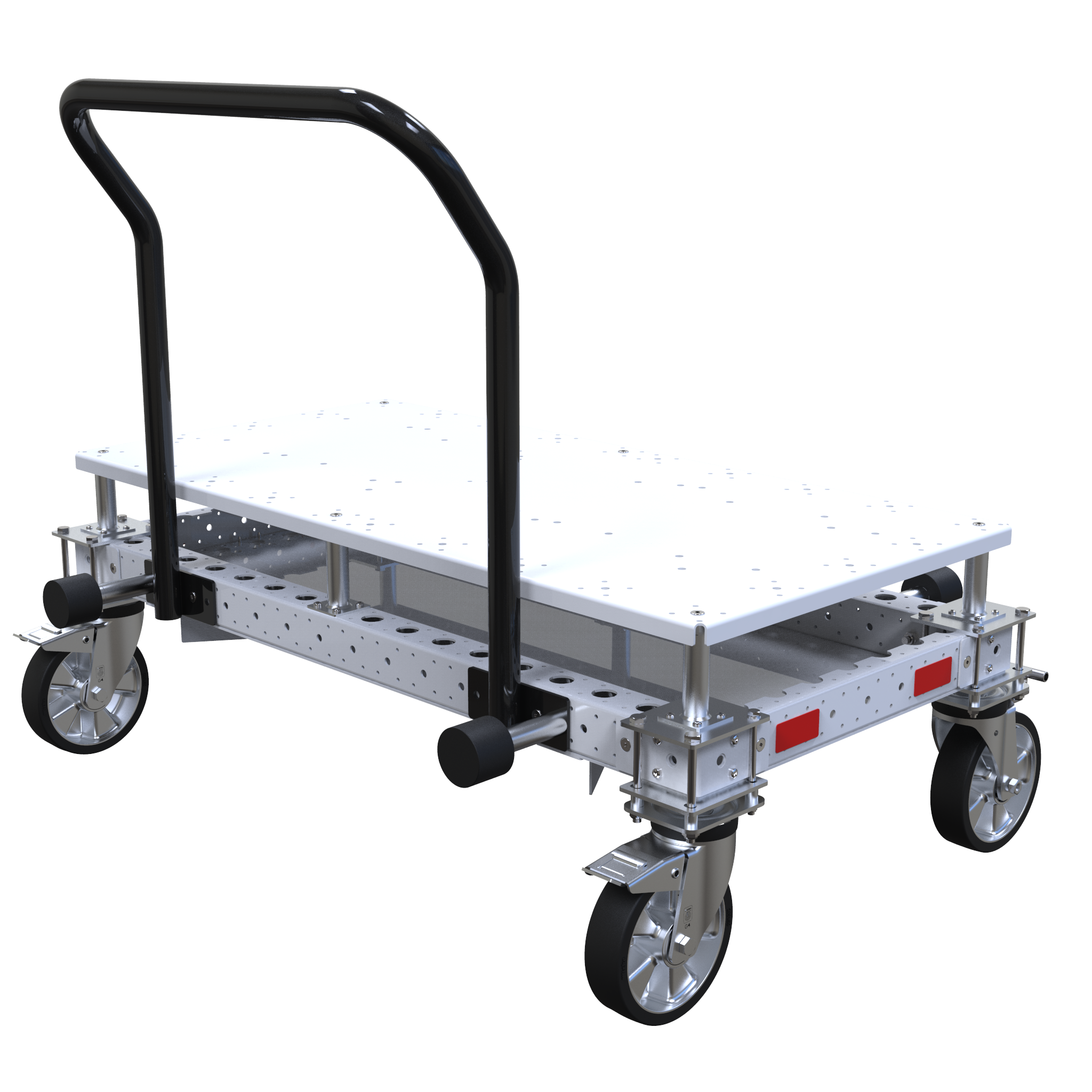

Pallet Cart – 630 x 1260 mm
Q-100-6361
-

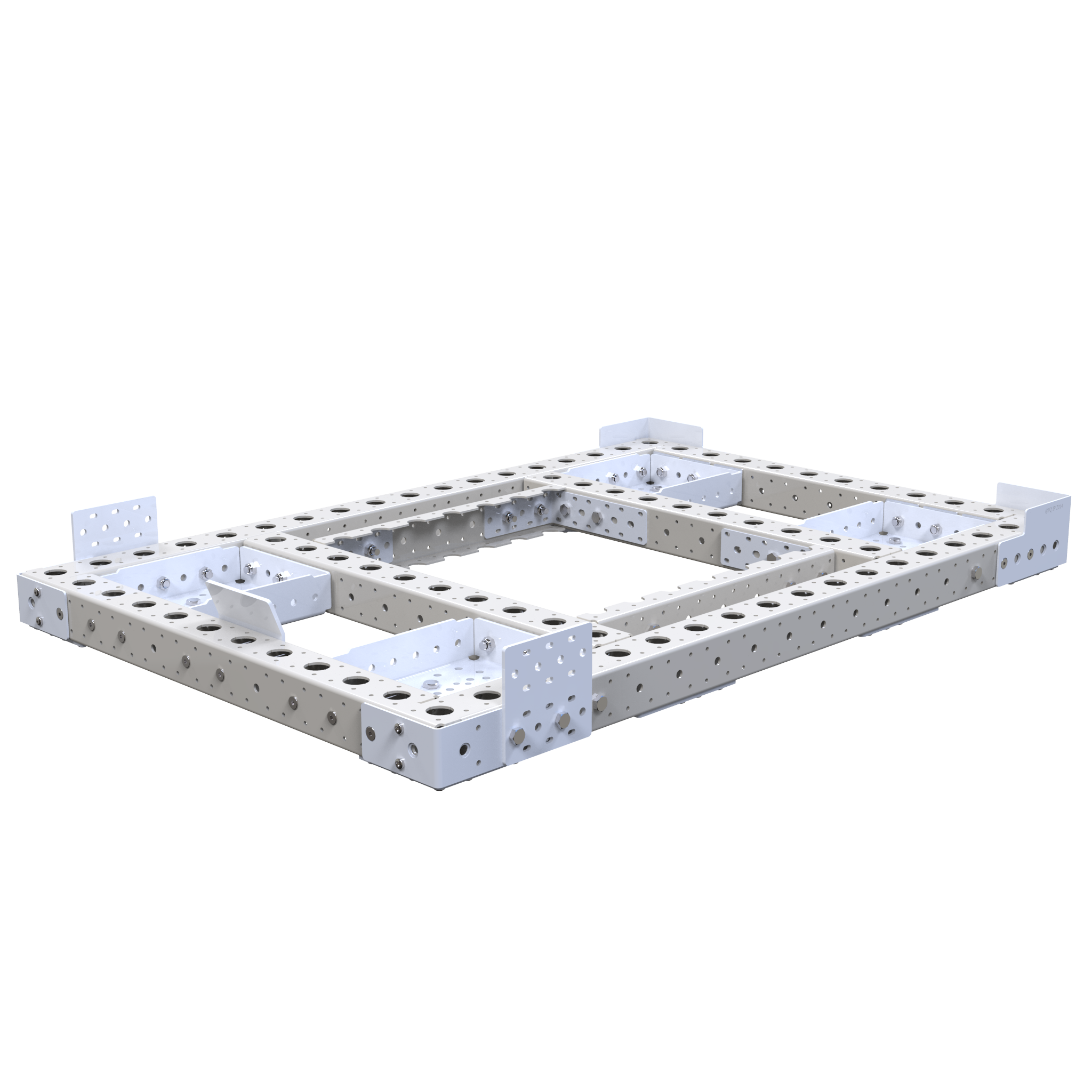

Pallet Cart – 1260 x 840 mm
Q-100-6347
-

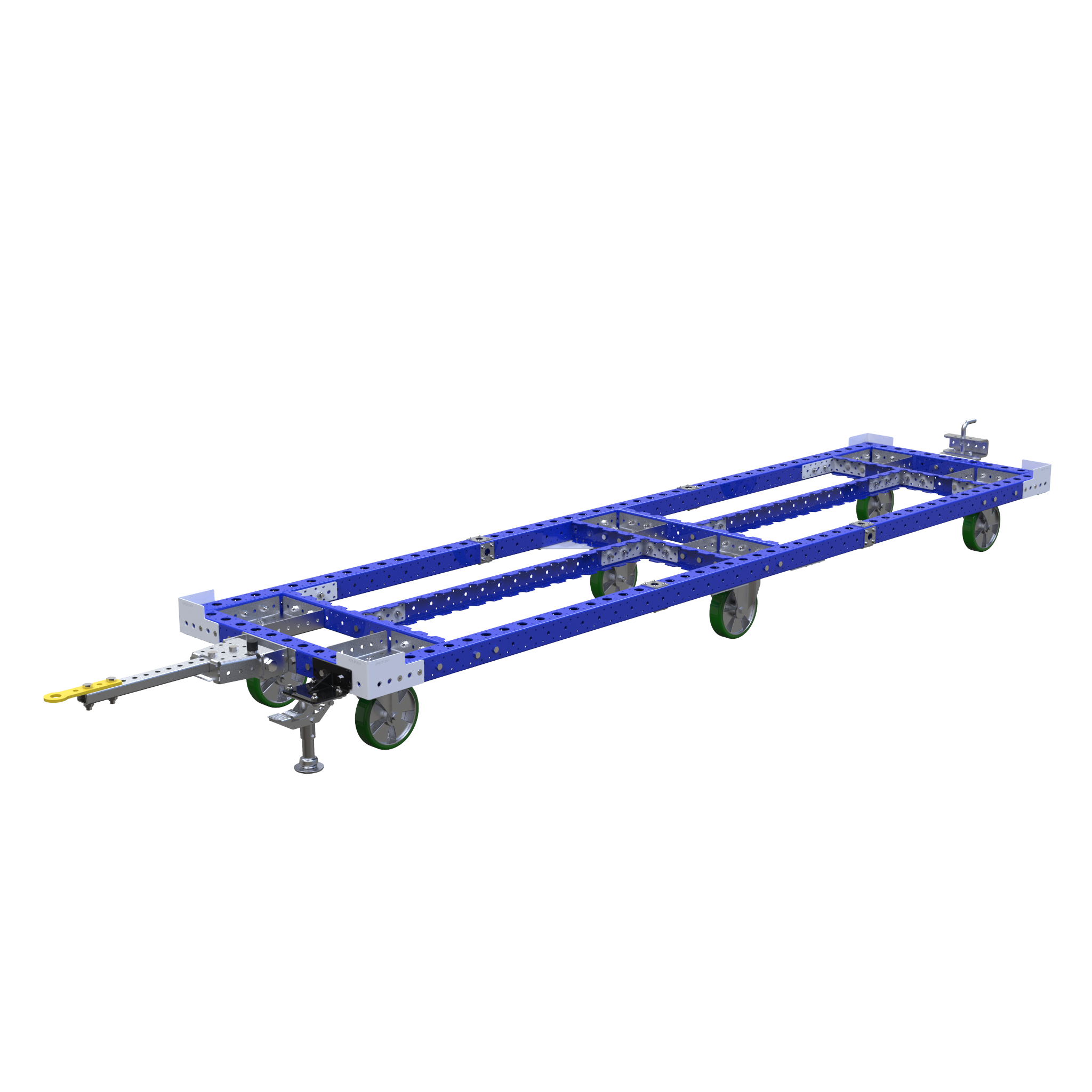

Pallet Tugger Cart – 3360 x 840 mm
Q-100-6257
-

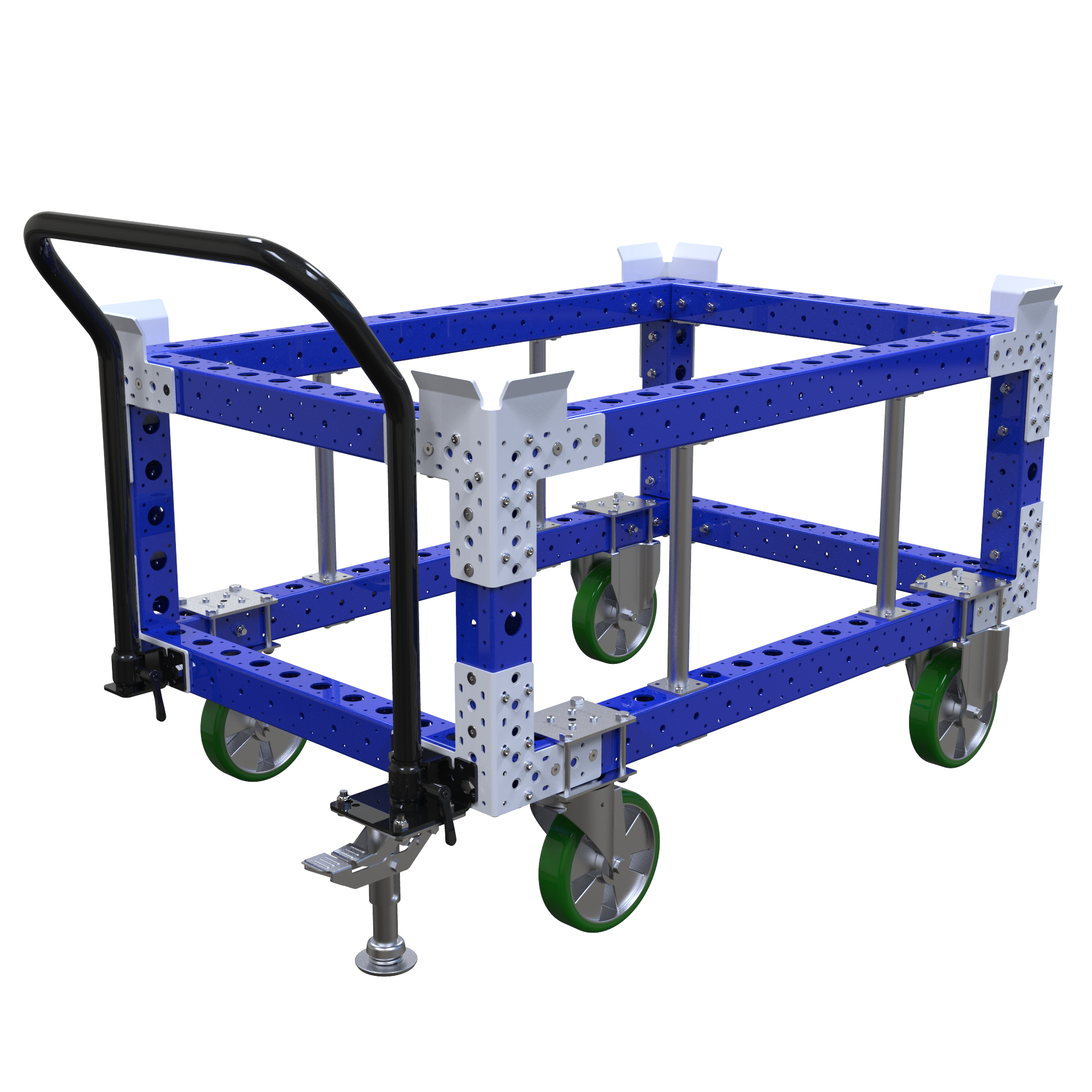

Pallet Cart – 1260 x 840 mm
Q-100-6240
-
Transport Cart – 1960 x 630 mm
Q-100-6219
-

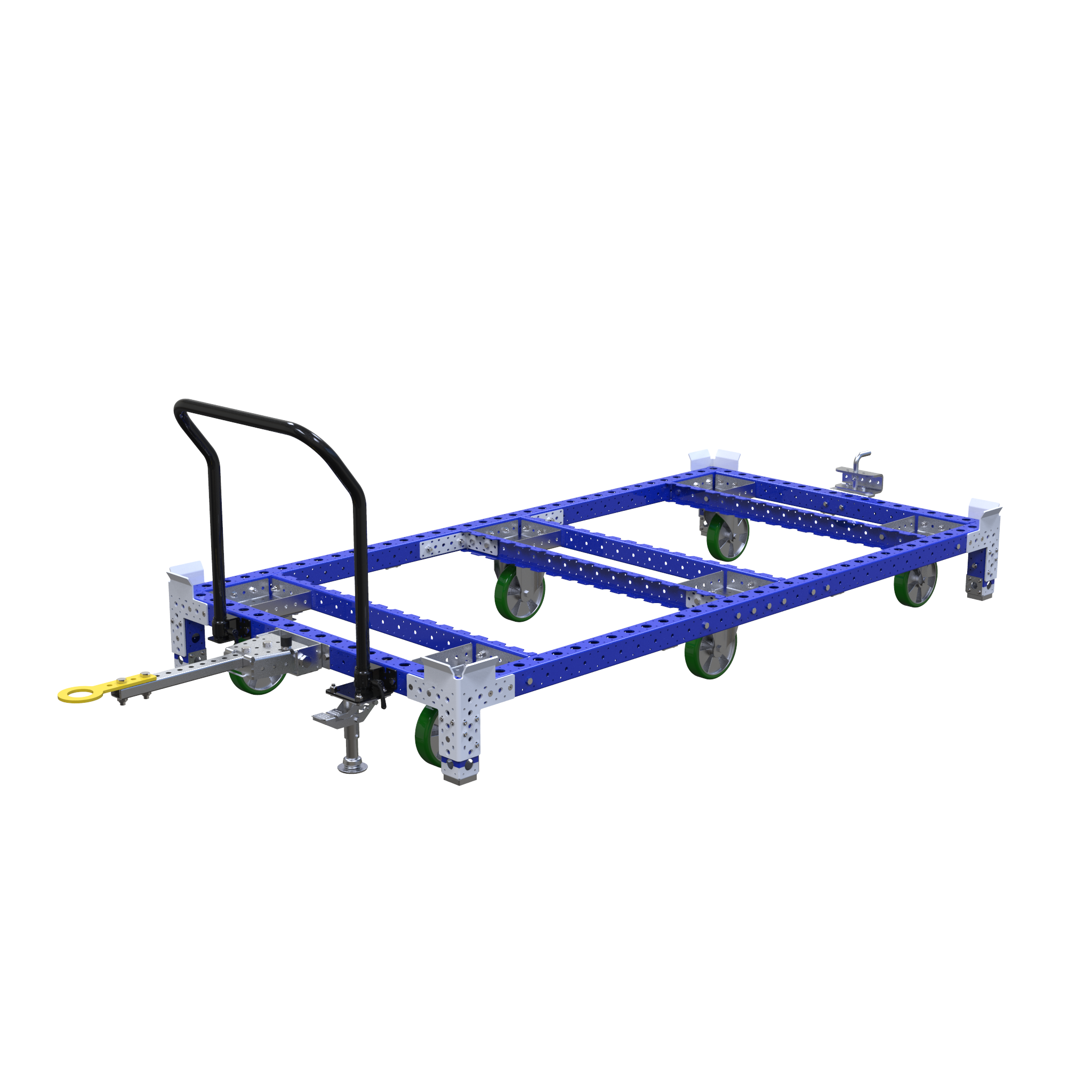

Pallet Tugger Cart – 2450 x 1260 mm
Q-100-6164
-
Flat Shelf Cart – 1260 x 1050 mm
Q-100-6110
-

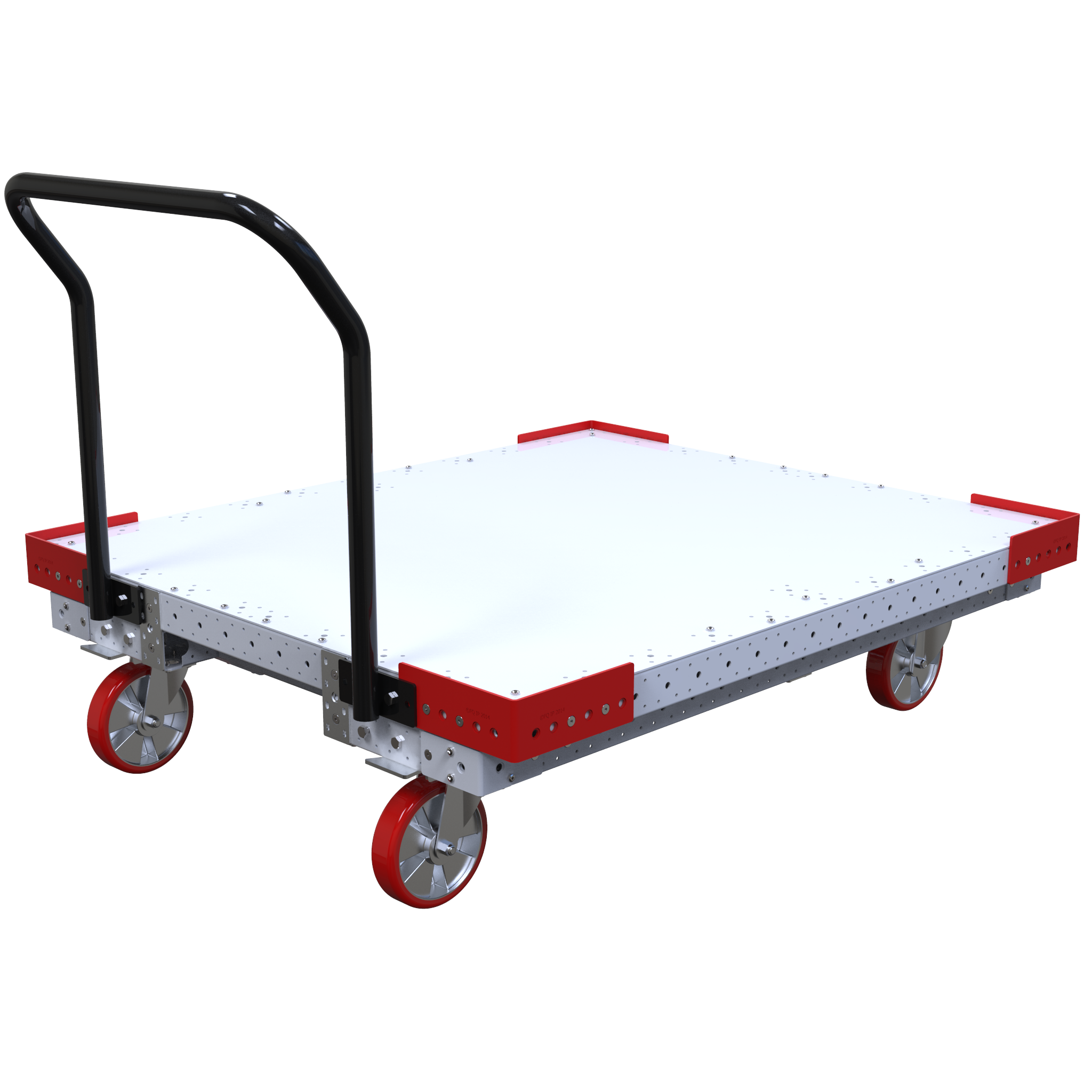

Flat Deck Cart – 1470 x 1260 mm
Q-100-6242
-

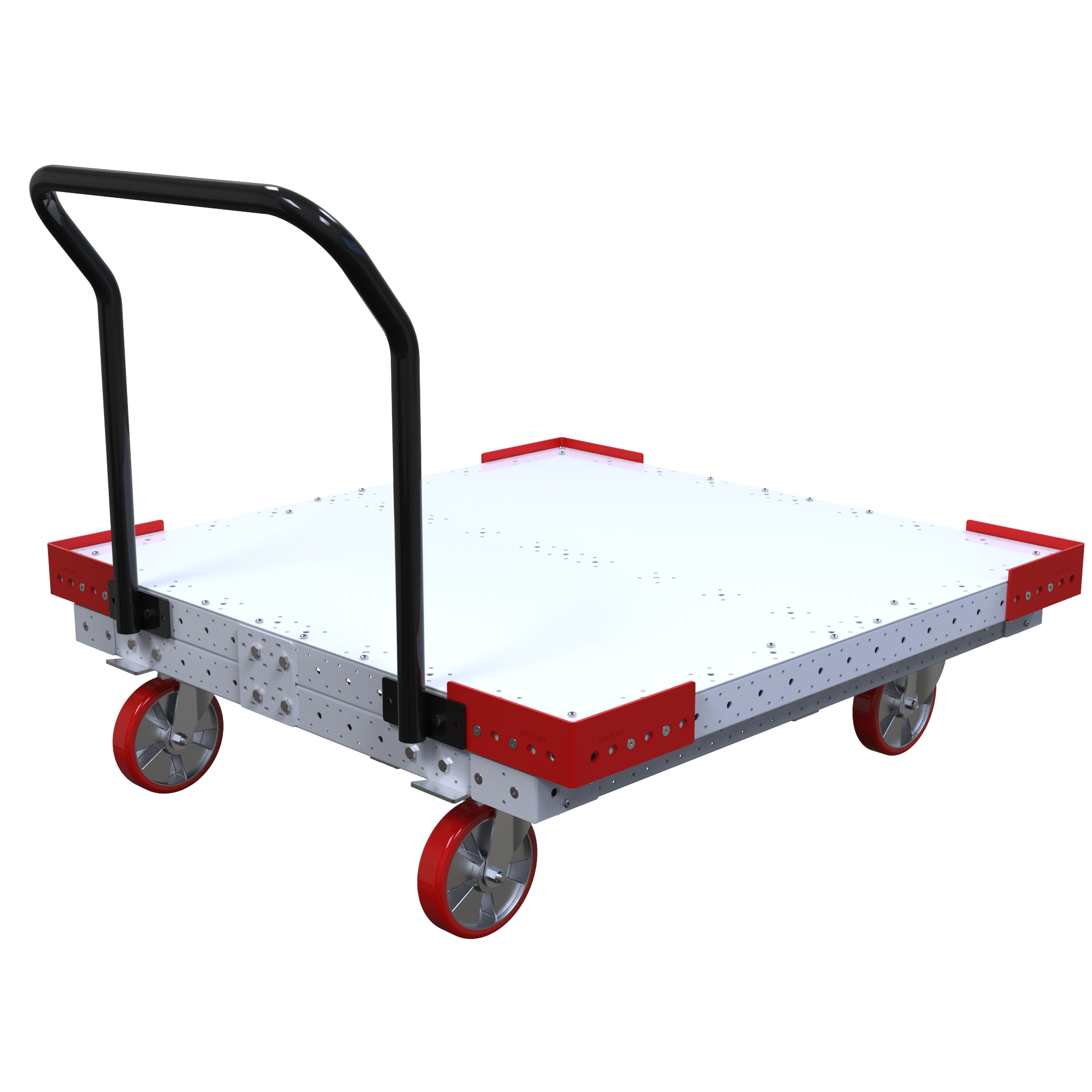

Pallet Cart – 1260 x 1260 mm
Q-100-6241
-
Dollie for I-frame – 1610 x 1680 mm
Q-100-6083
-

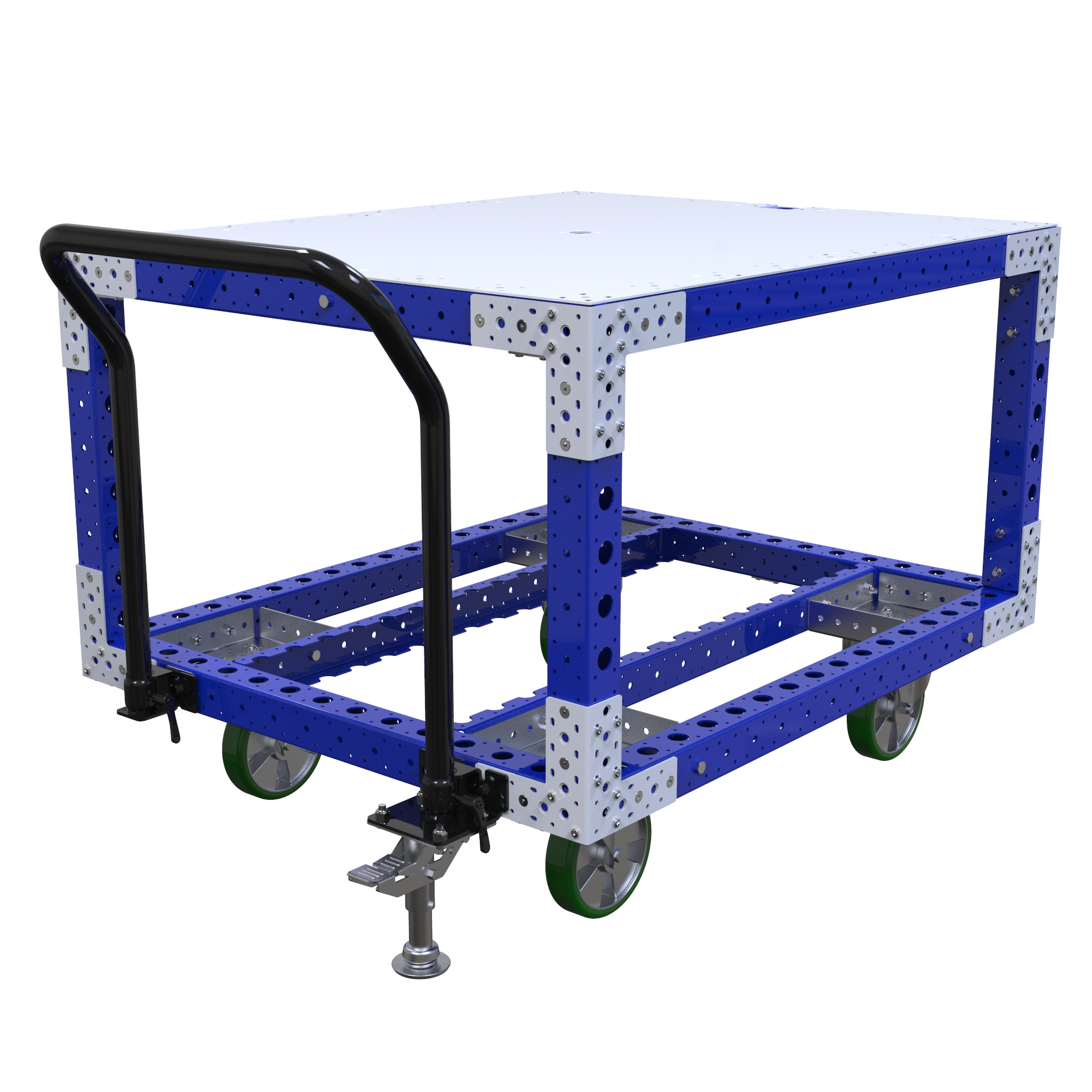

Pallet Cart – 1260 x 1050 mm
Q-100-6259
-
Rotating Pallet Cart-1260 x 1260 mm
Q-100-5819
-
Push Cart – 840 x 840 mm
Q-100-6239
-
Pallet cart (Q.S) – 1260 x 1750 mm
Q-100-6196
-
Roller Rack – 1190 x 1120 mm
Q-100-5423
Check out our Pallet Solutions Catalog.
What is a Pallet Cart?
A pallet cart or flatbed trolley as they can be referred to is a standard piece of equipment used for transporting materials in either distribution or manufacturing environments. They are a straightforward design as they are usually a flat deck base with wheels (casters) on the bottom. This makes this either a platform for pushing or pulling the materials; however, pushing is most advised.
Why Buy Pallet Carts from FlexQube?
The FlexQube pallet carts are designed for heavy-duty use in a flexible manner. The FlexQube concept allows you to design your pallet carts to match your exact needs easily. This means that you have the freedom to let your materials, operators, internal guidelines dictate the type of pallet carts you will have. Pallet carts seem like a simple tool, but having equipment that is durable, made from high-quality steel and designed in a way for your requirements can make a big impact. Organizations that need to process, transport, manufacture or distribute high volumes of materials understand that having the right pallet cart or flatbed cart can save an extraordinary amount of money in the long-term. Our pallet carts can be custom designed over and over again. For example, if you are looking for a manual push cart, but then need to add a tow bar, it is as easy as bolting on a FlexQUbe tow bar to your pushcart, and it becomes tuggable. This freedom can save time and money in the long term and creates a scrapping free environment within your organization.
The FlexQube design of industrial Pallet carts, container trolleys, and flat deck carts are carts to be pushed manually but can also be tugged in a train. Here at FlexQube, we offer solutions for any size of pallet or container but the most common are EUR-pallet carts and trolleys for the North American standard dimensions of 48 and 45 inch containers.
These material handling push carts are equipped with ergonomic handlebars and heavy-duty casters in different dimensions. The most common caster dimensions are 5 inches or 8 inches (125 mm or 200 mm) casters, and they can come in either Polyamide or Polyurethane. The carts can be equipped with casters that have no brake or floor lock brakes. The dollies can be customized for any container size like Gaylord containers, knock down containers or wooden pallets.
Here at FlexQube, we know flatbed carts and have worked with hundreds of customers fine-tuning their carts and material handling processes. We have delivered thousands of these styles in different dimensions and designs. They all come with the built-in future proof concept we developed that makes sure you can modify the cart design over time.
Our 48-inch flatbed carts are a top seller in this category. They are built to take a beating. With solid steel decks and side plate retainers, they match up perfectly with large bulk box containers.
In Europe, our top seller in this segment is our Euro pallet cart with diamond caster setup. Using high-quality polyurethane casters, we place the fixed caster in the center of the pallet cart for optimal tracking and manual handling. The part number is Q-007-1220, and this cart has been sold into thousands of different customers in different industries using EUR pallets or Volvo Pallets as one of their main container types for internal material handling and transports.
The cart is equipped with a heavy-duty tow bar that is connected to the handlebar using a wire, and hence the carts can be connected and disconnected from each other without having the operator bend down for release. This makes this cart a highly ergonomic and efficient design.
Our flatbed carts are often equipped with a floor lock brake and can also come in versions with or without steel deck. They can easily take on 2000 lbs. Or more.
On the North American market, the 48-inch container carts with steel deck and drop pin hitch or foot release tow bar are our top sellers. They come in a six caster setup. By integrating the caster into the platform, the loading deck can be lowered, and a so-called low rider or lowboy can be achieved. This means better ergonomics for the operators, and taller loads can be stored on the carts.
Flat deck tugger carts for containers and pallets are the most common application, when transferring from a fork lift driven supply of material to assembly and production lines, to tugger train routes with several carts connected in a train. Every year almost 100 employees are killed in forklift-related accidents, keep them safe by switching to the FlexQube forklift free initiative.
Our most common and best-selling versions of transportation carts with or without steel deck for many different sized standard containers; like 48″ containers or Gaylord containers, 48 by 40-inch containers or EUR pallets in size 1200 x 800 mm.
Flat deck industrial tugger cart 50 x 50 inch for 48 by 48 inch or 48 by 40-inch containers or smaller. This cart carries up to 2000 lbs. And is equipped with a foot release tow bar, handle bar with floor lock brake and six heavy duty 200 mm (8 inch) polyurethane casters where the fixed casters are in the center of the cart to achieve best tracking behind the tugger.
This cart is also available with a drop pin hitch. Customer references for this cart are found at many locations in, e.g., Canada, USA, Mexico.
EUR pallet cart or trolley for 1200 x 800 mm pallets or Volvo pallets (1225 x 820 mm) with handlebar and wire release tow bar. This cart carries up to 1200 lbs./550 kg, and it has four casters in a diamond setup where fixed casters are positioned in the center of the cart and one swivel caster (crazy wheel as some call them) in each short end of the cart. The EUR pallet trolley has a floor lock brake.
What’s unique about this tugger train cart is the release and coupling function of the hitch where it can be disconnected by pulling a lever on the handlebar (the trigger handle). By doing so, the tow bar is disconnected from the cart in front of it without having the operator bend down to release it. This has a positive effect on both the ergonomics for the operator but also the time it takes to connect and disconnect carts.
48 x 40-inch steel deck cart with a removable handlebar, tow bar, and floor lock brake. This container cart for tugger train applications in a size that is perfect for 48-inch x 40-inch standard containers has a removable handlebar.
Low rider or lowboy flat deck cart for containers with smaller casters and integrated platform to achieve the lowest possible height of the cart.
This cart is equipped with six 125 mm (5 inches) casters integrated with the steel deck platform to keep the container as close to the floor as possible. The lip on the tow bar is modular, which makes it possible to adjust the size of the hole for the type of tugger you are using. The hitch is a drop pin type, spring loaded, for convenient coupling and decoupling of carts. The cart is rated at 1000 lbs./450 kg capacity and Draexlmaier in South Carolina; the USA have almost 200 units of this cart in use.
Tugger carts for containers without steel deck. Frame built by FlexQube standard components and six caster setup for optimal tracking in tugger train. Optimal for container sizes 48 by 45 inches. Possible to add a steel deck to the cart. Autoliv in Mexico has a lot of these carts in use.
Our pallet carts have been proven to improve efficiency & productivity within our customers’ facilities. We were able to help Borg Warner go fork-lift free using our pallet carts, these pallet carts were carrying weighty loads of up to 2000pounds and had to navigate through quite narrow aisle which had been originally designed for forklifts. We designed and help implement the 50×50 inches flat deck pallet cart which is compatible with the STILL E-Frame. You can see a video of one of the carts carrying a 2052 pound load. The flexibility of the FlexQube concept has proven itself to be able to deal with all types of environments, and the ability to change the carts within your facility is unprecedented.
If you are interested in any of the above Pallet carts, please contact us at sales@flexqube.com
