Shelf Cart - 830 x 420 mm

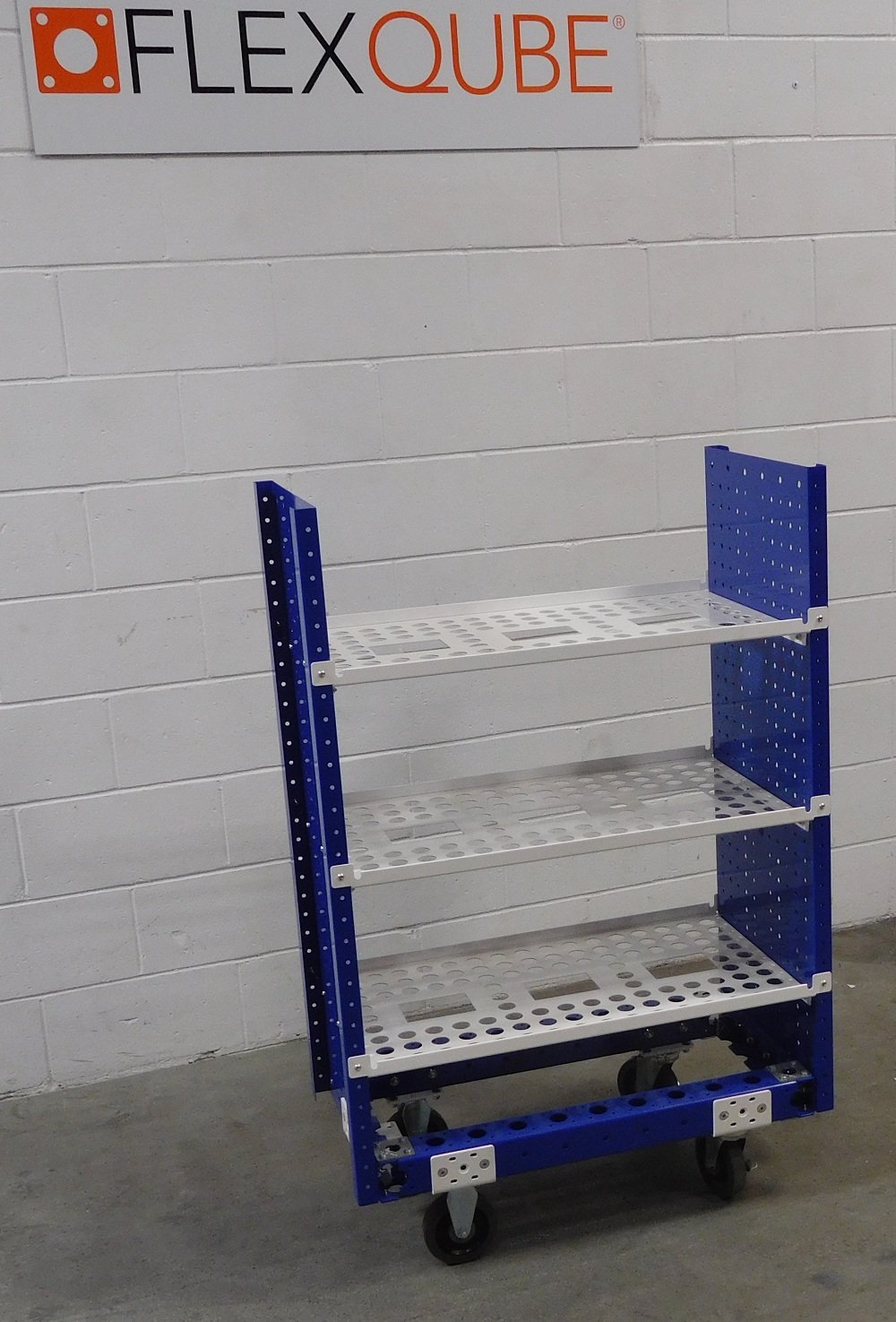

Custom small shelf cart designed for carrying totes and boxes.

100% free. No commitment.

Automotive 304 lbs
load capacity
Get a quote
Close

Shelf Cart – 830 x 420 mm

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

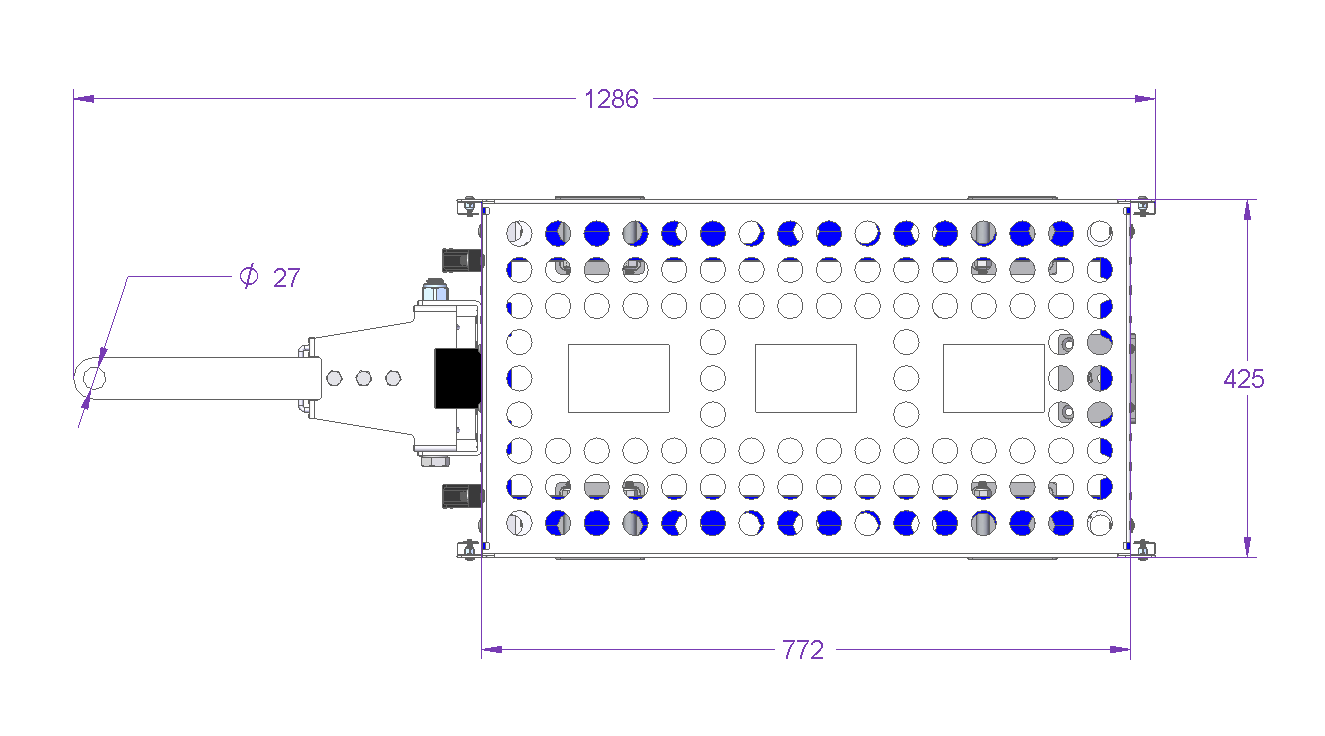

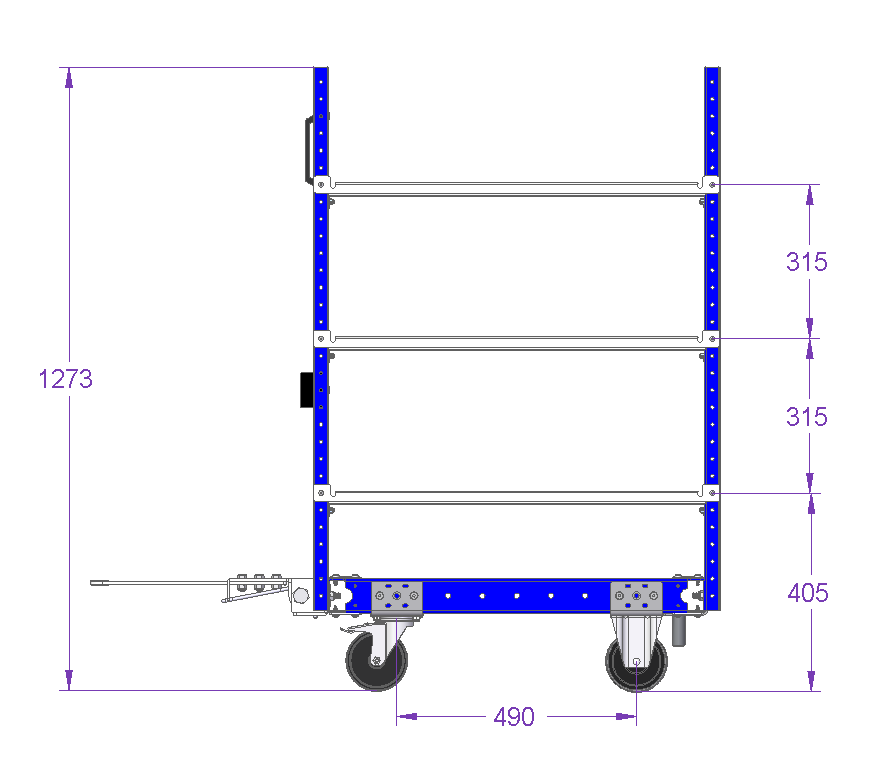

Technical specifications
Type of tow bar Tongue and Hitch
Industry Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Length 33 inch
Width 17 inch
Load capacity 304 lbs
Caster size 5 inch
More info

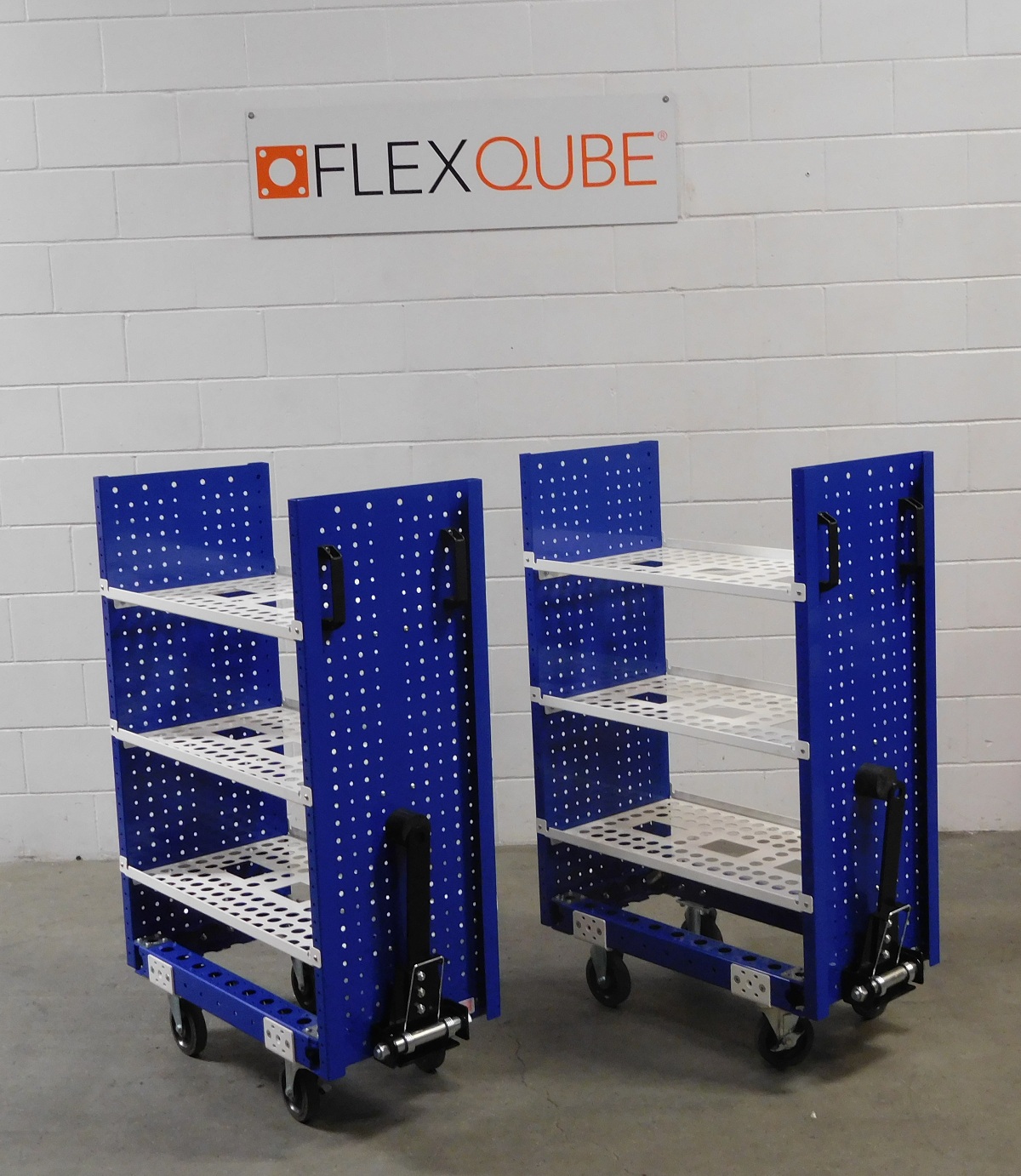

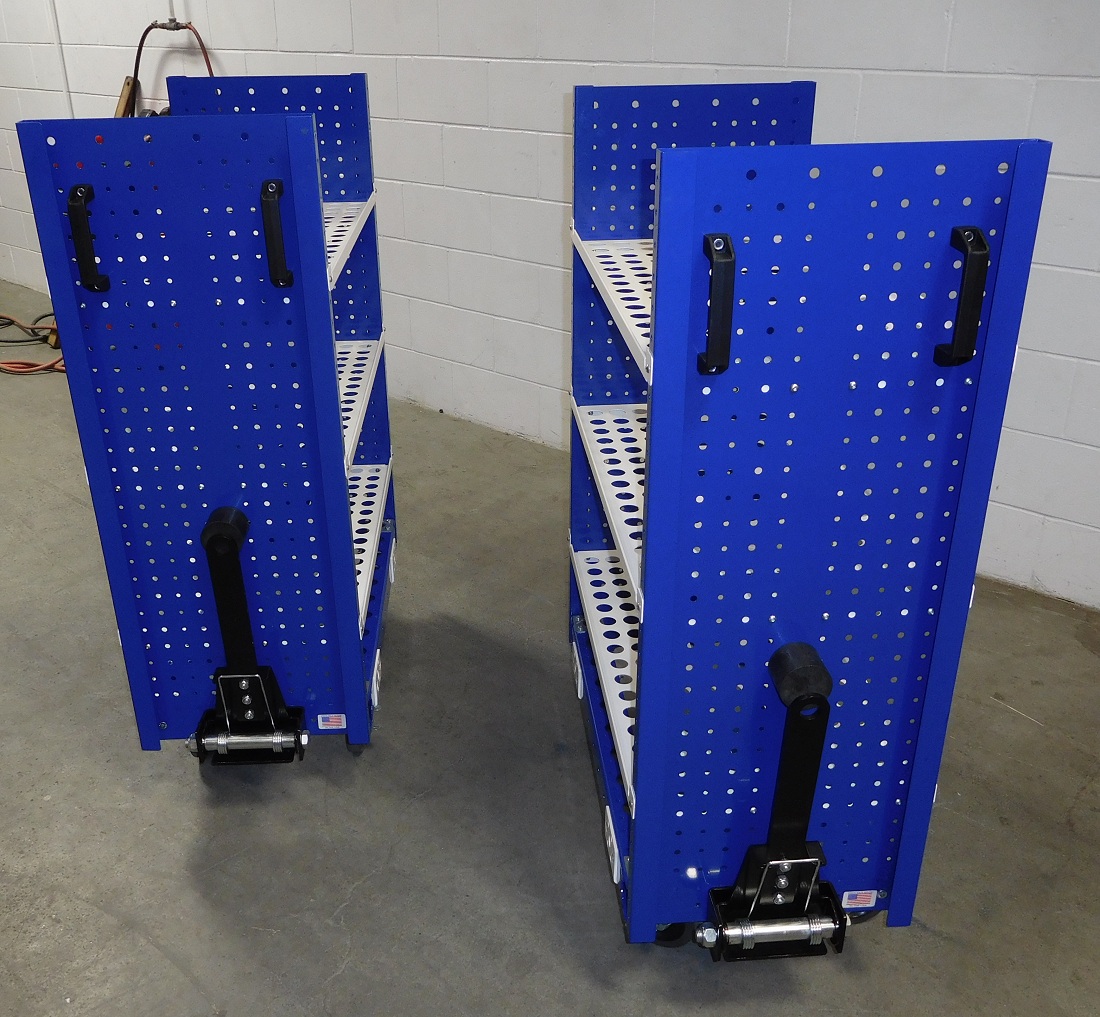

This smaller shelf cart is ideal for more efficiently transporting smaller plastic bins and boxes. The cart and shelves have holes so that the overall weight of the cart is reduced. It comes equipped with a tow bar so it can be transported in a tugger train system. It also comes equipped with handles so operators and assemblers can more ergonomically transport the cart.

Parts included
FlexBeam™ 700 mm 4 Q-001-1307
FlexBeam™ 420 mm FE 2 Q-001-1411
FlexPlate™ 8 Q-002-1001
125 mm Swivel Caster with Brake 2 Q-004-1364
Fixed Caster - 125 mm 2 Q-004-1365
Caster to Beam Attachment - 80 x 60 mm 5 Q-005-0265
163 mm Collet - 30 x 2 mm 1 Q-005-0298
184 mm Collet - 25 x 2 mm 1 Q-005-0299
Rubber damper - 70 x 55 mm 1 Q-005-0356
Spring tow bar 1 Q-005-0450
64 mm FlexBeam™ Collet 8 Q-005-1426
M10 x 80 mm Countersunk 1 Q-006-0019
M6 x 20 K6S 10.9 Round Head (black) 12 Q-006-1018
Hex Head - M10 x 25 mm 3 Q-006-1041
Locking Nut M10 24 Q-006-1042
Locking Nut M6 36 Q-006-1050
Round Head - M6 x 12 mm 24 Q-006-1051
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Hex head M20 x 210 mm 1 Q-006-1364
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Low Allen Head - M10 x 16 mm 1 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
M8 Handle - 140 mm 2 Q-015-1409
Flat Shelf W Edge - 770 x 420 mm 3 Q-016-0376
Wall Pannel - 1110 x 420 mm 2 Q-016-0378
Countersunk towing lock pin - 63 mm 1 Q-017-0034
Hinge attachment 1 Q-017-0035
Towbar Hinge 1 Q-017-0036
Tow bar lip - 400 mm 1 Q-017-0049
