Shelf Cart - 63 x 33 inch
Shelf Cart - 63 x 33 inch
Shelf Cart - 63 x 33 inch
Shelf Cart - 63 x 33 inch
Q-100-0787

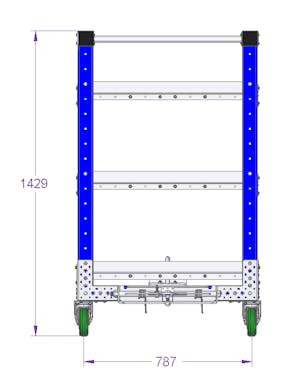

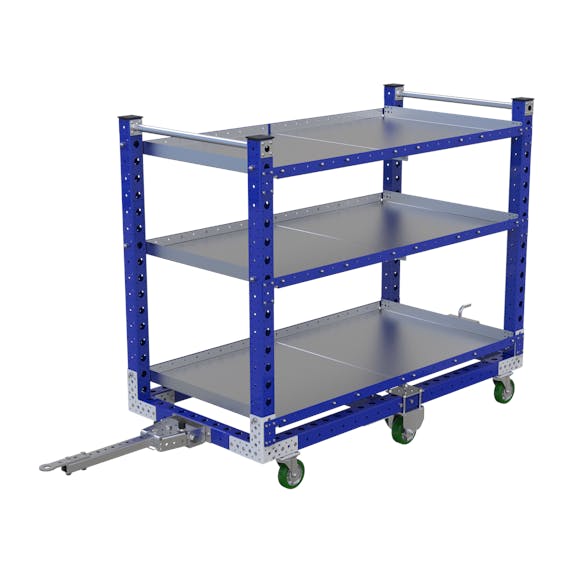

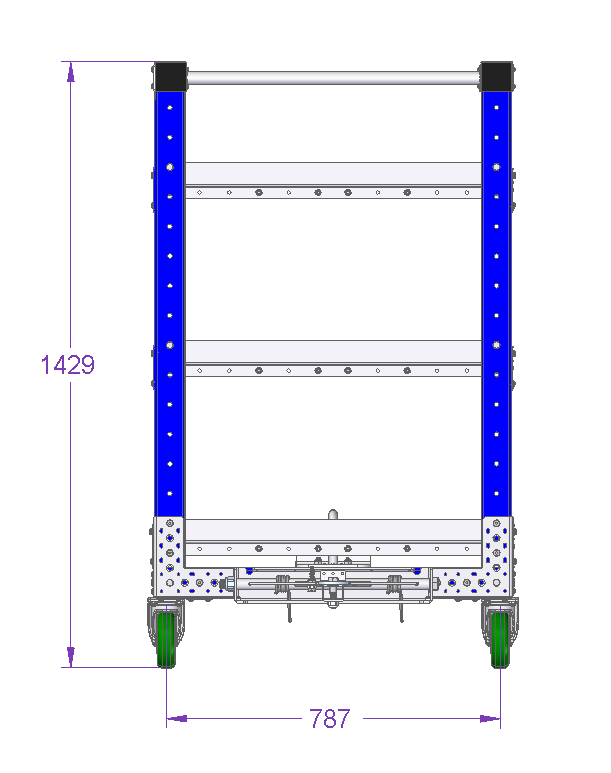

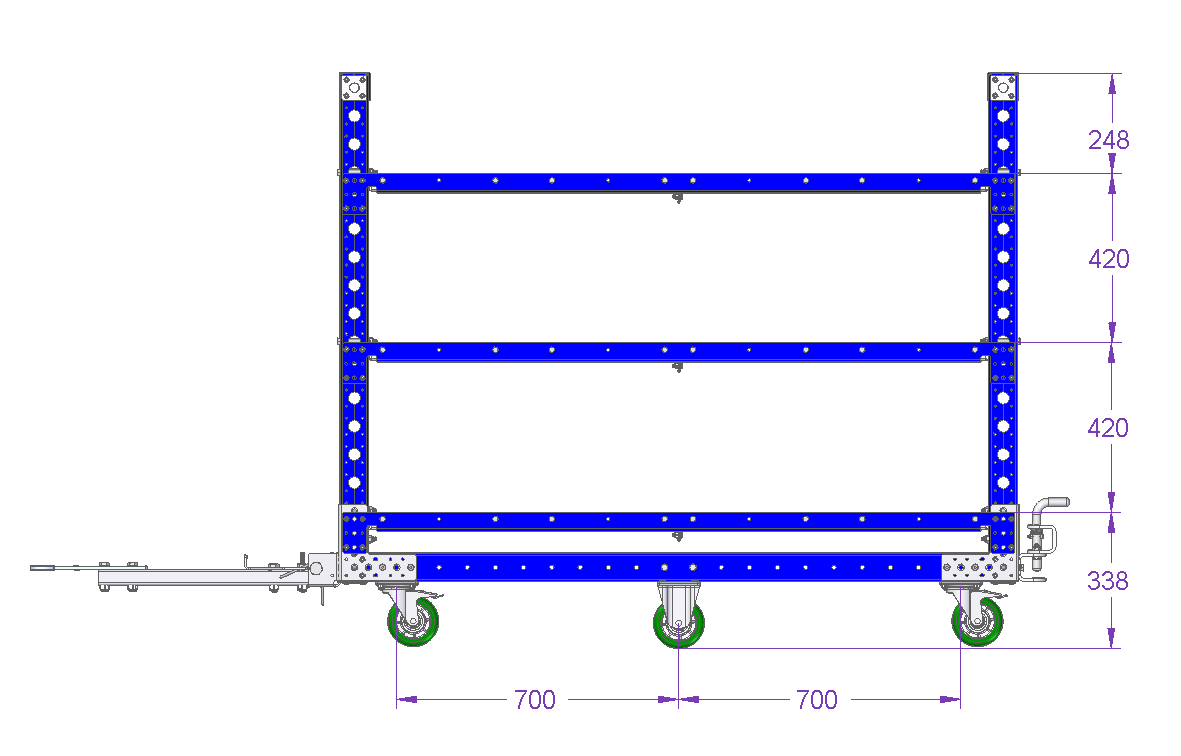

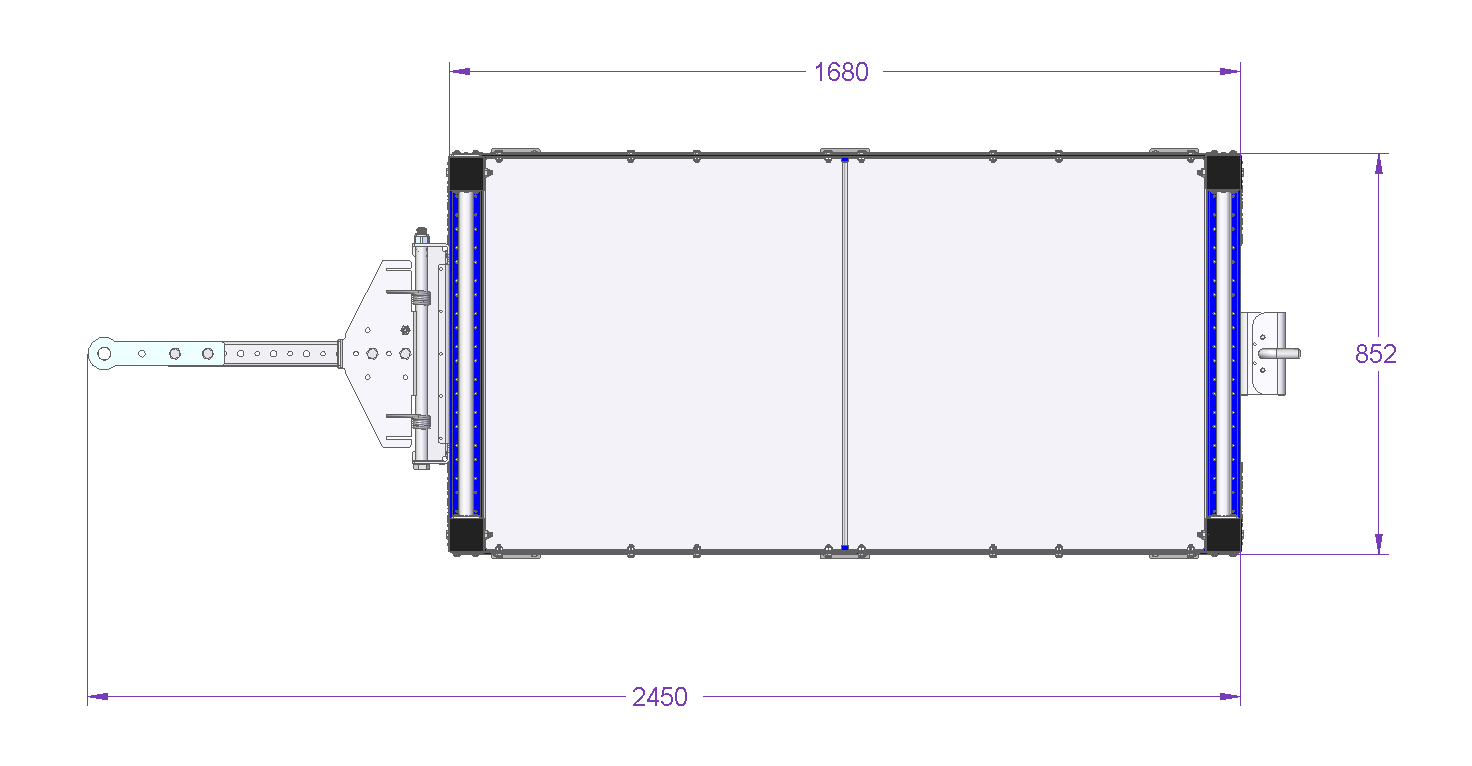

Shelf Cart - 63 x 33 inch

Standard heavy-duty flat shelf cart.

Technical specifications

Transportation method: Tugger

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Levels: 3

Load capacity: 992 lbs

Load Capacity per Level: 331 lbs

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This flat shelf cart is equipped with three shelves for storing bins and boxes. The height of the shelves can be easily adjusted higher or lower. More shelves can also be added to this cart by just bolting them into the frame. This cart is also equipped with a drop pin and hitch tow bar for use within a tugger train system.

Parts included
FlexTube™ 700 mm 2 Q-000-1002
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1190 mm FE 8 Q-001-1400
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 12 Q-002-1001
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Rubber Cap 4 Q-005-0527
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 32 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Locking Nut M10 49 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M8 x 16 mm 66 Q-006-1120
Hex Head - M10 x 90 mm 18 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 89 Q-006-1181
M8 Washer 32 Q-006-1183
Nut M10 1 Q-006-1195
Countersunk - M8 x 20 24 Q-006-1282
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 120 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Flat Shelf - 770 x 840 mm 6 Q-016-0374
Angled plate - 1668 mm 6 Q-016-1092
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Towing Lip - 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
