Q-100-0791

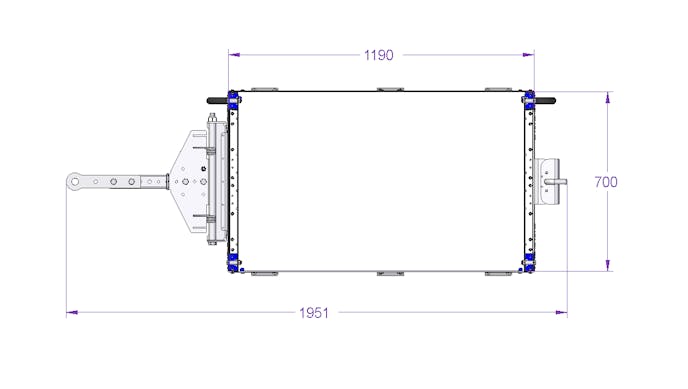

Flow Shelf Cart - 1190 x 700 mm

Custom designed flow shelf cart for presenting materials to the operators.

Technical specifications

Category: Flow Shelf

Type of tow bar: Tongue and Hitch

Width: 28 inch

Length: 47 inch

Load capacity: 882 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

This cart is equipped with three flow shelves. The flow shelves are used to present materials in bins and boxes to the operators. This cart is equipped with a drop pin and hitch tow bar for transportation with a tugger train system.

Parts included
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexBeam™ - 1330 mm FE 2 Q-001-1501
FlexBeam™ 1540 mm FE 2 Q-001-1504
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Collet - 35 mm 12 Q-005-0028
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 14 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Locking Nut M10 51 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 10 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 24 Q-006-1181
M8 Washer 4 Q-006-1183
Nut M10 1 Q-006-1195
M8 x 16 mm Countersunk 16 Q-006-1214
Countersunk - M8 x 20 8 Q-006-1282
Hex Head Fully Threaded - M10 x 50 mm 13 Q-006-1343
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 120 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Handle Bar 210 mm M8 2 Q-015-1037
Top plate - 1190 x 700 mm 1 Q-016-0377
Flow Shelf - 1120 x 700 mm - 210 mm drop 3 Q-016-0384
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Towing Lip - 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
