Q-100-0768

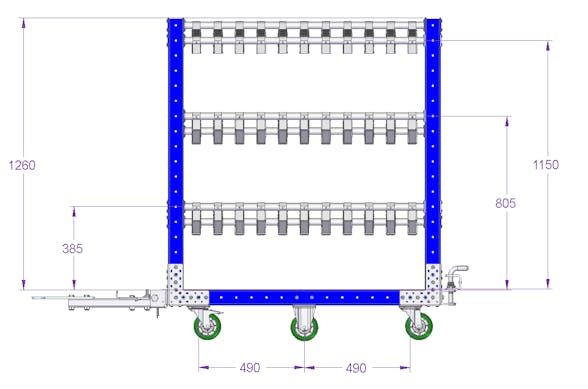

Flow Rack Tugger Cart - 700 x 1260 mm

Standard towable flow rack with roller shelves.

100% free. No commitment.

Automotive 551 lbs
load capacity

Flow Rack Tugger Cart – 700 x 1260 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Transportation method	Manual, Tugger
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Load capacity	551 lbs
Caster size	5 inch
Type of tow bar	Tongue and Hitch

More info

This flow rack is equipped with three roller shelves. These roller shelves are designed for smaller bins, totes and boxes. This cart is equipped with a drop pin and hitch tow bar for transportation within a tugger train system.

Parts included

FlexTube™ 1120 mm 6 Q-000-1258

FlexBeam™ 1190 mm 4 Q-001-1300

FlexBeam™ 700 mm FE 2 Q-001-1407

FlexBeam™ 560 mm FE 2 Q-001-1409

FlexBeam™ 1260 mm FE 8 Q-001-1500

FlexPlate™ 16 Q-002-1001

Flexplate™ M10 2 Q-002-1162

Roller rail - 590 mm 33 Q-003-0006

Rail Support Drop 30 mm Stop 66 Q-003-1022

Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220

Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221

Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265

Towing Hole 2 Q-005-1056

Spring for Tow Bar 2 Q-005-1070

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 18 Q-005-1426

Wheel Attachment - 80 x 60 mm 2 Q-005-1722

Allen Head - M6 x 30 mm 1 Q-006-1012

Hex Head - M20 x 500 mm 1 Q-006-1016

Hex Head - M14 x 60 mm 4 Q-006-1036

Locking Nut M14 4 Q-006-1039

Locking Nut M10 39 Q-006-1042

Locking Nut M6 1 Q-006-1050

Hex Head - M10 x 90 mm 6 Q-006-1132

Hex Head - M10 x 30 mm 2 Q-006-1161

Locking Nut M8 24 Q-006-1181

Nut M10 1 Q-006-1195

Countersunk - M8 x 20 24 Q-006-1282

Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343

Extra Low Head - M10 x 90 mm 26 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 144 Q-006-1384

M20 Locking Nut 1 Q-006-1405

Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410

Compression Spring for US Tow Hitch 1 Q-012-0007

US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015

Handle for Tow Hole 1 Q-017-0022

Towing Lip - 28 mm 1 Q-017-1010

Tow Attachment to Beam 1 Q-017-1080

Tow Hinge 1 Q-017-1083
