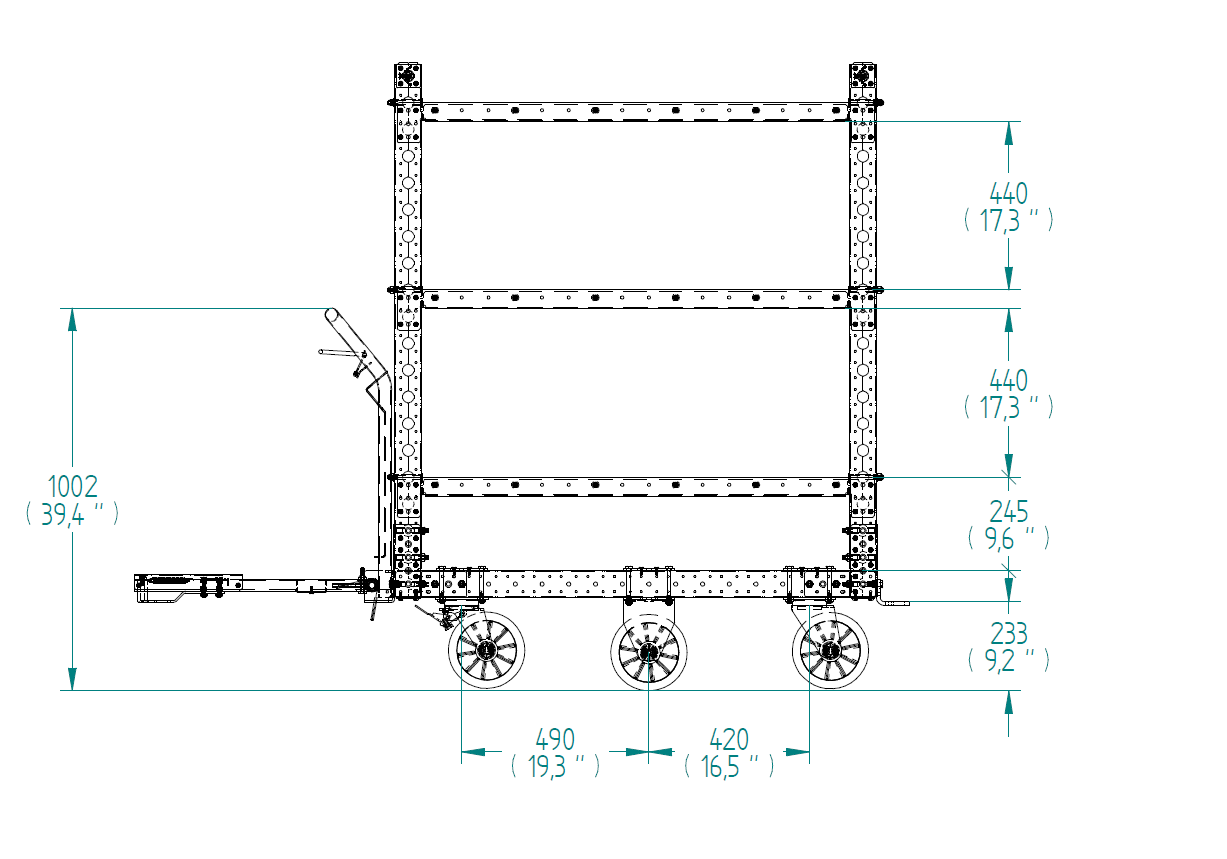

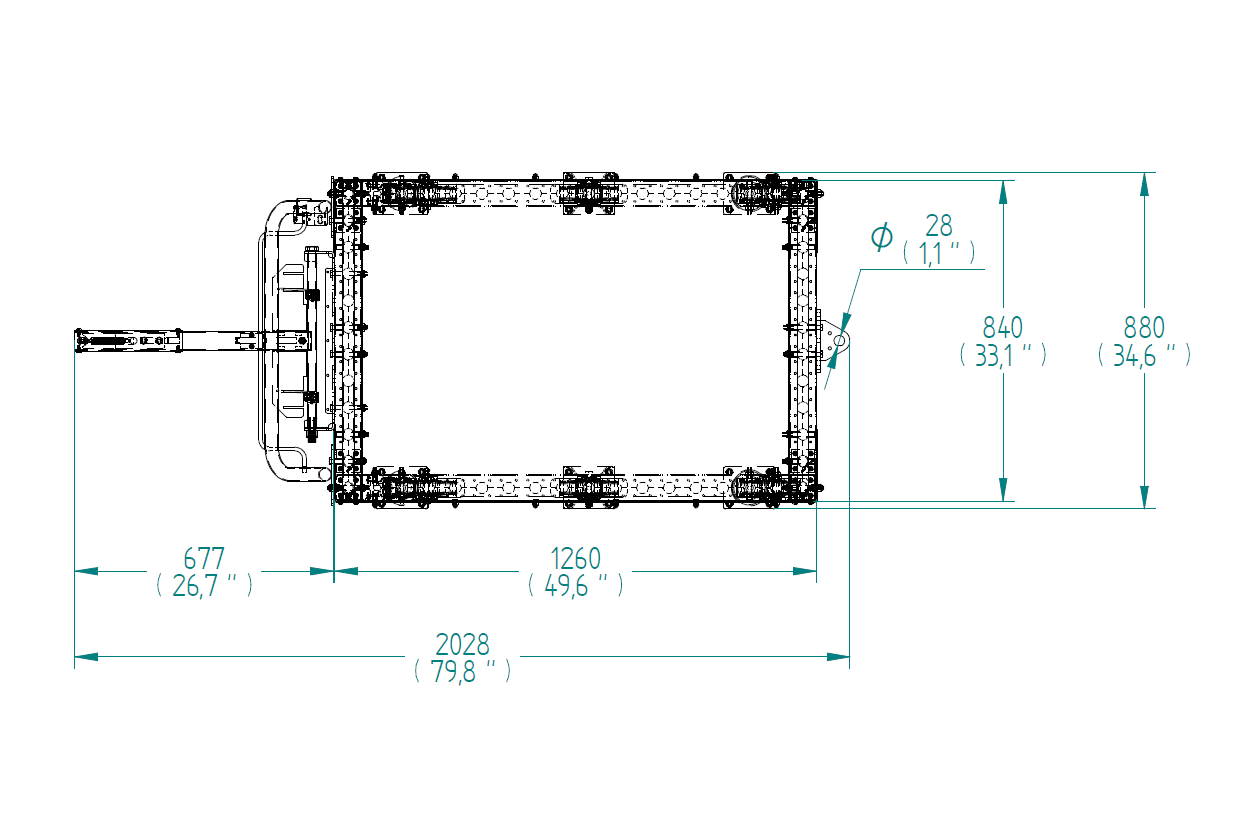

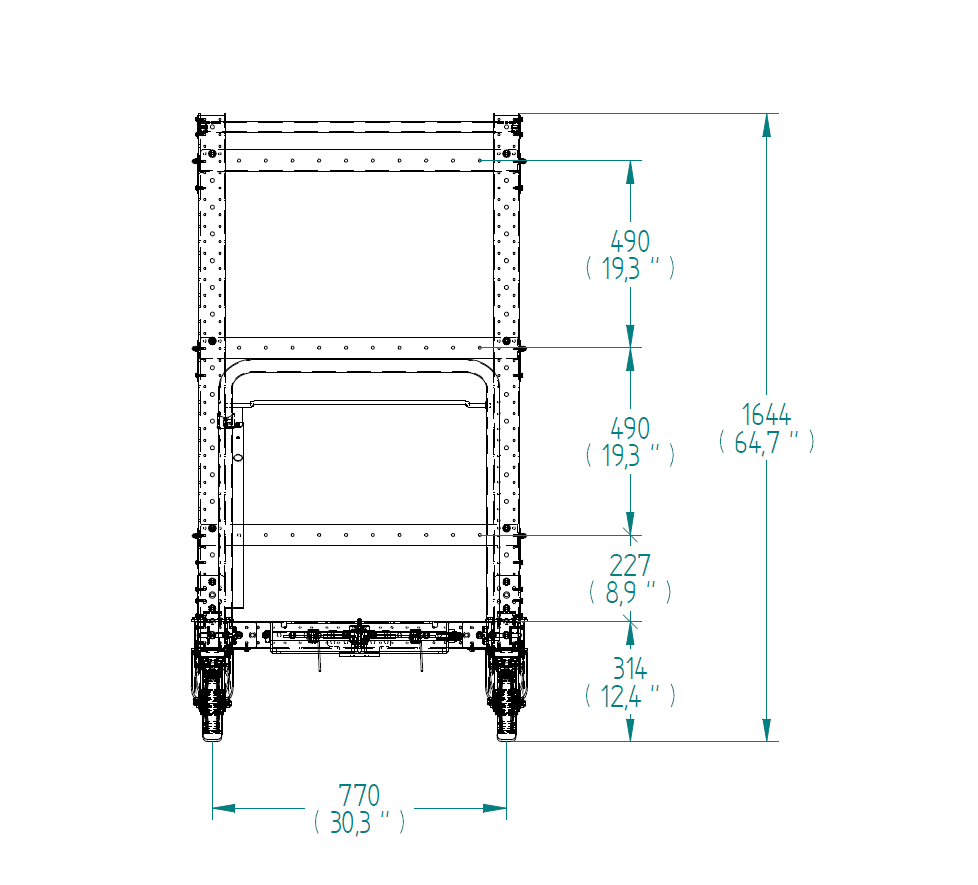

Flat Shelf Cart with Wire Release - 840 x 1260 mm
Flat Shelf Cart with Wire Release - 840 x 1260 mm
Flat Shelf Cart with Wire Release - 840 x 1260 mm
Flat Shelf Cart with Wire Release - 840 x 1260 mm
Q-100-1763

Flat Shelf Cart with Wire Release - 840 x 1260 mm

Three Shelf cart with a trigger release towbar attached handlebar and six polyurethane casters.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Length: 50 inch

Levels: 3

Load capacity: 661 lbs

Load Capacity per Level: 220 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This tugger cart with three levels of shelves is equipped with a trigger release towbar which is a perfect option when ergonomics is a top requirement. The trigger in the handlebar helps to disconnect the towbar from the hitch, and the six high-quality polyurethane casters give the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 4 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Polyurethan 200 mm with Brake IP2 2 Q-004-1210
Caster Polyurethane - 200 mm Swivel 2 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
Spring Threaded Tube Connectors 4 Q-005-0469
Collet - 31 mm 2 Q-005-1008
Old part: Spring for Tow Bar 2 Q-005-1012
Damper GN352 1 Q-005-1016
Spring Cover Plate 1 Q-005-1025
Wire Guidance Plate 1 Q-005-1026
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 40 Q-005-1426
Dome Nut - M10 12 Q-006-0045
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M4 x 8 mm 1 Q-006-1028
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 62 Q-006-1042
Washer M10 24 Q-006-1043
Scissor Sprint 2,5 x 16 FZB 1 Q-006-1077
Hex Head - M10 x 95 mm 10 Q-006-1088
Countersunk - M10 x 70 mm 1 Q-006-1112
Hex Head - M10 x 90 mm 22 Q-006-1132
M8 Washer 36 Q-006-1183
Hex Head Fully Threaded - M10 x 50 mm 2 Q-006-1343
Extra Low Head - M10 x 90 mm 34 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 158 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 6 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 1 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Release Handlebar w/o Floor Brake - 700 mm 1 Q-015-0084
Flat Shelf - 1119 x 840 mm 3 Q-016-1237
Angled Plate - 1248 mm 6 Q-016-1238
Countersunk Towing Lock Pin - 25 mm 1 Q-017-0010
Towing Equipment - Locking Lip 1 Q-017-1015
Towing - Spring attachment 1 Q-017-1016
Trigger Handle 1 Q-017-1050
Rubber Bushing 498030 1 Q-017-1062
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Tow Attachment to Beam 1 Q-017-1080
FlexBeam™ - 1190 mm 4 Q-020-1190
FlexBeam FE - 1330 mm 8 Q-021-1330
Outer Tube (No Plate) - 840 mm 2 Q-025-0840
