Q-100-0380

Daughter Cart - 700 x 1330 mm

Flat shelf cart designed to be used in a mother-daughter system in combination with Q-100-0381.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 28 inch

Length: 54 inch

Levels: 3

Load capacity: 661 lbs

Load Capacity per Level: 220 lbs

Transportation method: Manual, Mother-Daughter Cart

Caster size: 5 inch

Caster Type: Gray

More info

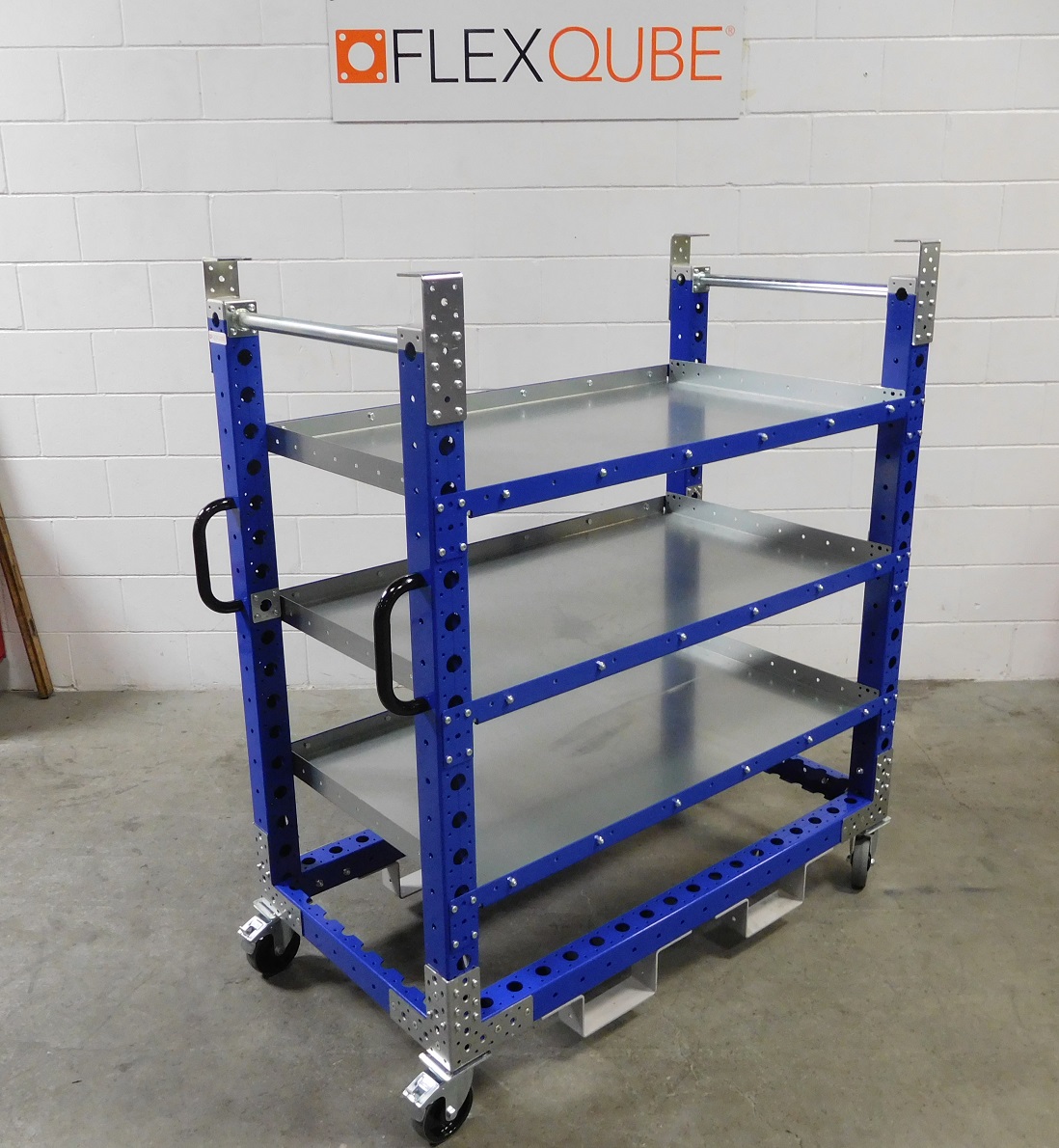

This flat shelf cart is designed to be used in a mother-daughter system in combination with Q-100-0381. The cart is equipped with three shelves with a lip, two handlebars and four nylon swivel casters for manual transportation.

Parts included
FlexTube™ 560 mm 2 Q-000-1182
FlexQube 4 Q-001-1078
FlexBeam™ - 1260 mm 4 Q-001-1299
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 14 Q-002-1001
Swivel Caster - 125 mm 2 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
L-shape Daughter cart guide 4 Q-005-0258
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
Wheel Attachment - 80 x 60 mm 4 Q-005-1722
Fork Guide - 210 x 100 mm 4 Q-005-1923
Hex Head Fully Threaded - M8 x 20 mm 4 Q-006-1019
Locking Nut M10 36 Q-006-1042
Hex Head - M8 x 16 mm 36 Q-006-1120
Locking Nut M8 52 Q-006-1181
M8 Washer 4 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 192 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 24 Q-006-1410
M8 Handlebar US - 350 mm 2 Q-015-1089
Flat Shelf - 1190 x 700 mm 3 Q-016-0009
Angled Plate - 1318 mm 6 Q-016-0185
