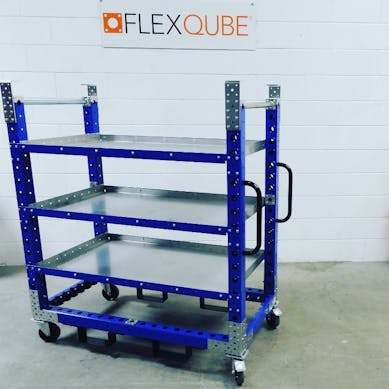

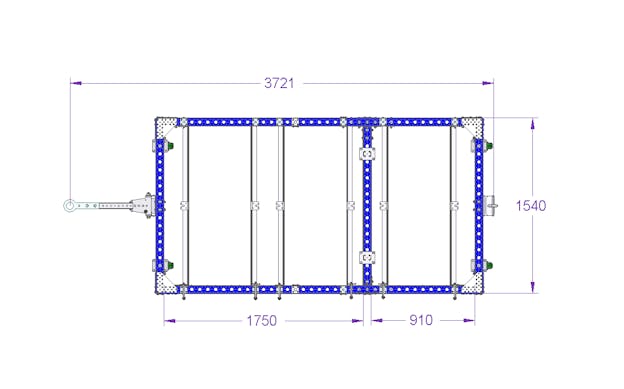

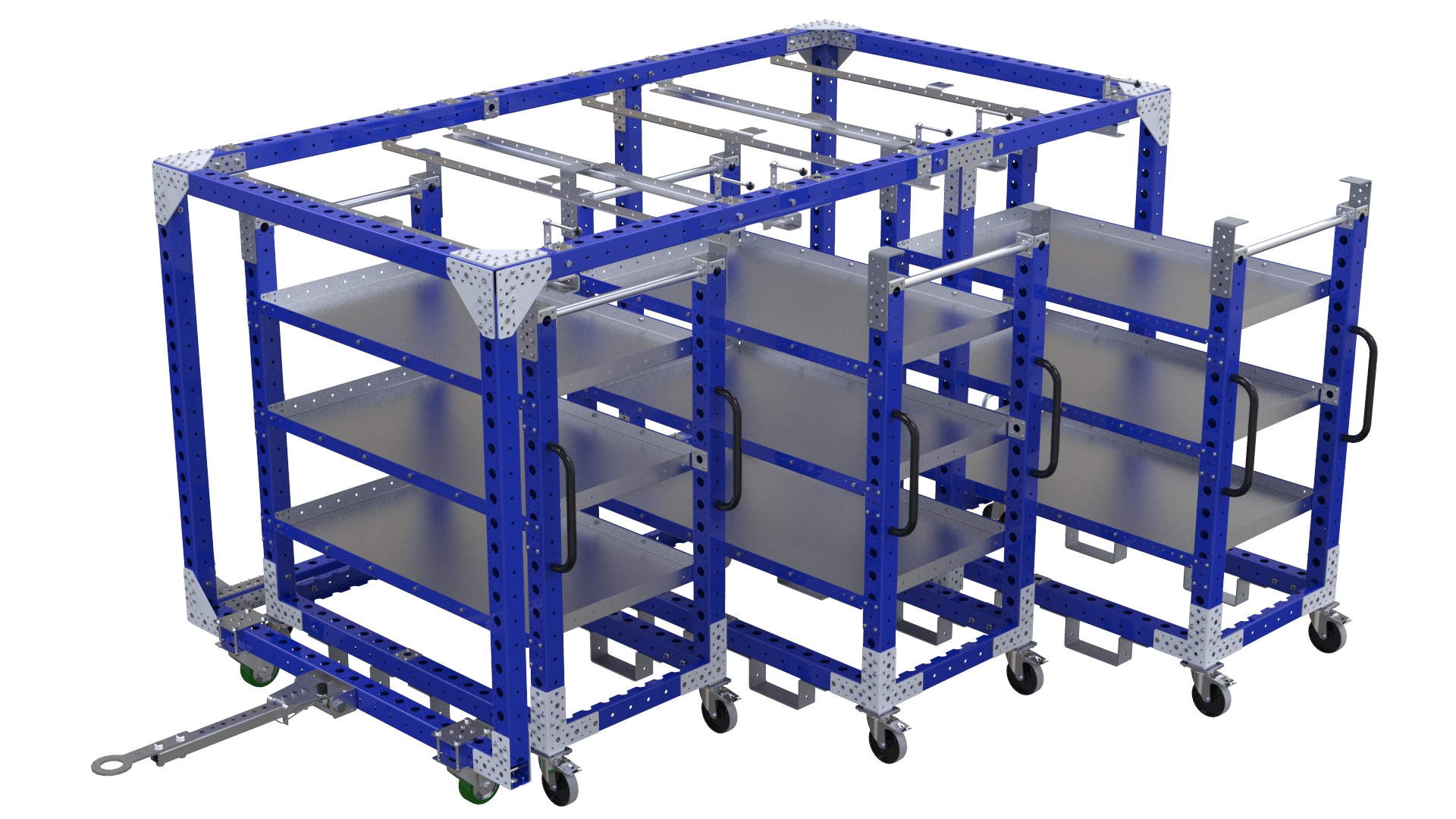

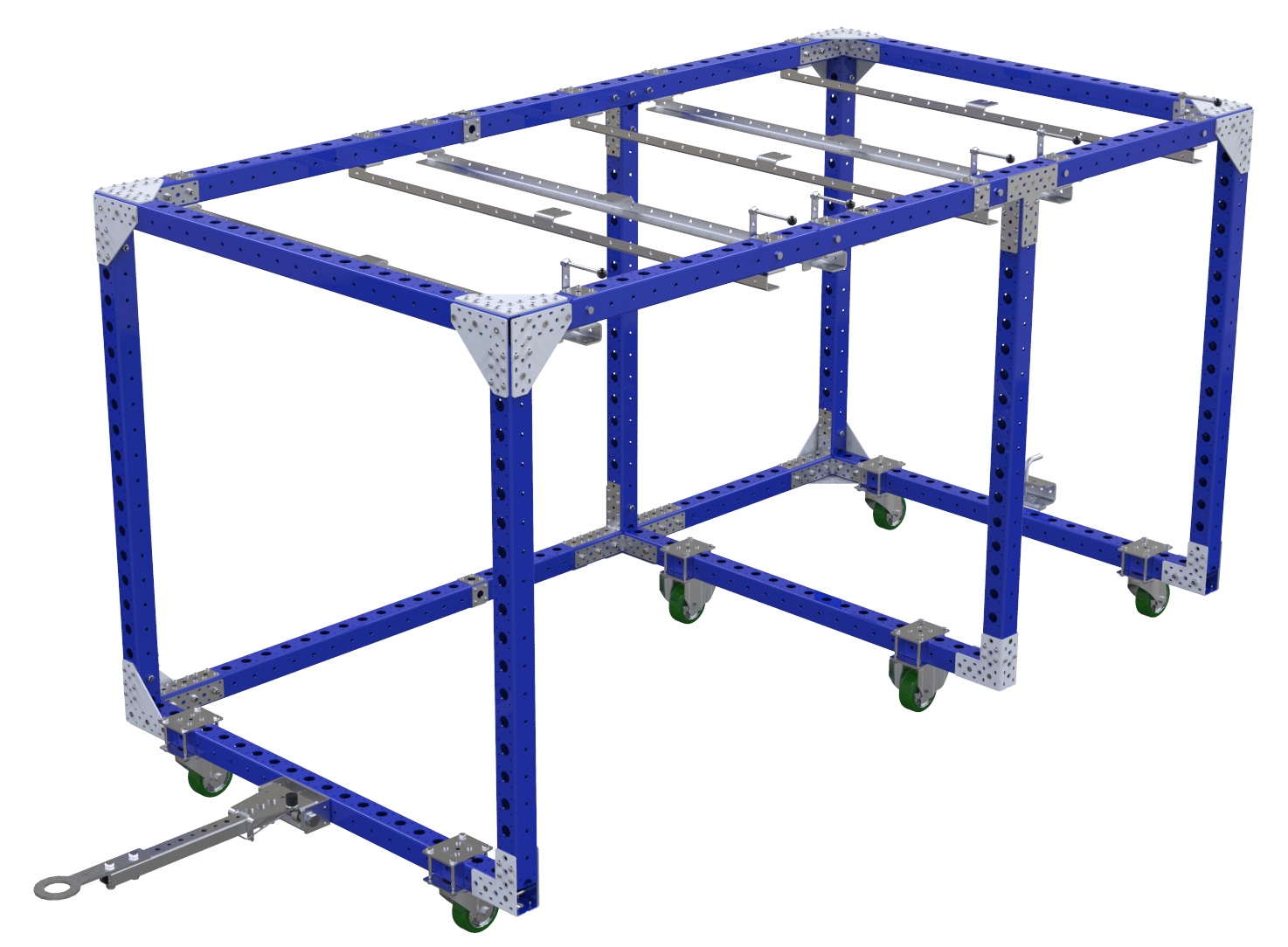

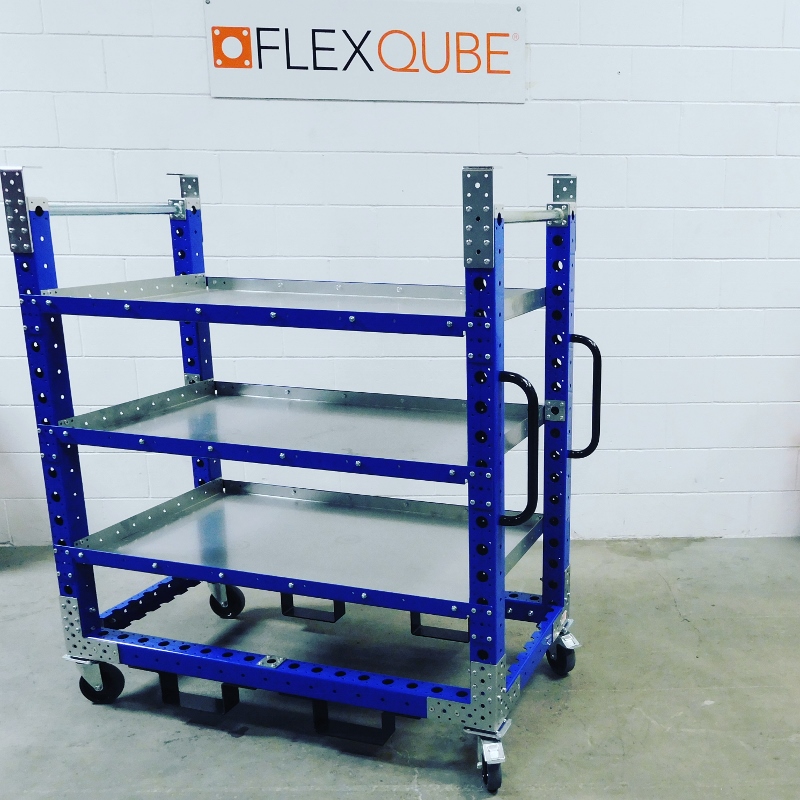

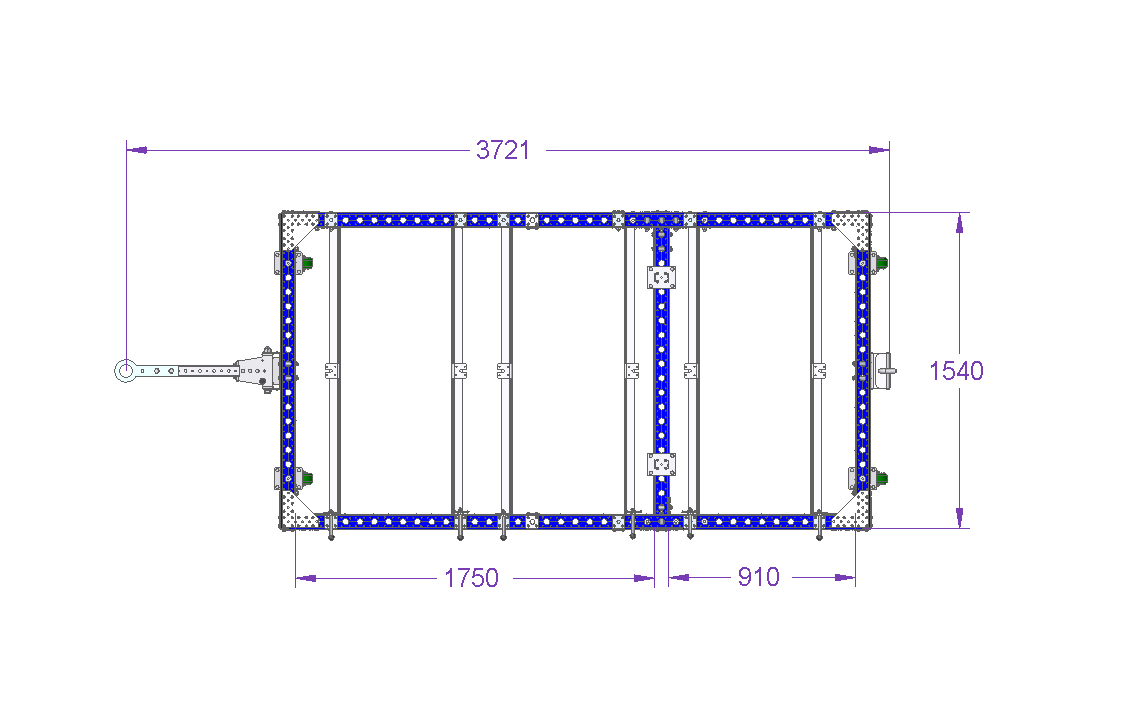

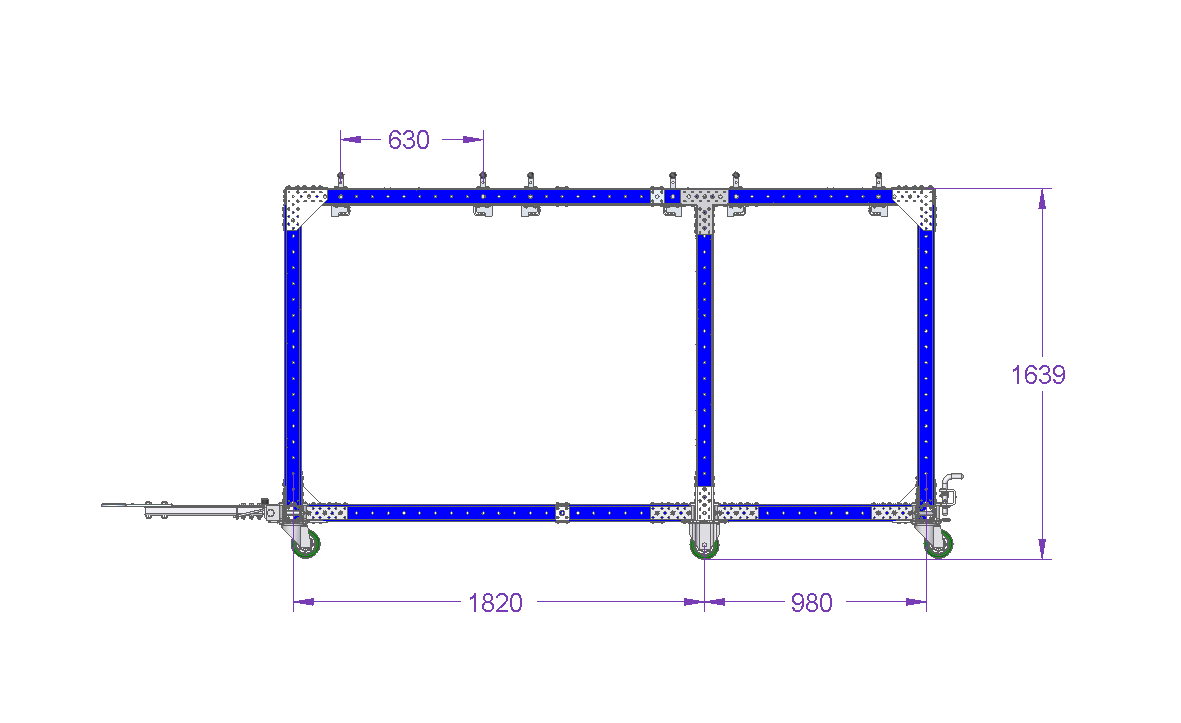

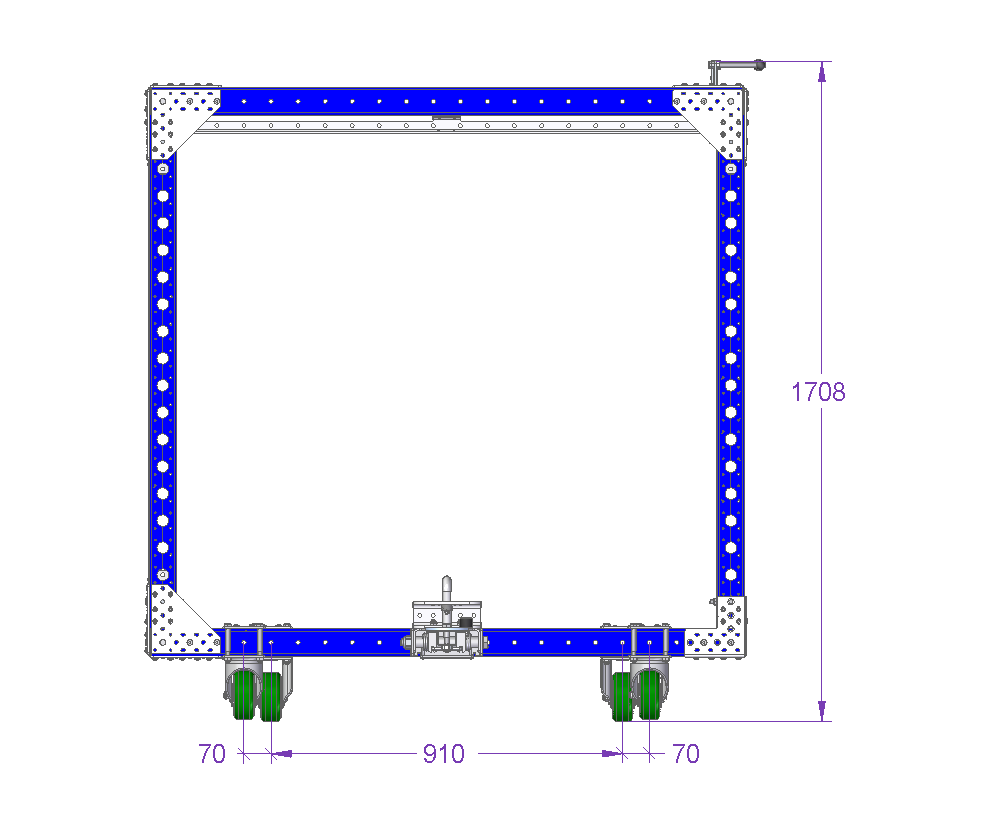

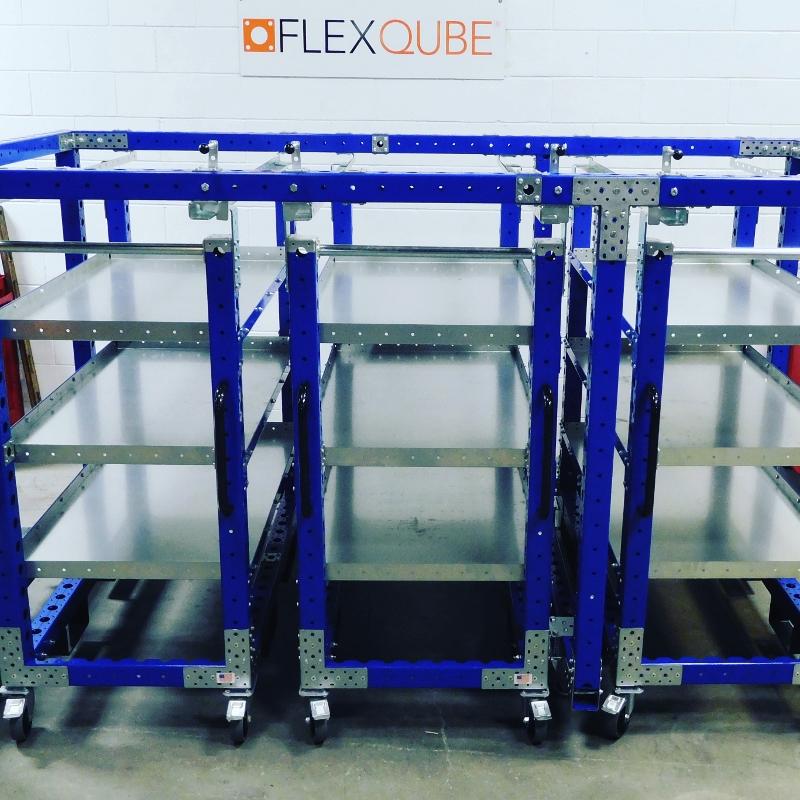

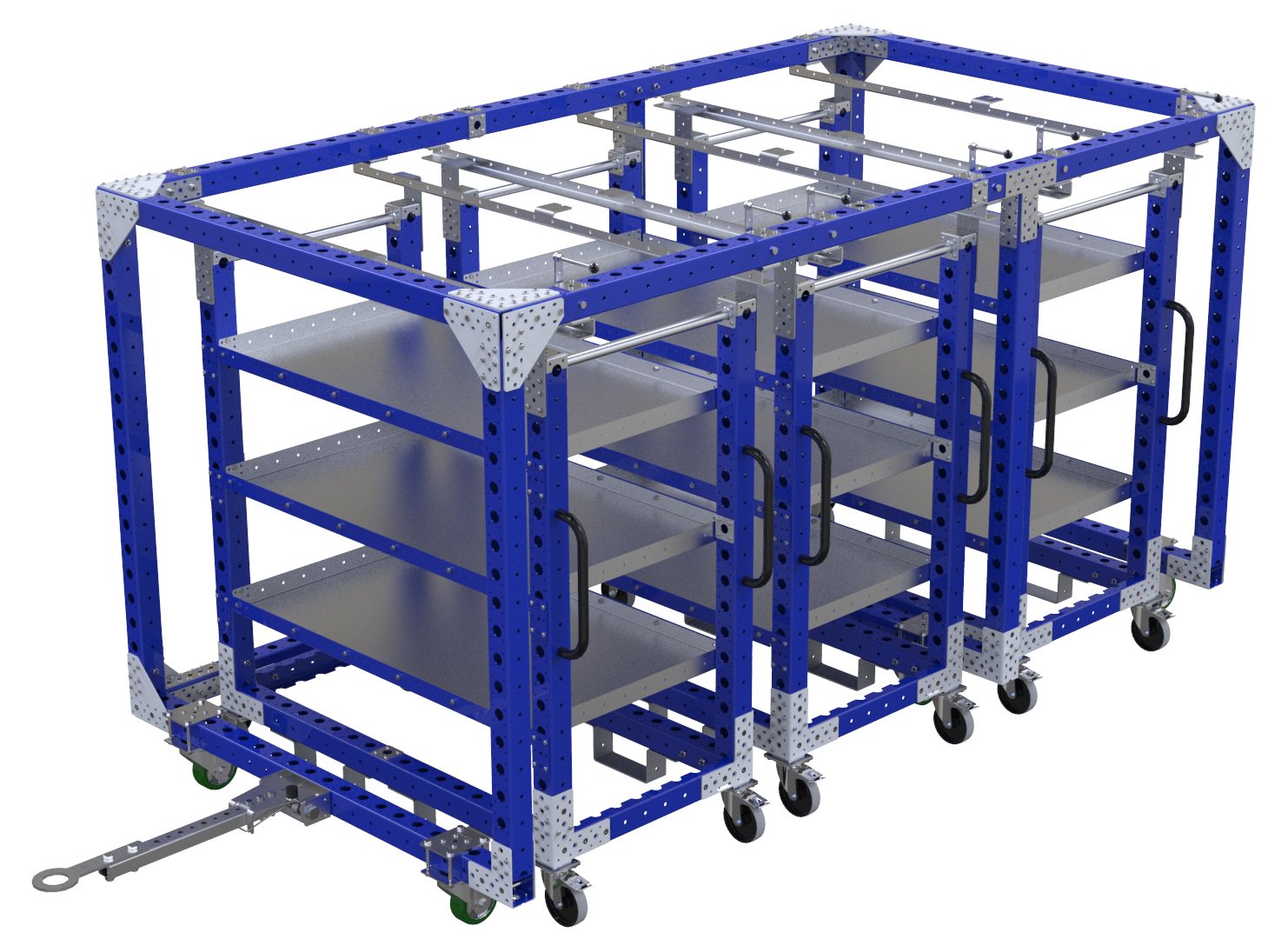

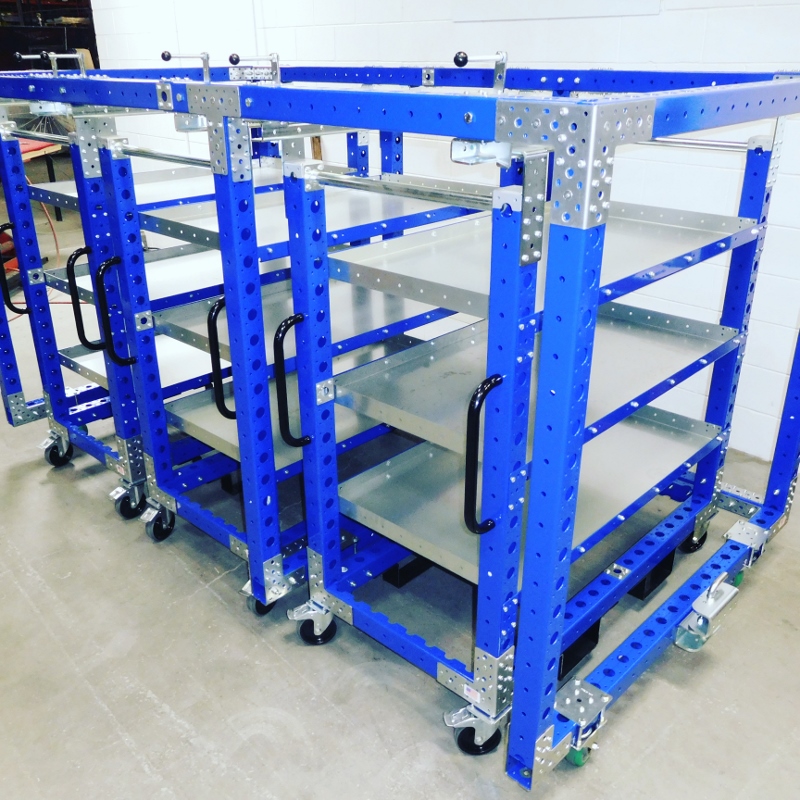

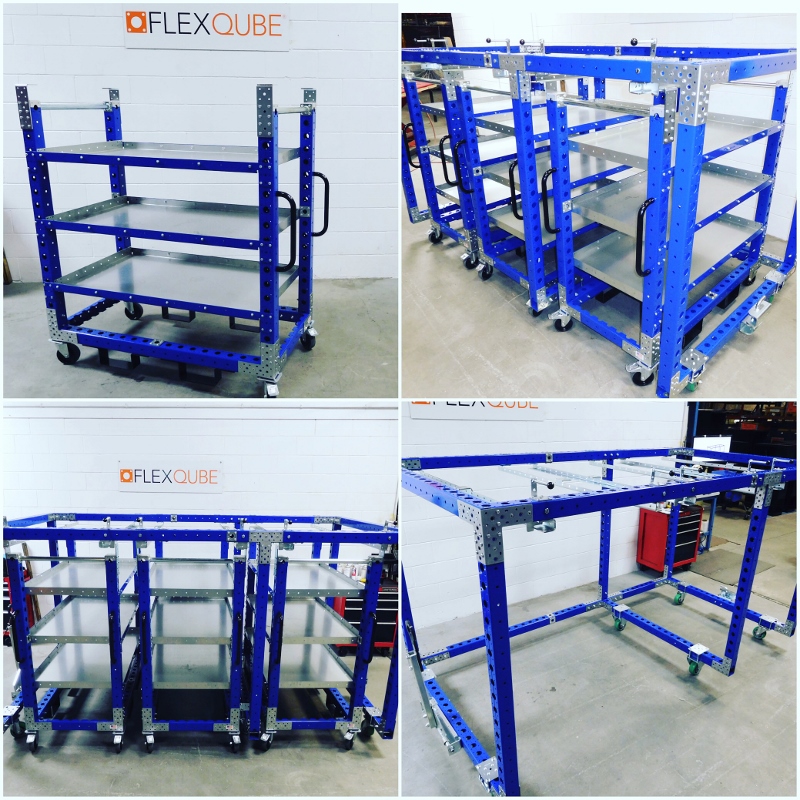

Back Back Q-100-0381 Mother Cart 3 in 1 - 1540 x 2870 mm Tuggable mother cart designed to transport three daughter carts (Q-100-0380) Get a quote 100% free. No commitment. Get a quote Close Mother Cart 3 in 1 – 1540 x 2870 mm Email Phone Location Comments (optional) Attach a file (optional) Upload Maximum file size is 10mb. We will get back to you within 24 hours. (Unless it’s during holidays.) Create your own cart Boost Efficiency Heavy-duty & modular Technical specifications Transportation method Mother-Daughter Cart, Tugger Industry Defense Equipment, Industrial Machinery, Wind & Energy Length 113 inch Width 61 inch Height 67 inch Caster size 5 inch Type of tow bar Tongue and Hitch Parts included FlexBeam™ - 1610 mm 6 Q-001-1294 FlexBeam™ - 1330 mm 12 Q-001-1298 FlexBeam™ 1190 mm 6 Q-001-1300 FlexBeam™ - 1400 mm FE 2 Q-001-1502 FlexBeam™ - 1470 mm FE 4 Q-001-1503 FlexBeam™ 1540 mm FE 4 Q-001-1504 FlexPlate™ 19 Q-002-1001 Flexplate™ M10 14 Q-002-1162 Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065 Caster Polyurethane - 125 mm 4 Q-004-1106 Caster Polyurethane 125 mm Fixed 2 Q-004-1107 L Bracket Joint 16 Q-005-0031 T-Joint 4 Q-005-0065 M10 - Collet - 6 mm 6 Q-005-0105 Daughter cart catcher - 1470 mm 6 Q-005-0259 Triangle Joint 18 Q-005-0483 M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648 Towing Hole 2 Q-005-1056 Spherical Knob 6 Q-005-1146 64 mm FlexBeam™ Collet 55 Q-005-1426 Heavy Duty Joint M10 3 Q-005-1580 Daughter Cart Locking Plate 6 Q-005-1730 Allen Head - M6 x 30 mm 1 Q-006-1012 Washer 10,5 x 30 x 2,5 1 Q-006-1030 Hex Head - M14 x 60 mm 2 Q-006-1036 Fully Threaded - M10 x 120 mm 6 Q-006-1037 Locking Nut M14 2 Q-006-1039 Locking Nut M10 103 Q-006-1042 Washer M10 17 Q-006-1043 Locking Nut M6 1 Q-006-1050 Hex Head - M10 x 95 mm 8 Q-006-1088 Hex Head - M10 x 90 mm 33 Q-006-1132 Hex Head - M10 x 30 mm 2 Q-006-1161 Locking Nut M8 1 Q-006-1181 Nut M10 6 Q-006-1195 Hex Head - M10 x 100 mm 3 Q-006-1302 Extra Low Head - M10 x 90 mm 45 Q-006-1381 Self Tapping Screw M6 Torx H60 x 16 540 Q-006-1384 Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410 Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502 Compression Spring for US Tow Hitch 1 Q-012-0007 US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014 Handle for Tow Hole 1 Q-017-0022 Tow Hinge Module 1 Q-017-0059 Towing Lip - 2,5 Inch 1 Q-017-1012 Show all More info Tuggable mother cart designed to transport three daughter carts (Q-100-0380). The mother daughter concept is most commonly used in a milk run system” meaning you use the mother cart to transport daughter carts filled with material from warehouse to assembly line and picking up empty daughter carts on the way back.”
