Q-100-0447

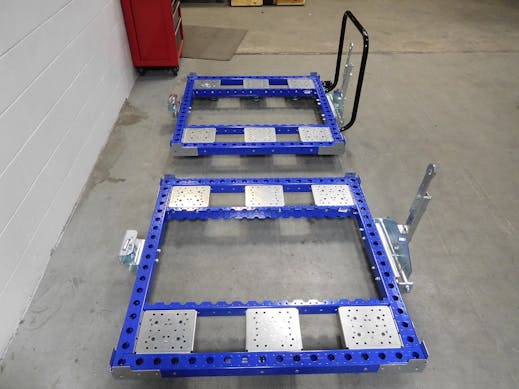

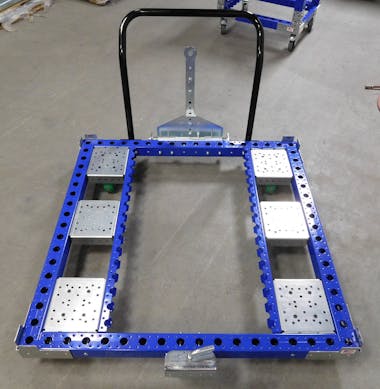

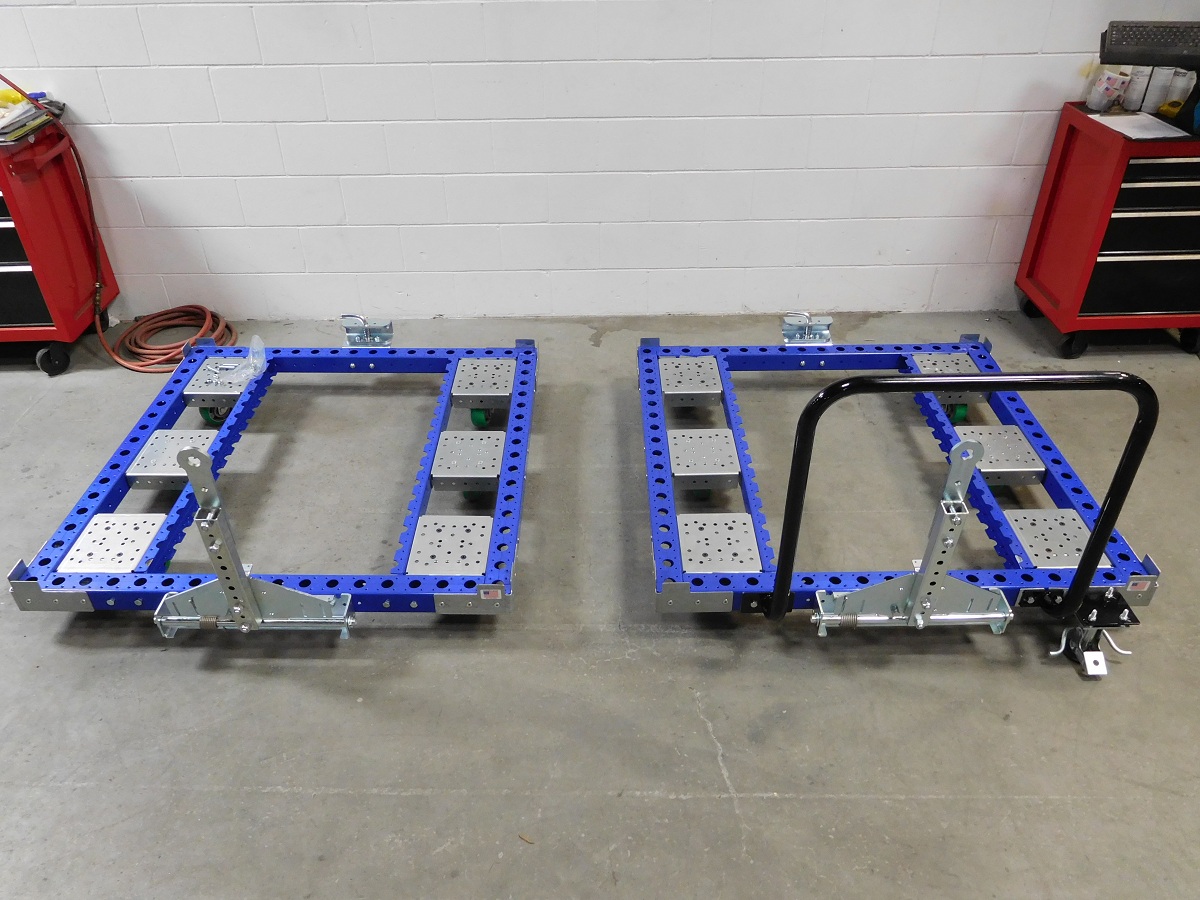

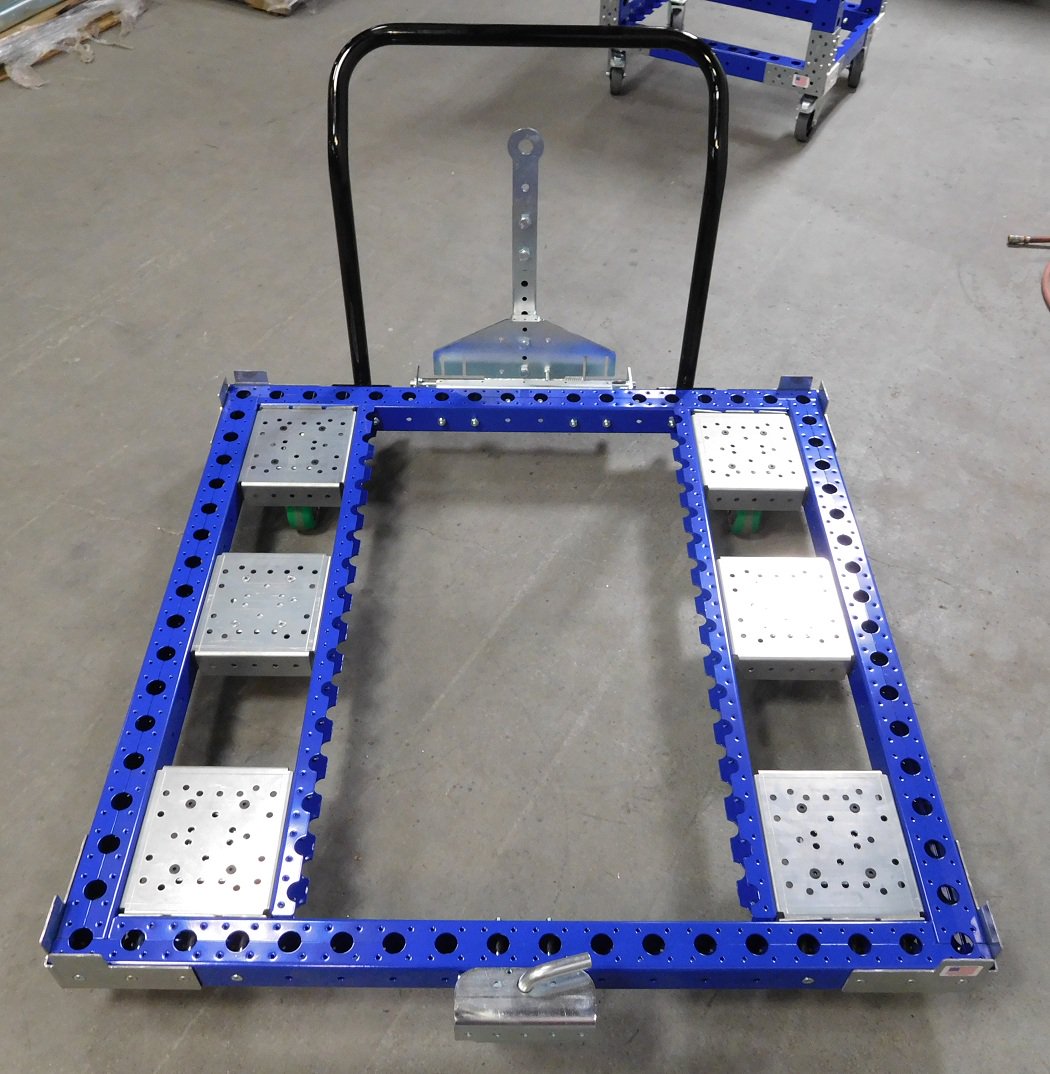

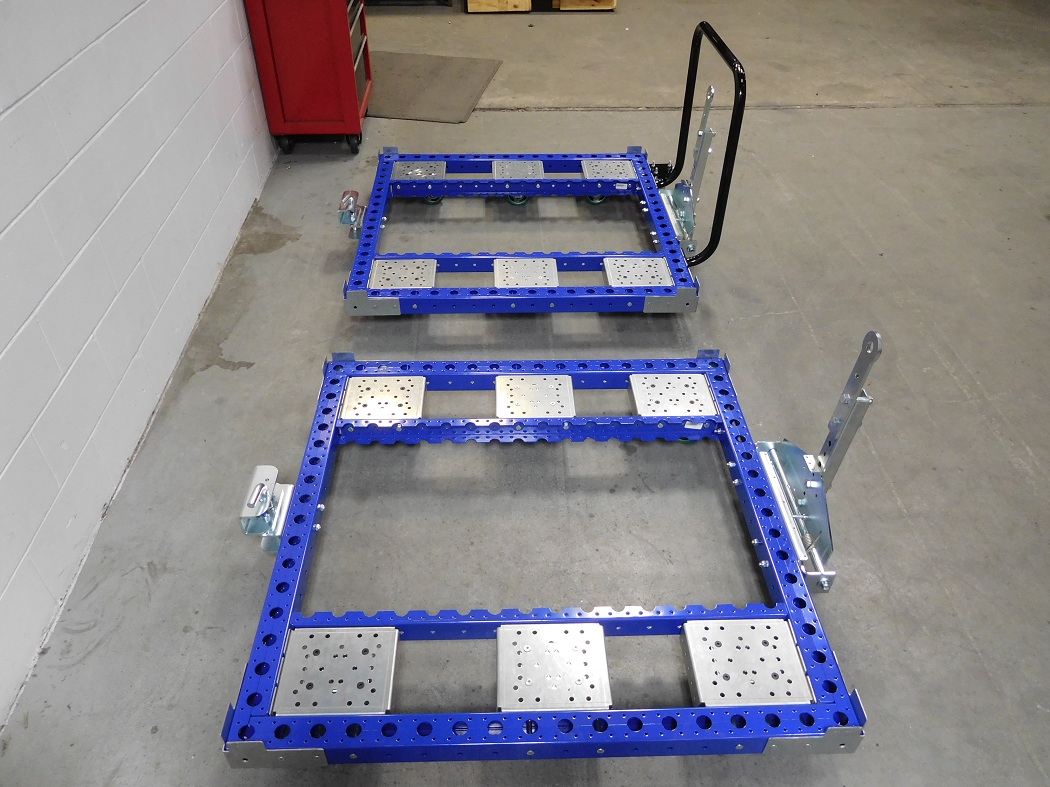

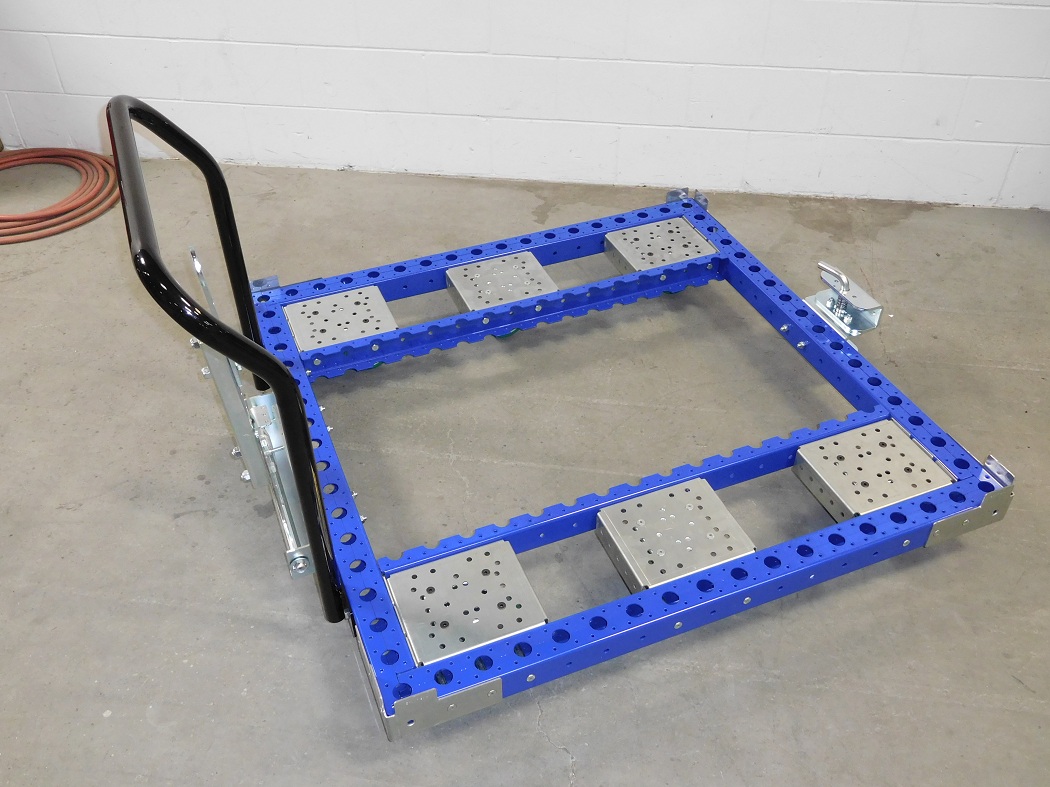

Tugger Cart - Low rider 1260 x 1260 mm

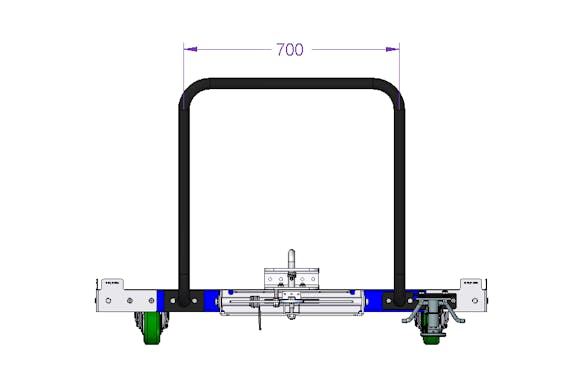

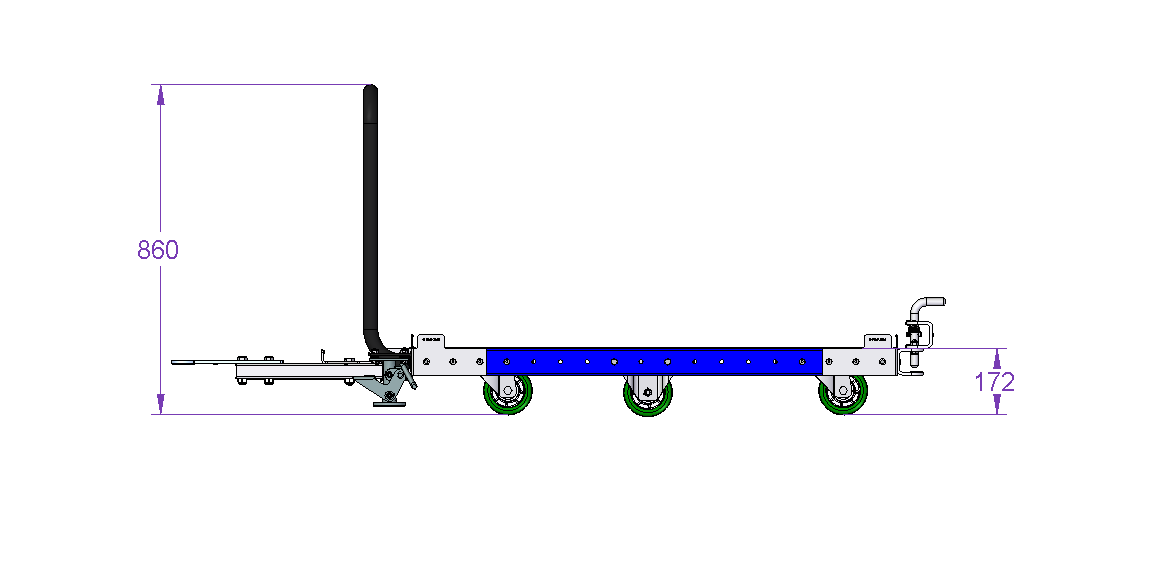

Tuggable low rider pallet cart equipped with a handlebar, floor brake and six polyurethane casters.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

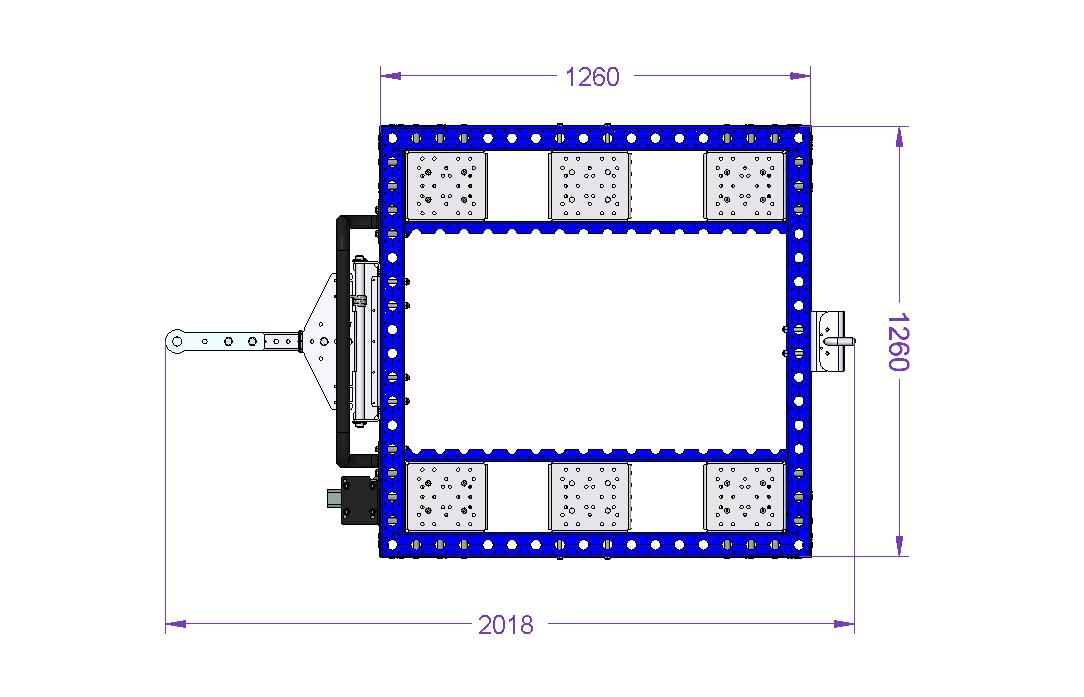

Width: 50 inch

Length: 50 inch

Load capacity: 1598 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

This low rider pallet cart is great for when you’re transporting high crates, pallets or containers to fit as much material as possible in for the operators in an ergonomic height. The cart is equipped with a tow bar, handlebar, floor brake and six high quality polyurethane casters giving you excellent tracking properties and silent movement in a train.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
Flexplate™ M10 12 Q-002-1162
Floor lock COLSON - 4 x 4-1/2 - 125 - 150 mm 1 Q-004-0031
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Towing Hole 2 Q-005-1056
Spring for Tow Bar 1 Q-005-1070
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 28 Q-005-1426
Washer M20 2 Q-006-0016
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 83 Q-006-1042
Washer M10 24 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M10 x 90 mm 8 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Nut M10 1 Q-006-1195
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Low Allen Head - M10 x 16 mm 16 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007

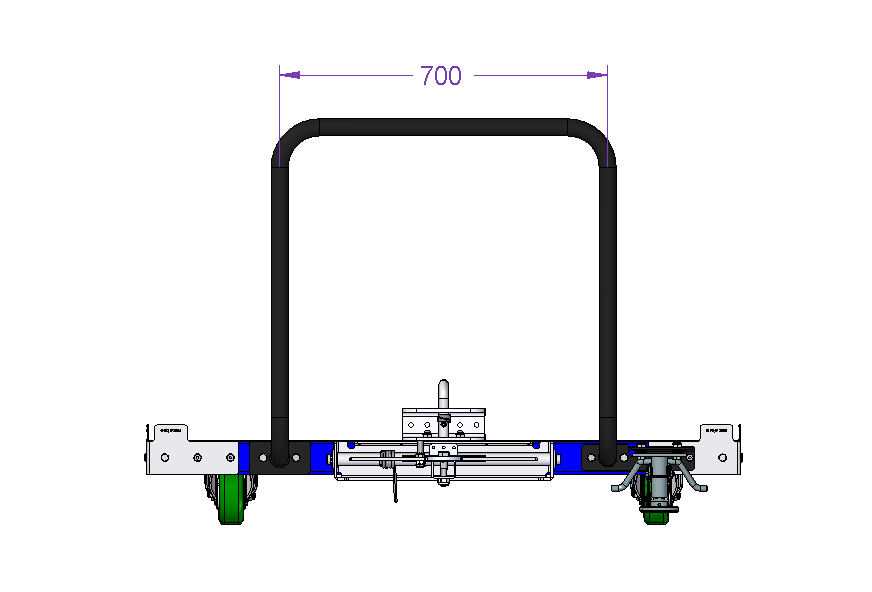

FlexHandle low rider w floor lock plate - 700 mm 1 Q-015-0016
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Cotter Pin - 3,2 x 32 mm 2 Q-017-0023
Towing Lip - 28 mm 1 Q-017-1010
Tow Bar Lock Tube - 498 mm 1 Q-017-1061
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
FlexPlate™ 8 Q-002-1001
Hex Head - M10 x 40 4 Q-006-1208
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
