Tugger Cart - 2170 x 1260 mm
Tugger Cart - 2170 x 1260 mm
Tugger Cart - 2170 x 1260 mm
Tugger Cart - 2170 x 1260 mm
Q-100-0601

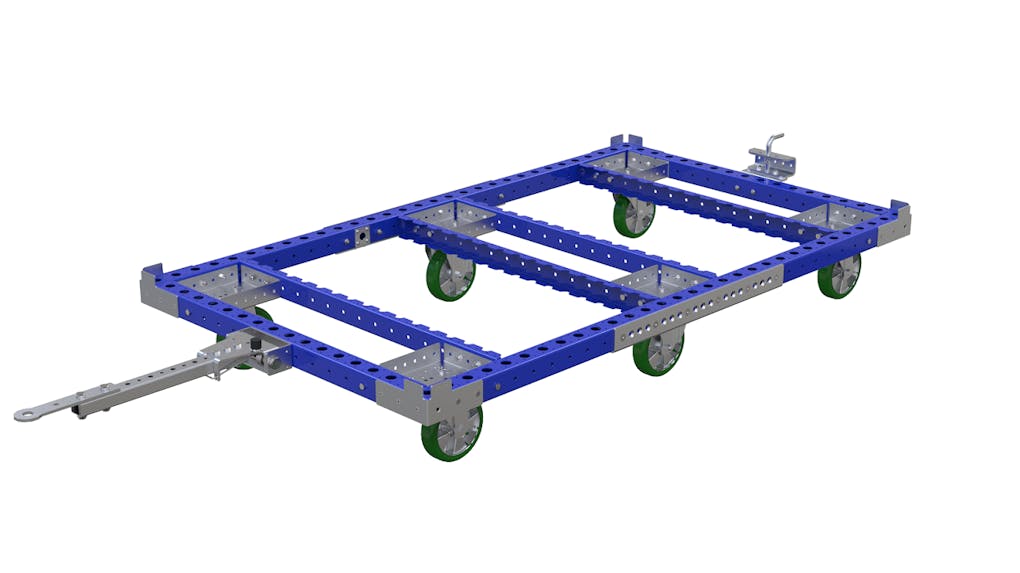

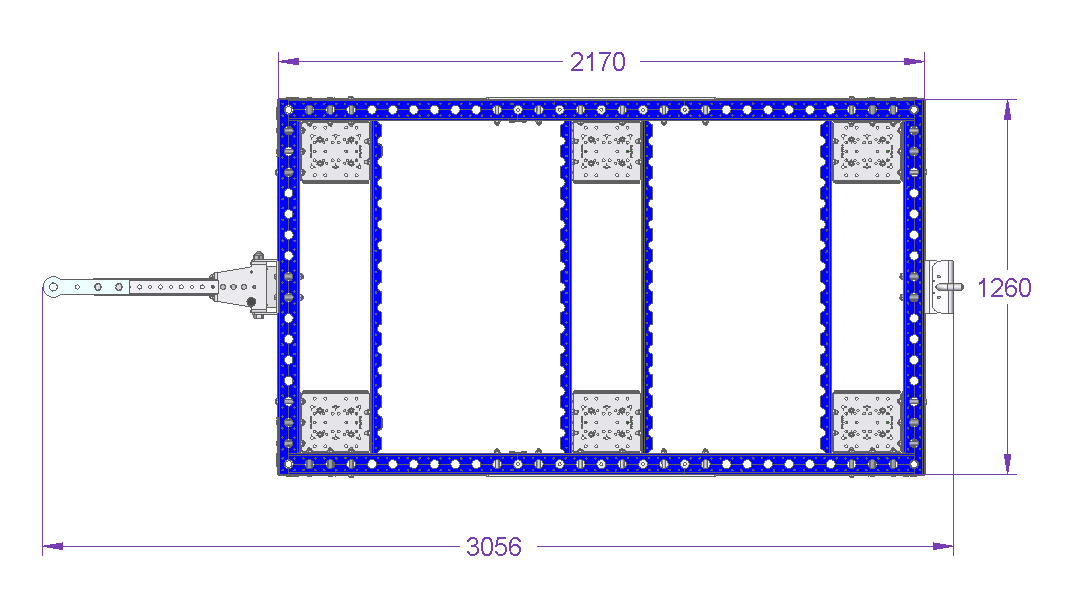

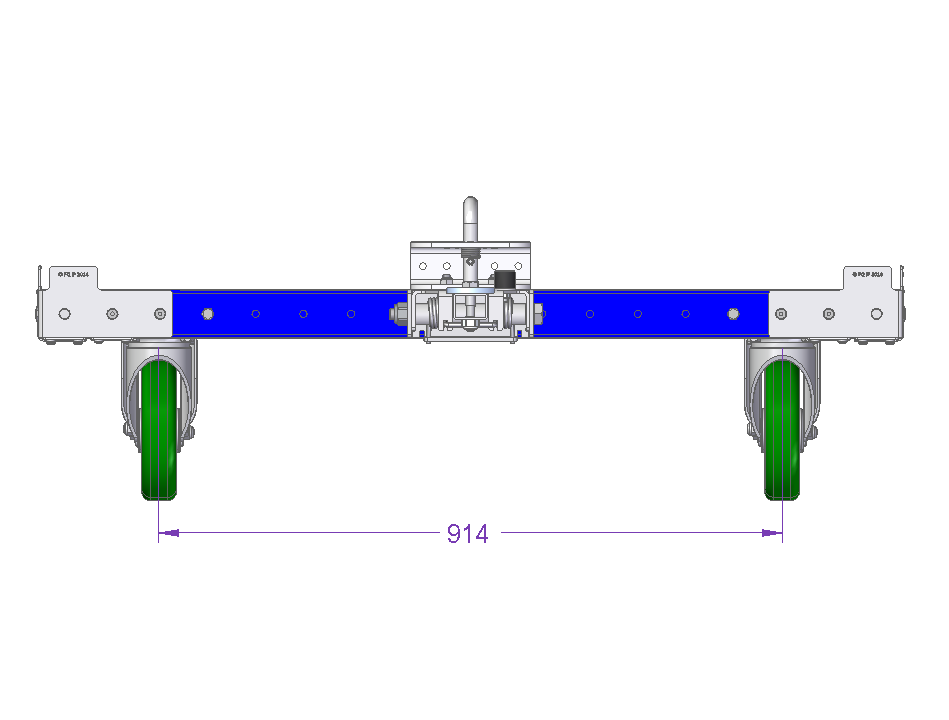

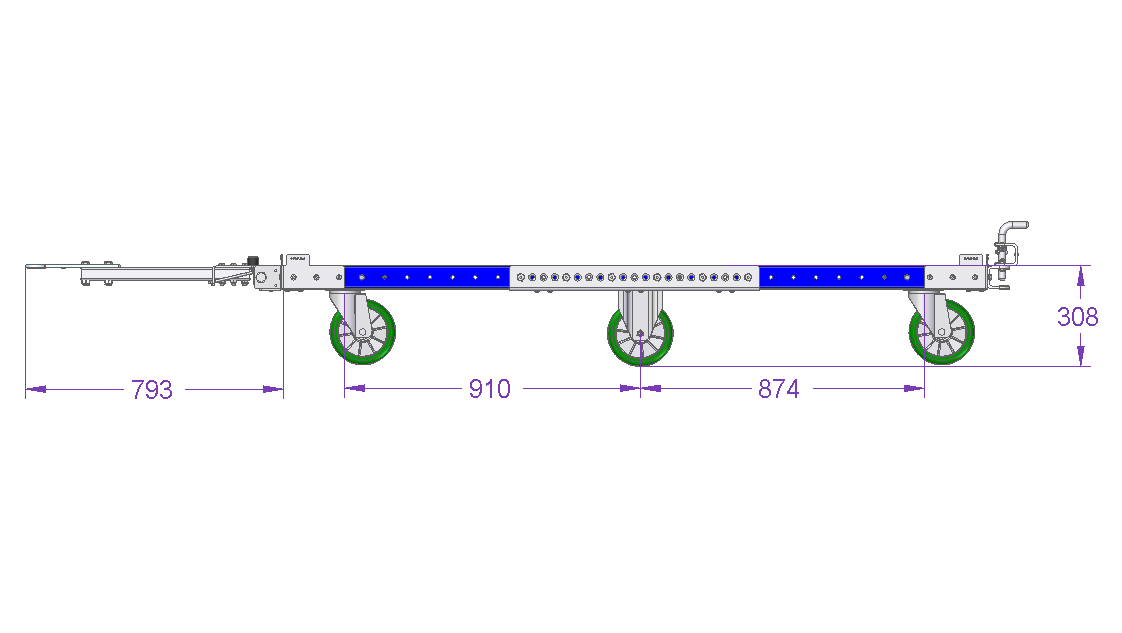

Tugger Cart - 2170 x 1260 mm

Large tugger cart for transporting pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 50 inch

Length: 85 inch

Load capacity: 1499 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

This pallet cart is designed to transport pallets and containers. It is equipped with six high quality polyurethane casters, four swivel and two fixed for better tracking in a train. It also comes equipped with a drop pin and hitch tow bar for use within a tugger train system.

Parts included
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 10 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
Reinforcement Plate - 770 mm 2 Q-005-1112
64 mm FlexBeam™ Collet 16 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 40 Q-006-1041
Locking Nut M10 89 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 90 mm 12 Q-006-1132
Countersunk MF6S - M10 x 90 mm 12 Q-006-1135
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 64 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
