Tugger Cart - 1260 x 700 mm
Tugger Cart - 1260 x 700 mm
Tugger Cart - 1260 x 700 mm
Tugger Cart - 1260 x 700 mm
Q-100-0754

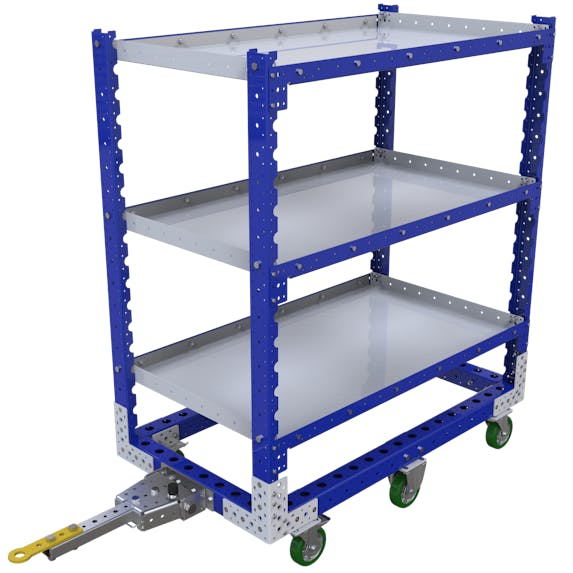

Tugger Cart - 1260 x 700 mm

Standard towable flat shelf cart for bins, totes and boxes.

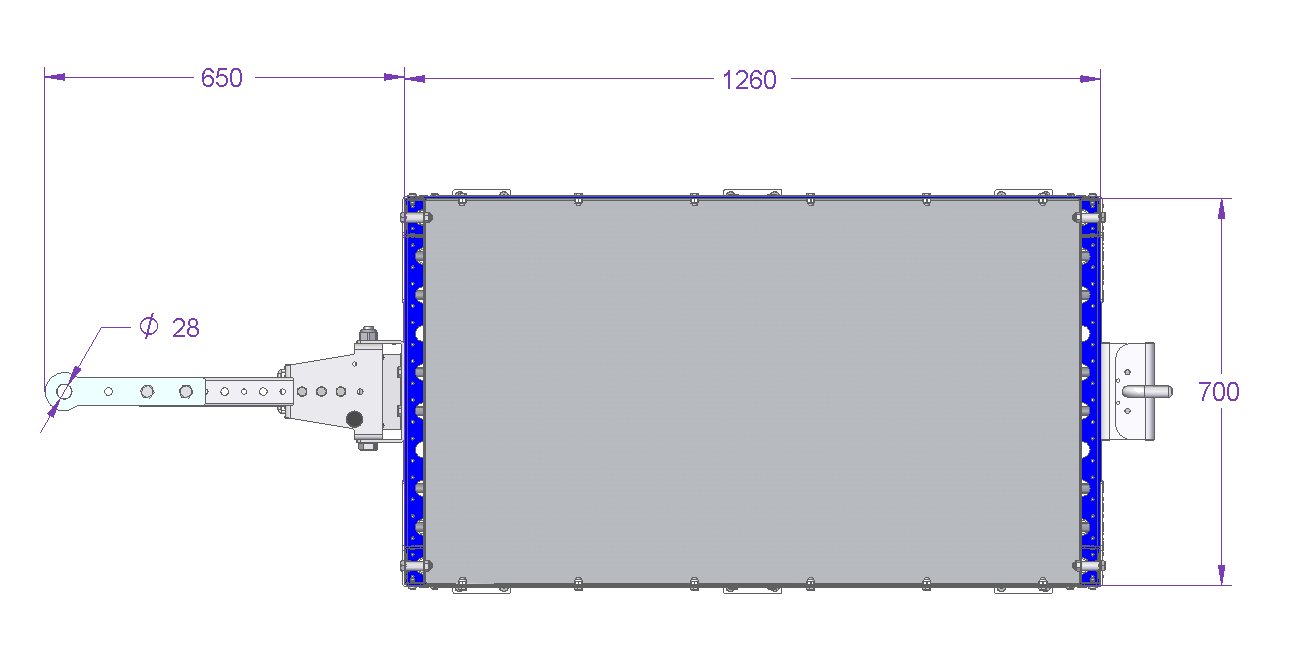

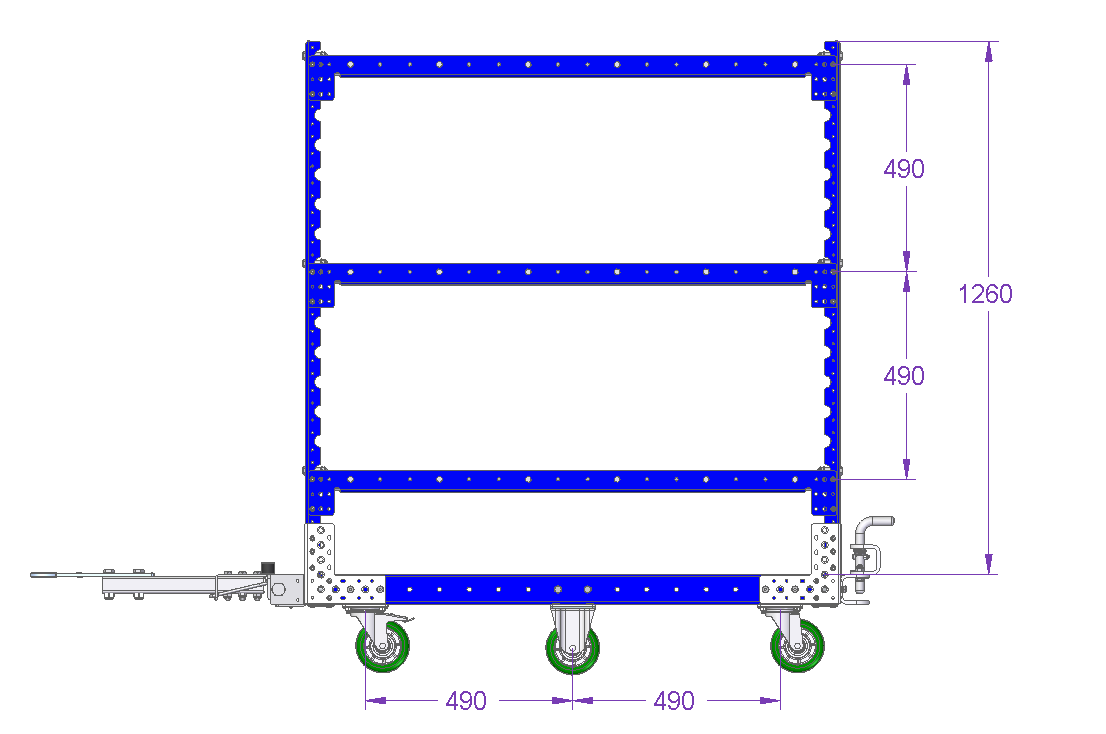

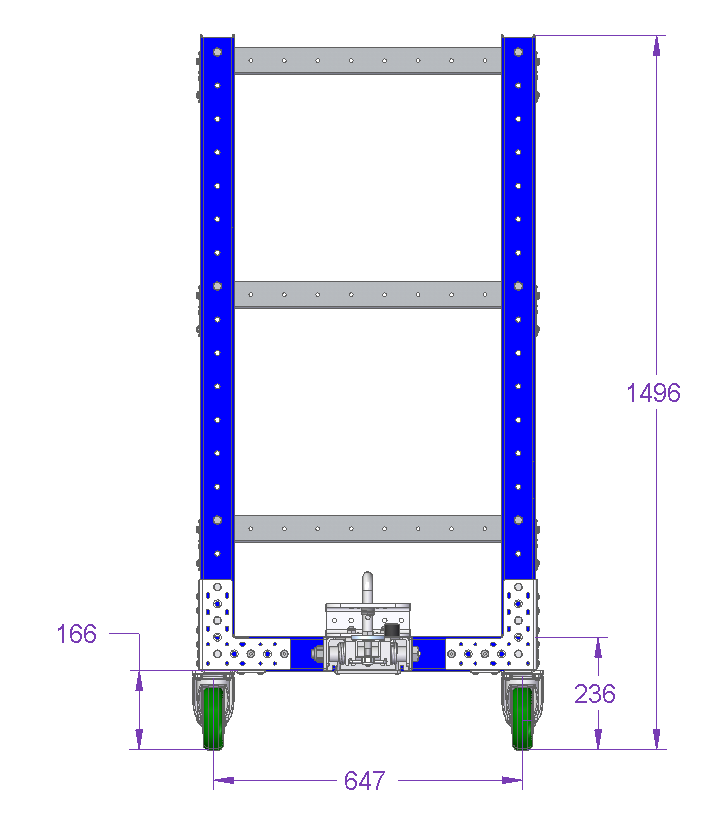

Technical specifications

Category: Flat Deck, Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 28 inch

Length: 50 inch

Levels: 3

Load capacity: 661 lbs

Load Capacity per Level: 220 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Totes

More info

This tugger shelf cart is a simple shelf cart design. The shelf heights on this cart can easily be adjusted within 70 mm intervals to make the re-arrangement match your materials. On top of this, the solution can be adjusted with more or less shelves. This cart comes equipped with a tongue and hitch tow bar and is ideally designed for transporting bins and totes.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 8 Q-002-1001
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Collet - 35 mm 12 Q-005-0028
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 24 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Locking Nut M10 53 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M8 x 16 mm 36 Q-006-1120
Hex Head - M10 x 90 mm 6 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 61 Q-006-1181
Countersunk - M8 x 20 24 Q-006-1282
Hex Head Fully Threaded - M10 x 50 mm 12 Q-006-1343
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 76 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Flat Shelf - 1190 x 700 mm 3 Q-016-0009
Angled Plate - 1248 mm 6 Q-016-1238
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
