Q-100-0918

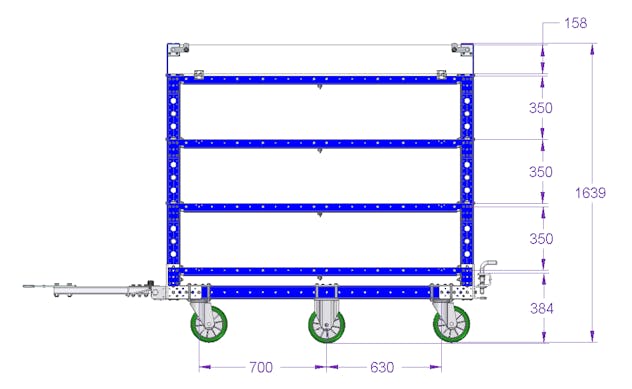

Shelf Cart - 66 x 33 inch

Flat shelf cart designed for transporting bins, totes and boxes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 35 inch

Length: 66 inch

Levels: 4

Load capacity: 1202 lbs

Load Capacity per Level: 300 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Totes

More info

This shelf cart was designed for transporting totes, bins and boxes. The shelf height can be adjusted easily and is perfect for transporting smaller components. It is equipped with a drop pin and hitch towbar for transportation within a tugger train system. This cart can easily be equipped with more or less shelves.

Parts included
FlexTube™ 770 mm 6 Q-000-1265
FlexBeam™ - 1470 mm 8 Q-001-1296
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexPlate™ 20 Q-002-1001
FlexPlate™ half 4 Q-002-1369
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 36 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Locking Nut M10 47 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M8 x 16 mm 60 Q-006-1120
Hex Head - M10 x 90 mm 14 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 85 Q-006-1181
M8 Washer 32 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Countersunk - M8 x 20 8 Q-006-1282
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 208 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Angled plate - 1738 mm 6 Q-016-0193
Steel Flat Shelf - 805 x 910 mm 6 Q-016-0286
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 2,5 Inch 1 Q-017-1012
