Q-100-0089

Mother Daughter Cart System 4 in 1 High Dollies with Shelves

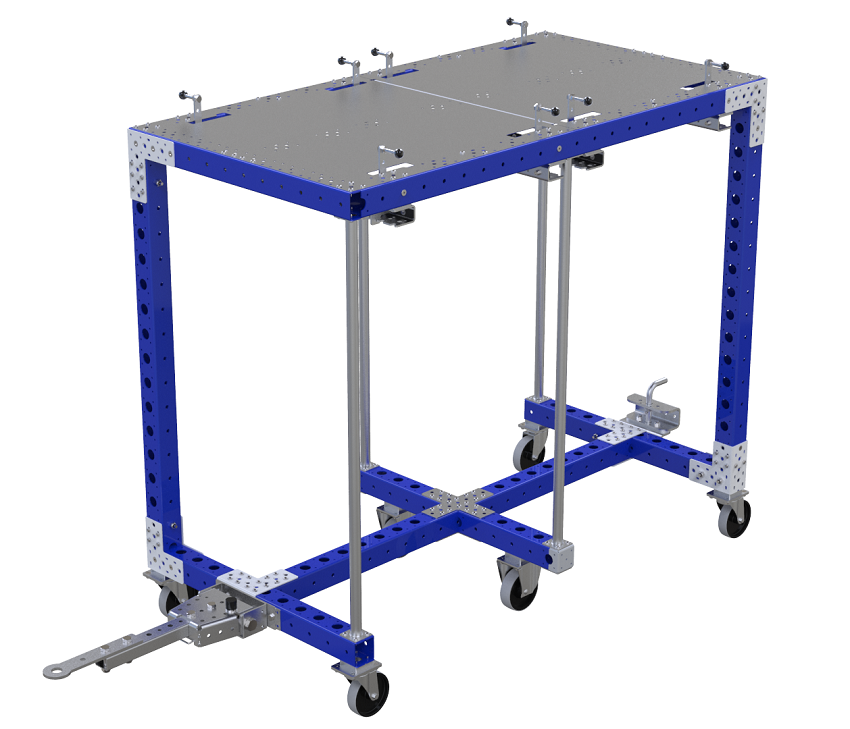

Mother frame designed to house 4 daughters carts.

Technical specifications

Category: Mother Carts

Type of tow bar: Tongue and Hitch

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

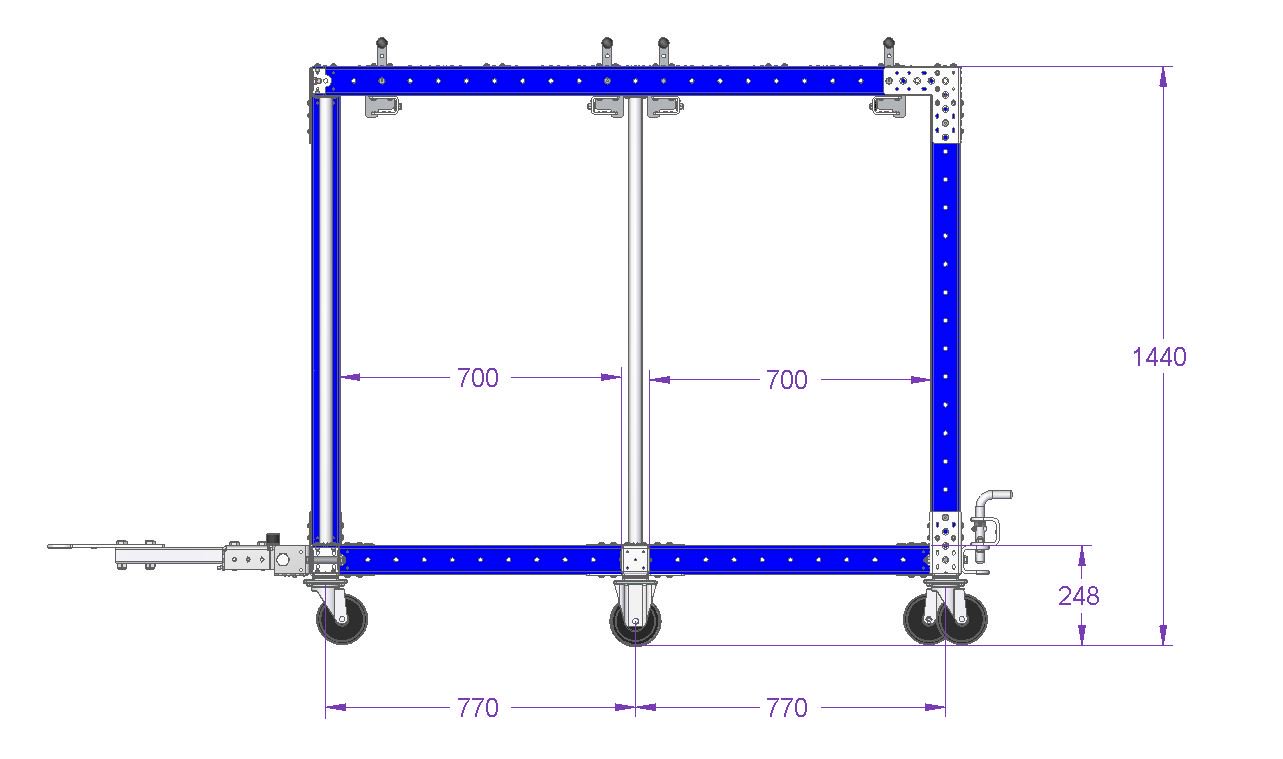

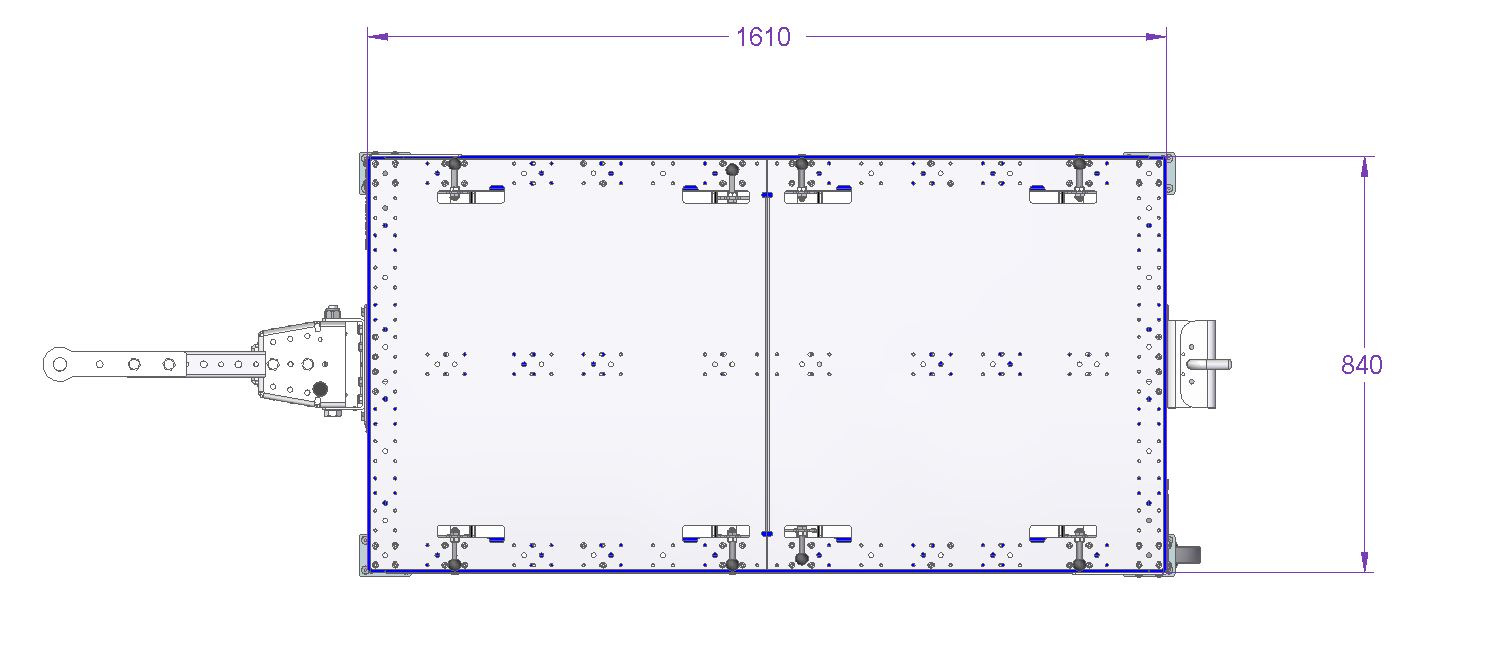

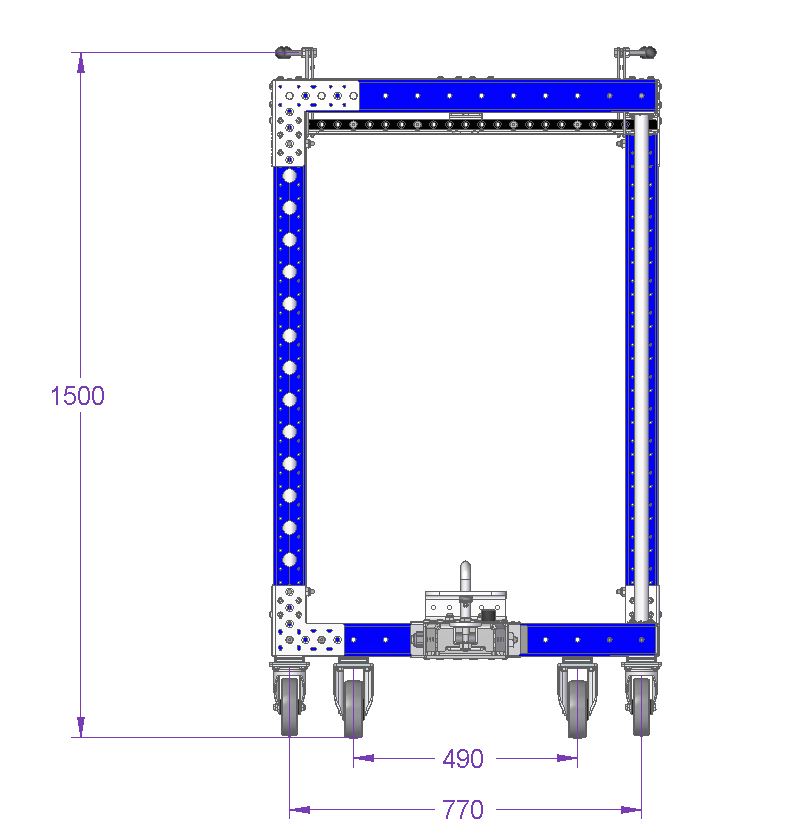

Length: 63 inch

Load capacity: 110 lbs

Transportation method: Mother-Daughter Cart, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

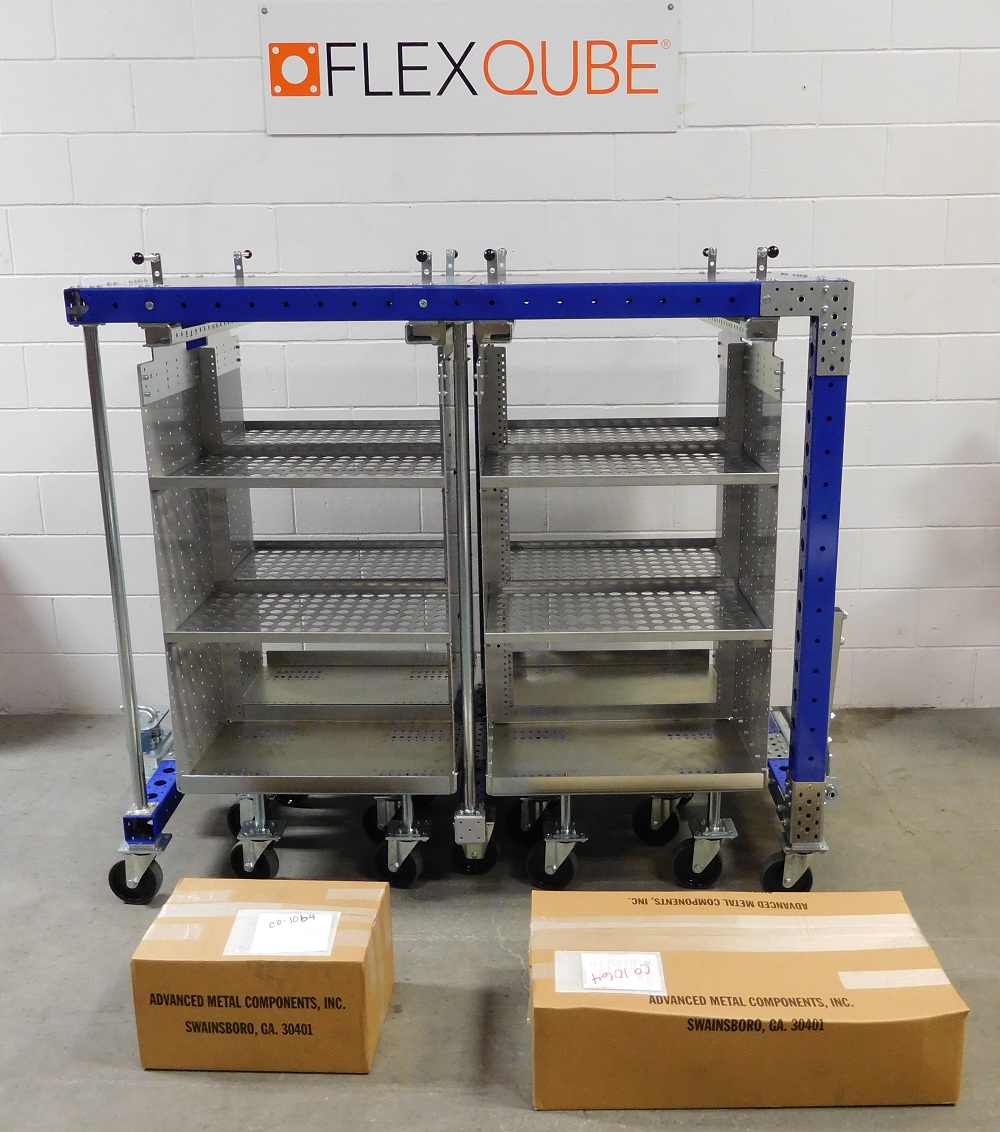

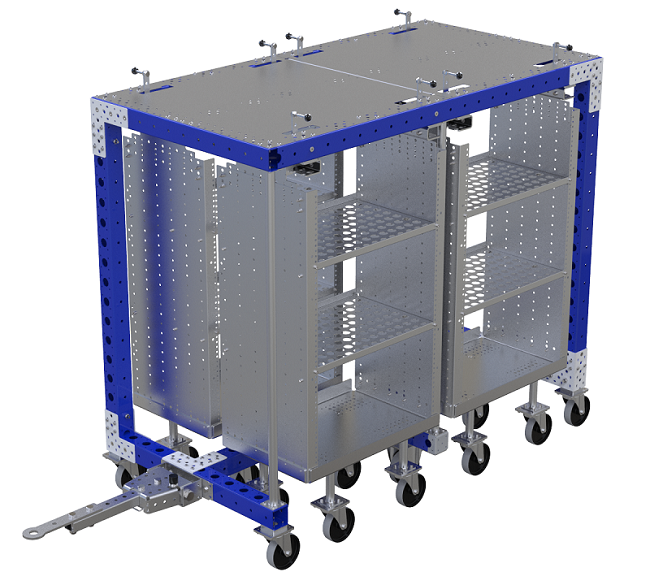

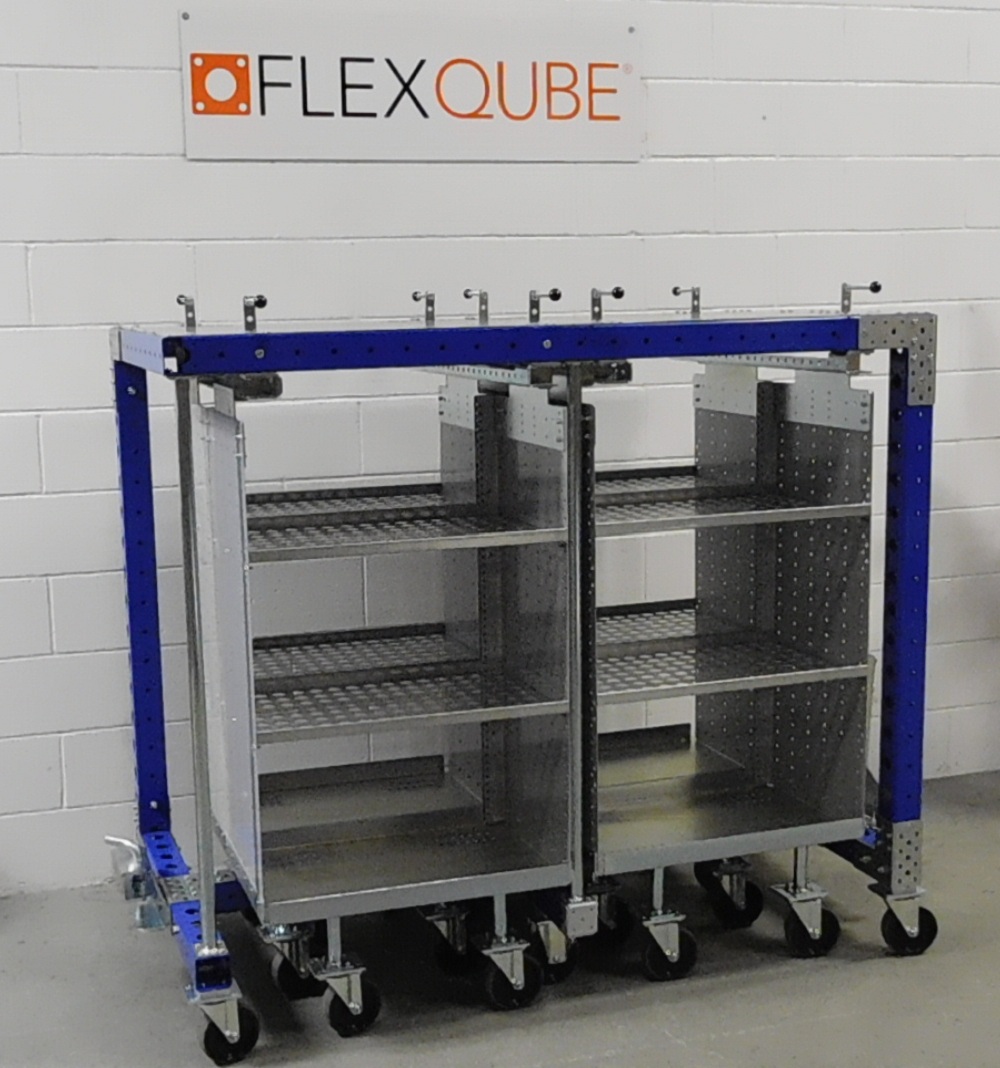

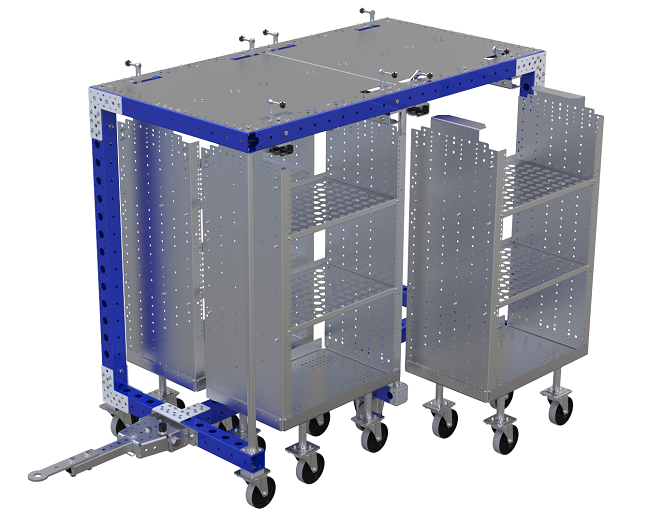

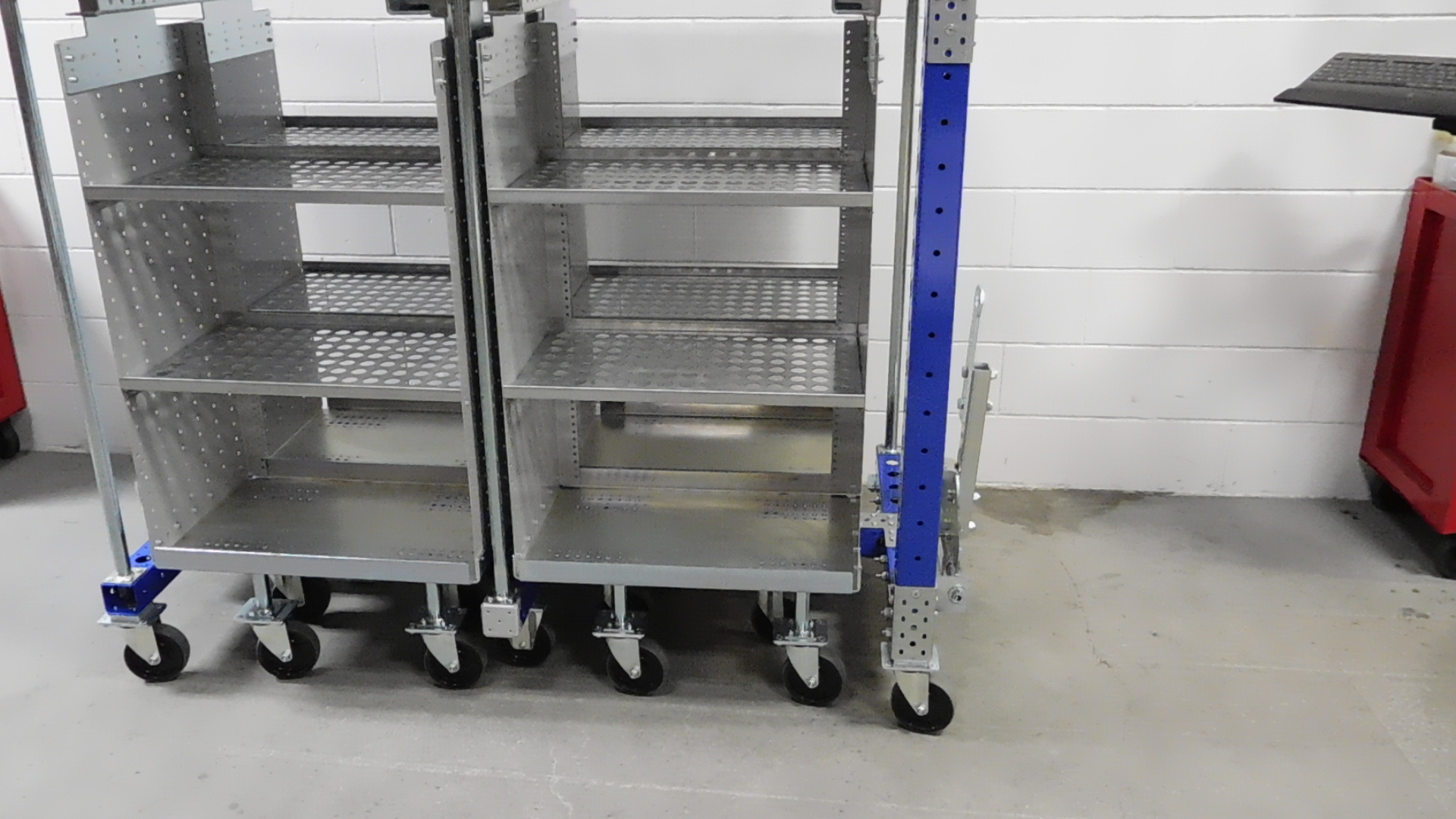

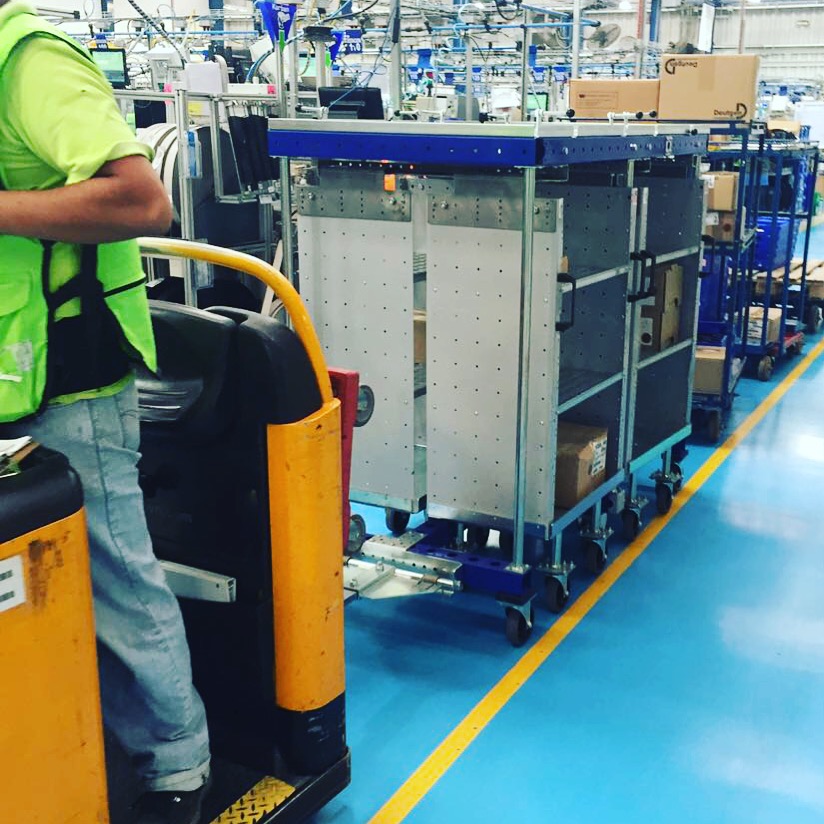

This 4 in 1 Mother-Daughter frame is for transporting four tall daughter carts. These carts are tuggable and connected in tugger trains. The daughter carts are being used to kit parts from the warehouse and the cart is then placed between each product on the assembly line and hooked up to the assembly and follows the product from start of assembly until it leaves the assembly line. The daughter cart for this Mother Frame is Q-100-0132.

Parts included
FlexTube™ 1120 mm 4 Q-000-1258
FlexQube 2 Q-001-1078
FlexBeam™ - 1540 mm 4 Q-001-1295
FlexBeam™ - 1470 mm 2 Q-001-1296
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 350 mm 4 Q-001-1312
FlexBeam™ 840 mm FE 6 Q-001-1405
FlexPlate™ 42 Q-002-1001
Flexplate™ M10 1 Q-002-1162
Swivel Caster - 125 mm 4 Q-004-1363
Fixed Caster - 125 mm 2 Q-004-1365
Cross Joint - 240 x 240 mm 2 Q-005-0021
Daughter Cart Catcher - 840 mm 4 Q-005-0077
M10 - Collet - 6 mm 8 Q-005-0105
Plastic list - 840 x 22 mm 4 Q-005-0371
Spherical Knob 8 Q-005-1146
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Wheel Attachment - 80 x 60 mm 6 Q-005-1722
Daughter Cart Locking Plate 8 Q-005-1730
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 32 Q-006-1042
Washer M10 12 Q-006-1043
Hex Head - M8 x 16 mm 3 Q-006-1120
Hex Head - M10 x 90 mm 2 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 51 Q-006-1181
Nut M10 8 Q-006-1195
Countersunk Allen Head - M6 x 30 mm 24 Q-006-1196
M8 x 16 mm Countersunk 48 Q-006-1214
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 15 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 264 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 6 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 8 Q-006-1502

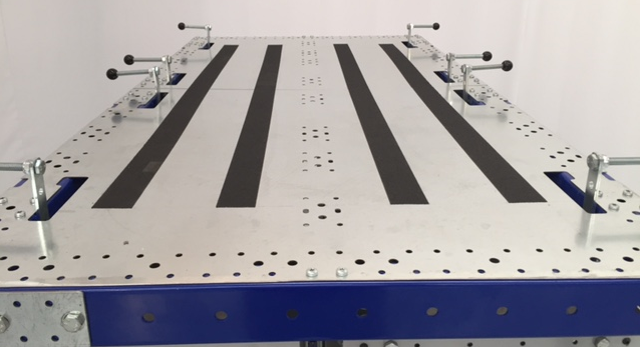

Top Shelf for Mother Cart - 840 x 805 mm 2 Q-016-0048
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
