Q-100-1337

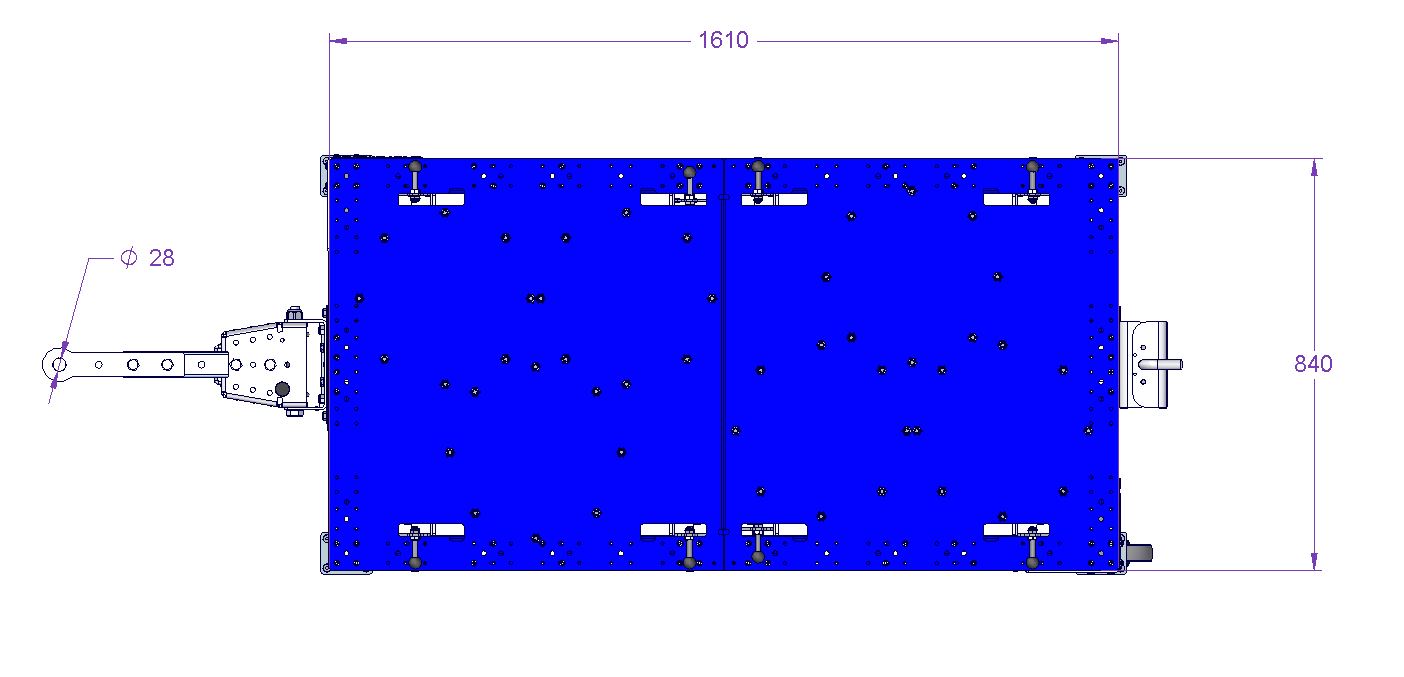

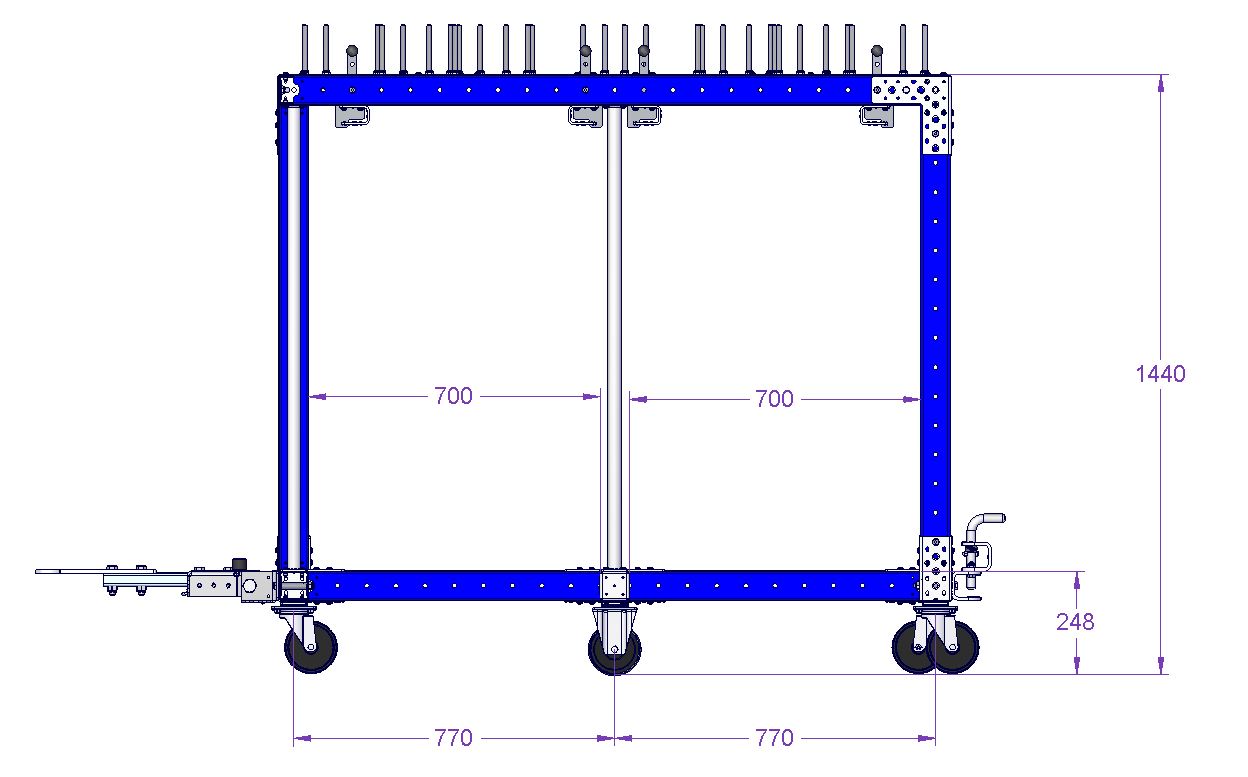

Mother Cart - 4 in 1 - 1610 x 840 mm

Tuggable mother cart designed to transport four daughter carts (Q-100-0132)

Technical specifications

Category: Mother Carts

Transportation method: Mother-Daughter Cart, Tugger

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 63 inch

Load capacity: 441 lbs

Width: 33 inch

Caster size: 5 inch

Caster Type: Gray

Type of tow bar: Tongue and Hitch

More info

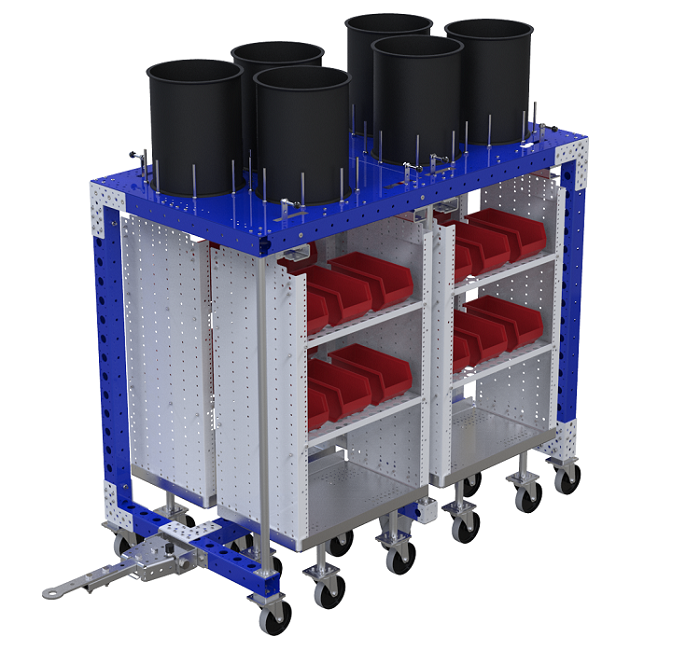

Tuggable mother cart designed to transport four daughter carts (Q-100-0132). The bolts on top are used as fixtures for plastic barrels. The mother daughter concept is most commonly used in a milk run system” meaning you use the mother cart to transport daughter carts filled with material from warehouse to assembly line and picking up empty daughter carts on the way back.”

Parts included
FlexTube™ 1120 mm 4 Q-000-1258
FlexQube 2 Q-001-1078
FlexBeam™ - 1540 mm 4 Q-001-1295
FlexBeam™ - 1470 mm 2 Q-001-1296
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 350 mm 4 Q-001-1312
FlexBeam™ 840 mm FE 6 Q-001-1405
FlexPlate™ 42 Q-002-1001
Flexplate™ M10 1 Q-002-1162
Swivel Caster - 125 mm 4 Q-004-1363
Fixed Caster - 125 mm 2 Q-004-1365
Cross Joint - 240 x 240 mm 2 Q-005-0021
Daughter Cart Catcher - 840 mm 4 Q-005-0077
Towing VKR - 320 mm 1 Q-005-0103
M10 - Collet - 6 mm 8 Q-005-0105
Spherical Knob 8 Q-005-1146
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 16 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Wheel Attachment - 80 x 60 mm 6 Q-005-1722
Daughter Cart Locking Plate 8 Q-005-1730
Hex Head - M14 x 60 mm 4 Q-006-1036
Fully Threaded - M10 x 120 mm 48 Q-006-1037
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 82 Q-006-1042
Washer M10 12 Q-006-1043
Hex Head - M10 x 90 mm 2 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 24 Q-006-1181
Nut M10 8 Q-006-1195
Countersunk Allen Head - M6 x 30 mm 24 Q-006-1196
M8 x 16 mm Countersunk 24 Q-006-1214
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 15 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 256 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 8 Q-006-1502
Top Plate - 840 x 805 mm 2 Q-016-0703
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
