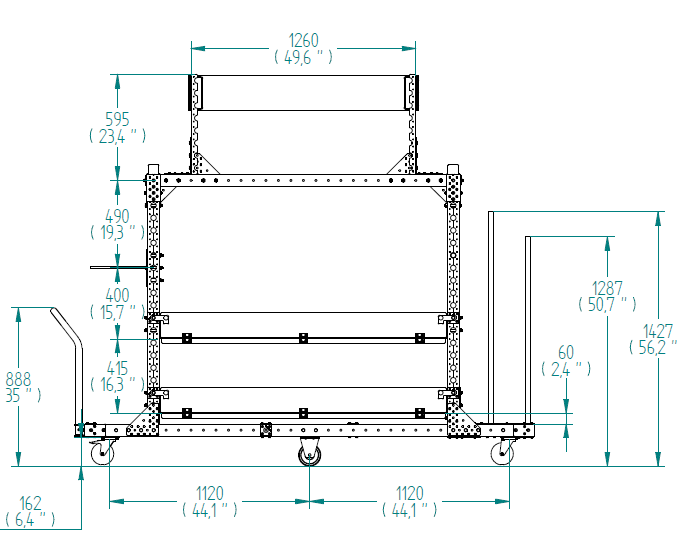

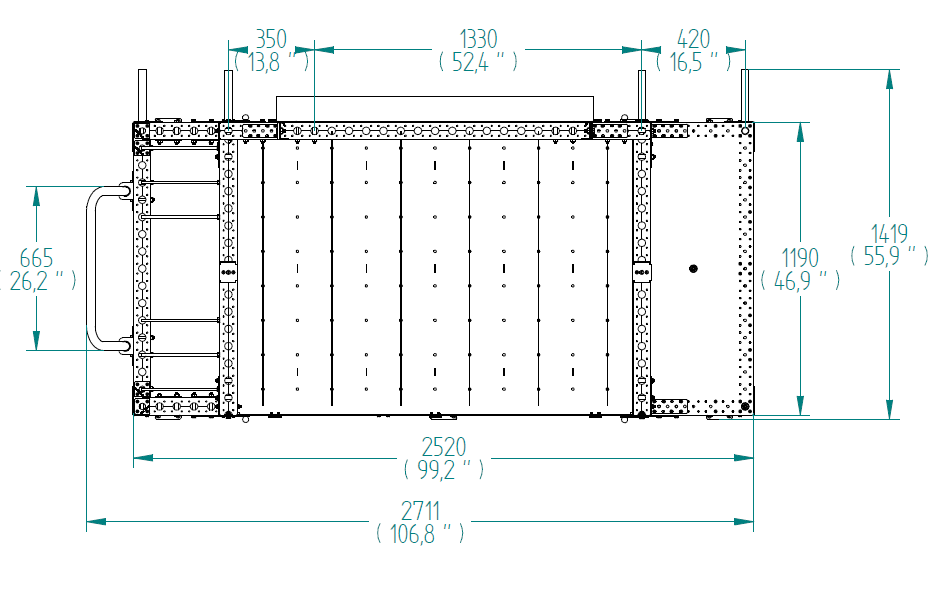

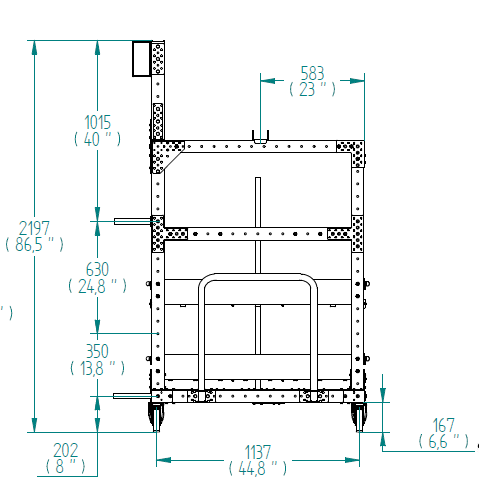

Kit Cart - 1190 x 2520 mm
Kit Cart - 1190 x 2520 mm
Kit Cart - 1190 x 2520 mm
Kit Cart - 1190 x 2520 mm
Kit Cart - 1190 x 2520 mm
Q-100-1311

Kit Cart - 1190 x 2520 mm

Kit cart used for the transportation of totes, hoses and rolls of foam. The cart is also equipped with four swivel casters with brakes and two fixed as well as a handlebar for smooth manual transportation.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 47 inch

Length: 99 inch

Levels: 2

Load capacity: 882 lbs

Load Capacity per Level: 441 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

Type of Load: Boxes, Misc parts

More info

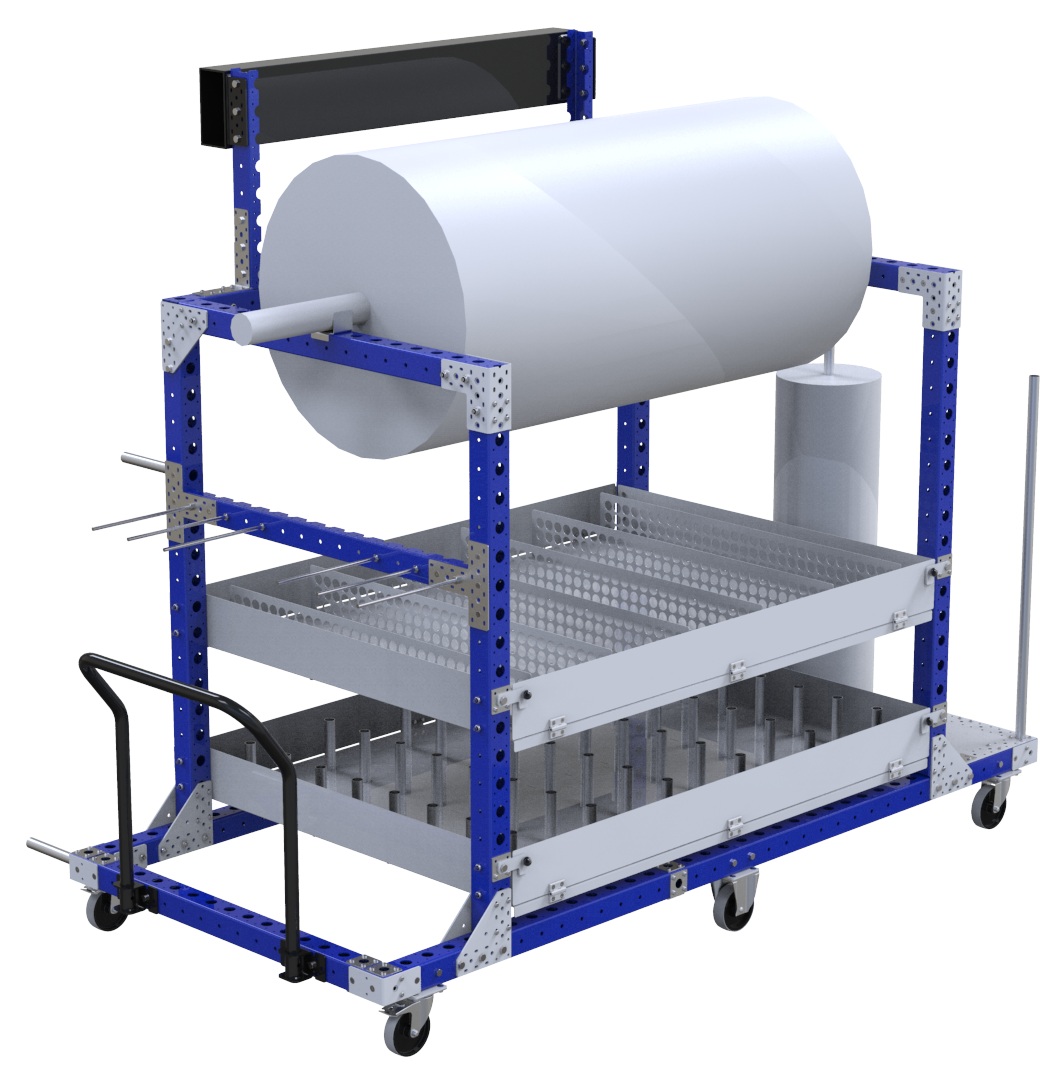

Kit cart used for the transportation of totes, hoses and rolls of foam. The two shelves have a tall edge in the front which can be folded down and the loading area is separated by dividers. The two tubes in the front are used for storing two smaller rolls of foam vertically and the two holders on top for a larger rolls horizontally. On the sides you can find hangers for hoses. The cart is also equipped with four swivel casters with brakes and two fixed in the center as well as a handlebar for smooth manual transportation.

Parts included
Outer Tube (One Plate) - 210 mm 2 Q-000-0071
FlexBeam™ - 1470 mm 4 Q-001-1296
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 980 mm 4 Q-001-1303
FlexBeam™ 420 mm 2 Q-001-1311
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ 1050 mm FE 3 Q-001-1402
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexBeam™ - 1330 mm FE 8 Q-001-1501
FlexBeam STS FE - 1750 mm 2 Q-001-1507
FlexPlate™ 18 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 10 Q-002-1162
Swivel Caster - 125 mm 2 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
Fixed Caster - 125 mm 2 Q-004-1365
L Bracket Joint 6 Q-005-0031
T-Joint 2 Q-005-0065
M10 Threaded rod - 350 mm 6 Q-005-0085
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Spring Threaded Tube Connectors 55 Q-005-0469
Triangle Joint 14 Q-005-0483
C-Profile Holder 2 Q-005-0874
Divider for Shelf - 1120 mm 6 Q-005-0892
Flip Lock Plate - 140 x 1600 mm 4 Q-005-0893
Fork Tunnel EU - 1288 mm 1 Q-005-0979
Spherical Knob 8 Q-005-1146
Hinge GN237_50x50 12 Q-005-1320
64 mm FlexBeam™ Collet 56 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Locking Handle Plate 8 Q-005-1880
Hex Head - M10 x 25 mm 75 Q-006-1041
Locking Nut M10 114 Q-006-1042
Washer M10 12 Q-006-1043
Locking Nut M6 48 Q-006-1050
Hex Head - M10 x 95 mm 6 Q-006-1088
Hex Head - M10 x 90 mm 32 Q-006-1132
Locking Nut M8 24 Q-006-1181
Nut M10 6 Q-006-1195
Countersunk Allen Head - M6 x 16 mm 52 Q-006-1197
Hex Head - M10 x 40 2 Q-006-1208
M8 x 16 mm Countersunk 16 Q-006-1214
Countersunk - M8 x 20 8 Q-006-1282
Extra Low Head - M10 x 90 mm 36 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 246 Q-006-1384
Low Allen Head - M10 x 16 mm 9 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 9 Q-006-1410
Handlebar Attachment EUR 2 Q-015-0026
Tube for Handlebar EUR 1 Q-015-0033
Top Plate - 490 x 1190 mm 1 Q-016-0700
Flat Shelf Welded - 1190 x 1610 mm 2 Q-016-0830
Outer tube (No plate) - 140 mm 48 Q-025-0140
Outer Tube (No Plate) - 1120 mm 1 Q-025-1120
Outer Tube (No Plate) - 1260 mm 1 Q-025-1260
