Kit Cart - 1050 x 1750 mm
Kit Cart - 1050 x 1750 mm
Kit Cart - 1050 x 1750 mm
Kit Cart - 1050 x 1750 mm
Q-100-1440

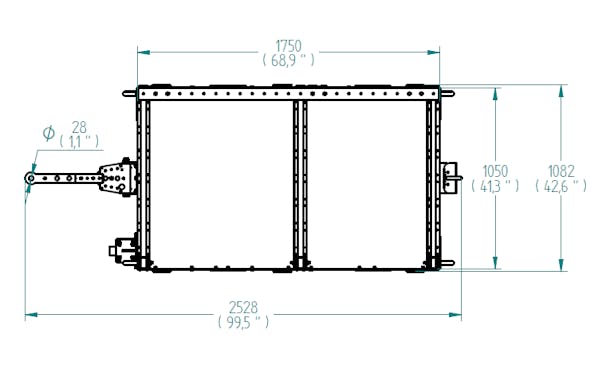

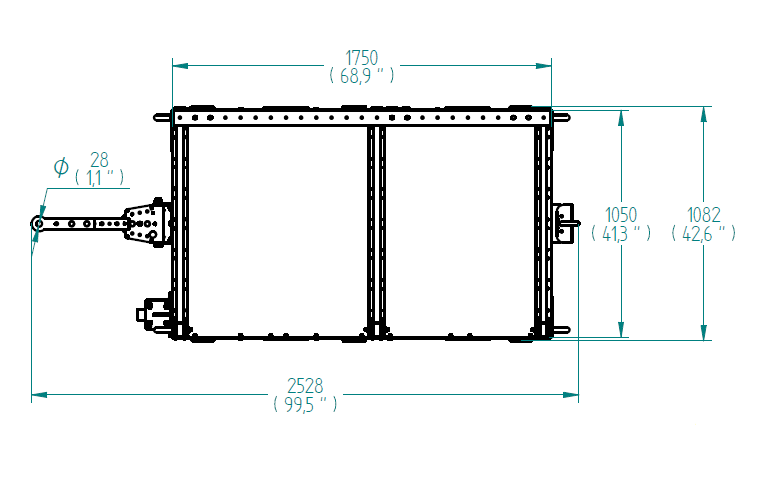

Kit Cart - 1050 x 1750 mm

Tuggable shelf kit cart equipped with fork pockets and six polyurethane casters, two fixed and four swivel.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 41 inch

Length: 69 inch

Levels: 5

Load capacity: 882 lbs

Load Capacity per Level: 331 lbs, 132 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

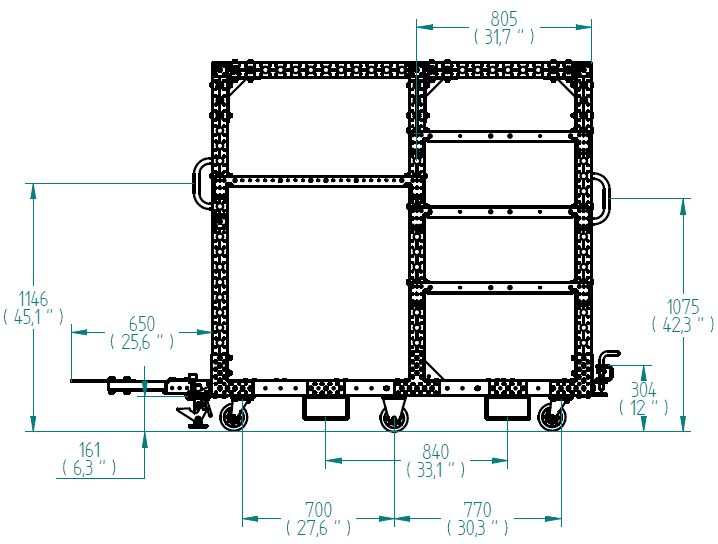

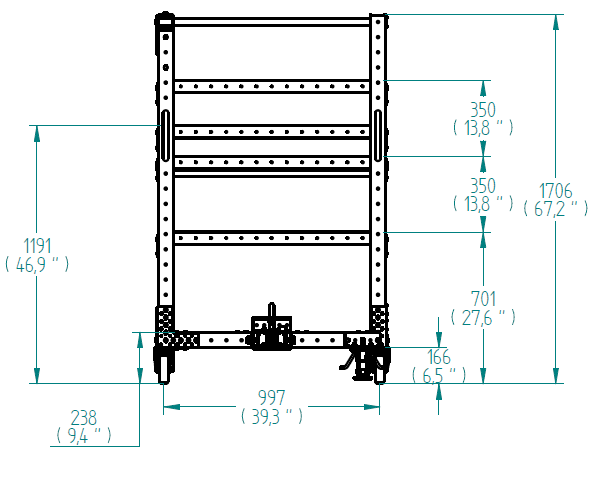

Tuggable shelf kit cart split into two sections. The left side is primarily used for larger objects which is placed on the deck combined with a shelf while the right side is filled with three flat shelves equally spaced. The cart is also equipped with fork pockets and six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexBeam STS - 1680 mm 4 Q-001-1293
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 910 mm FE 4 Q-001-1404
FlexBeam™ - 1400 mm FE 6 Q-001-1502
FlexBeam™ - 1470 mm FE 6 Q-001-1503
FlexBeam STS FE - 1750 mm 2 Q-001-1507
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 5 Q-002-1162
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
L Bracket Joint 7 Q-005-0031
T-Joint 1 Q-005-0065
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Fork Tunnel US - 80 mm 4 Q-005-0431
Spring Threaded Tube Connectors 8 Q-005-0469
Triangle Joint 4 Q-005-0483
Beam to Beam Corner Plate 4 Q-005-1356
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 64 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 102 Q-006-1042
Washer M10 12 Q-006-1043
Hex Head - M8 x 16 mm 44 Q-006-1120
Hex Head - M10 x 90 mm 55 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 60 Q-006-1181
M8 Washer 8 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Hex Head Fully Threaded - M10 x 16 4 Q-006-1245
Countersunk - M8 x 20 8 Q-006-1282
Extra Low Head - M10 x 90 mm 26 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 266 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 1 Q-006-1502
Handle Bar 210 mm M8 4 Q-015-1037
Shelf attachment plate - 980 mm 2 Q-016-0239
Angled Plate - 828 mm 6 Q-016-0289
Standard Flat Shelf - 805 x 910 mm 3 Q-016-0308
Top plate - 1050 x 910 mm 1 Q-016-0474
Top Plate Half - 1050 x 840 mm 1 Q-016-0475
Flat Shelf - 840 x 1050 mm 1 Q-016-0775
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
Outer Tube (No Plate) - 1050 mm 4 Q-025-1050
