Hose Cart With Swingable Arm - 1470 x 700 mm
Hose Cart With Swingable Arm - 1470 x 700 mm
Hose Cart With Swingable Arm - 1470 x 700 mm
Hose Cart With Swingable Arm - 1470 x 700 mm
Hose Cart With Swingable Arm - 1470 x 700 mm
Q-100-0556

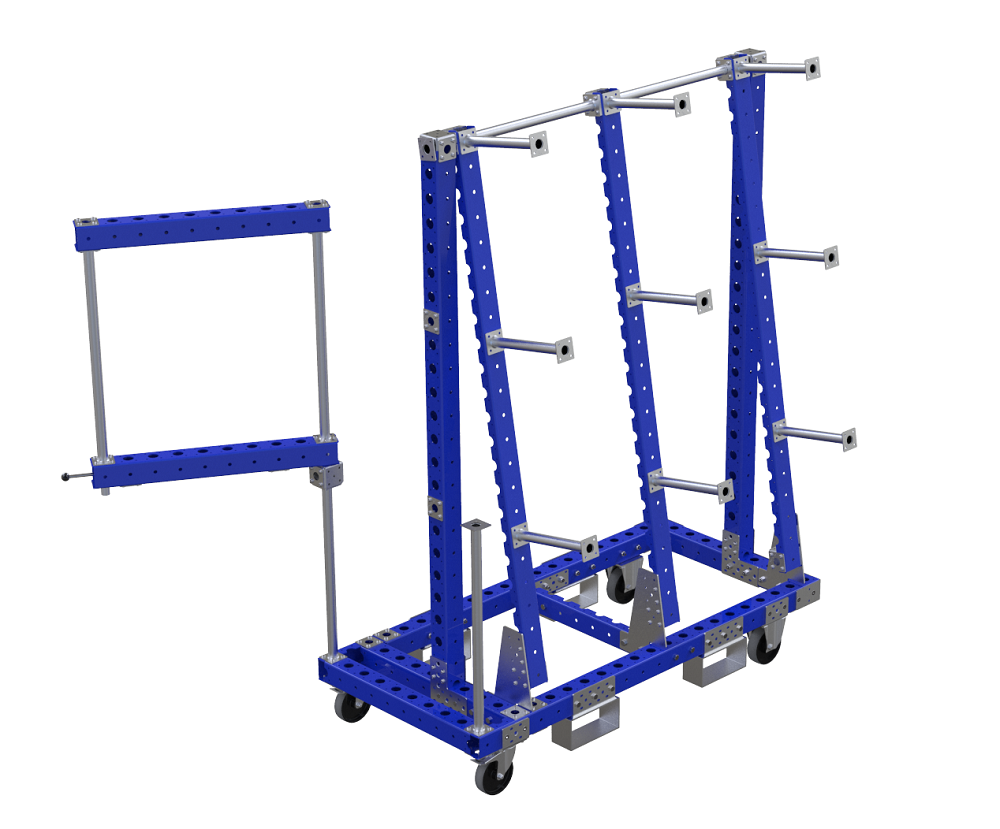

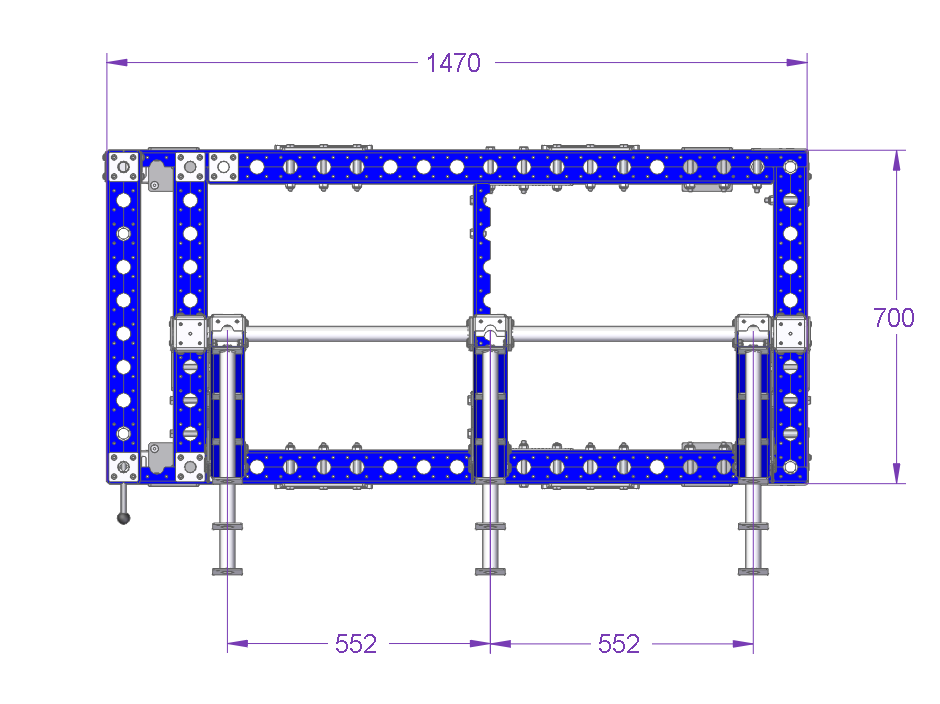

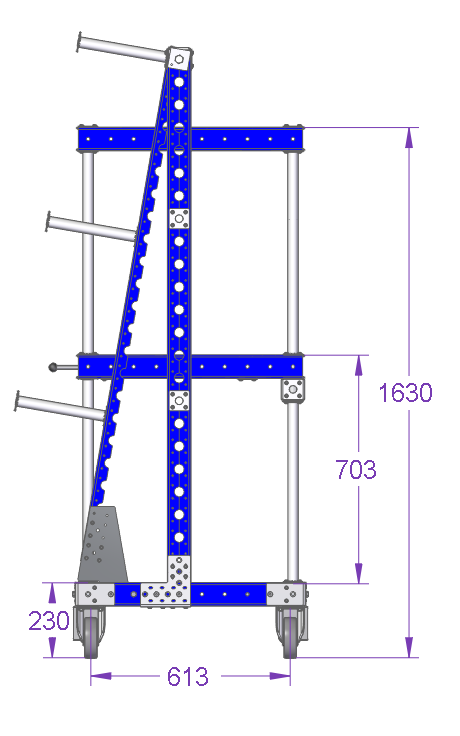

Hose Cart With Swingable Arm - 1470 x 700 mm

Specially designed kit cart with hangers.

Technical specifications

Category: Hanging Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 28 inch

Length: 58 inch

Load capacity: 701 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

Type of Load: Misc parts

More info

This custom designed cart is for hanging hoses, but can also have tubes, wires, chains and ropes hung on the hangers. On on the of the sides a an arm can be swung around the cart to make it easier to access the materials along the assembly line. This cart comes with four forklift pockets so it can be transported via forklift if needed.

Parts included
Inner Tube (No Plate) - 140 mm 1 Q-000-0056
Flextube Locking nut - 280 mm 9 Q-000-0099
FlexTube™ 560 mm 1 Q-000-1182
FlexTube™ Inner 1190 mm 1 Q-000-1257
FlexTube™ 630 mm 5 Q-000-1312
FlexQube 10 Q-001-1078
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 630 mm 6 Q-001-1308
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ 700 mm FE 4 Q-001-1407
FlexBeam™ 560 mm FE 1 Q-001-1409
FlexBeam™ - 1470 mm FE 2 Q-001-1503
FlexBeam™ - 1610 mm FE 3 Q-001-1505
FlexPlate™ 34 Q-002-1001
Stiffener - Outside 2 Q-002-1050
FlexPlate™ half 10 Q-002-1369
125 mm Swivel Caster with Brake 2 Q-004-1364
Fixed Caster - 125 mm 2 Q-004-1365
L Bracket Joint 2 Q-005-0031
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Angle support plate 3 Q-005-0294
Fork Tunnel US - 80 mm 4 Q-005-0431
Spherical Knob 1 Q-005-1146
64 mm FlexBeam™ Collet 12 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Fully Threaded - M10 x 120 mm 1 Q-006-1037
Hex Head - M10 x 25 mm 13 Q-006-1041
Locking Nut M10 42 Q-006-1042
Hex Head - M10 x 90 mm 19 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 222 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 6 Q-006-1410
