Flow Shelf Cart - 1260 x 700 mm
Flow Shelf Cart - 1260 x 700 mm
Flow Shelf Cart - 1260 x 700 mm
Flow Shelf Cart - 1260 x 700 mm
Q-100-0773

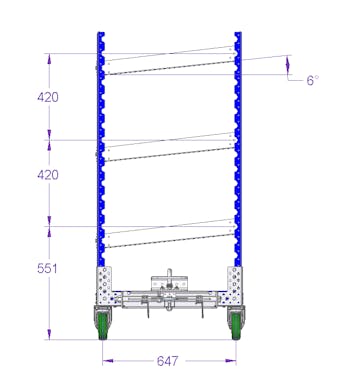

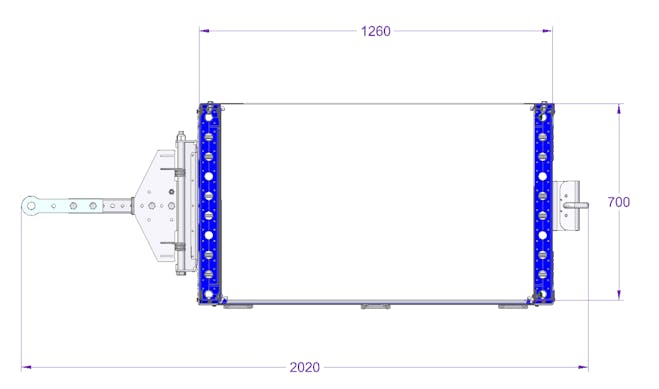

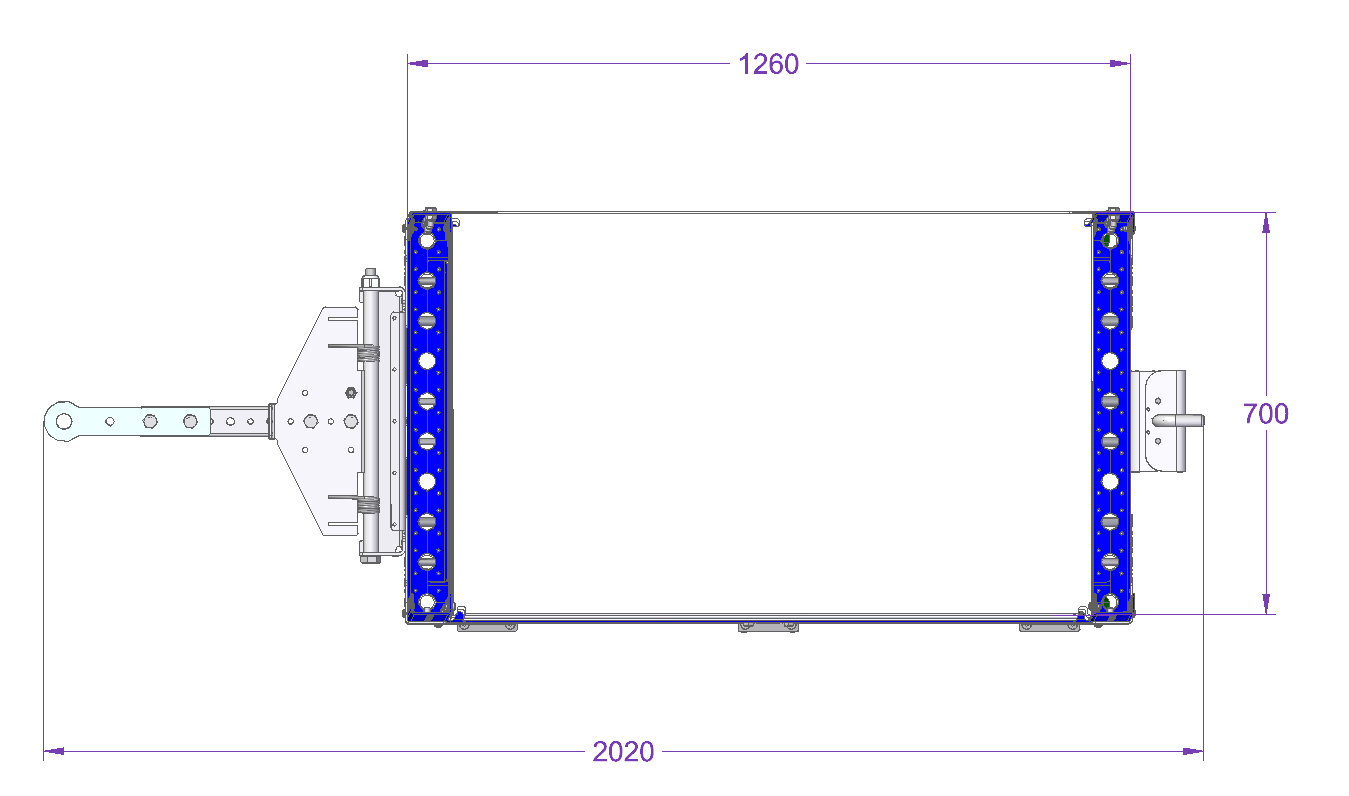

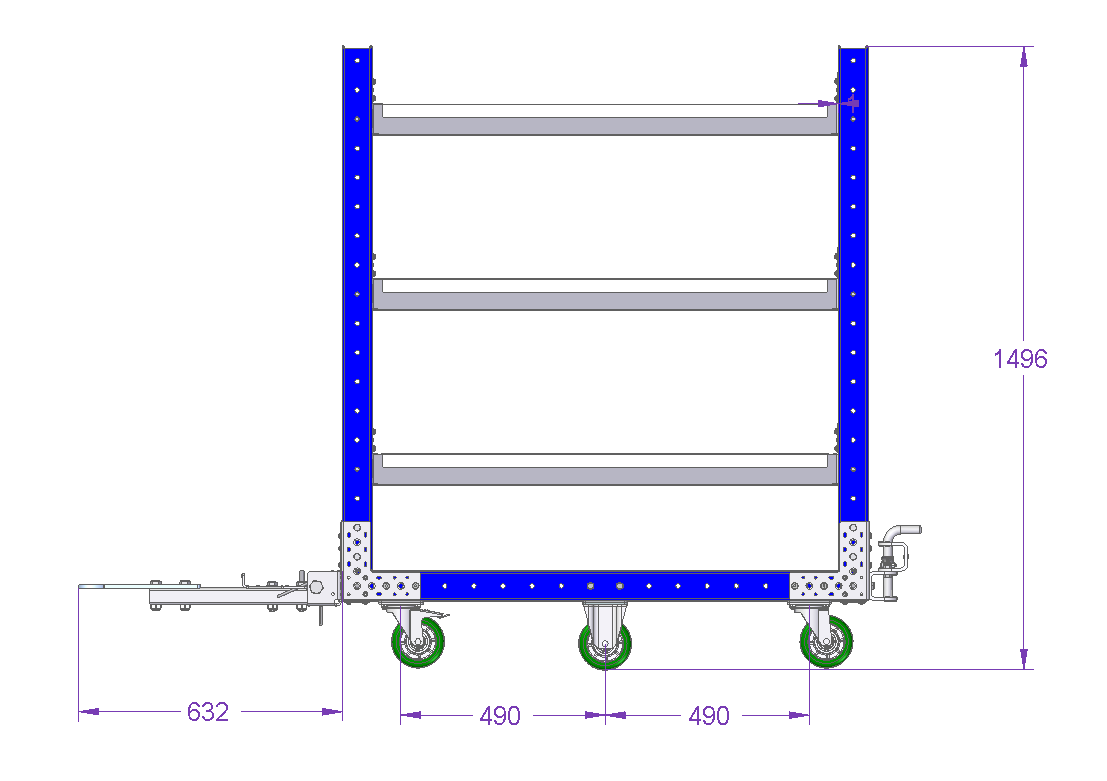

Flow Shelf Cart - 1260 x 700 mm

Standard flow shelf cart for transporting bins, totes and boxes.

Technical specifications

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Load capacity: 750 lbs

Caster size: 8 inch

Type of tow bar: Tongue and Hitch

More info

This flow shelf cart is equipped with three flow shelves which can hold smallers bins, totes and boxes. The height of these shelves can be easily adjusted higher or lower depending on the height of your materials.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 18 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 6 Q-006-1041
Locking Nut M10 45 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 90 mm 10 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 24 Q-006-1181
Nut M10 1 Q-006-1195
Countersunk - M8 x 20 24 Q-006-1282
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 64 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Flow Shelf - 1260 x 703 mm 3 Q-016-0366
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Towing Lip - 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
