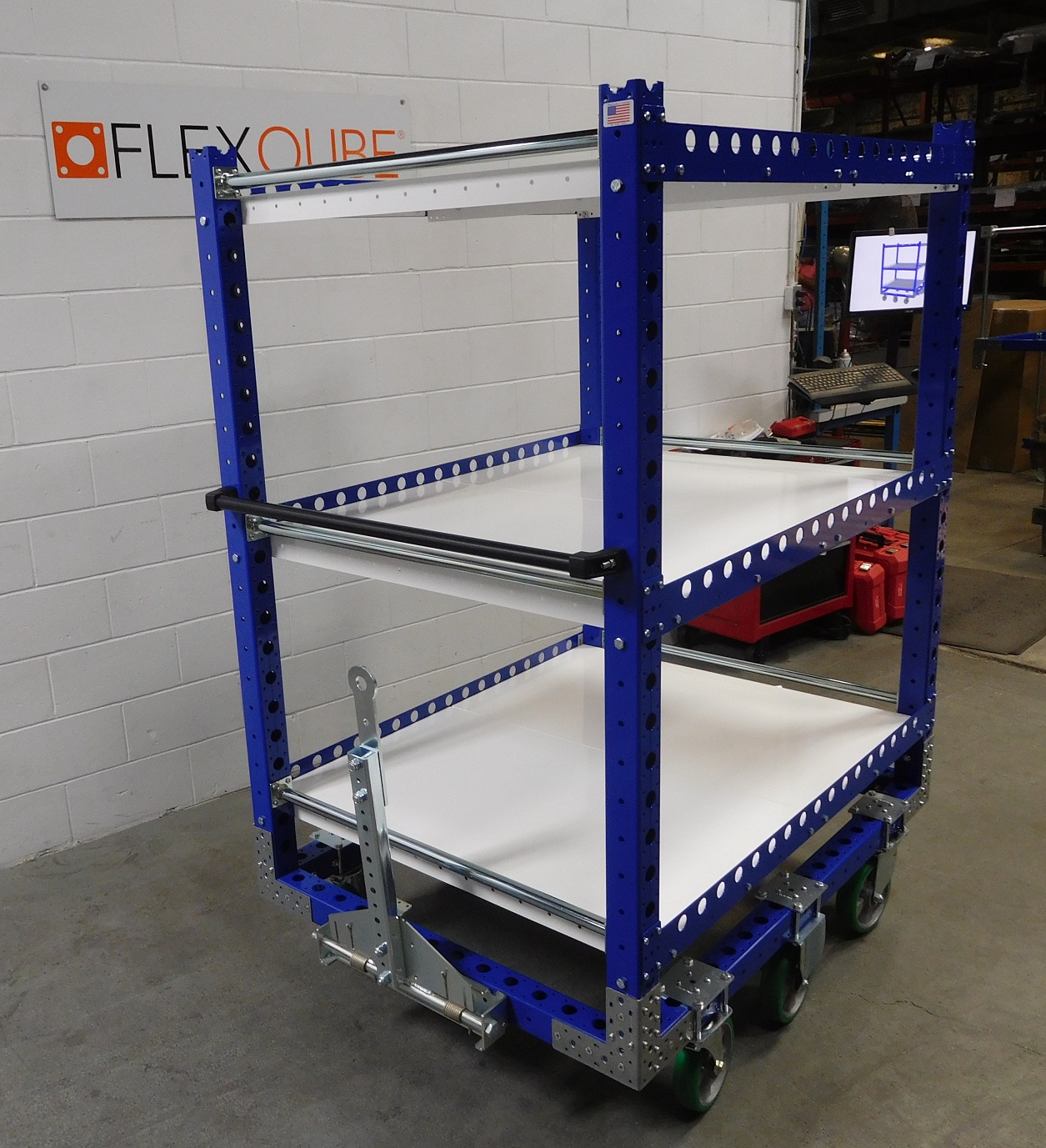

Flat Shelf Cart 55 x 41 inch

Standard heavy-duty flat shelf cart designed for totes,bins and boxes.

Technical specifications

Transportation method: Manual, Tugger

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Category: Flat Shelf

Length: 55 inch

Width: 41 inch

Load capacity: 992 lbs

Levels: 3

Load Capacity per Level: 331 lbs

Type of tow bar: Tongue and Hitch

Caster size: 8 inch

Caster Type: Polyurethane

More info

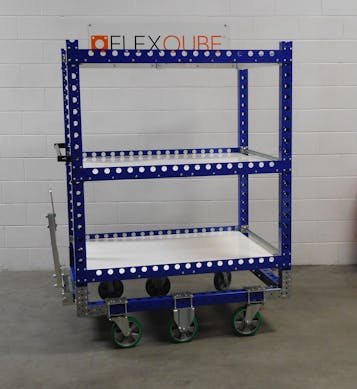

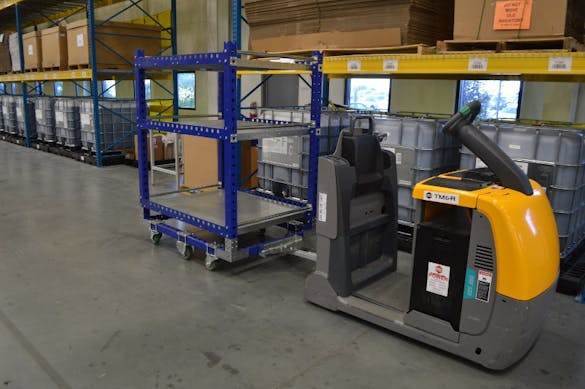

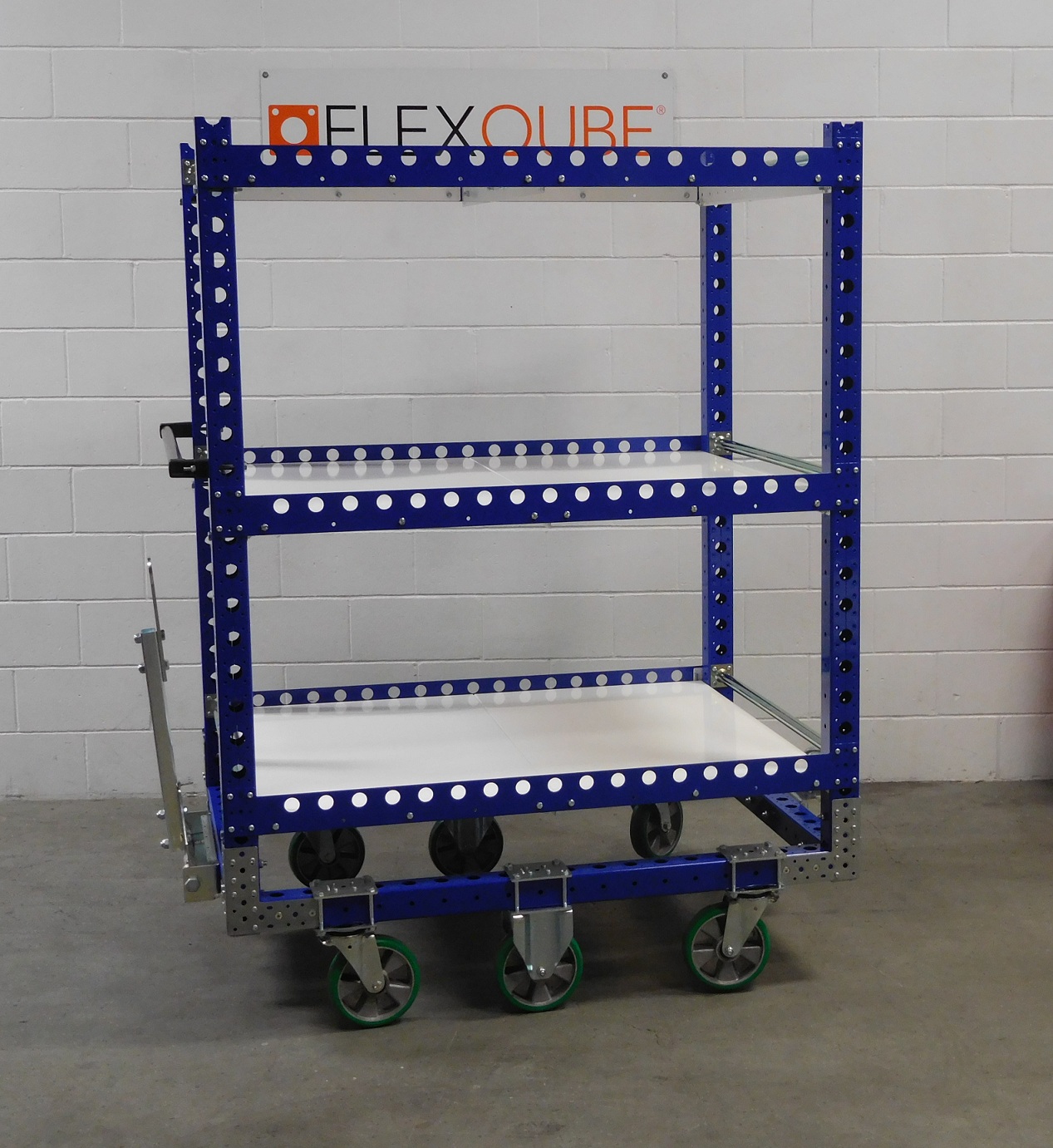

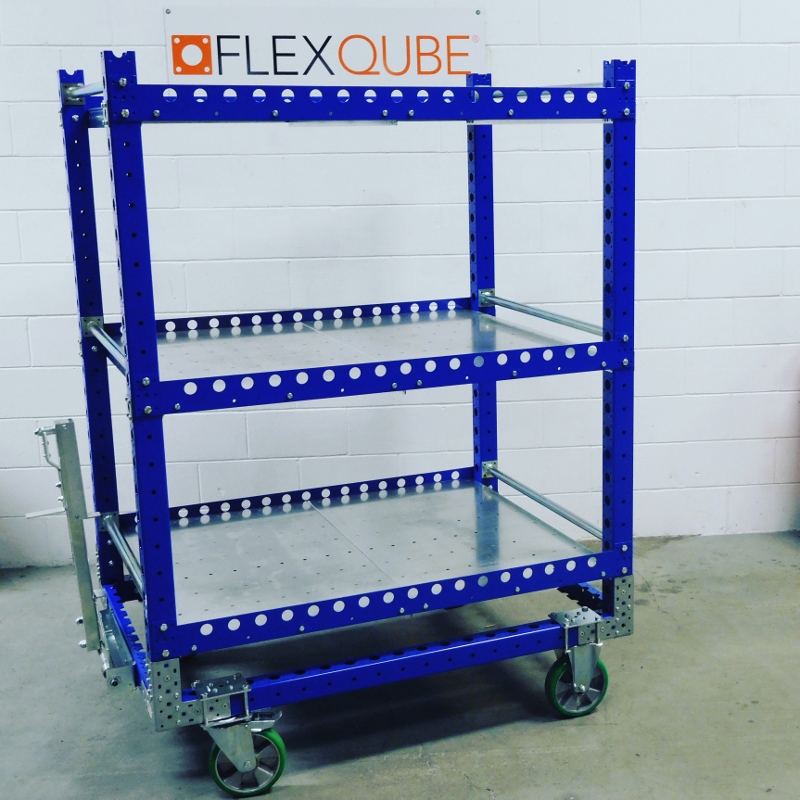

This shelf cart is equipped with three flat shelves. The shelves have no border edges themselves. The tubes on the side prevents the parts from falling off the shelves. The shelves can however be flipped 180 degrees to create a 1.5 inch lip on each side. This industrial tugger train cart is equipped with a drop pin tow bar but can be modified with either wire-release tow bar or the foot release tow bar developed by FlexQube. On the short side there is a a horizontal handle bar than can be used when pushing the cart manually. The cart is equipped with six casters, two fixed in the center, for great tracking.

Parts included
Outer Tube (No plate) - 937 mm 1 Q-000-0064
FlexTube™ 910 mm 6 Q-000-1269
FlexBeam™ - 1610 mm 8 Q-001-1294
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexPlate™ 8 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Handle for 30 mm Tube 2 Q-005-1240
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 16 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Fully Threaded - M10 x 120 mm 2 Q-006-1037
Locking Nut M14 4 Q-006-1039
Locking Nut M10 71 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M8 x 16 mm 48 Q-006-1120
Hex Head - M10 x 90 mm 32 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 48 Q-006-1181
Nut M10 1 Q-006-1195
Hex Head - M10 x 100 mm 8 Q-006-1302
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 192 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Angled Plate - 1388 mm 6 Q-016-0035
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Towing Lip - 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
