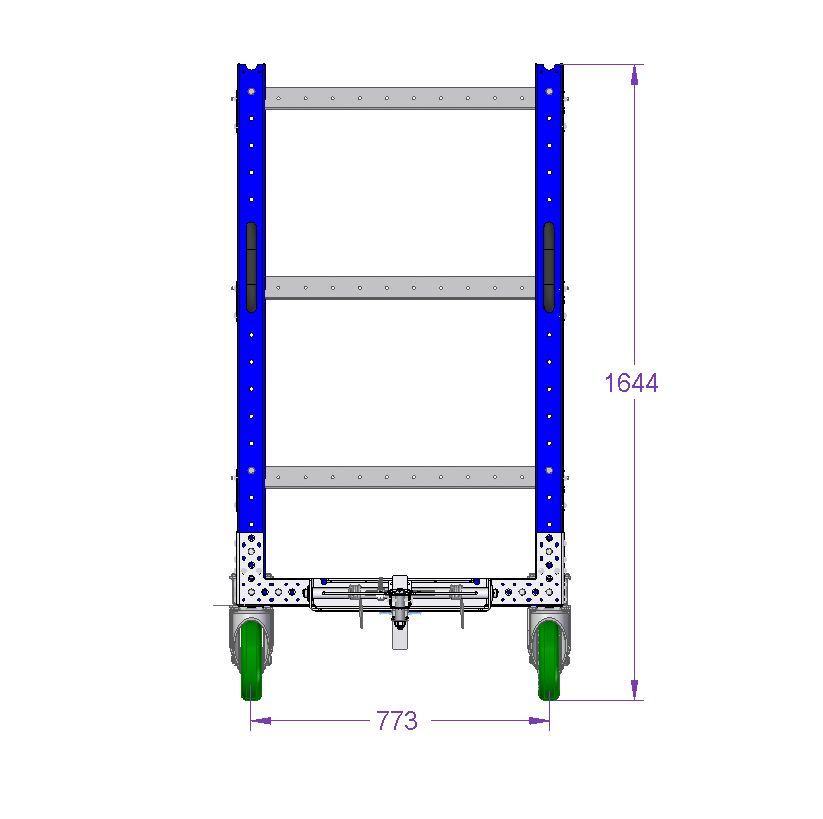

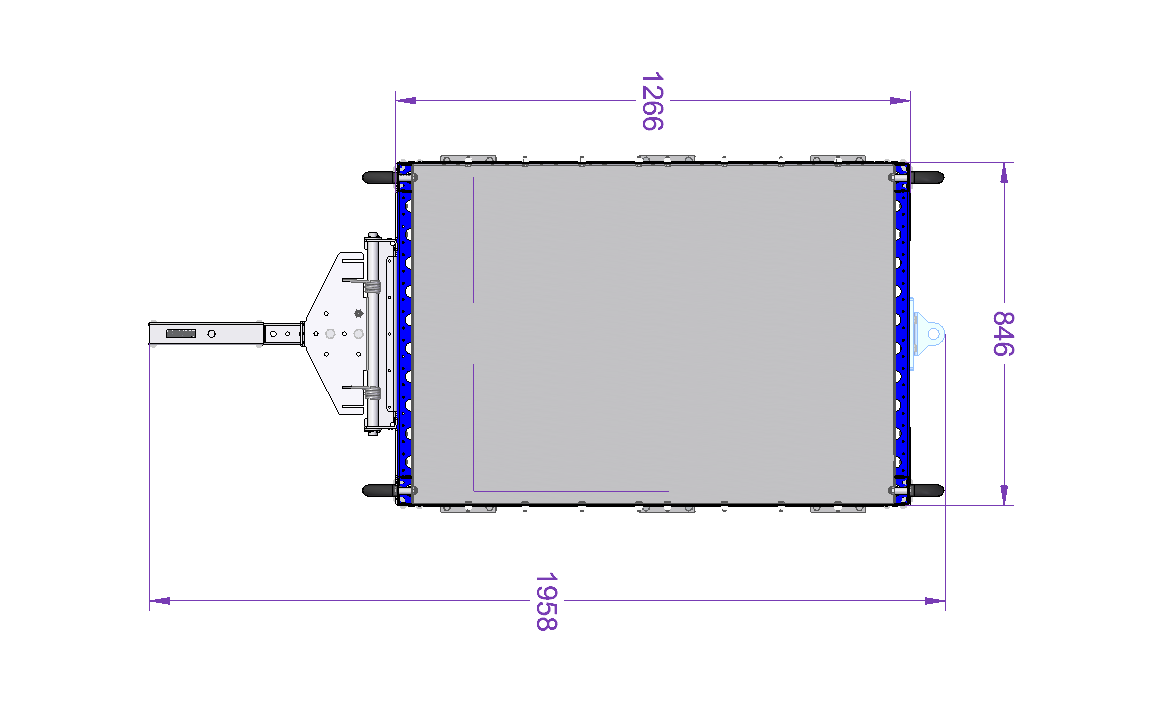

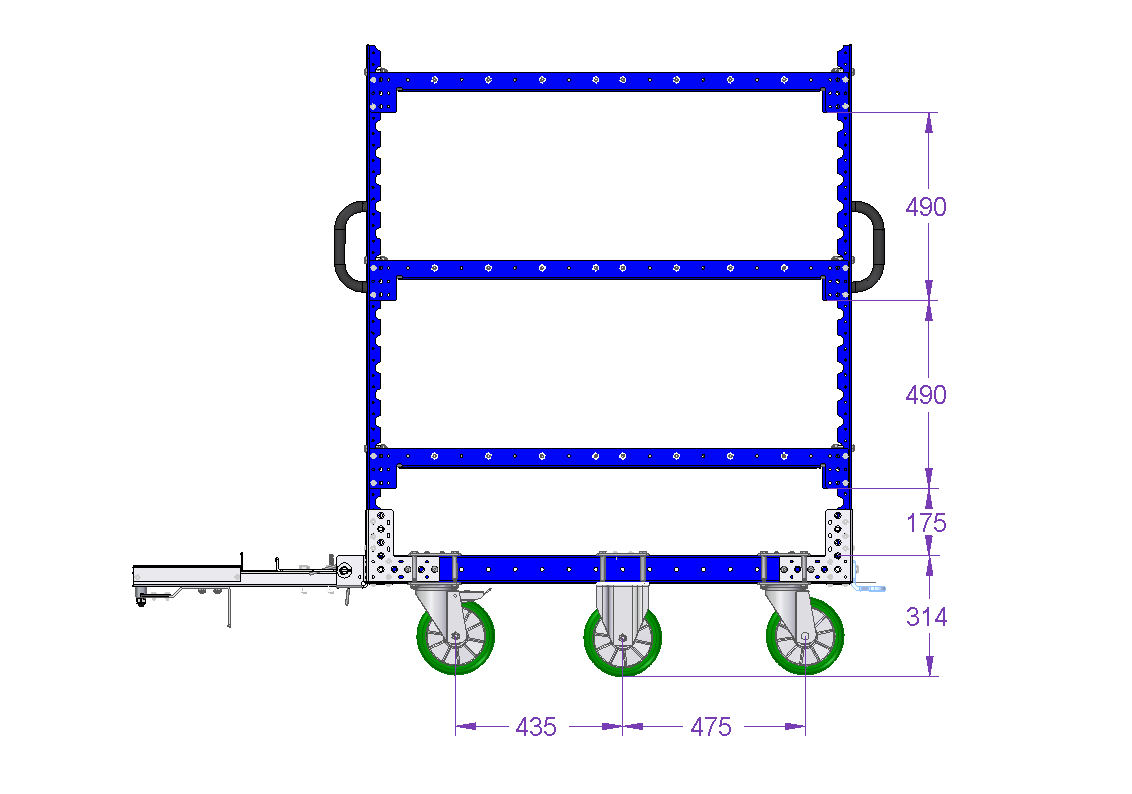

Flat Shelf Cart 1260 x 840 mm
Flat Shelf Cart 1260 x 840 mm
Flat Shelf Cart 1260 x 840 mm
Flat Shelf Cart 1260 x 840 mm
Q-100-0461

Flat Shelf Cart 1260 x 840 mm

Three level flat shelf tugger cart equipped with a tow bar, floor brake and six high quality polyurethane casters.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 50 inch

Levels: 3

Load capacity: 496 lbs

Load Capacity per Level: 165 lbs

Width: 33 inch

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

Three level flat shelf tugger cart commonly used for transportation of totes/bins/boxes or loose components. The cart is also equipped with handlebars, tow bar, floor brake and six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 4 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Collet - 35 mm 12 Q-005-0028
Spring Cover Plate 1 Q-005-1025
Spring for Tow Bar 2 Q-005-1070
Beam to Beam Corner Plate 4 Q-005-1356
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 8 Q-005-1426
Washer M20 2 Q-006-0016
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 3 Q-006-1039
Hex Head - M10 x 25 mm 6 Q-006-1041
Locking Nut M10 69 Q-006-1042
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M8 x 16 mm 56 Q-006-1120
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M8 48 Q-006-1181
M8 Washer 8 Q-006-1183
Nut M10 1 Q-006-1195
Hex Head Fully Threaded - M10 x 50 mm 13 Q-006-1343
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 98 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Handle Bar 210 mm M8 4 Q-015-1037
Flat Shelf - 1189 x 840 mm 3 Q-016-0153
Angled Plate - 1248 mm 6 Q-016-1238
Cotter Pin - 3,2 x 32 mm 2 Q-017-0023
Foot Release Locking Lip 1 Q-017-0024
US Modular Tow Bar VKR - Foot Release - 530 mm 1 Q-017-0025
Locking lip attachment 1 Q-017-1043
Tow Bar Lock Tube - 498 mm 1 Q-017-1061
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 1 Q-017-1106
