Worktable Cart - 490 x 490 mm
Worktable Cart - 490 x 490 mm
Worktable Cart - 490 x 490 mm
Worktable Cart - 490 x 490 mm
Q-100-0916

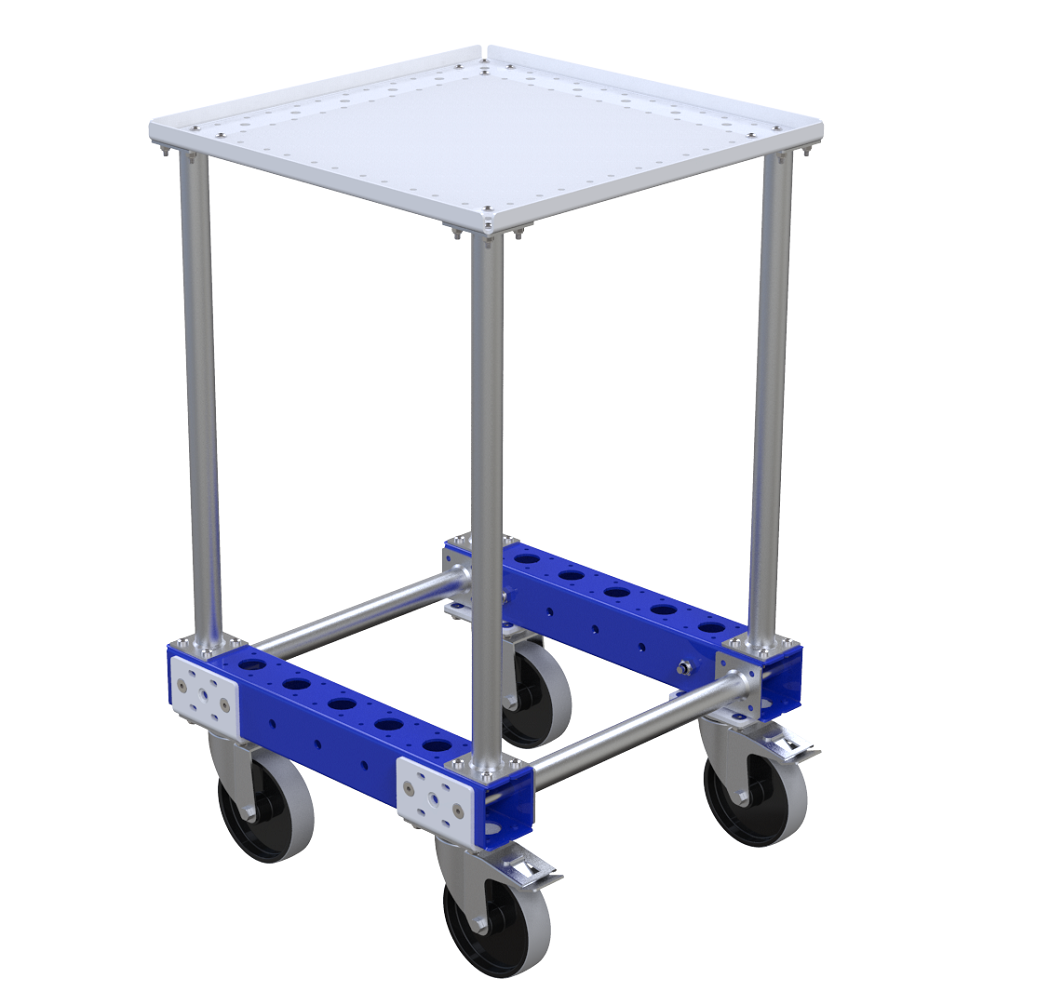

Worktable Cart - 490 x 490 mm

Small worktable used for holding tools, laptops and other materials.

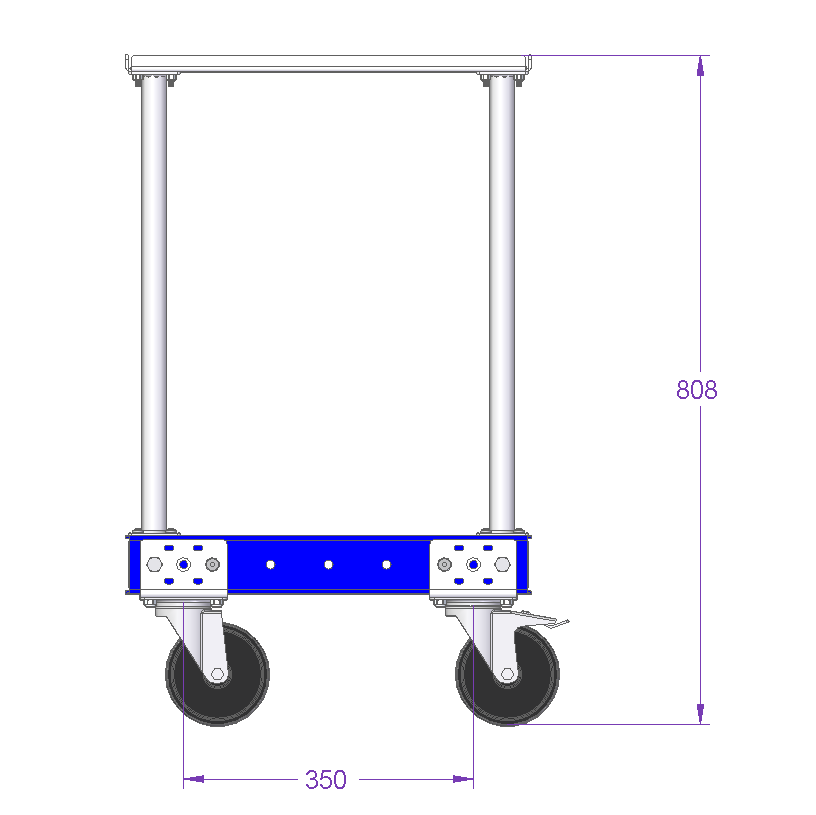

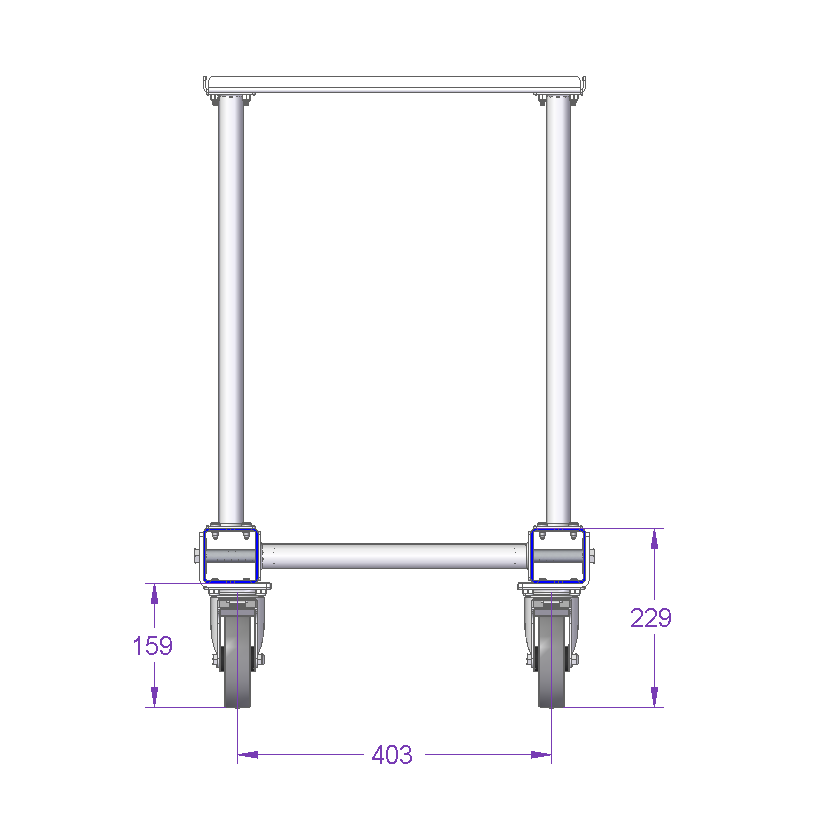

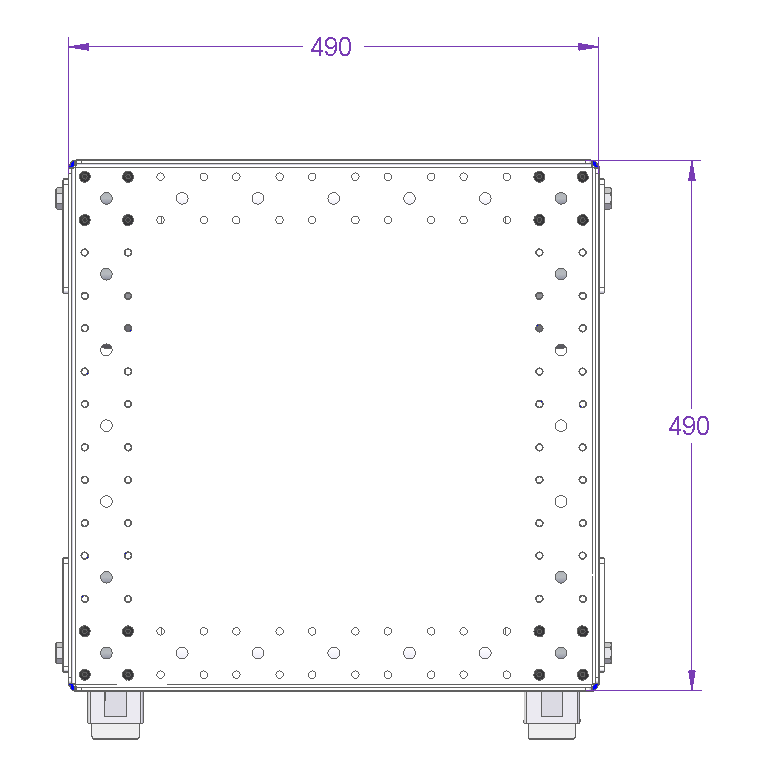

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 19 inch

Width: 19 inch

Load capacity: 132 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This worktable cart is ideal for use as a small table alongside the operator at an assembly station. The worktable also comes equipped with a edge so that you can store small bins, totes and boxes filled with materials. This cart comes equipped with four swivel casters, two of which are equipped with brakes.

Parts included
FlexTube™ 350 mm 2 Q-000-1055
FlexTube™ 560 mm 4 Q-000-1182
FlexBeam™ 490 mm FE 4 Q-001-1410
Swivel Caster - 125 mm 2 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Spring Threaded Tube Connectors 4 Q-005-0469
64 mm FlexBeam™ Collet 8 Q-005-1426
M6 x 20 K6S 10.9 Round Head (black) 16 Q-006-1018
Fully Threaded - M10 x 120 mm 4 Q-006-1037
Locking Nut M10 4 Q-006-1042
Locking Nut M6 16 Q-006-1050
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
Top Plate w. edge - 490 x 490 mm 1 Q-016-0450
