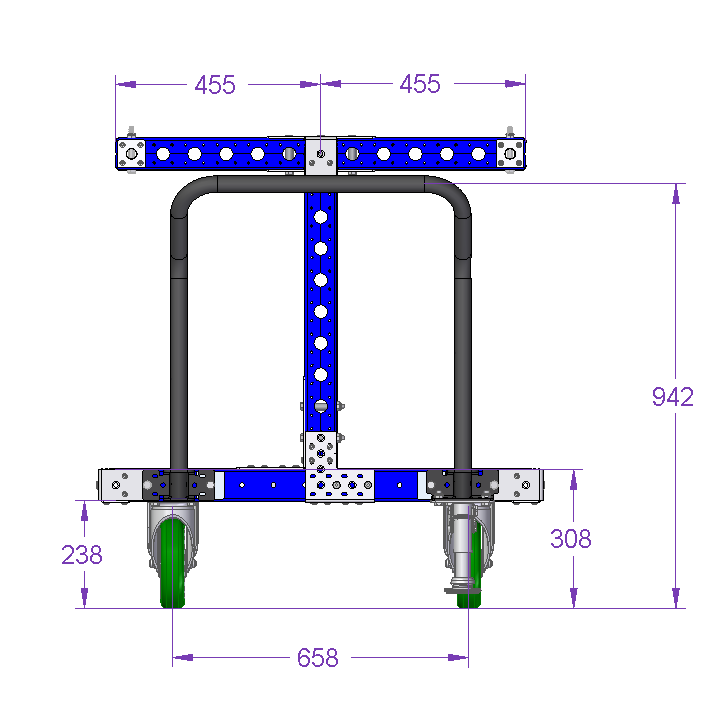

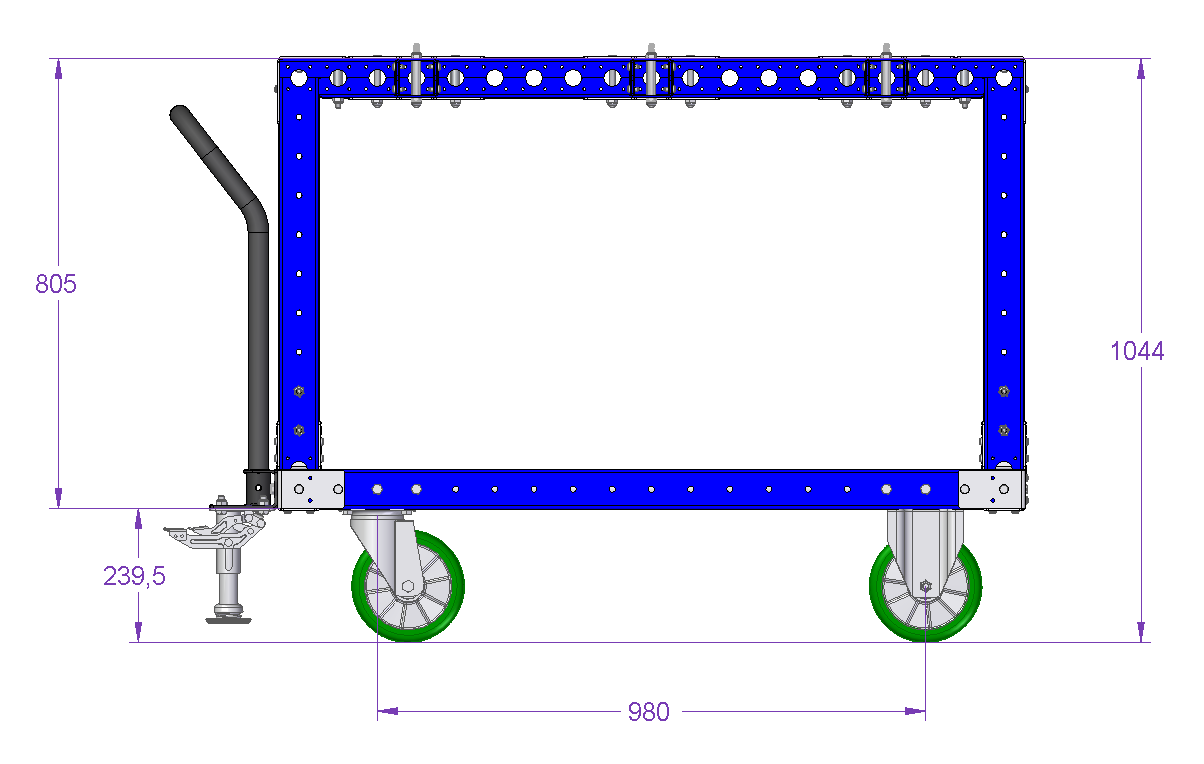

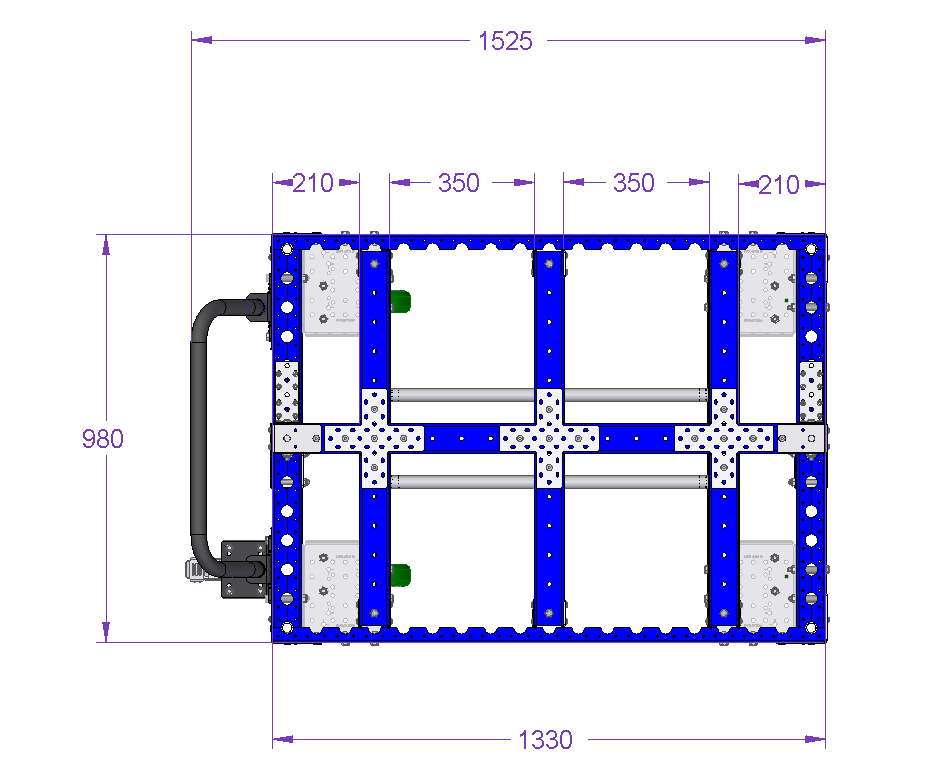

Wire Bobbin cart - 1330 x 980 mm
Wire Bobbin cart - 1330 x 980 mm
Wire Bobbin cart - 1330 x 980 mm
Wire Bobbin cart - 1330 x 980 mm
Q-100-0643

Wire Bobbin cart - 1330 x 980 mm

Custom designed hanging cart used for carrying smaller materials that need to be hung.

Technical specifications

Category: Hanging Carts, Standard

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Width: 39 inch

Length: 52 inch

Levels: 6

Load capacity: 353 lbs

Load Capacity per Level: 88 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Misc parts

More info

This cart is designed to hang components and easily transport materials. It is assembled with a floor brake and a handlebar attachment for ease of use. A Tow bar can also be attached to this industrial cart.

Parts included
FlexBeam™ 910 mm 6 Q-001-1304
FlexBeam™ 700 mm 4 Q-001-1307
FlexBeam™ 1190 mm FE 1 Q-001-1400
FlexBeam™ 420 mm FE 12 Q-001-1411
FlexBeam™ - 1330 mm FE 3 Q-001-1501
FlexPlate™ 16 Q-002-1001
Stiffener - Outside 6 Q-002-1050
Flexplate™ M10 2 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Floor Brake LTL - 200 mm 1 Q-004-1359
Cross Joint - 240 x 240 mm 6 Q-005-0021
L Bracket Joint 2 Q-005-0031
Spring Threaded Tube Connectors 4 Q-005-0469
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 18 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Hex Head - M10 x 25 mm 42 Q-006-1041
Locking Nut M10 85 Q-006-1042
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M10 x 90 mm 6 Q-006-1132
Extra Low Head - M10 x 90 mm 23 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410
Handlebar Attachment EUR 1 Q-015-0026
Handlebar / Floor brake attachment EUR 1 Q-015-0027
Tube for Handlebar EUR 1 Q-015-0033
