Tugger Cart 52 x 49 inch
Tugger Cart 52 x 49 inch
Tugger Cart 52 x 49 inch
Tugger Cart 52 x 49 inch
Tugger Cart 52 x 49 inch
Tugger Cart 52 x 49 inch
Q-100-0115

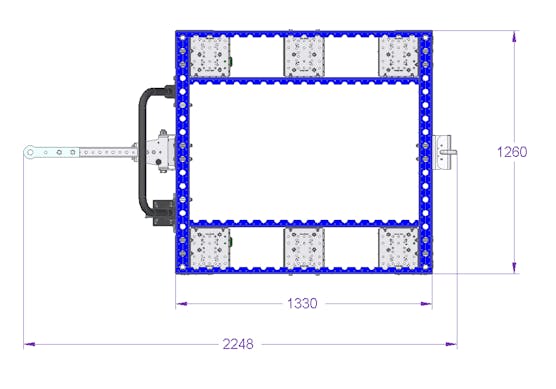

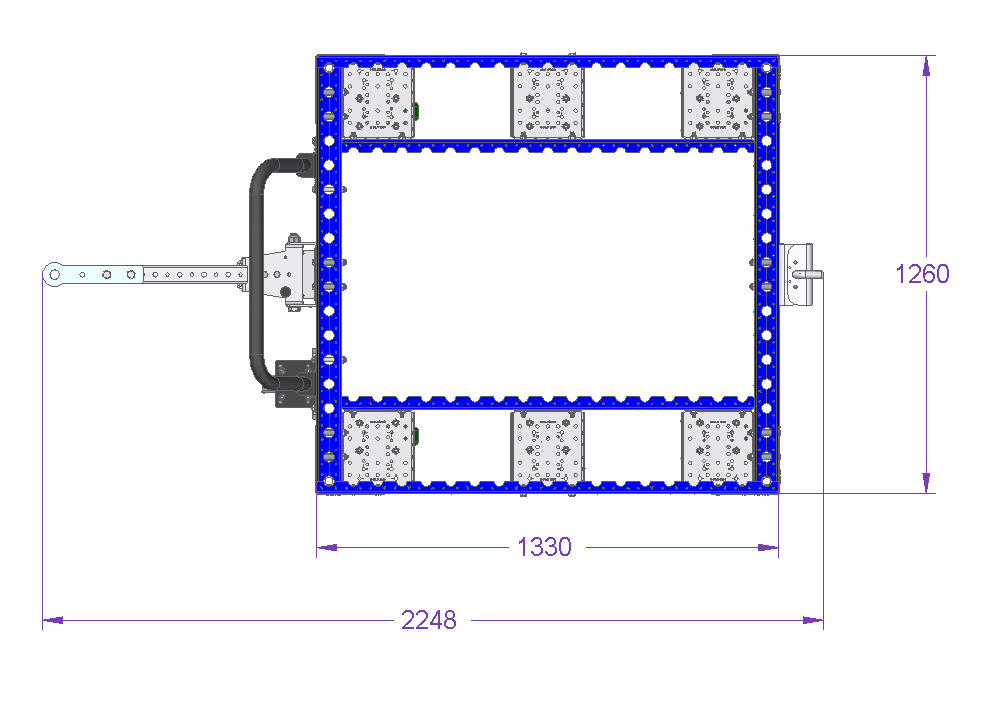

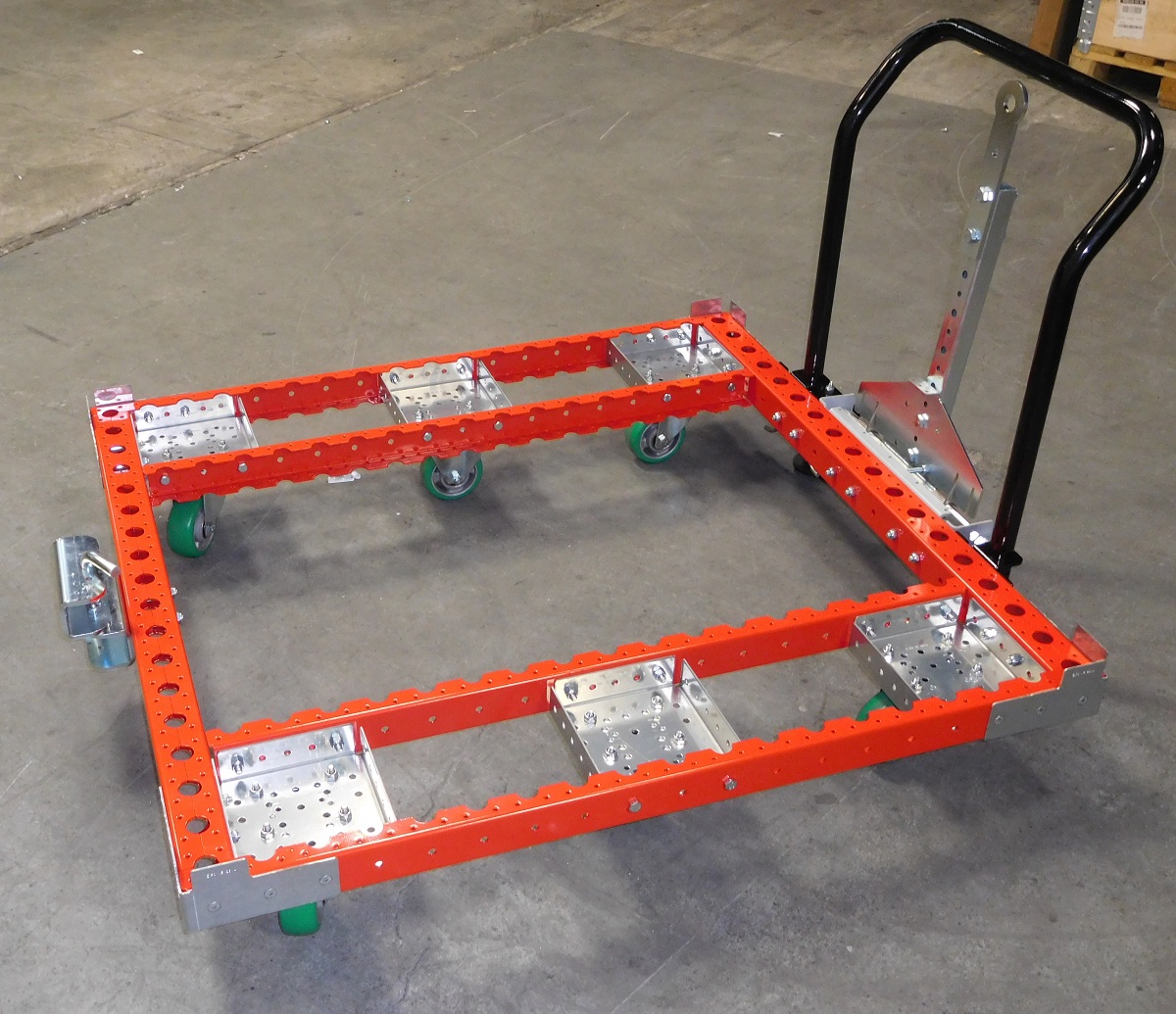

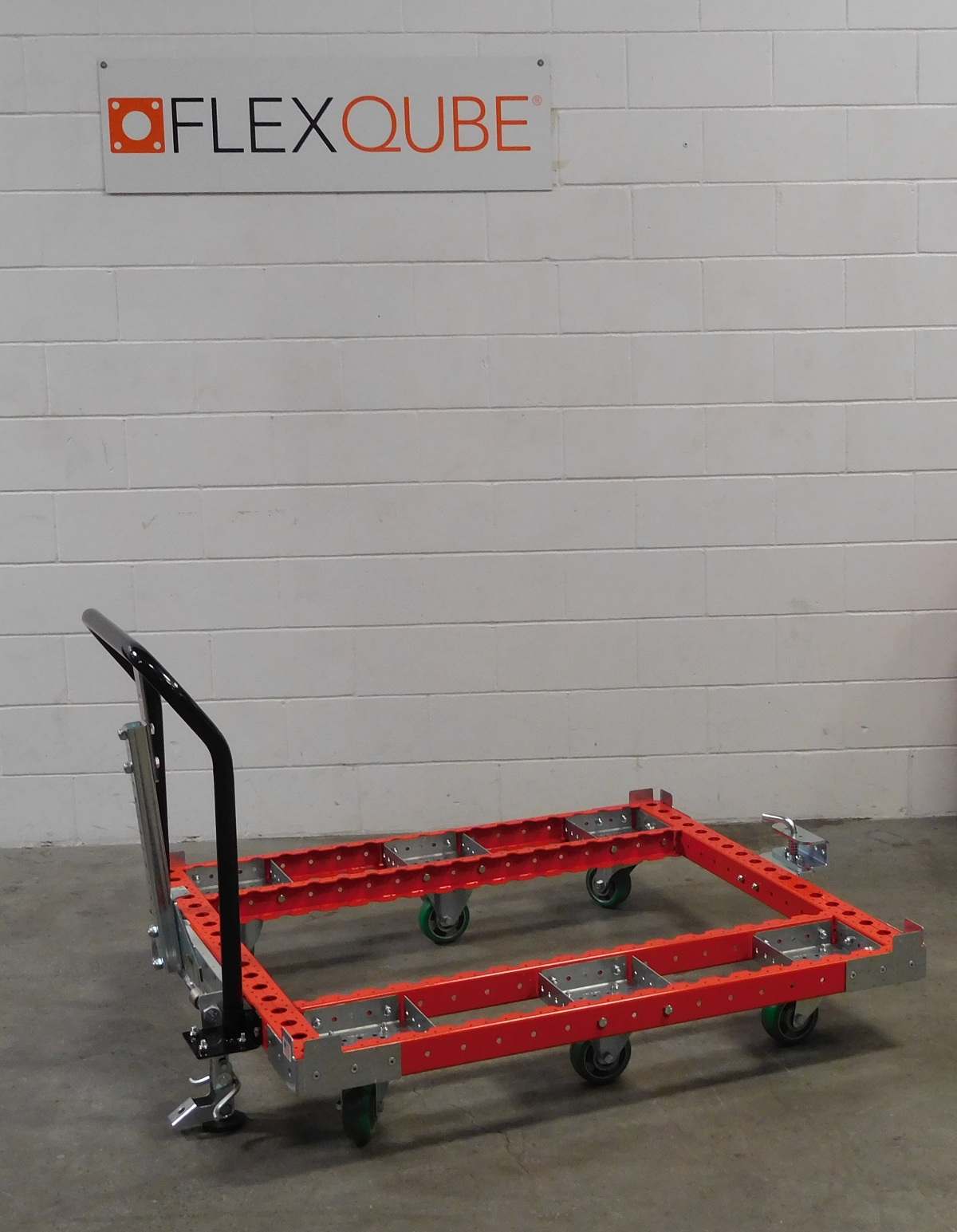

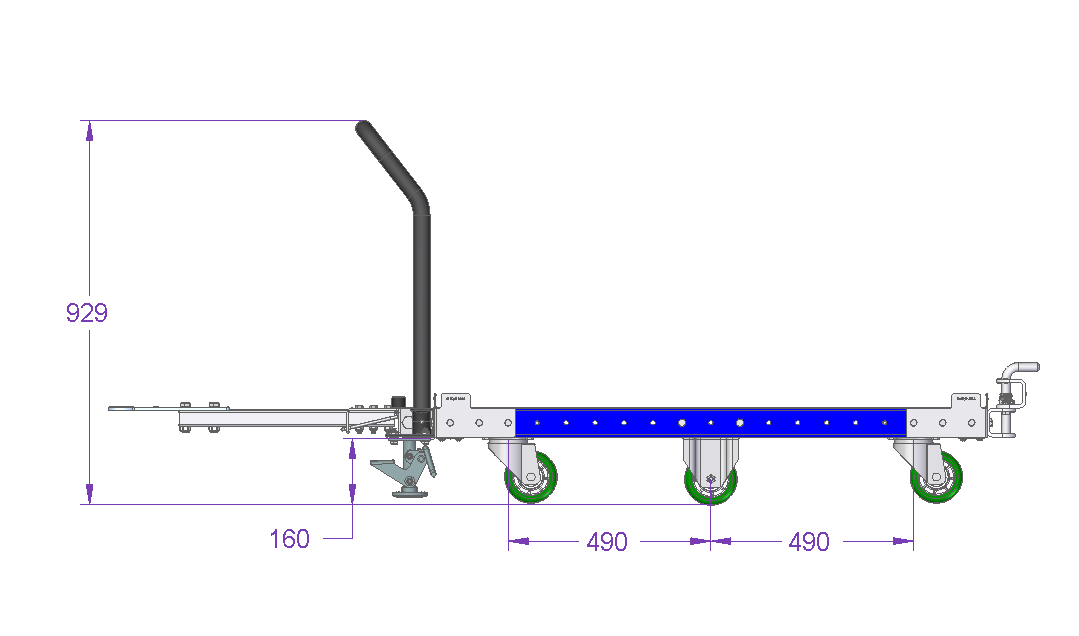

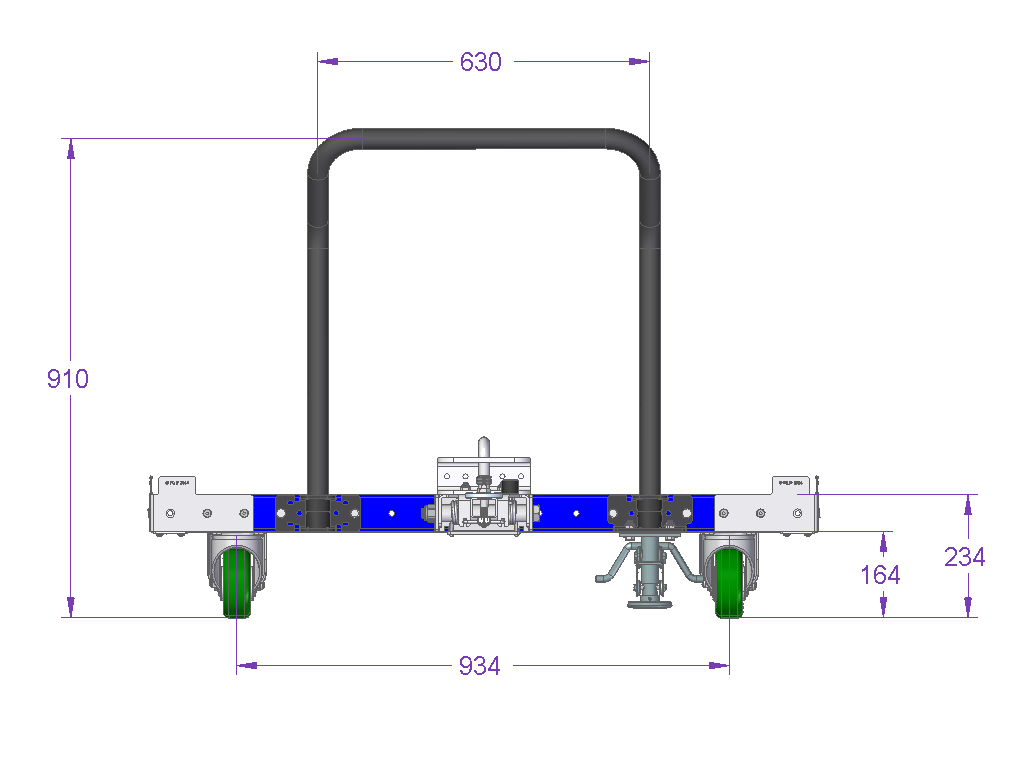

Tugger Cart 52 x 49 inch

This tugger cart is designed to transport pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 52 inch

Load capacity: 2000 lbs

Type of tow bar: Tongue and Hitch

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

There is no steel deck on this cart but one can be easily added. Adding a flat steel deck increases the overall robustness of the cart. This cart also comes with a drop pin and hitch tow bar for transportation via tugger train. There is also an ergonomic handlebar attached for easier manual transportation.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ - 1330 mm FE 2 Q-001-1501
FlexPlate™ 4 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 12 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 42 Q-006-1041
Locking Nut M10 77 Q-006-1042
Washer M10 10 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 90 mm 6 Q-006-1132
Hex Head - M10 x 30 mm 6 Q-006-1161
Locking Nut M8 1 Q-006-1181
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
