Tugger Cart - 50 x 47 inch
Tugger Cart - 50 x 47 inch
Tugger Cart - 50 x 47 inch
Tugger Cart - 50 x 47 inch
Q-100-0232

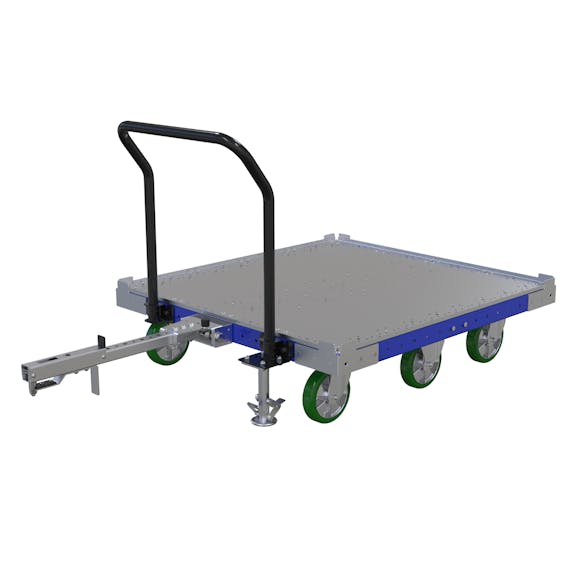

Tugger Cart - 50 x 47 inch

Standard tugger cart designed for transporting pallets and containers.

Technical specifications

Category: Flat Deck

Industry: Appliances & Electronics, Distribution, Medical Equipment

Width: 47 inch, 47 inch

Length: 47 inch

Load capacity: 2000 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

This pallet cart is equipped with a foot release tow bar for use within a tugger train system. The foot release also improves ergonomics by reducing bending and flexing by the operators. This cart is also equipped with six high quality polyurethane casters, two of which are fixed for improved tracking in a train.

Parts included
FlexBeam™ 1190 mm 2 Q-001-1300
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexPlate™ 4 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
US Floor Brake - 200 mm 1 Q-004-1613
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Spring Cover Plate 1 Q-005-1025
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 12 Q-005-1426
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Locking Nut M14 1 Q-006-1039
Hex Head - M10 x 25 mm 46 Q-006-1041
Locking Nut M10 79 Q-006-1042
Washer M10 2 Q-006-1043
Hex Head - M10 x 95 mm 3 Q-006-1088
Hex Head - M10 x 90 mm 5 Q-006-1132
Locking Nut M8 1 Q-006-1181
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 78 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 5 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top plate - 1260 x 1190 mm 1 Q-016-0059
US Modular Tow Bar VKR - Foot Release - 670 mm 1 Q-017-0012
Foot Release Locking Lip 1 Q-017-0024
Tow Hinge Module 1 Q-017-0059
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
