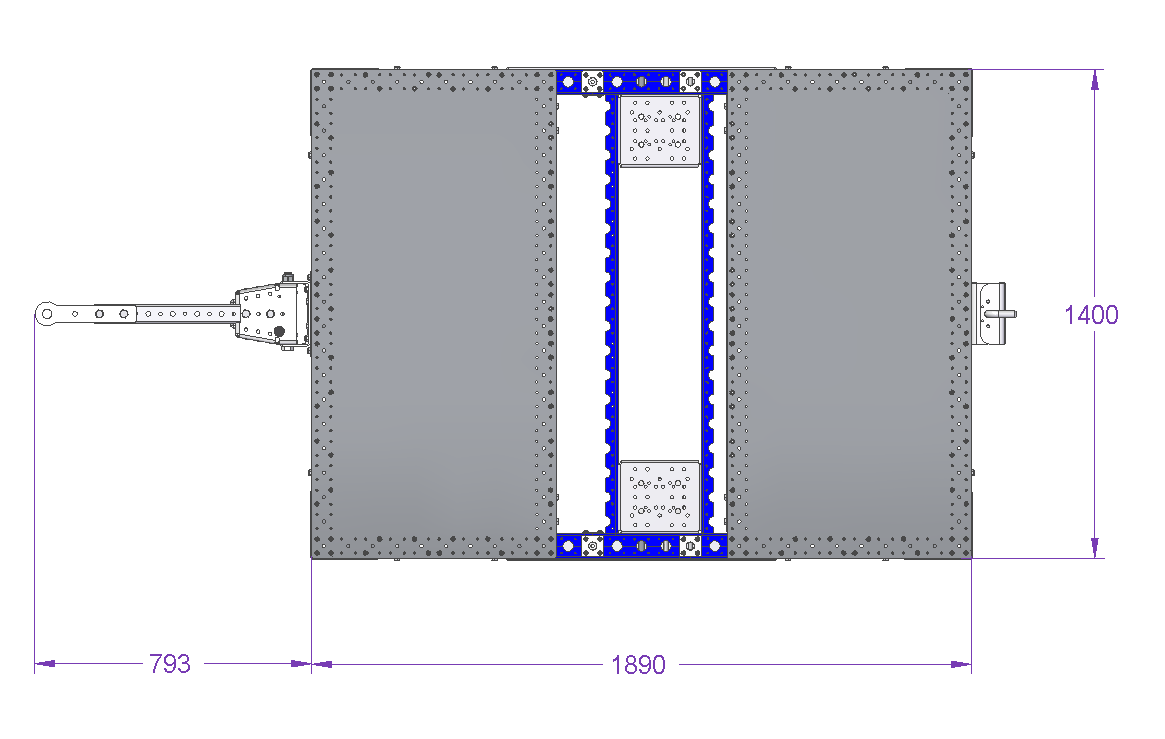

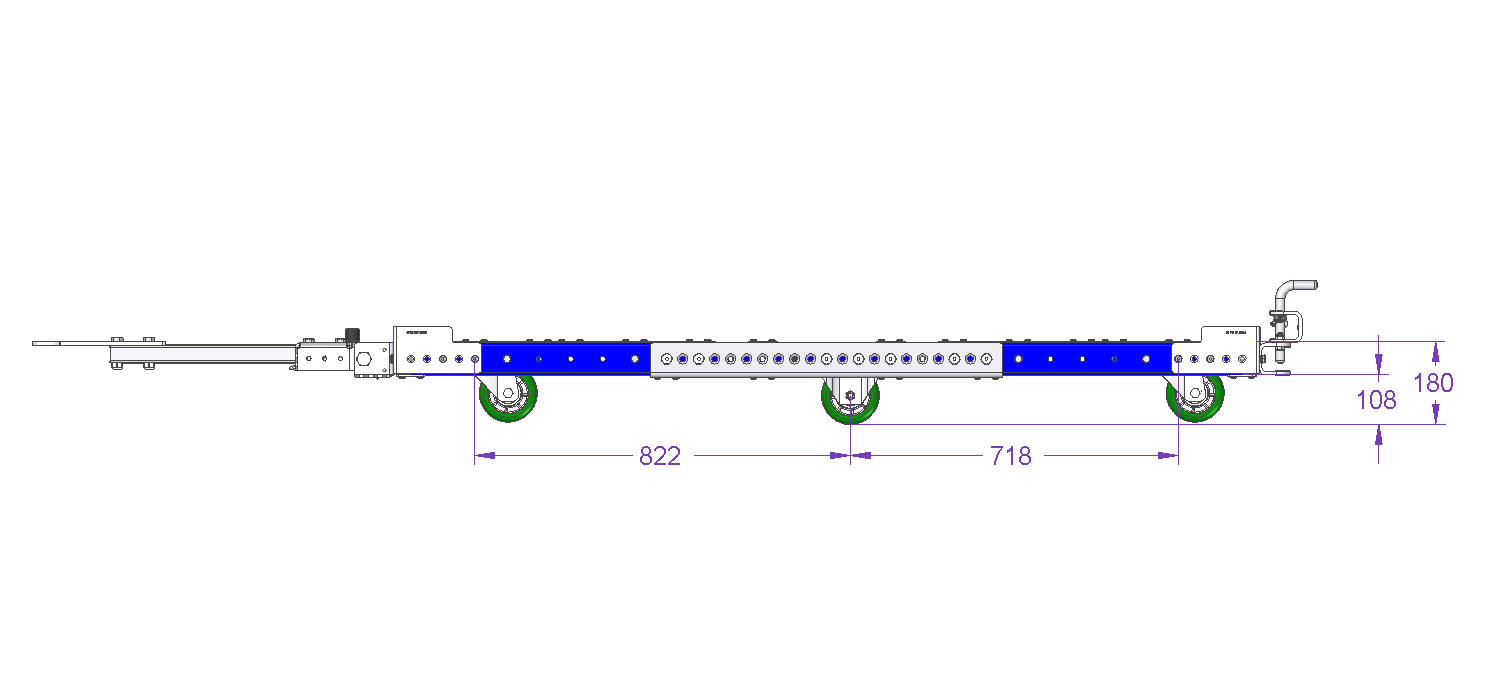

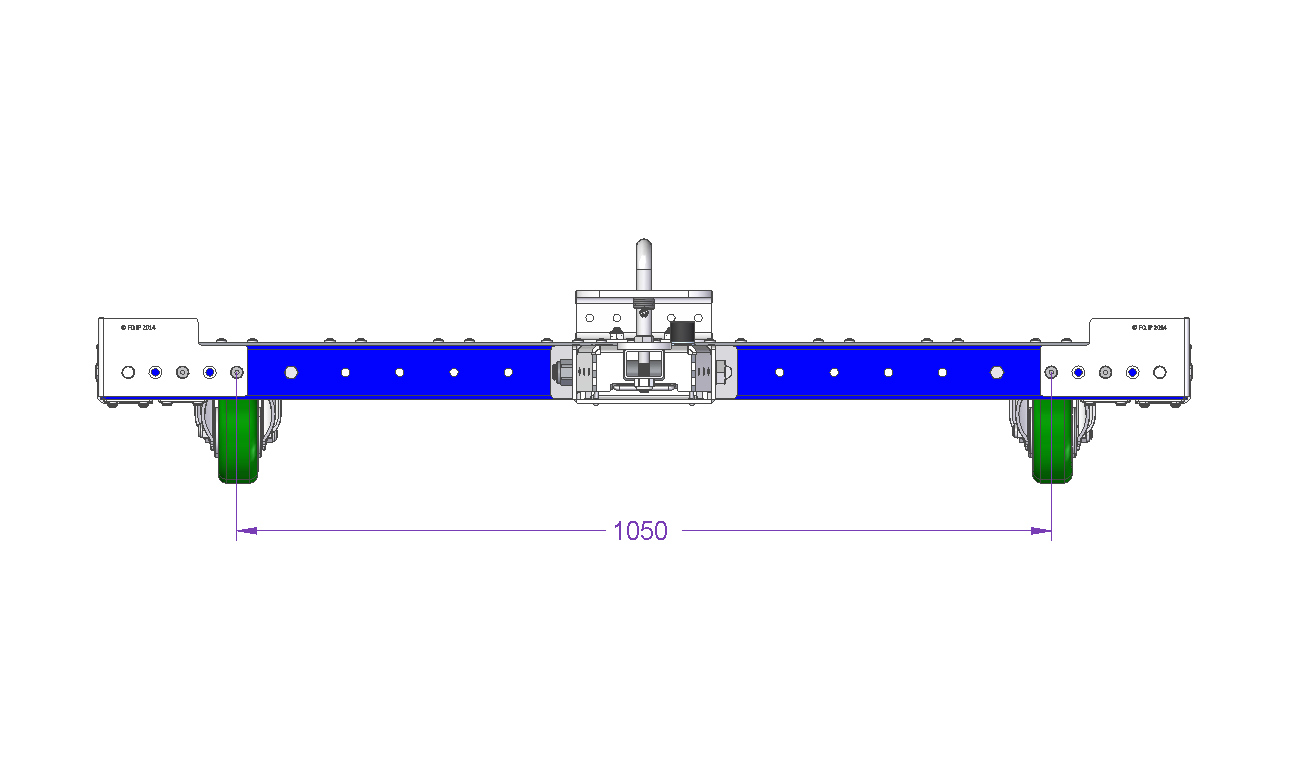

Tugger Cart - 1890 x 1400 mm
Tugger Cart - 1890 x 1400 mm
Tugger Cart - 1890 x 1400 mm
Tugger Cart - 1890 x 1400 mm
Q-100-0587

Tugger Cart - 1890 x 1400 mm

Flatbed tugger cart equipped with a tow bar and six polyurethane casters giving the cart excellent tracking properties.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 55 inch

Length: 74 inch

Load capacity: 2205 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This flatbed pallet cart is great for transportation of larger pallets and containers or several smaller. The cart is equipped with a tow bar and six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train

Parts included
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 1260 mm FE 8 Q-001-1500
FlexBeam™ - 1400 mm FE 2 Q-001-1502
FlexPlate™ 14 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
L Bracket Joint 4 Q-005-0031
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
Reinforcement Plate - 770 mm 2 Q-005-1112
64 mm FlexBeam™ Collet 26 Q-005-1426
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 24 Q-006-1041
Locking Nut M10 102 Q-006-1042
Washer M10 16 Q-006-1043
Hex Head - M10 x 90 mm 18 Q-006-1132
Countersunk MF6S - M10 x 90 mm 14 Q-006-1135
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 232 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 28 Q-006-1410
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
