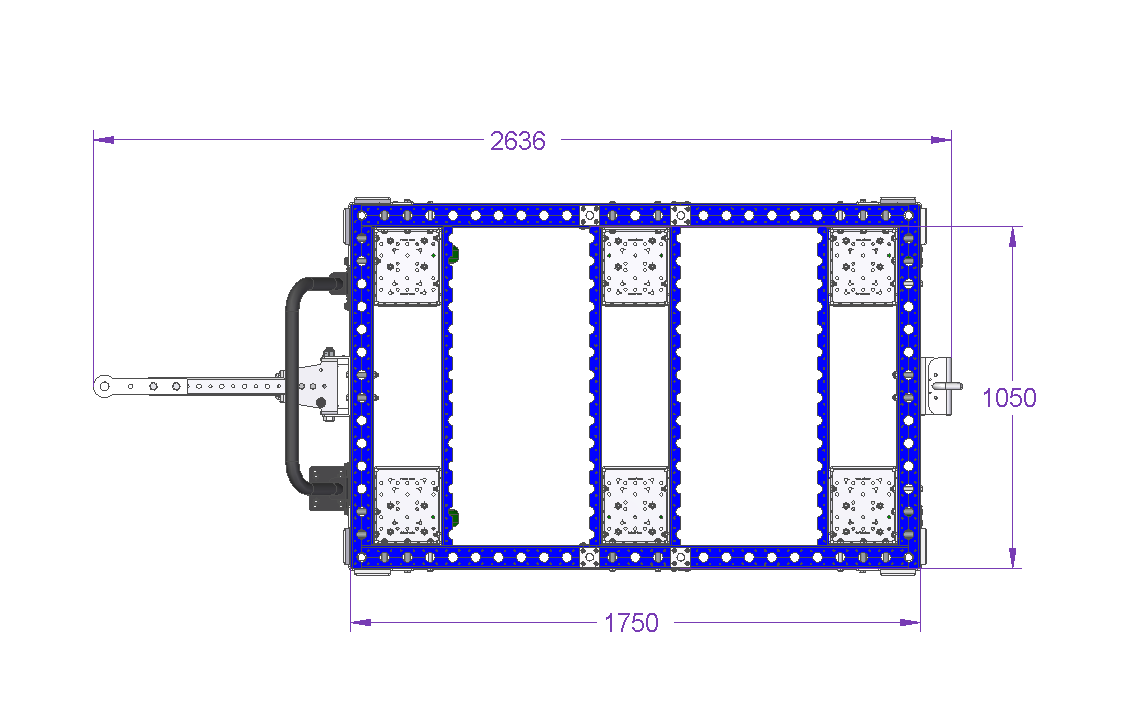

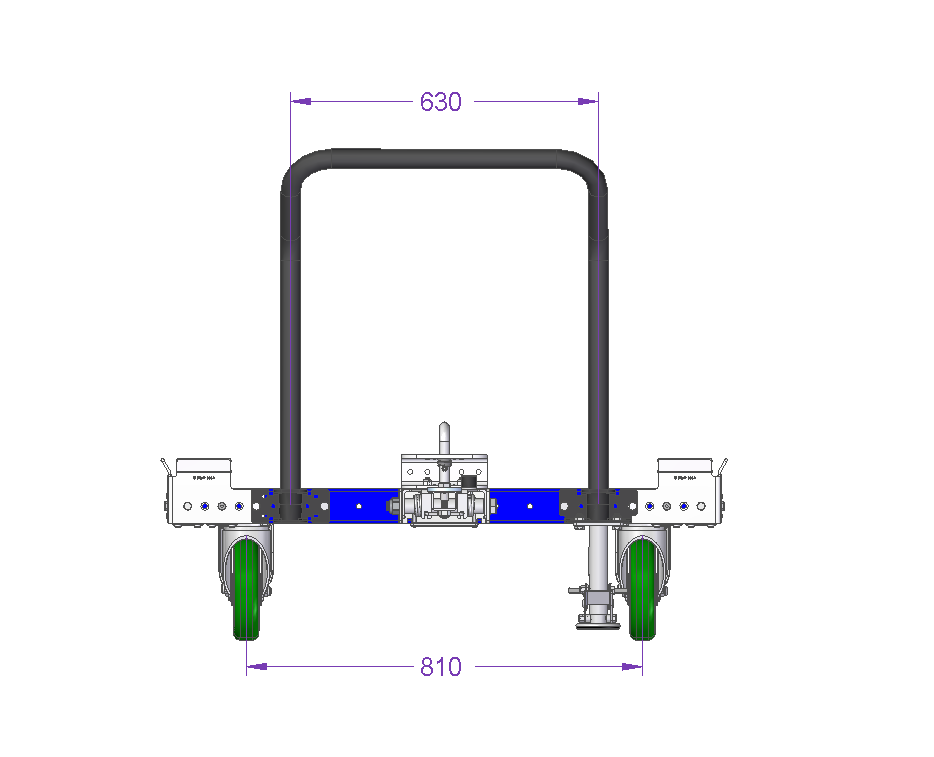

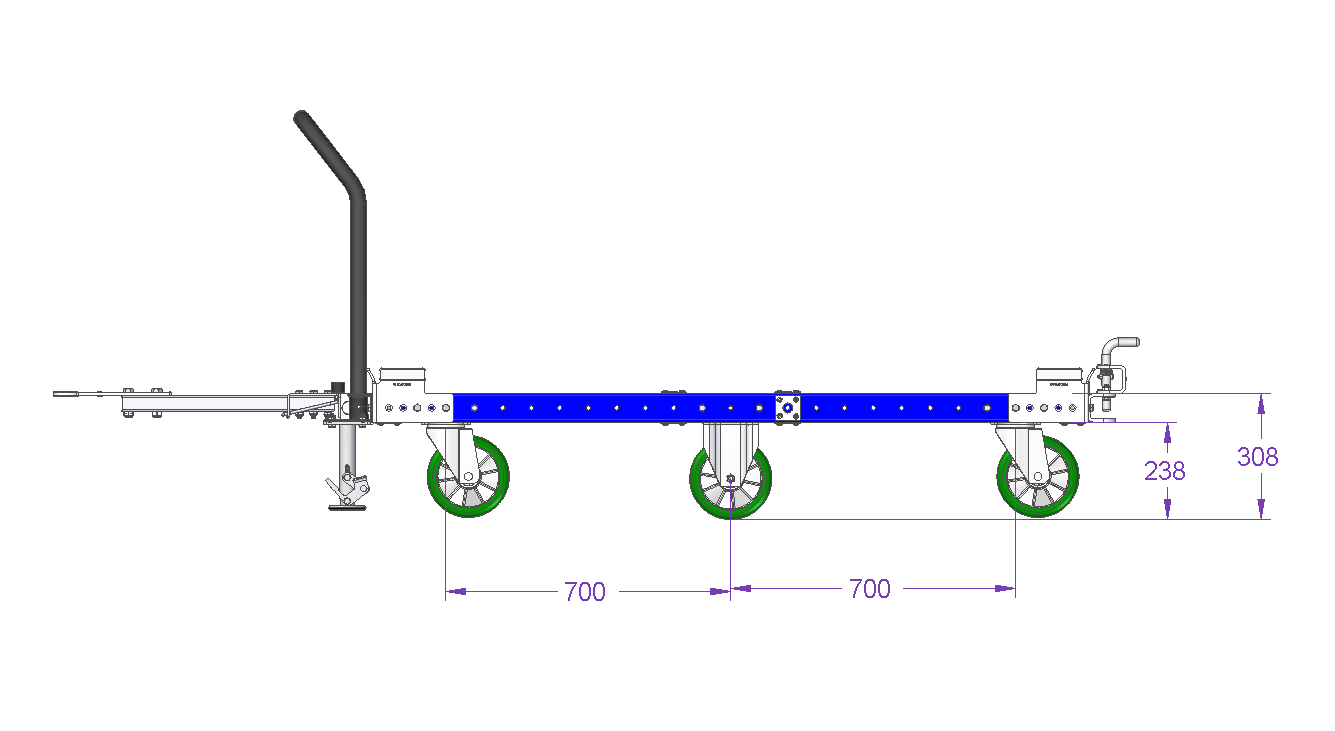

Tugger Cart - 1750 x 1120 mm
Tugger Cart - 1750 x 1120 mm
Tugger Cart - 1750 x 1120 mm
Tugger Cart - 1750 x 1120 mm
Q-100-0640

Tugger Cart - 1750 x 1120 mm

Long tugger cart designed for transporting pallets.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 44 inch

Length: 69 inch

Load capacity: 2998 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

This tugger cart is designed by flexqube to handle various pallets with ease. This cart comes with an ergonomuic handlebar for easier manual transportation. It also is equipped with a tow bar to be tugged in the train. There are six high quality polyurethane casters, with two being fixed for improved tracking in a train.

Parts included
FlexBeam™ 980 mm 4 Q-001-1303
FlexBeam™ 700 mm 4 Q-001-1307
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 980 mm FE 6 Q-001-1403
FlexPlate™ 20 Q-002-1001
Flexplate™ M10 16 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
US Floor Brake - 200 mm 1 Q-004-1613
Wheel Attachment Box - 5 mm 6 Q-005-0046
Angle corner plate - 5 mm 4 Q-005-0227
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
64 mm FlexBeam™ Collet 24 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 46 Q-006-1041
Locking Nut M10 85 Q-006-1042
Washer M10 6 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M10 x 90 mm 14 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
Hex Head - M10 x 100 mm 2 Q-006-1302
Extra Low Head - M10 x 90 mm 6 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 80 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
