Tugger Cart - 1260 x 1190 mm - Wire Release Version
Tugger Cart - 1260 x 1190 mm - Wire Release Version
Tugger Cart - 1260 x 1190 mm - Wire Release Version
Tugger Cart - 1260 x 1190 mm - Wire Release Version
Q-100-0982

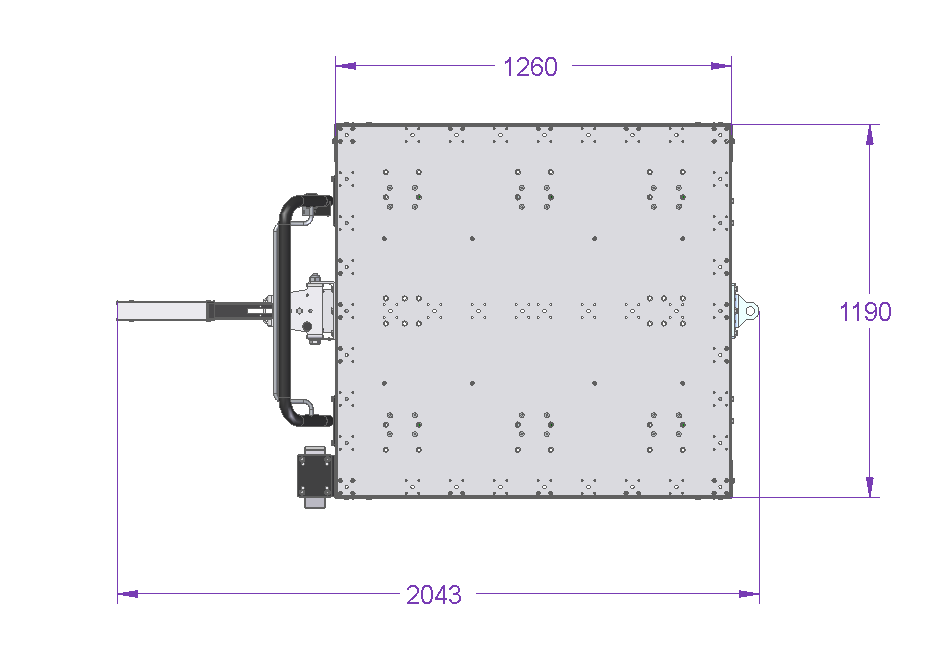

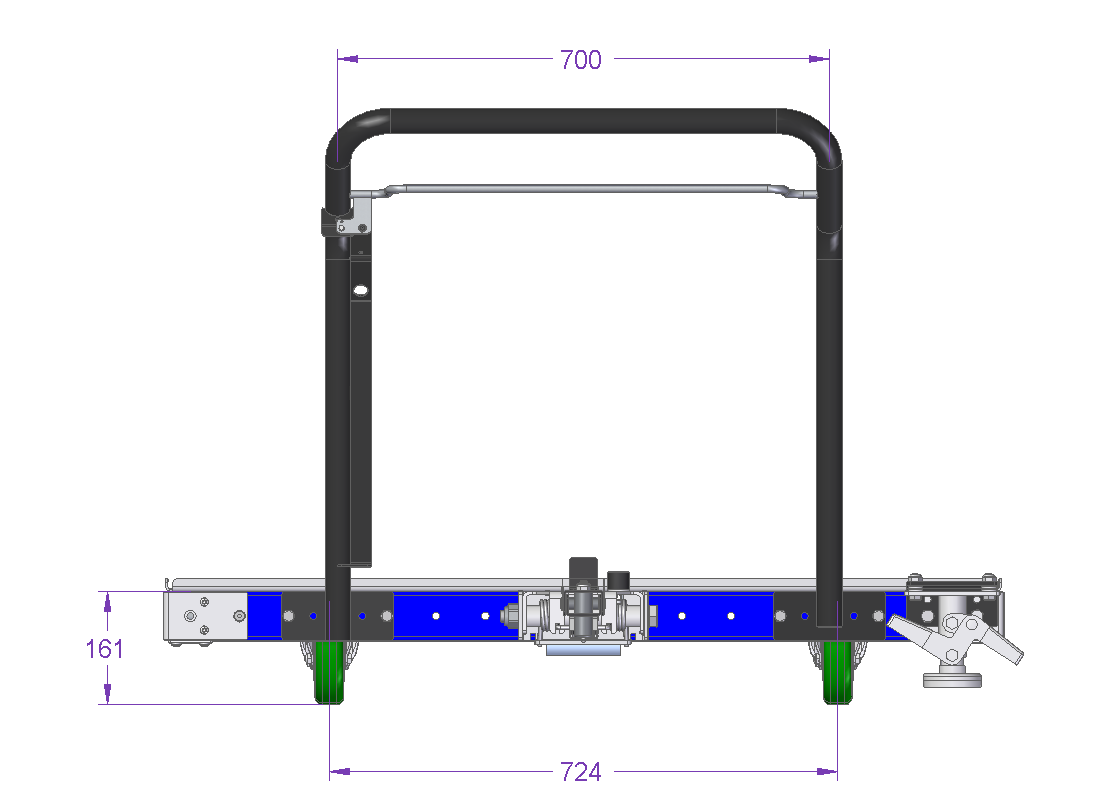

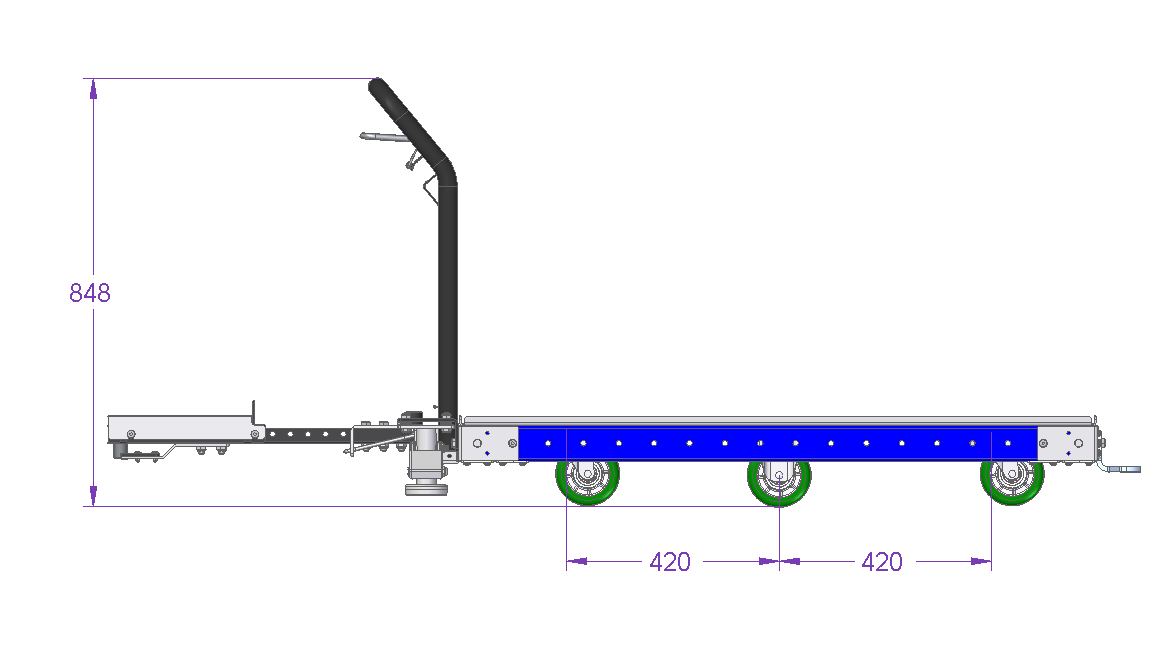

Tugger Cart - 1260 x 1190 mm - Wire Release Version

Tugger cart with added wire release tow bar.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 50 inch

Width: 47 inch

Load capacity: 1543 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

This tugger cart is designed for transporting heavy pallets and containers. It comes with an ergonomic handle bar for manual transportation. It also has an attached wire release tow bar, the wire release greatly improves ergonomic for the operators. The operaot is able to squeeze the lever underneath the handlebar to release the tow bar, makiit much easier and smoother.

Parts included
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 8 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Floor Brake LTL - 125 mm 1 Q-004-1360
L Bracket Joint 4 Q-005-0031
Floor brake plate 1 Q-005-0275
27 mm collet - 15 x 2 mm 3 Q-005-0341
Damper GN352 1 Q-005-1016
64 mm FlexBeam™ Collet 16 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Hex Head - M4 x 8 mm 1 Q-006-1028
Hex Head - M10 x 25 mm 11 Q-006-1041
Locking Nut M10 44 Q-006-1042
Washer M10 32 Q-006-1043
Scissor Sprint 2,5 x 16 FZB 1 Q-006-1077
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 11 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 23 Q-006-1181
Countersunk - M8 x 20 24 Q-006-1282
Hex Head Fully Threaded - M10 x 50 mm 3 Q-006-1343
Extra Low Head - M10 x 90 mm 7 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 38 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 48 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Release Handlebar w/o Floor Brake - 700 mm 1 Q-015-0084
Top plate with edge - 1190 x 1260 mm 1 Q-016-0216
Modular Towbar - 605 mm 1 Q-017-0038
Trigger Handle 1 Q-017-1050
Rubber Bushing 498030 1 Q-017-1062
Tow Hole 28 mm - Symmetric 1 Q-017-1066
