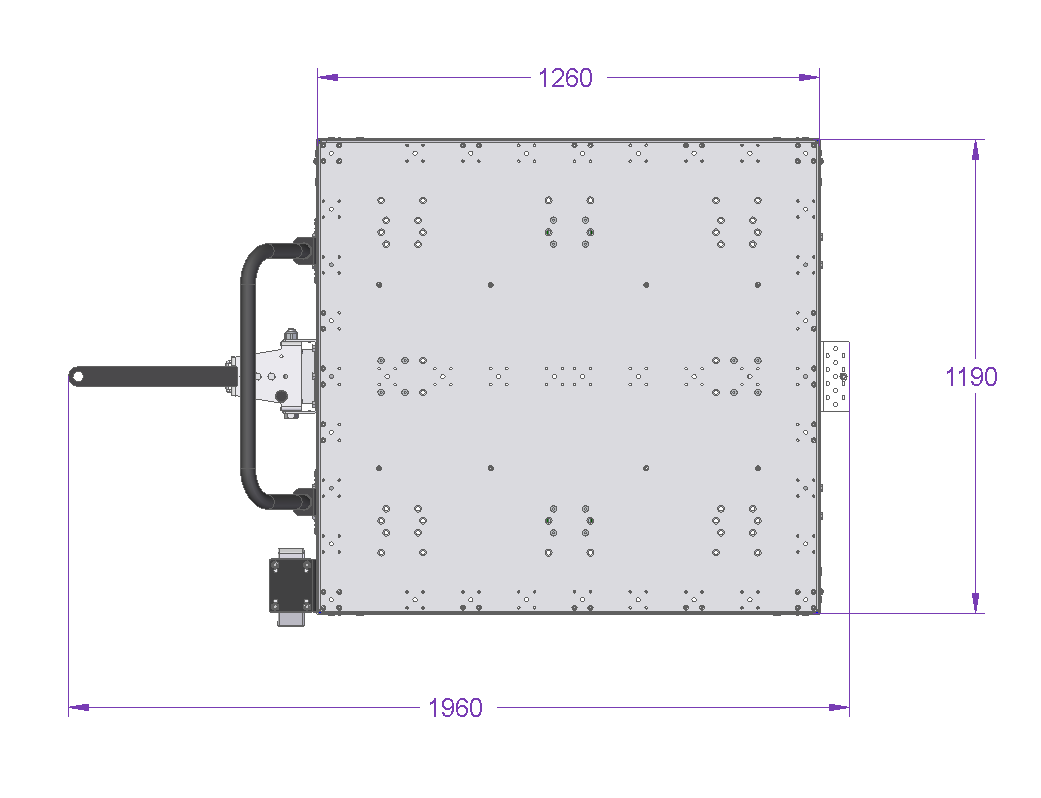

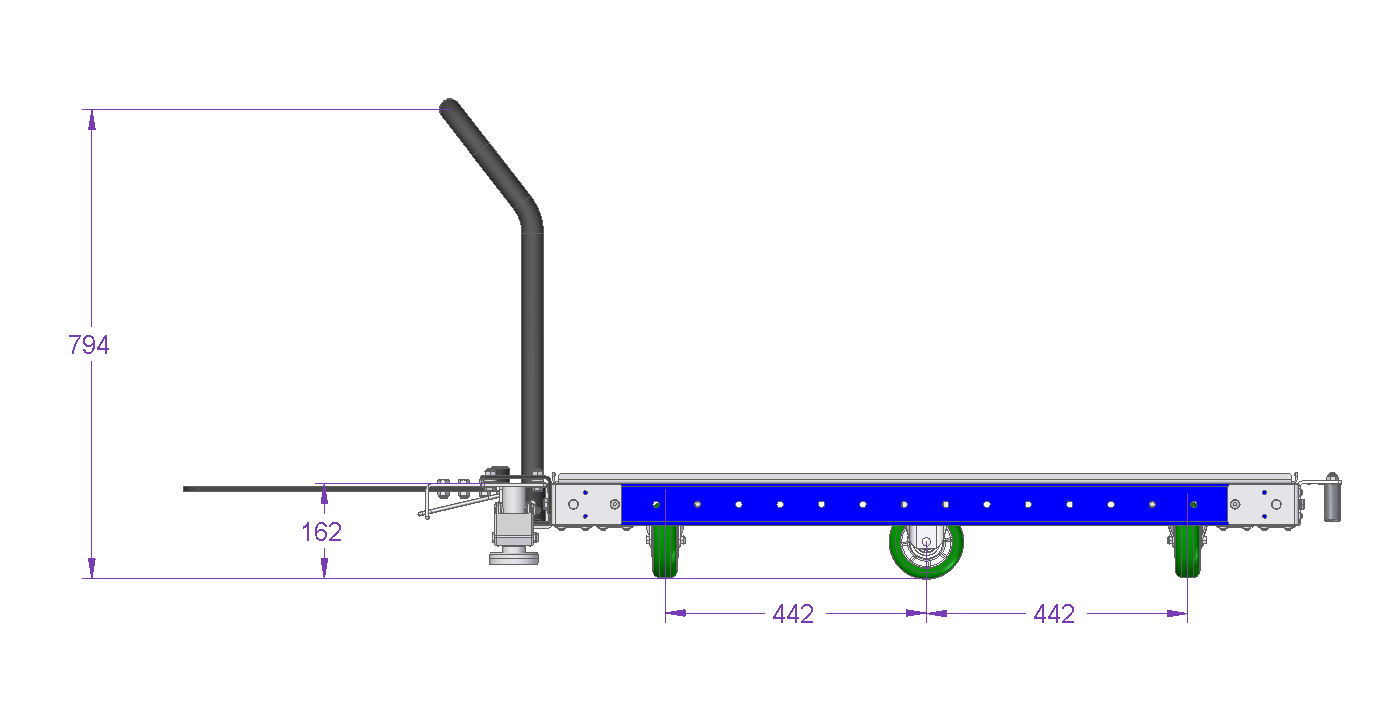

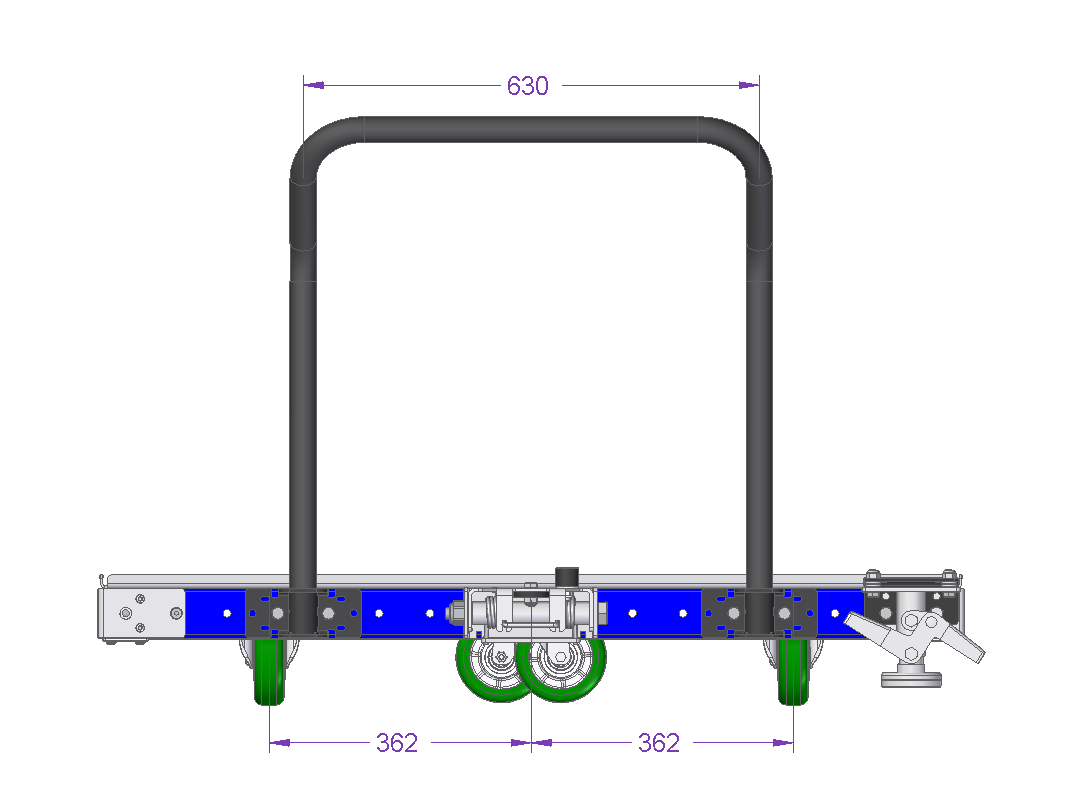

Tugger Cart - 1260 x 1190 mm
Tugger Cart - 1260 x 1190 mm
Tugger Cart - 1260 x 1190 mm
Tugger Cart - 1260 x 1190 mm
Q-100-0987

Tugger Cart - 1260 x 1190 mm

Simply designed tugger cart for transporting pallets & containers.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 47 inch

Length: 50 inch

Load capacity: 1102 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

More info

This low rider pallet cart is ideal for transporting pallets, containers and large boxes. This cart is equipped with an ergonomic handlebar for manual transportation and a tow bar for transportation using a tugger train system.

Parts included
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 8 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Floor Brake LTL - 125 mm 1 Q-004-1360
L Bracket Joint 4 Q-005-0031
Floor brake plate 1 Q-005-0275
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
64 mm FlexBeam™ Collet 16 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
M10 x 80 mm Countersunk 1 Q-006-0019
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 43 Q-006-1042
Washer M10 24 Q-006-1043
Hex Head - M10 x 90 mm 15 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 17 Q-006-1181
Countersunk - M8 x 20 16 Q-006-1282
Extra Low Head - M10 x 90 mm 7 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 38 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 48 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handlebar Attachment EUR 2 Q-015-0026
Tube for Handlebar EUR 1 Q-015-0033
Top plate with edge - 1190 x 1260 mm 1 Q-016-0216
Countersunk towing lock pin - 63 mm 1 Q-017-0034
Tow Bar Lip - 530 mm 1 Q-017-0068
