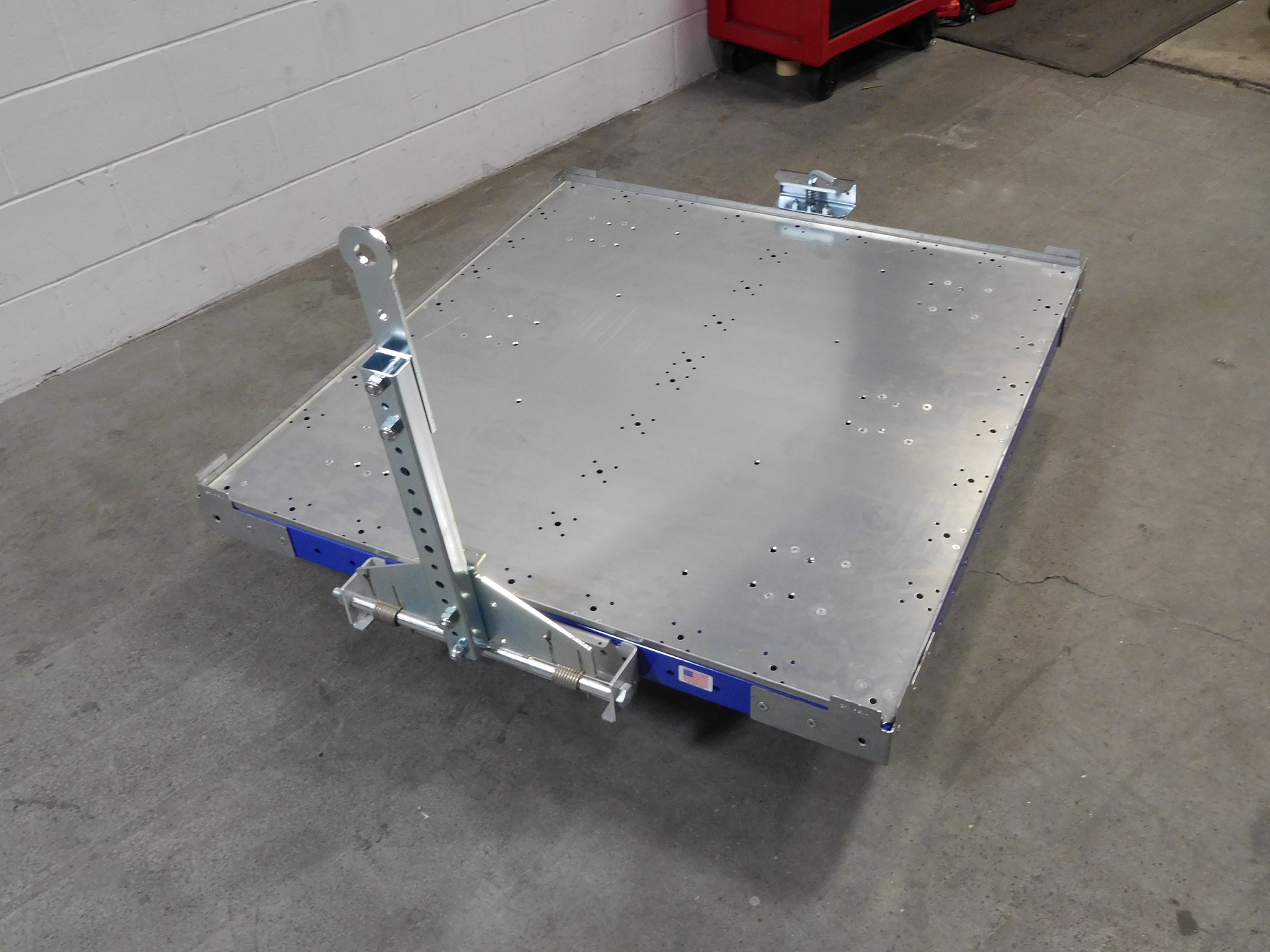

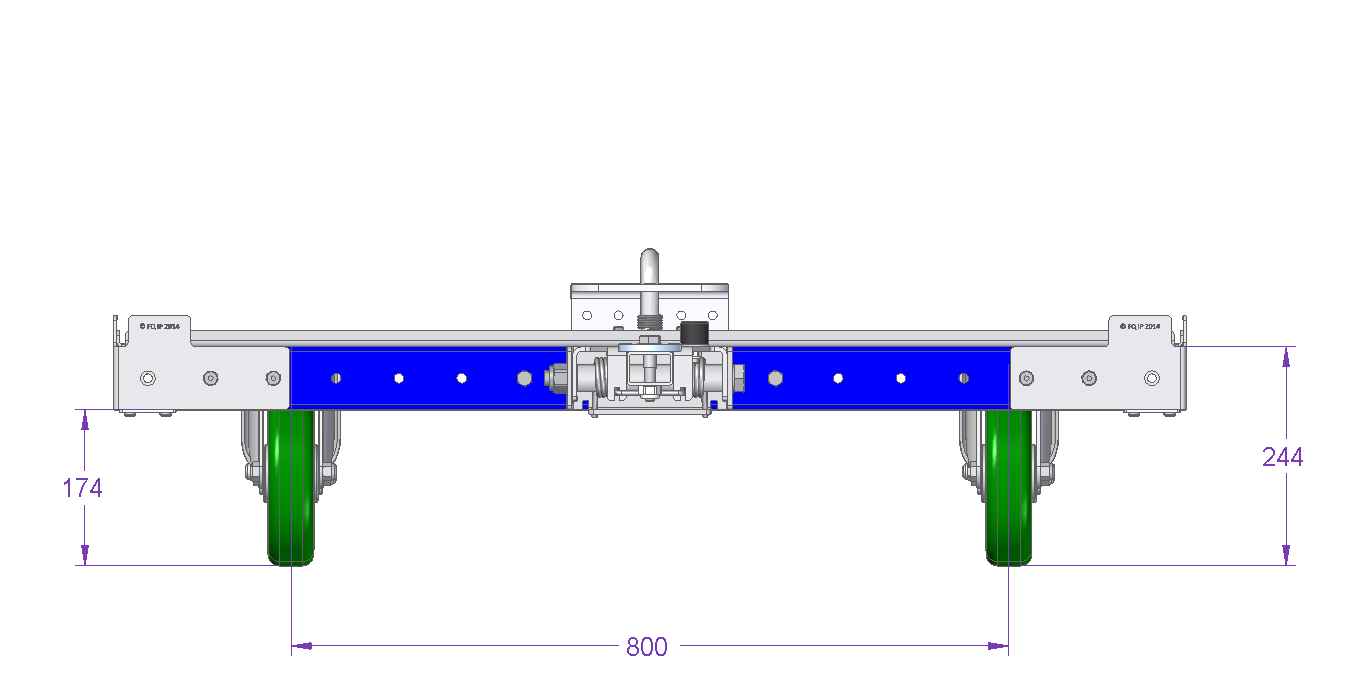

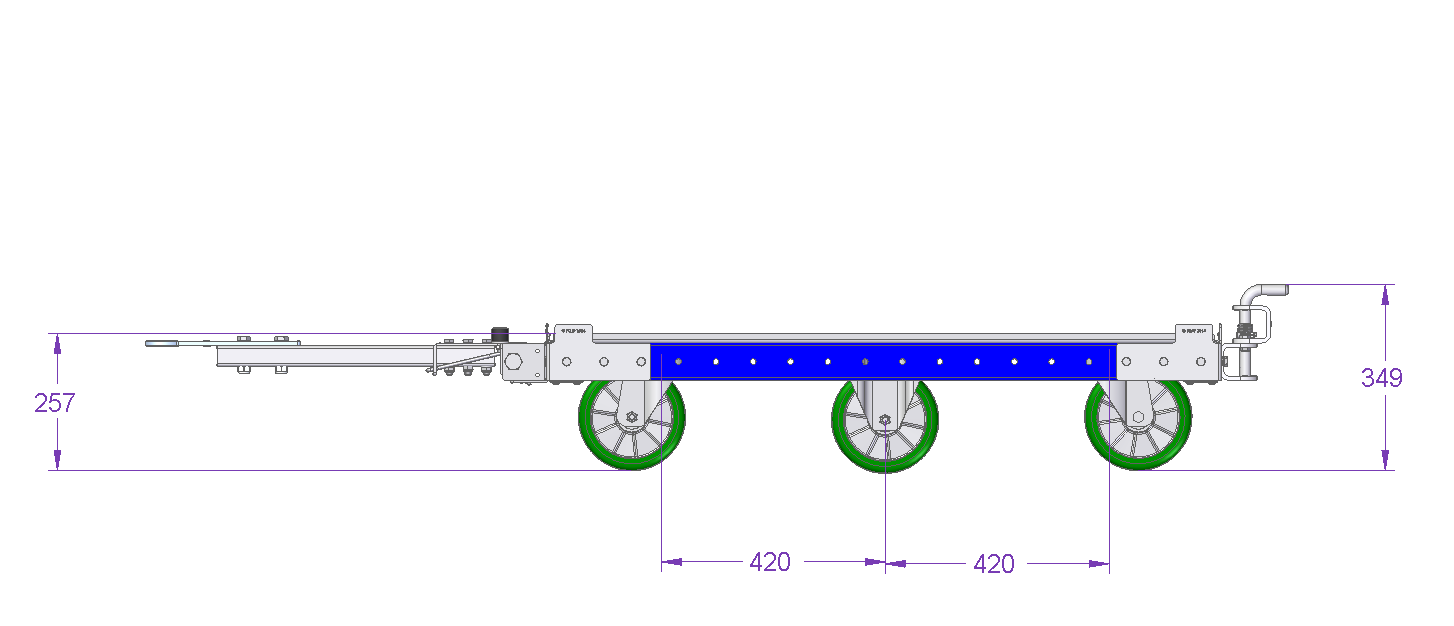

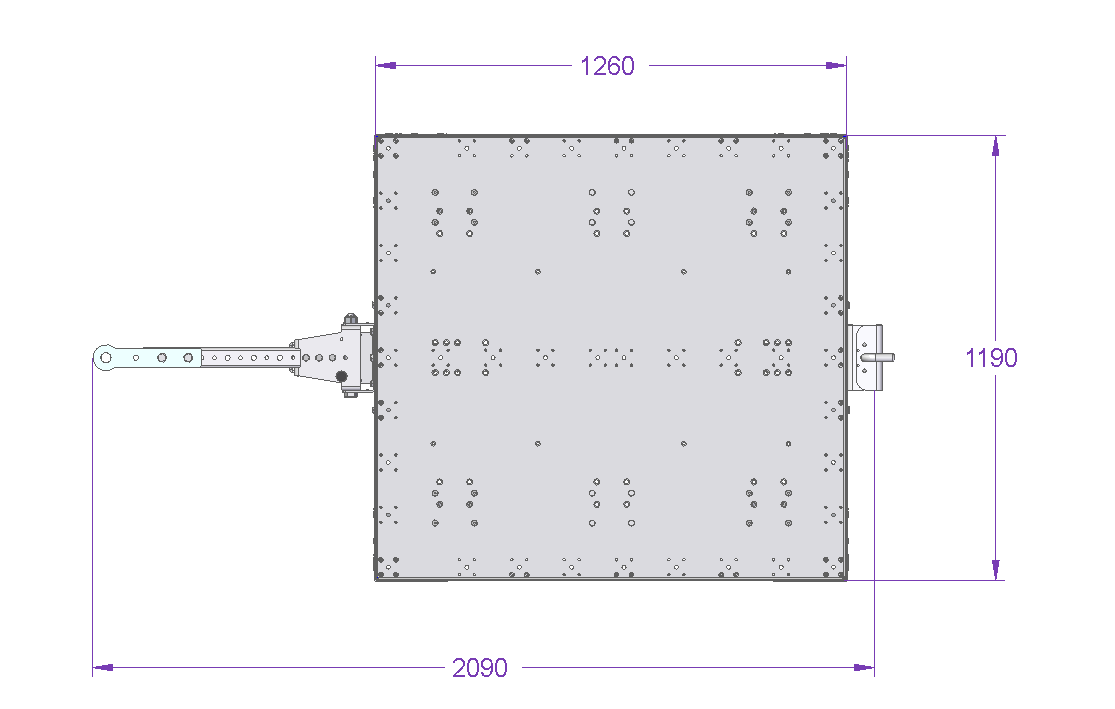

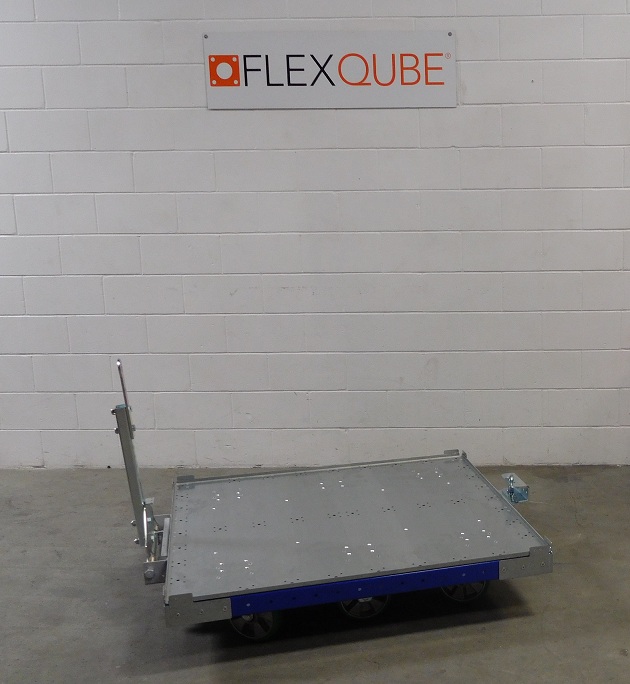

Tugger Cart 1260 x 1190 mm

Tuggable flatbed cart used for the transportation of pallets and containers. Equipped with a tow bar and six polyurethane casters

Technical specifications

Category: Flat Deck

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Type of tow bar: Tongue and Hitch

Width: 47 inch

Length: 50 inch

Load capacity: 992 lbs

Transportation method: Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

Tuggable flatbed cart, great for the transportation of pallets and containers. The deck gives you the option to load the cart with more than one size. The cart is equipped with a tow bar and six high quality polyurethane casters giving you excellent tracking properties and silent movement in a train.

Parts included
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 4 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
L Bracket Joint 4 Q-005-0031
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 14 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 63 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M10 x 90 mm 10 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 40 Q-006-1385
Low Allen Head - M10 x 16 mm 16 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 20 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Top plate with edge - 1190 x 1260 mm 1 Q-016-0216
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
