Q-100-0154

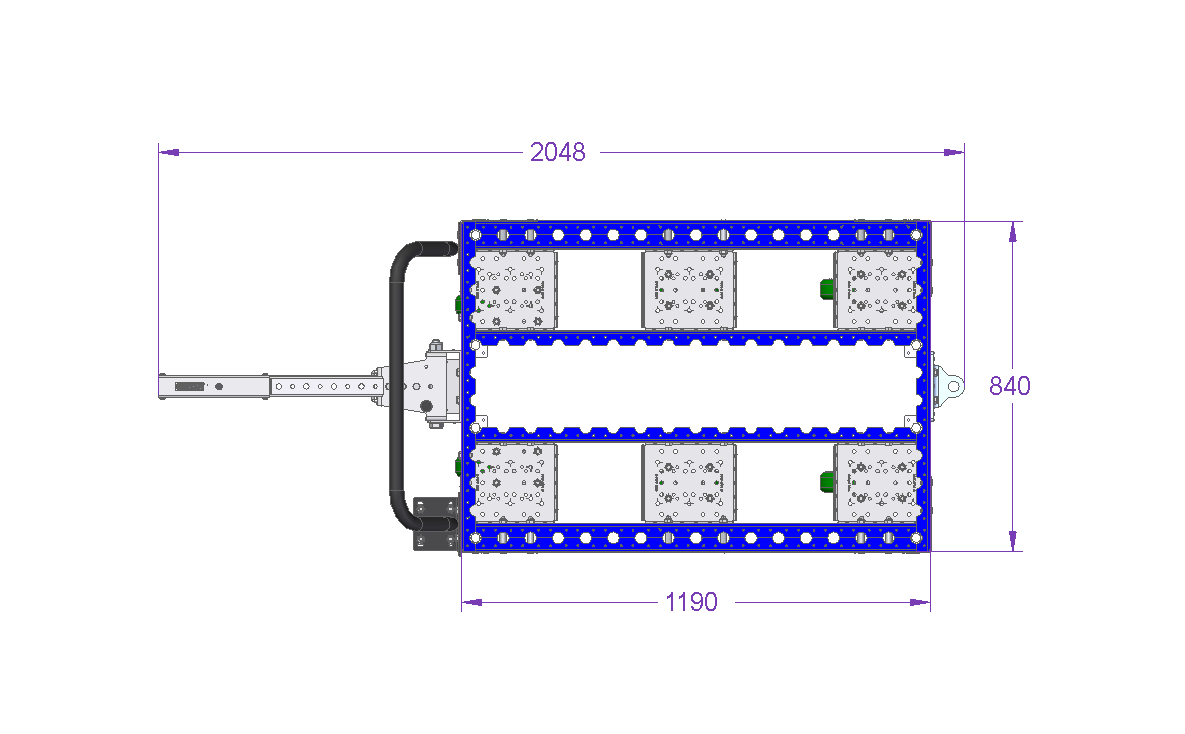

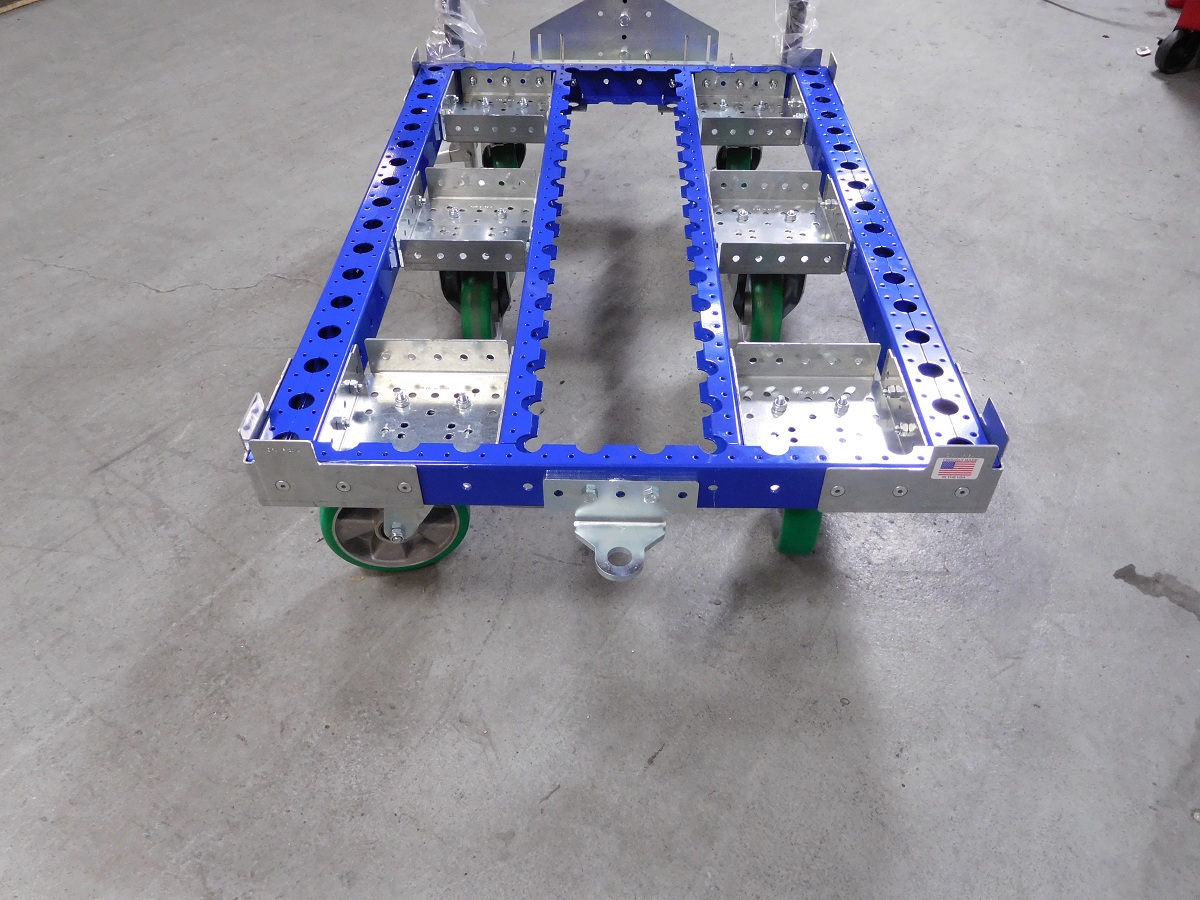

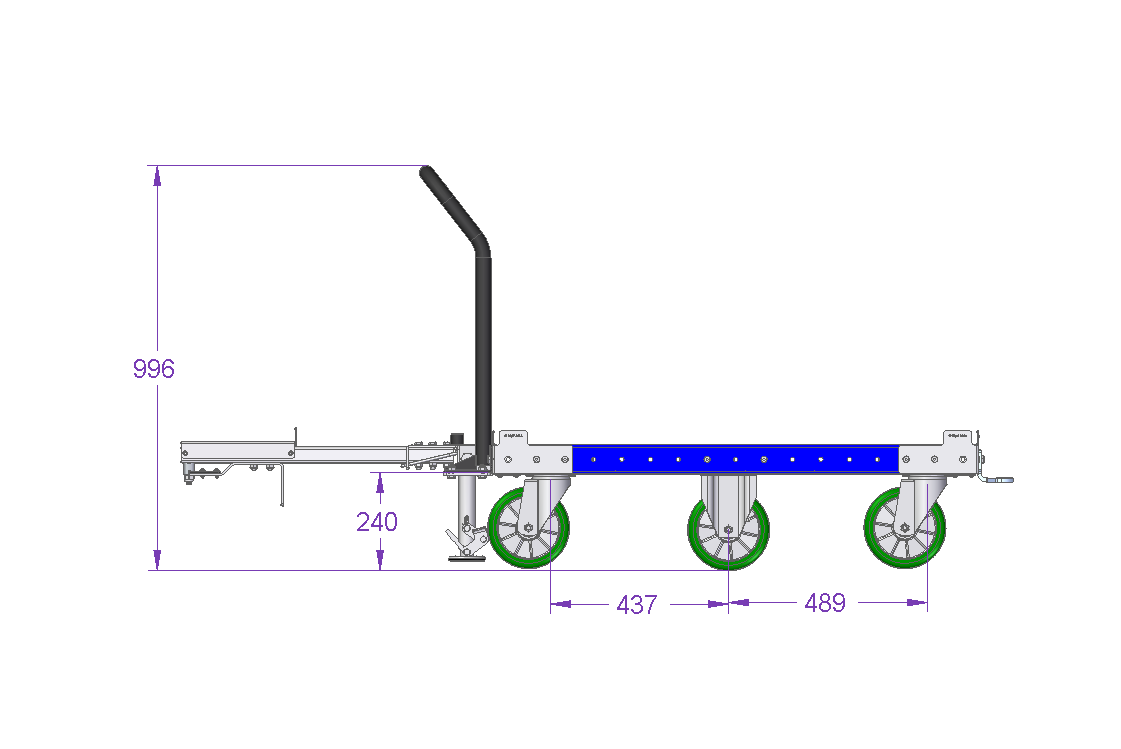

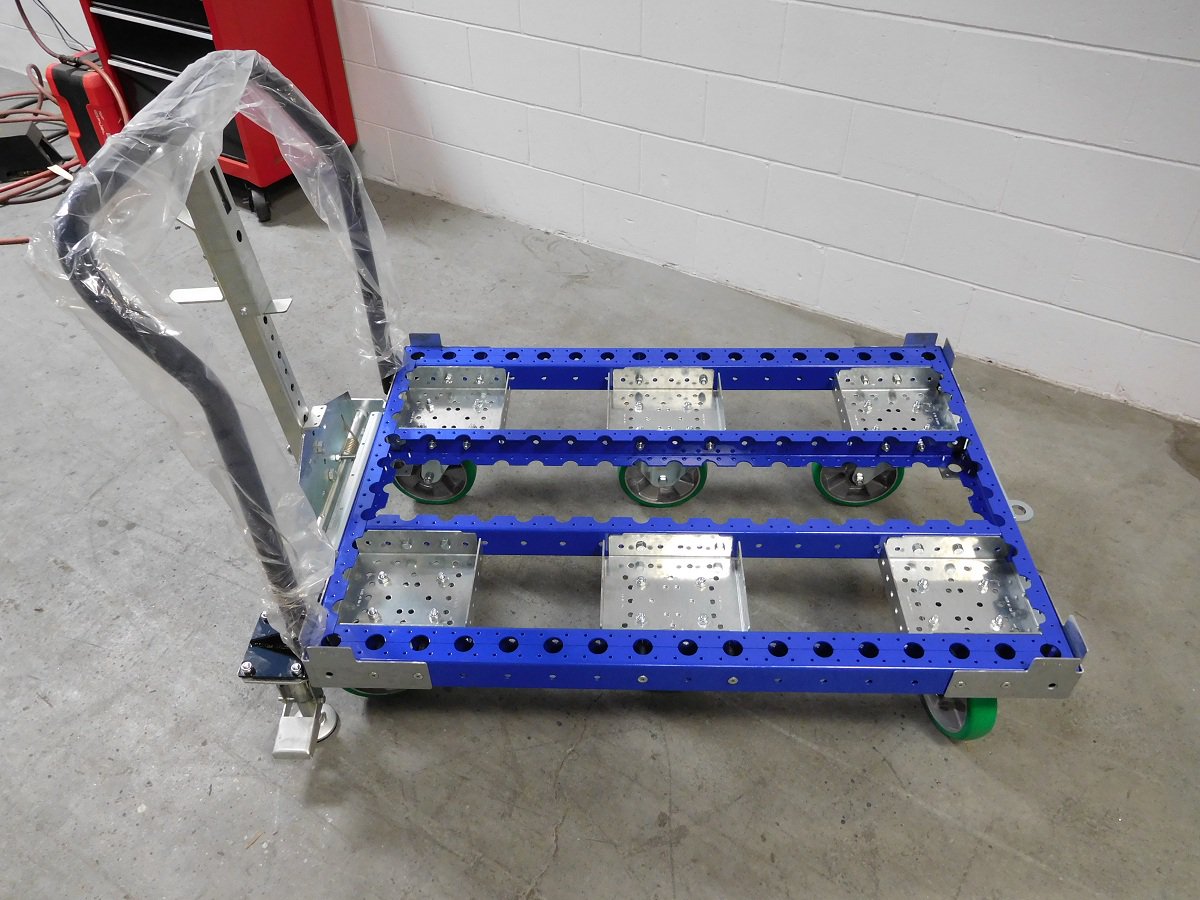

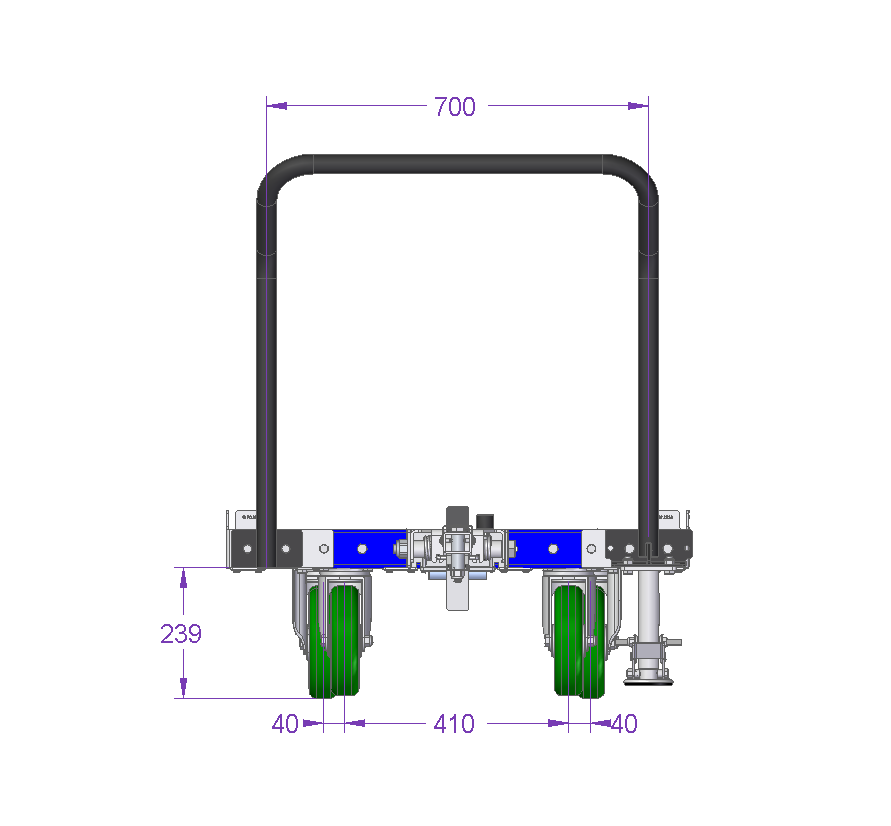

Tugger Cart 1190 x 840 mm

This tugger cart is designed for transporting pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Length: 47 inch

Load capacity: 999 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

This tugger cart without a flat deck is designed for containers. This industrial cart is equipped with a foot release tow bar for improved ergonomics and use in a tugger train system. It is equipped with six polyurethane casters for improved tracking.

Parts included
FlexBeam™ 1120 mm 6 Q-001-1301
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 8 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
US Floor Brake - 200 mm 1 Q-004-1613
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Spring Cover Plate 1 Q-005-1025
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 12 Q-005-1426
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Locking Nut M14 1 Q-006-1039
Hex Head - M10 x 25 mm 48 Q-006-1041
Locking Nut M10 75 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M8 1 Q-006-1181
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 34 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 5 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Handle With Bent Top + Floor Brake (North America) 1 Q-015-1060
US Modular Tow Bar VKR - Foot Release - 670 mm 1 Q-017-0012
Foot Release Locking Lip 1 Q-017-0024
Tow Hinge Module 1 Q-017-0059
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
