Cart for V – arm
Transfer Kit Cart
Transfer Kit Cart
Transfer Kit Cart
Transfer Kit Cart
Transfer Kit Cart
Q-100-0483

Cart for V – arm

Specially made ransfer kit cart for delivering materials.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Type of tow bar: Both side Tongue type

Length: 45 inch

Width: 39 inch

Load capacity: 397 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

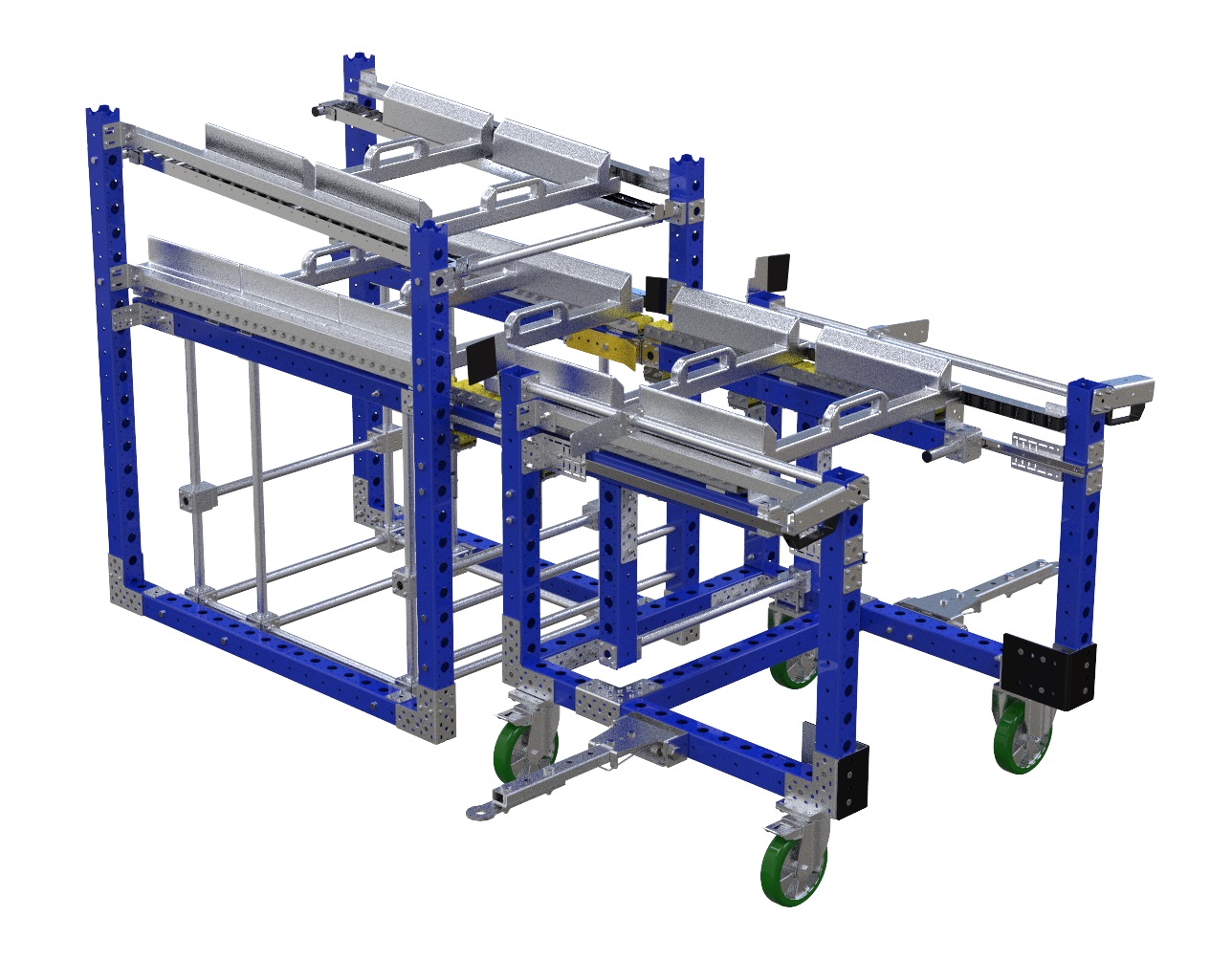

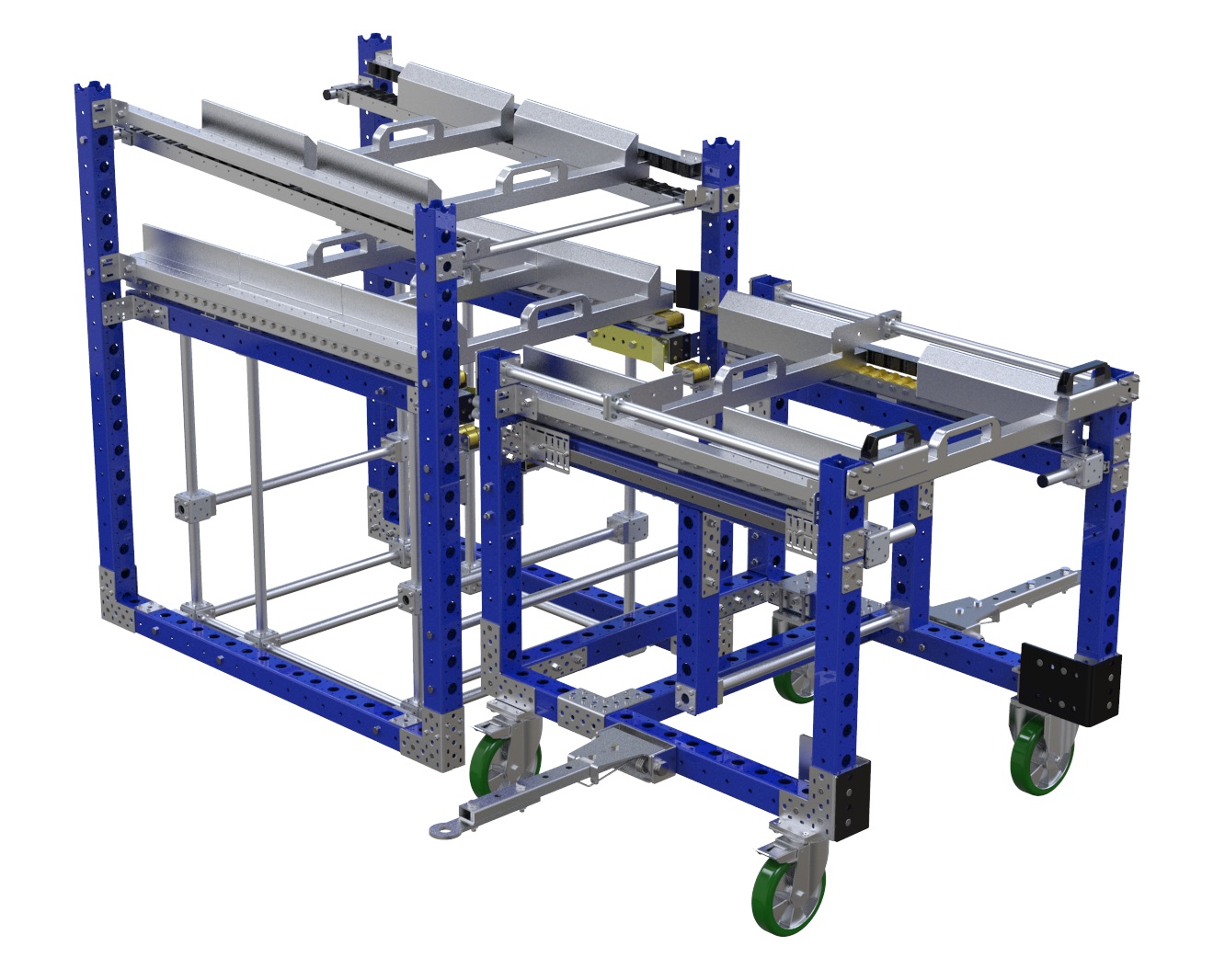

This transfer kit cart was custom made with roller tracks to deliver materials to a receiving kit cart (Q-100-0494). This cart is equipped with a small handlebar for easier pushing. It also has a drop pin and hitch tow bar attached to the cart for transportation within a tugger train system.

Parts included
FlexTube™ 700 mm 2 Q-000-1002
FlexTube™ 420 mm 2 Q-000-1270
FlexTube™ 630 mm 1 Q-000-1312
FlexQube 4 Q-001-1078
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 910 mm 2 Q-001-1304
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 770 mm FE 8 Q-001-1406
FlexBeam™ 490 mm FE 4 Q-001-1410
FlexPlate™ 47 Q-002-1001
Flexplate™ M10 8 Q-002-1162
FlexPlate™ half 8 Q-002-1369
Wheel Attachment - 105 x 77,5 mm 12 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
L Bracket Joint 6 Q-005-0031
Modular Attachment Plate for Telescopic Lists 4 Q-005-0041
Towing VKR - 460 mm 2 Q-005-0102
163 mm Collet - 30 x 2 mm 2 Q-005-0298
184 mm Collet - 25 x 2 mm 2 Q-005-0299
Rubber Strip left 1 Q-005-0328
Rubber Bush - M6 x 12 mm 8 Q-005-0369
Rail-ASN28-1090-Rollco 2 Q-005-0434
Spring tow bar 2 Q-005-0450
Rotation handle lock U-shape 2 Q-005-0529
EPDM - 70 x 102 mm 2 Q-005-0560
Tube end plug GN 991-D30 2 Q-005-1118
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 22 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Countersunk Allen Head - M5 x 16 mm 8 Q-006-0026
Allen Head - M6 x 30 mm 12 Q-006-1012
M6 x 20 K6S 10.9 Round Head (black) 40 Q-006-1018
Hex Head Fully Threaded - M8 x 20 mm 4 Q-006-1019
M5 Locking Nut 8 Q-006-1021
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 105 Q-006-1042
Washer M10 4 Q-006-1043
Locking Nut M6 32 Q-006-1050
M6 Washer 4 Q-006-1076
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M8 33 Q-006-1181
Countersunk Allen Head - M6 x 16 mm 8 Q-006-1197
Hex Head - M10 x 100 mm 16 Q-006-1302
Hex Head Fully Threaded - M10 x 50 mm 4 Q-006-1343
Hex head M20 x 210 mm 2 Q-006-1364
Extra Low Head - M10 x 90 mm 26 Q-006-1381
Round Head - M5 x 8 mm 8 Q-006-1382
Round Head - M5 x 12 mm 4 Q-006-1383
Self Tapping Screw M6 Torx H60 x 16 234 Q-006-1384
M20 Locking Nut 2 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 13 Q-006-1410
M8 Handle - 140 mm 2 Q-015-1409
Hinge attachment 2 Q-017-0035
Towbar Hinge 2 Q-017-0036
Towing Lip - 28 mm 2 Q-017-1010
