Q-100-0494

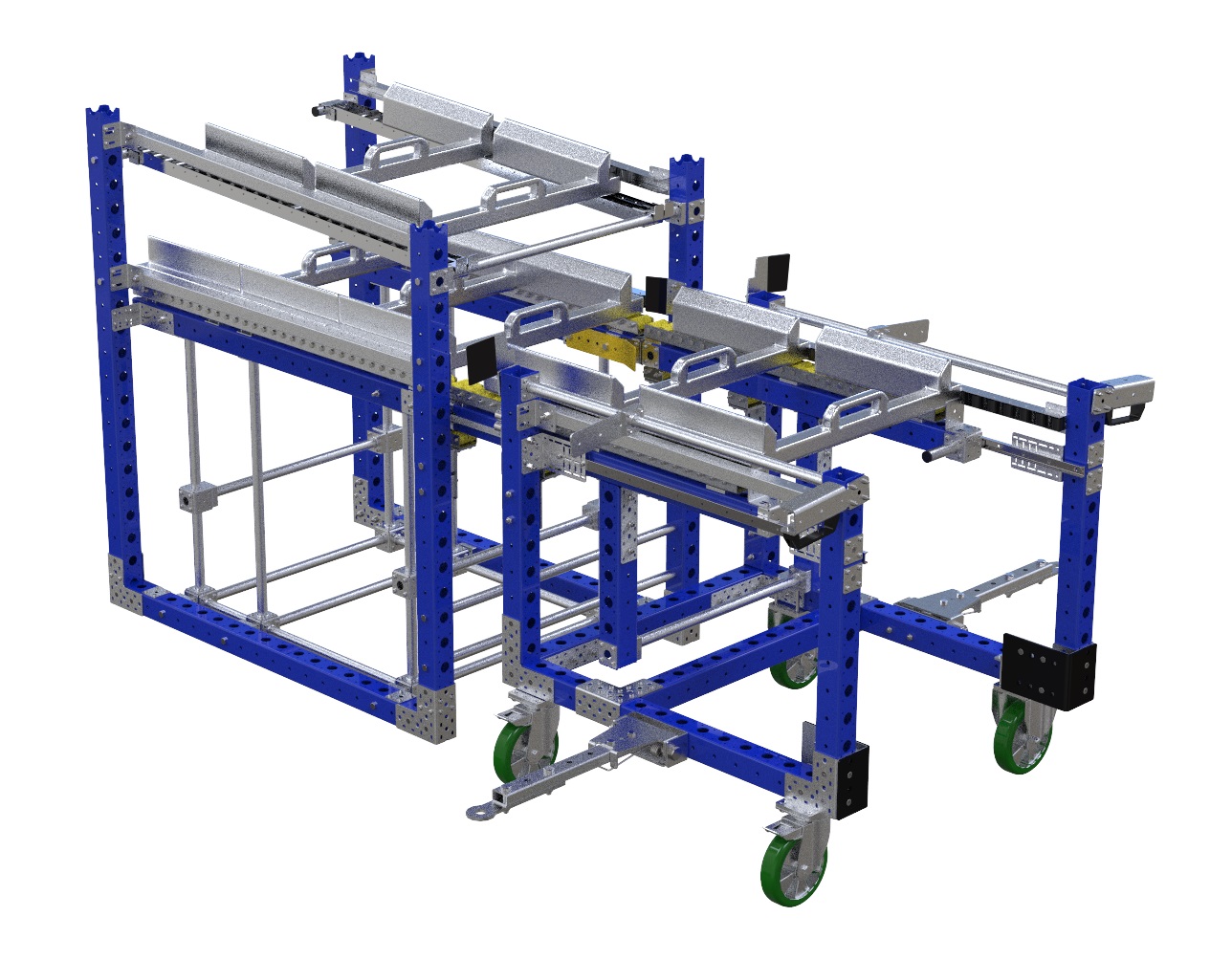

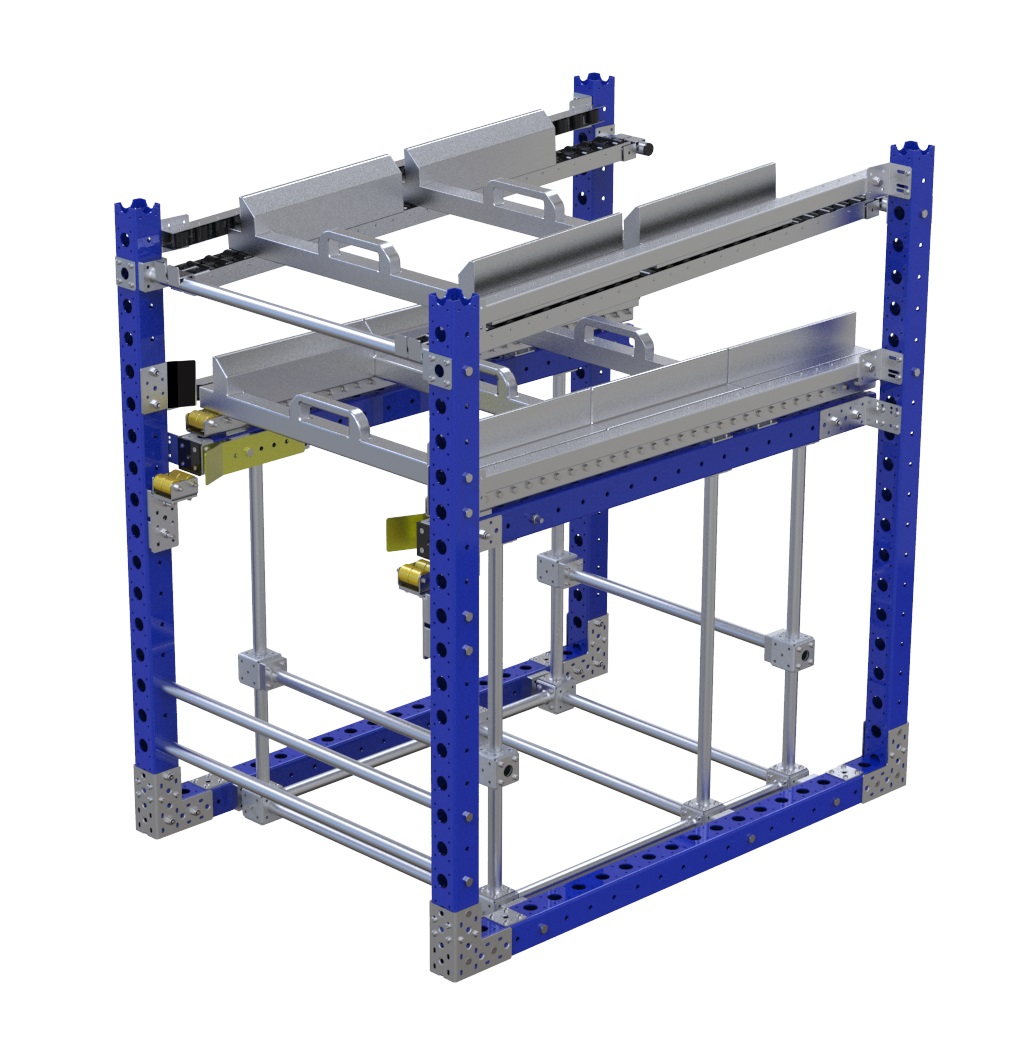

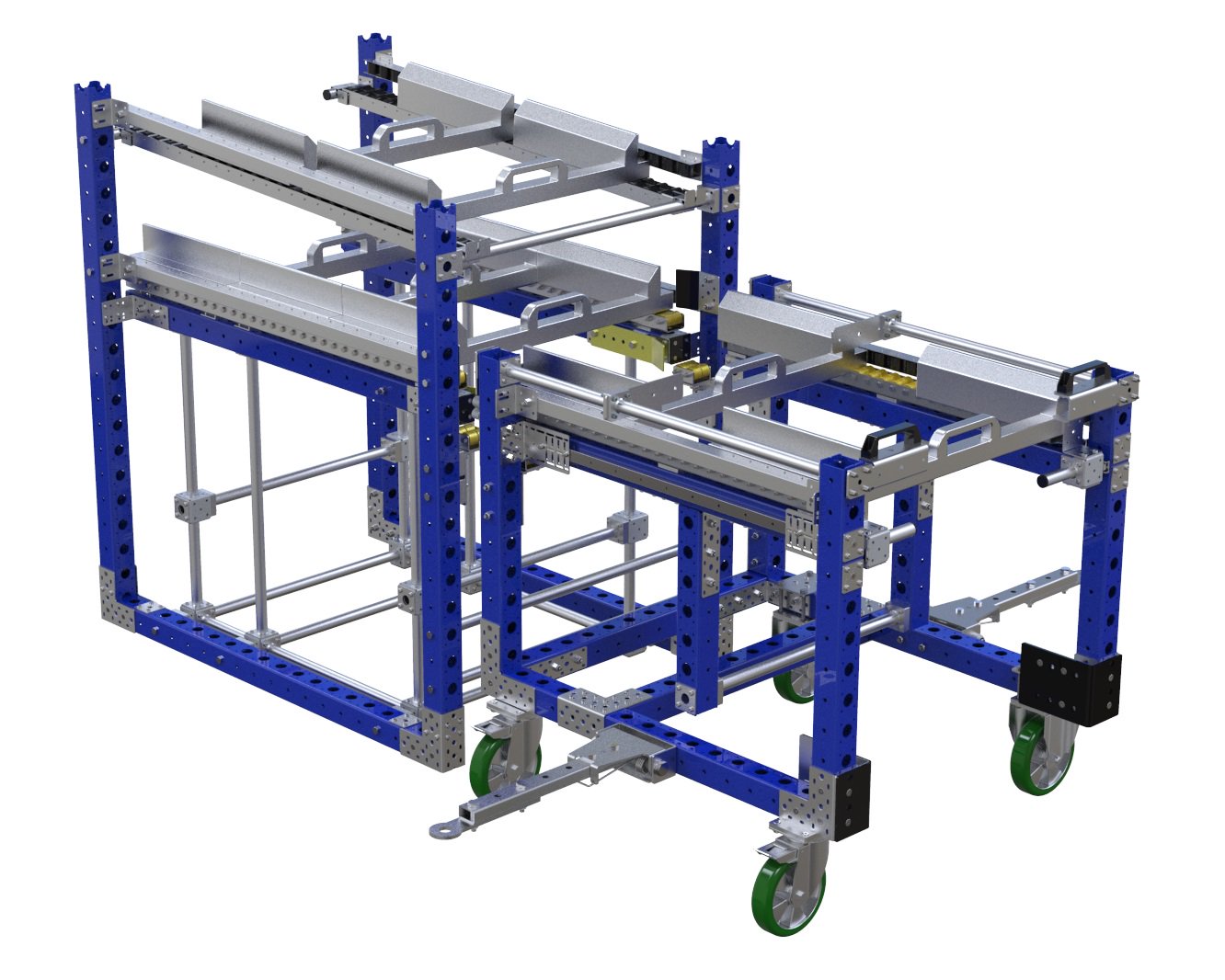

Receiving Kit Cart

Specially made kit cart for receiving materials.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

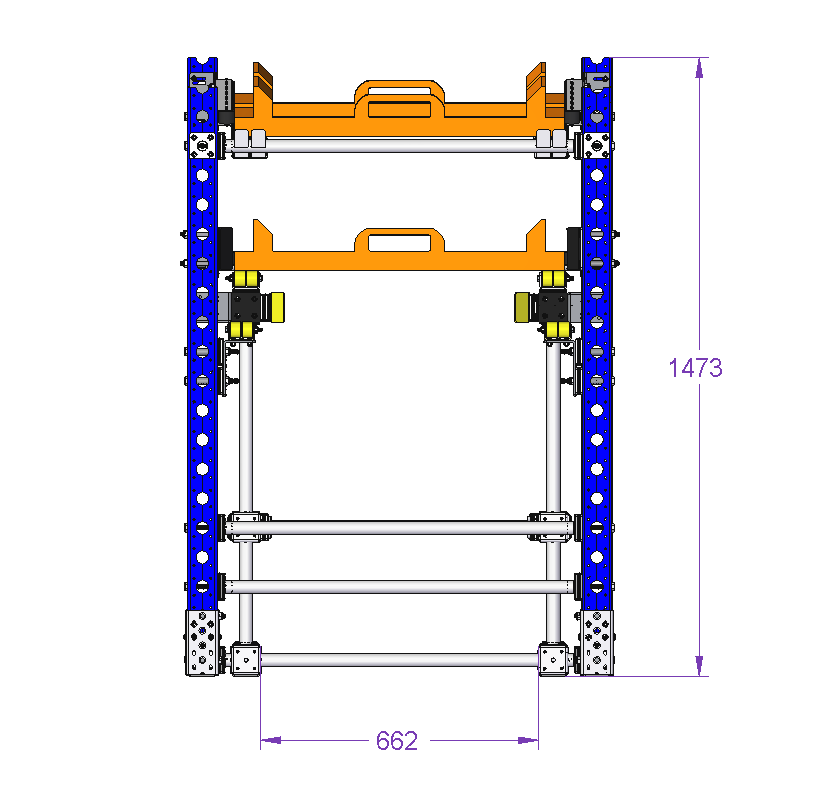

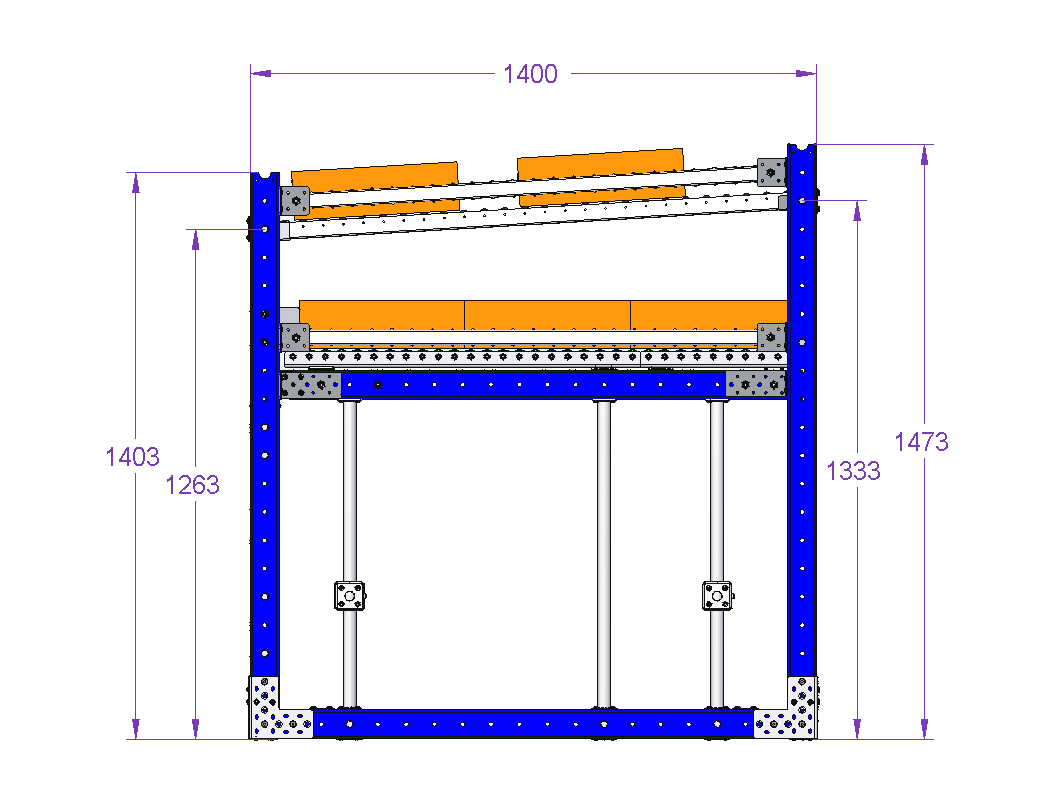

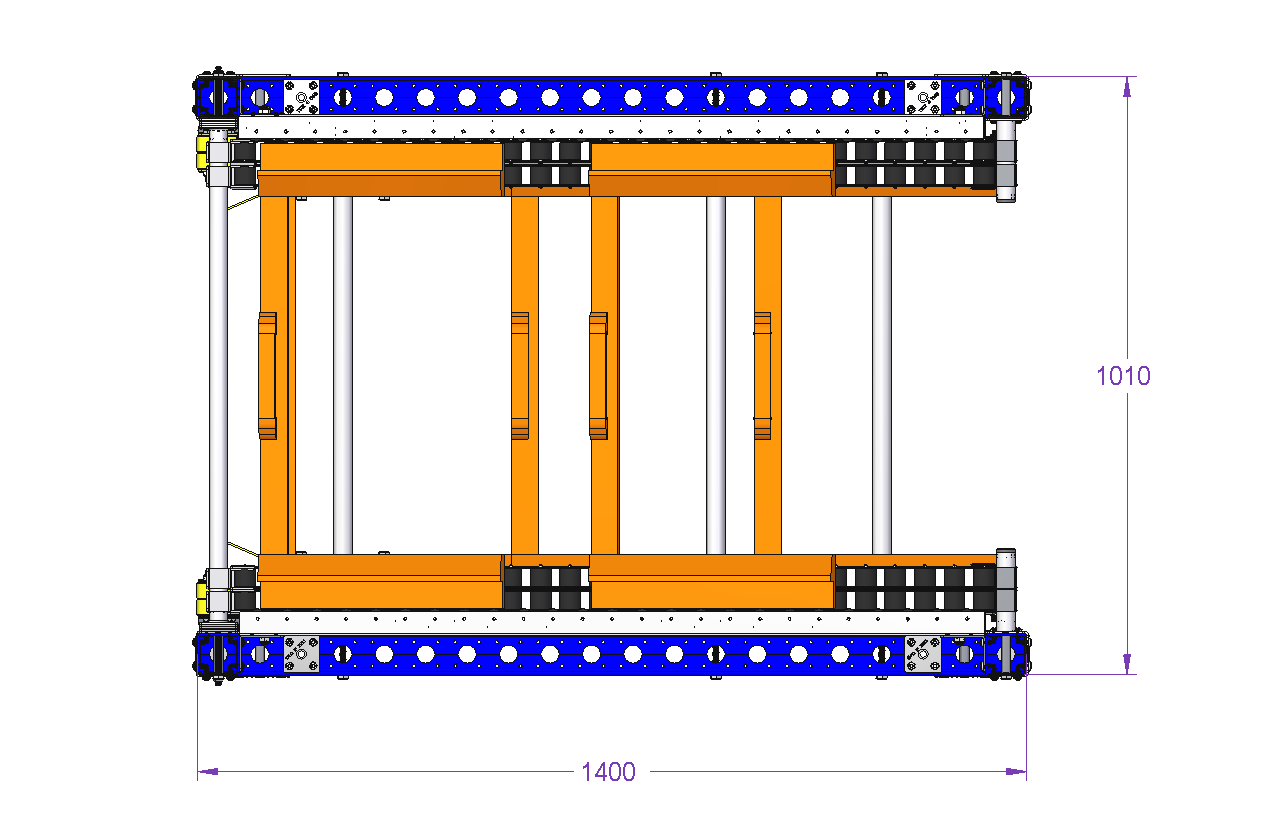

Length: 55 inch

Width: 40 inch

Load capacity: 661 lbs

Transportation method: Manual

More info

This custom made kit cart was specially designed to receive materials. It has two roller track levels for the materials to be received on. The bottom roller track receives materials from a transfer kit cart (Q-100-0483) and the top level is for the storage of empty pallets.

Parts included
FlexTube™ 560 mm 2 Q-000-1182
FlexTube™ 210 mm 2 Q-000-1224
FlexTube™ 770 mm 6 Q-000-1265
FlexTube™ 630 mm 2 Q-000-1312
FlexTube™ 840 mm 6 Q-000-1398
Outer Tube (One Plate) - 138 mm 2 Q-000-1482
FlexQube 22 Q-001-1078
FlexBeam™ - 1400 mm 4 Q-001-1297
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ - 1260 mm 4 Q-001-1299
FlexBeam™ - 1400 mm FE 4 Q-001-1502
Flexplate M10 Countersunk 10 Q-002-0009
FlexPlate™ 42 Q-002-1001
Flexplate™ M10 116 Q-002-1162
RollerTrax Attachment 4 Q-003-0001
Roller rail - 1290 mm 4 Q-003-0032
Roller Rail - 1260 mm 2 Q-003-0049
Roller rail End Cut - 1235 mm 2 Q-003-0050
Roller Trax Attachment Stop 4 Q-003-1037
Spring Threaded Tube Connectors 16 Q-005-0469
Guide Plate - 3 mm 2 Q-005-0528
Roller rail for 35mm dia - 400 mm 2 Q-005-0530
L-Plate - 135 x 100 mm 4 Q-005-0531
EPDM - 70 x 70 mm 2 Q-005-0534
Plastic strip - 55 x 100 mm 2 Q-005-0559
Tube end plug GN 991-D30 4 Q-005-1118
64 mm FlexBeam™ Collet 24 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Allen Head - M6 x 30 mm 24 Q-006-1012
M6 x 20 K6S 10.9 Round Head (black) 8 Q-006-1018
Fully Threaded - M10 x 120 mm 20 Q-006-1037
Locking Nut M10 36 Q-006-1042
Locking Nut M6 12 Q-006-1050
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 4 Q-006-1132
Locking Nut M8 68 Q-006-1181
Countersunk Allen Head - M6 x 16 mm 12 Q-006-1197
Hex Head Fully Threaded - M10 x 16 8 Q-006-1245
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 232 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 48 Q-006-1385
