Transfer Cart - 1190 x 1260 mm
Transfer Cart - 1190 x 1260 mm
Transfer Cart - 1190 x 1260 mm
Transfer Cart - 1190 x 1260 mm
Transfer Cart - 1190 x 1260 mm
Q-100-1456

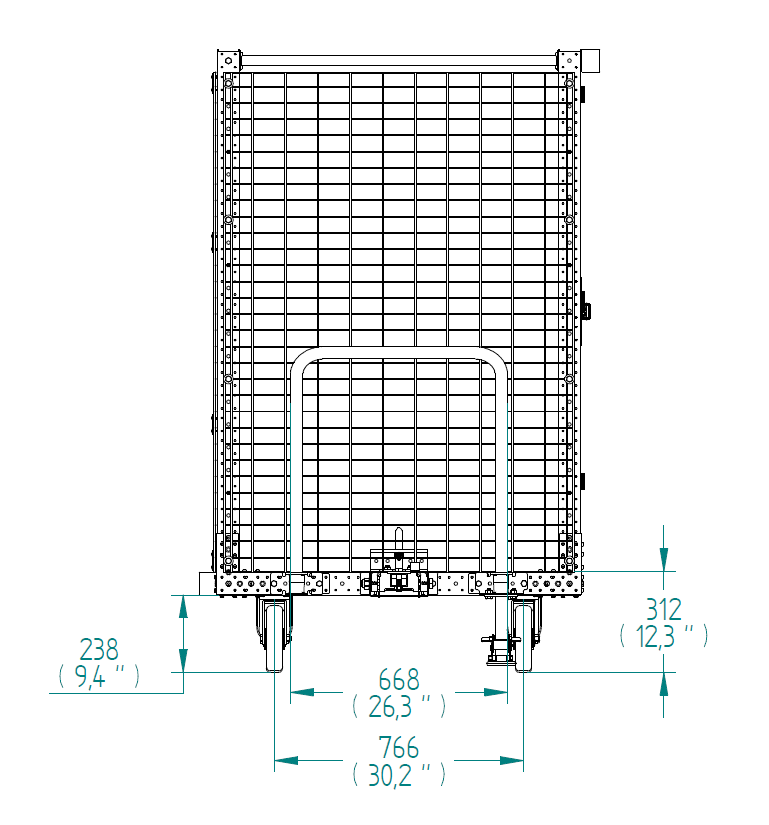

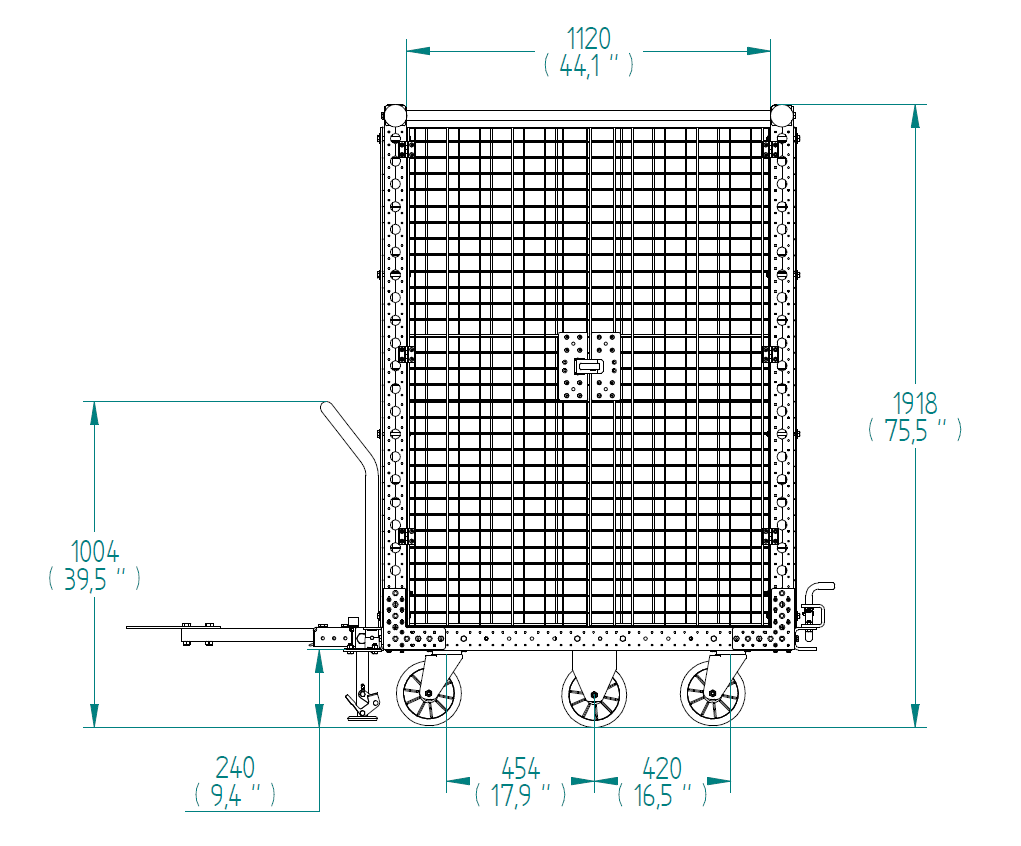

Transfer Cart - 1190 x 1260 mm

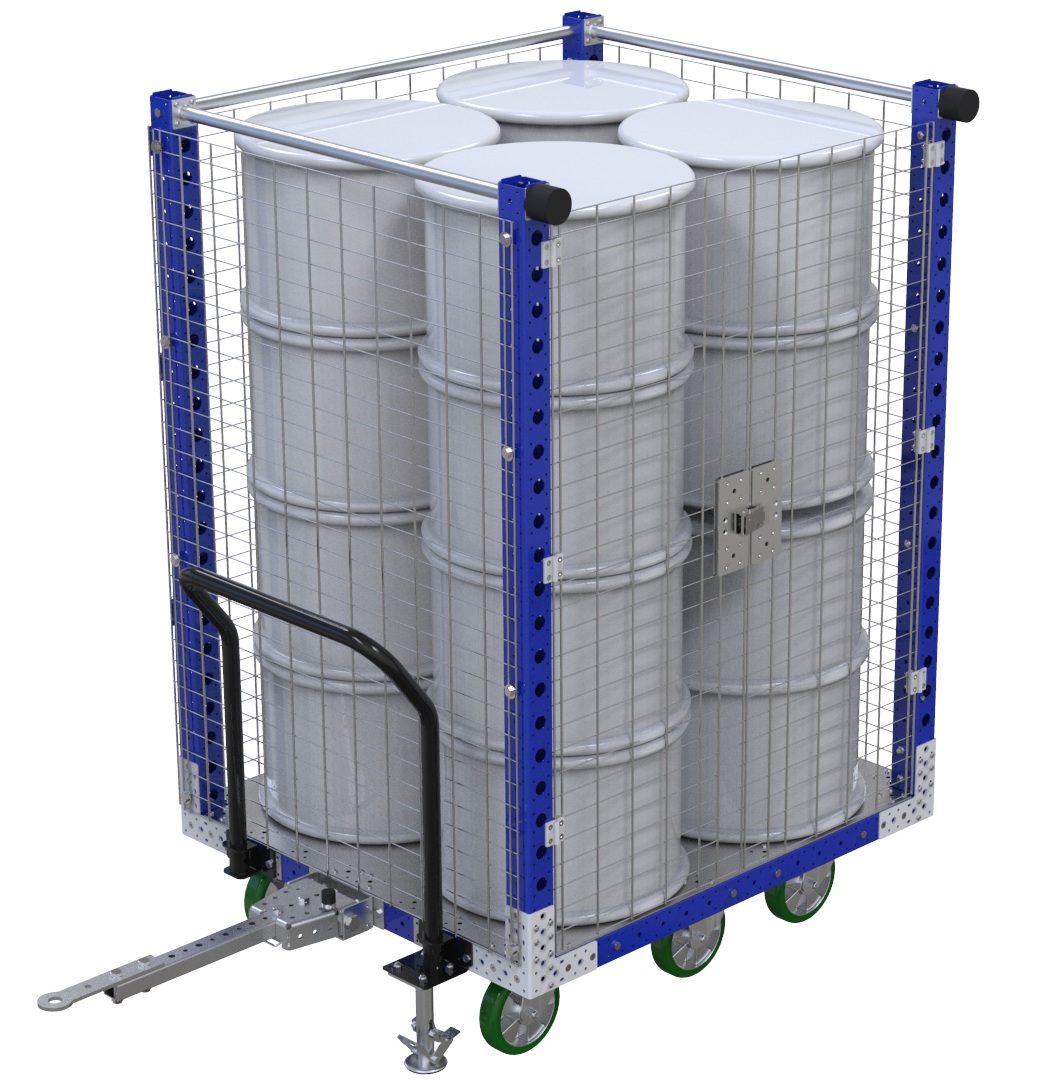

This transfer cart is equipped with wire mesh to transport different parts or stacked boxes.

Technical specifications

Category: Specialized Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Type of tow bar: Tongue and Hitch

Width: 47 inch

Length: 50 inch

Load capacity: 1001 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Buckets

More info

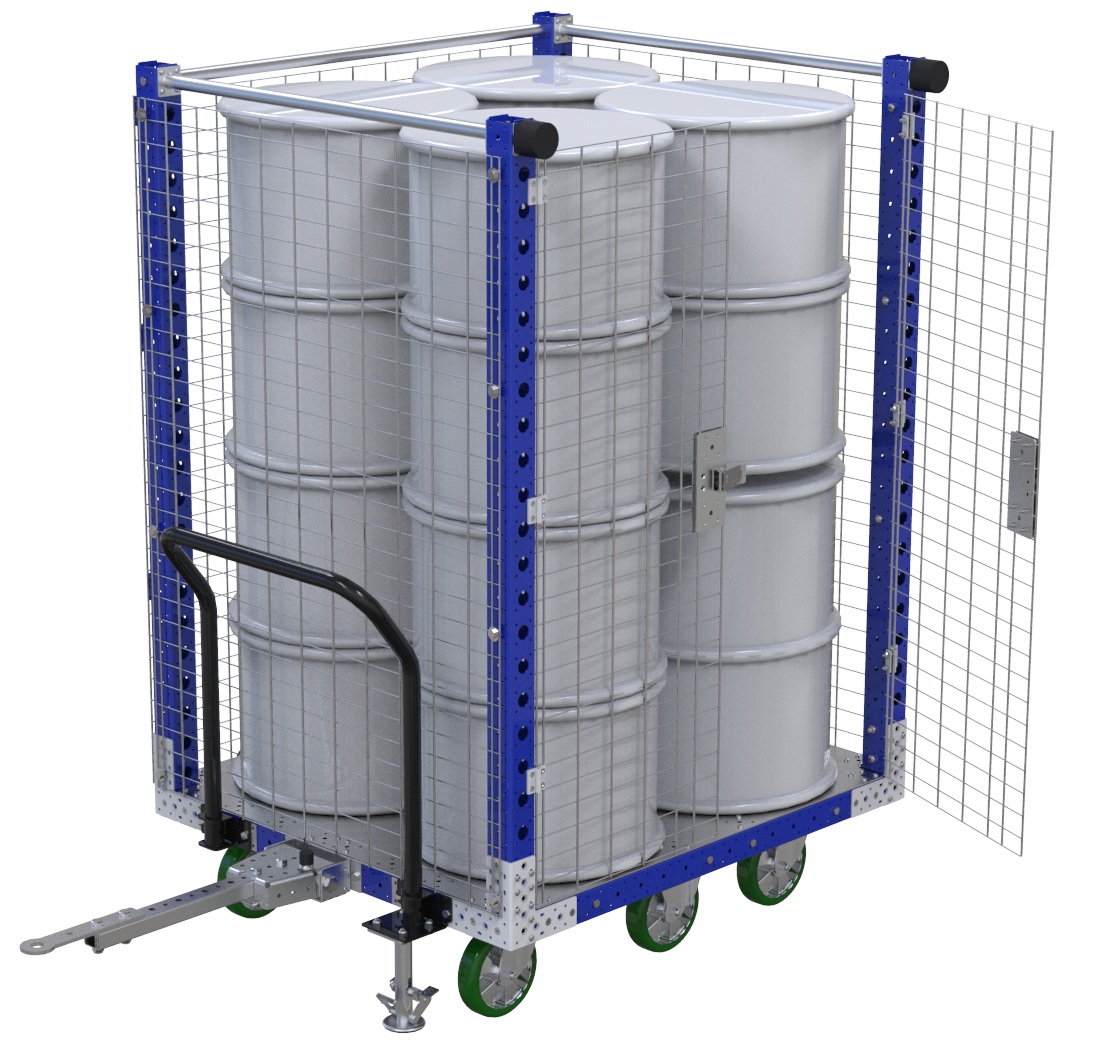

This cart can be used to transport different part or boxes, for heavy duty applications in general. The wire mesh keeps the part secured in the cart, and the operators can have access easily by opening the wire mesh front part. The cart is equipped with drop pin towbar, top bent handlebar and floor brake. The six polyurethane casters are the best option for tracking the path of the train.

Parts included
FlexTube™ 980 mm 2 Q-000-1399
Flexplate M10 Countersunk 2 Q-002-0009
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 14 Q-002-1162
FlexPlate™ half 8 Q-002-1369
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
US Floor Brake - 200 mm 1 Q-004-1613
Attachment plate - 50 x 30 mm 8 Q-005-0420
Adjustable Lock Attachment Plate - 210 x 90 mm 4 Q-005-0421
Adjustable Hook Clamp 1 Q-005-0422
Spring Threaded Tube Connectors 4 Q-005-0469
Rubber Damper Threaded Stud - 70 x 55 mm 4 Q-005-0743
Wire Mesh - 1260 x 1540 mm 1 Q-005-0956
Wire Mesh - 1190 x 1540 mm 2 Q-005-0957
Wire Mesh - 560 x 1540 mm 2 Q-005-0958
Wheel Attachment Box 6 Q-005-1079
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 38 Q-005-1426
Hinge Assembly 6 Q-005-2351
Allen round head M5 x 25 mm 2 Q-006-0025
M6 x 20 K6S 10.9 Round Head (black) 16 Q-006-1018
M5 Locking Nut 2 Q-006-1021
Washer 10,5 x 30 x 2,5 16 Q-006-1030
Hex Head - M14 x 60 mm 4 Q-006-1036
Fully Threaded - M10 x 120 mm 2 Q-006-1037
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 40 Q-006-1041
Locking Nut M10 108 Q-006-1042
Locking Nut M6 30 Q-006-1050
Hex Head - M10 x 95 mm 18 Q-006-1088
Hex Head - M10 x 90 mm 18 Q-006-1132
Countersunk Allen Head - M6 x 30 mm 30 Q-006-1196
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 124 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 20 Q-006-1385
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top Plate - 1190 x 1260 mm 1 Q-016-0786
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
FlexBeam™ - 1190 mm 4 Q-020-1190
FlexBeam™ STS FE - 980 mm 2 Q-021-0980
FlexBeam™ FE - 1610 mm 8 Q-021-1610
Outer Tube (No Plate) - 1120 mm 1 Q-025-1120
