Q-100-0740

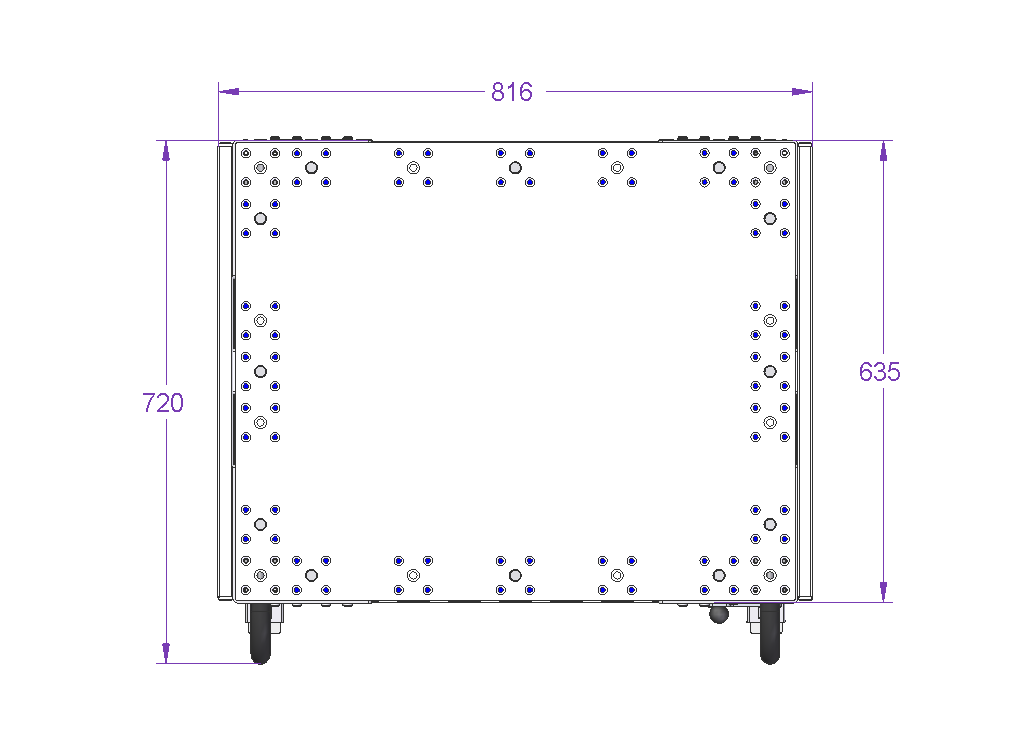

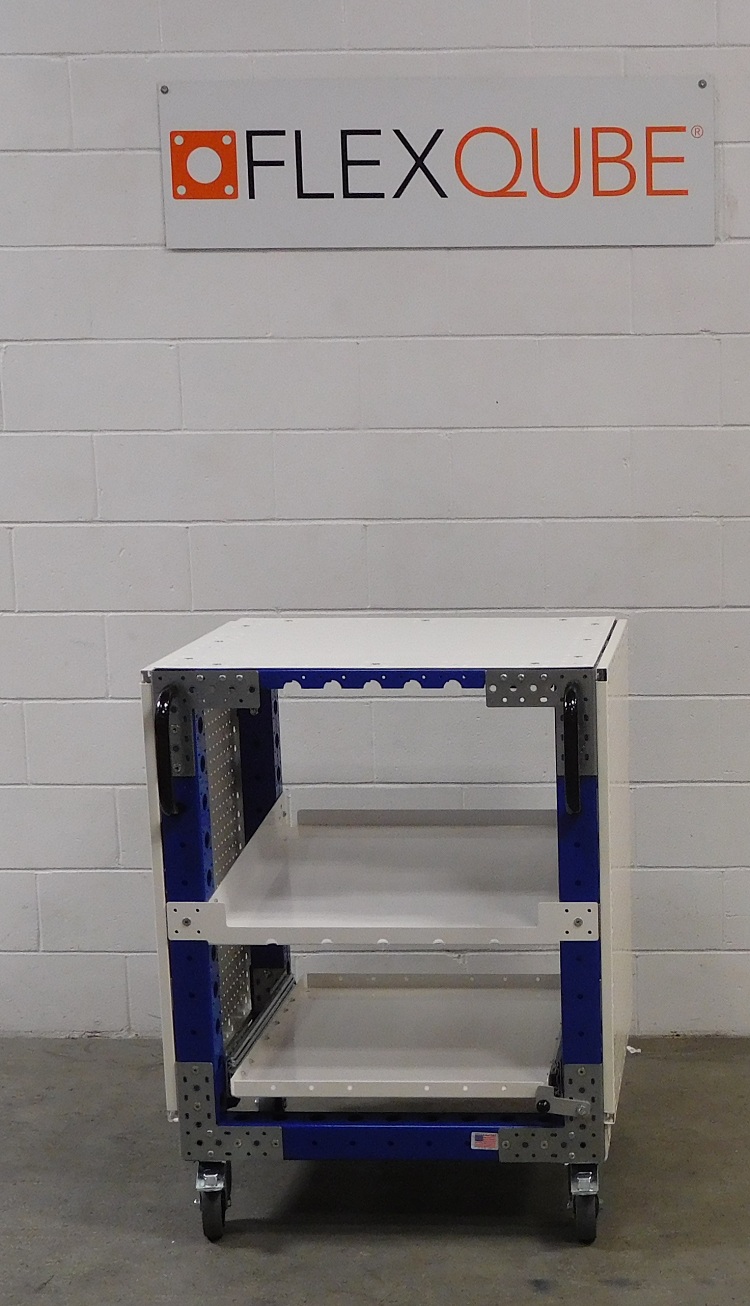

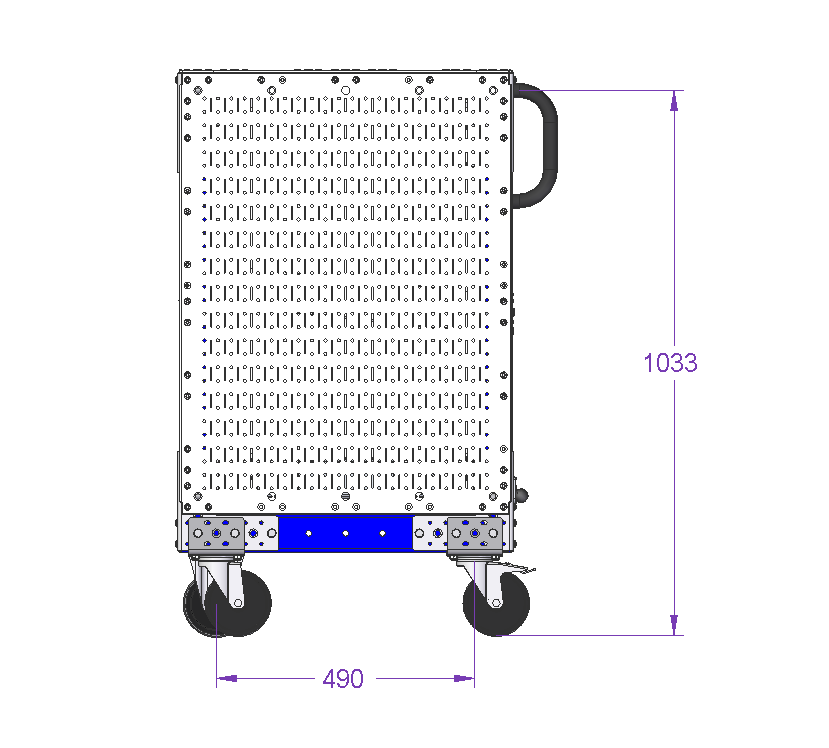

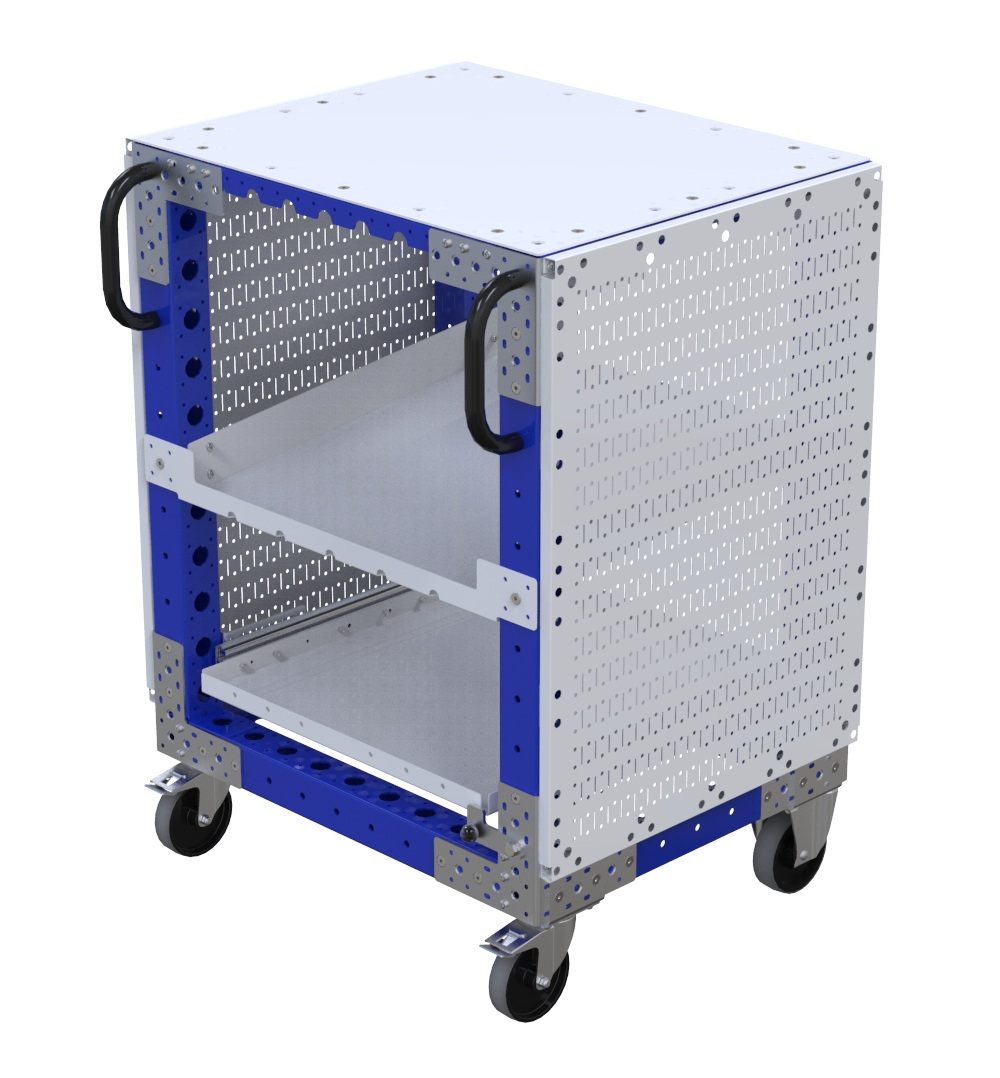

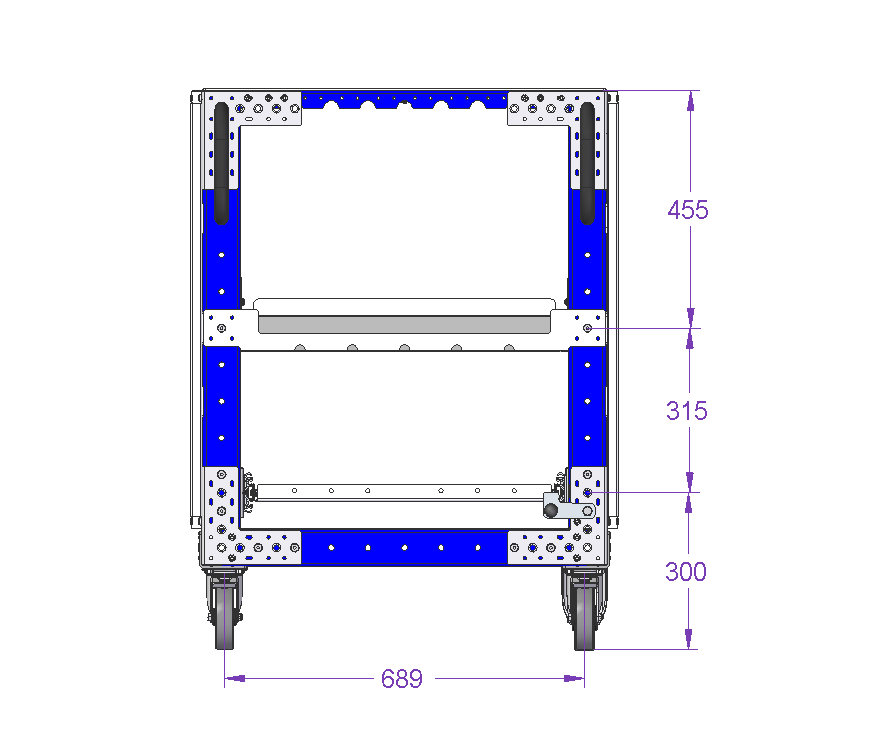

Tool cart - 770 x 630 mm

Custom designed cart for presenting tools to the operators.

Technical specifications

Category: Flat Deck, Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 30 inch

Width: 25 inch

Levels: 3

Load capacity: 353 lbs

Load Capacity per Level: 99 lbs, 154 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

More info

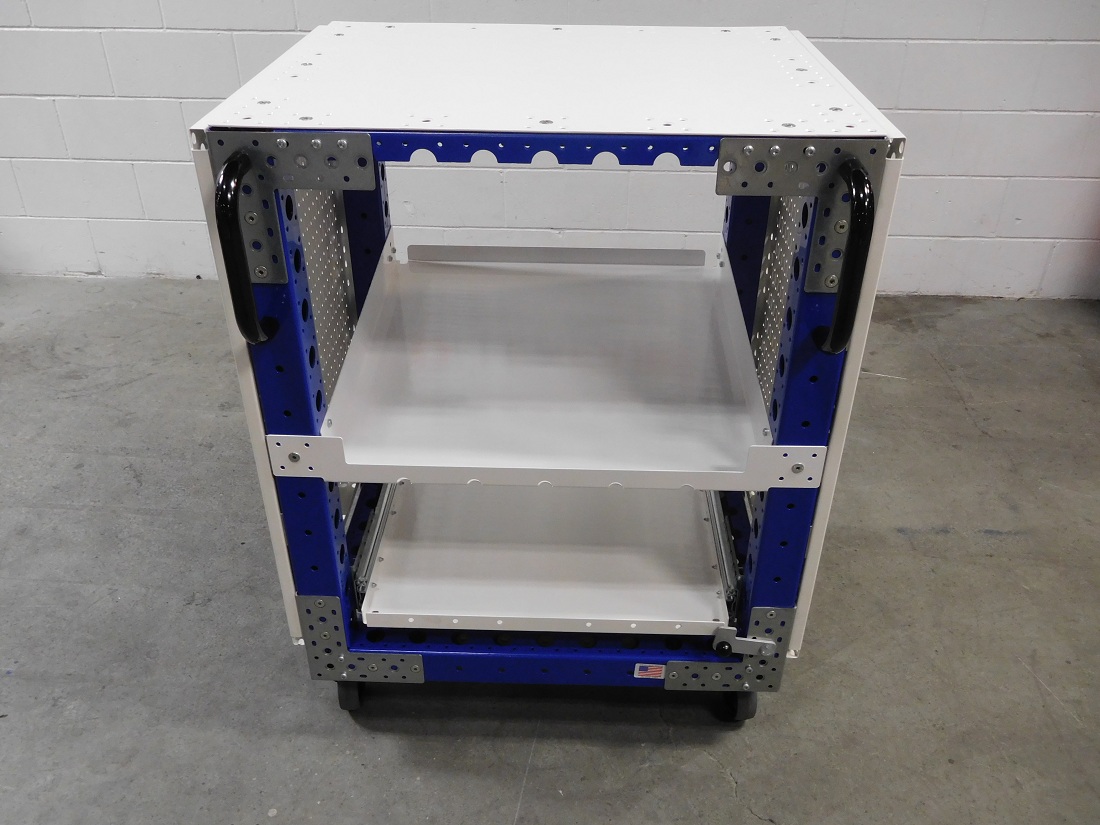

This tool cart is ideal for presenting tools and other smaller materials at the assembly line. It is equipped with 2 flow shelves, this makes it easier for the plastic bins, tools or materials to be presented at line side. This cart is also equipped with 2 handles which makes it more ergonomic for the operator to transport the cart.

Parts included
FlexBeam™ 700 mm 4 Q-001-1307
FlexBeam™ 840 mm FE 8 Q-001-1405
FlexBeam™ 630 mm FE 4 Q-001-1408
FlexBeam™ 490 mm FE 2 Q-001-1410
FlexPlate™ half 14 Q-002-1369
Swivel Caster - 125 mm 1 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
Fixed Caster - 125 mm 1 Q-004-1365
Modular Attachment Plate for Telescopic Lists 4 Q-005-0041
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Telescopic list 3080-500 2 Q-005-1029
Spherical Knob 1 Q-005-1146
Beam to Beam Corner Plate 8 Q-005-1356
64 mm FlexBeam™ Collet 10 Q-005-1426
Locking Handle Plate 1 Q-005-1880
Allen round head M5 x 25 mm 8 Q-006-0025
M5 Locking Nut 20 Q-006-1021
Locking Nut M10 52 Q-006-1042
Washer M10 2 Q-006-1043
Hex Head - M10 x 95 mm 1 Q-006-1088
Hex Head - M8 x 16 mm 4 Q-006-1120
Locking Nut M8 16 Q-006-1181
M8 Washer 4 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 27 Q-006-1381
Round Head - M5 x 12 mm 12 Q-006-1383
Self Tapping Screw M6 Torx H60 x 16 122 Q-006-1384
Low Allen Head - M10 x 16 mm 1 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 24 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Flow Shelf - 770 x 632 1 Q-016-0013
Telescopic Shelf - 579 x 627 mm 1 Q-016-0014
Shadow Board - 418 x 628 mm 2 Q-016-0309
Top Plate - 770 x 630 mm 1 Q-016-0344
