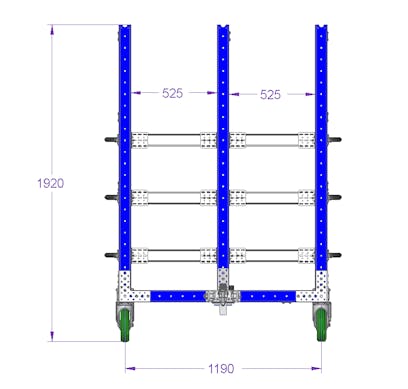

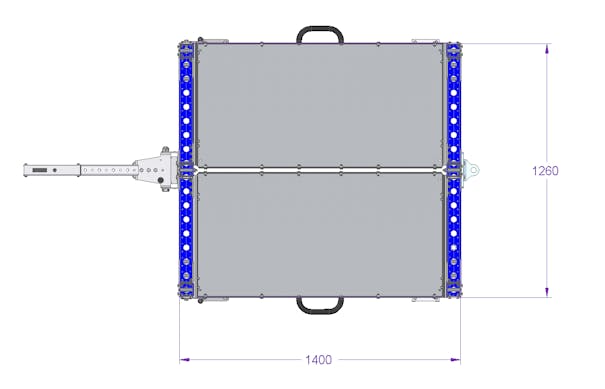

Telescopic Shelf Cart 55 x 49 inch
Telescopic Shelf Cart – 55 x 49 inches
Telescopic Shelf Cart – 55 x 49 inches
Telescopic Shelf Cart 55 x 49 inch
Telescopic Shelf Cart 55 x 49 inch
Telescopic Shelf Cart 55 x 49 inch
Telescopic Shelf Cart 55 x 49 inch
Telescopic Shelf Cart 55 x 49 inch
Q-100-0399

Telescopic Shelf Cart 55 x 49 inch

Tuggable three level extendable shelf cart. Equipped with four polyurethane casters, two fixed and two swivel.

Technical specifications

Transportation method: Tugger

Load capacity: 926 lbs

Category: Flat Deck, Flow Shelf

Length: 55 inch

Width: 50 inch

Industry: Automotive, Defense Equipment, Distribution, Medical Equipment, Tier One Suppliers, Wind & Energy

Type of tow bar: Foot release

Levels: 3

Load Capacity per Level: 154 lbs

Caster size: 8 inch

Caster Type: Polyurethane

More info

Tuggable three level extendable shelf cart. Extendable shelves are a good way to make your picking process more effective by making it easier to access the parts. The cart is split into two sides and is equipped with four polyurethane casters, two fixed and two swivel giving it exellent tracking properties and silent movement when connected in a train.

Parts included
FlexBeam™ - 1610 mm 12 Q-001-1294
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 22 Q-002-1001
Flexplate™ M10 6 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
T-Joint 2 Q-005-0065
Modular attachment plate for telescopic lists 24 Q-005-0149
7657-0024 Telescopic slide 610 mm - Closed 12 Q-005-0269
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Spring Cover Plate 1 Q-005-1025
Spherical Knob 6 Q-005-1146
Beam to Beam Corner Plate 4 Q-005-1356
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 26 Q-005-1426
Locking Handle Plate 6 Q-005-1880
M6 x 20 K6S 10.9 Round Head (black) 48 Q-006-1018
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Locking Nut M14 1 Q-006-1039
Hex Head - M10 x 25 mm 6 Q-006-1041
Locking Nut M10 57 Q-006-1042
Washer M10 8 Q-006-1043
Locking Nut M6 96 Q-006-1050
Round Head - M6 x 12 mm 48 Q-006-1051
Old Part: M6 x 12 mm Allen Head 12 Q-006-1080
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M8 x 16 mm 72 Q-006-1120
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M8 61 Q-006-1181
Hex Head - M10 x 100 mm 2 Q-006-1302
Extra Low Head - M10 x 90 mm 22 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 250 Q-006-1384
Low Allen Head - M10 x 16 mm 6 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 5 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Handle Bar 210 mm M8 6 Q-015-1037
Angled plate for telescopic - 1210 mm 12 Q-016-0072
Telescopic Shelf - 1221 x 615 mm 6 Q-016-0196
US Modular Tow Bar VKR - Foot Release - 670 mm 1 Q-017-0012
Foot Release Locking Lip 1 Q-017-0024
Tow Hinge Module 1 Q-017-0059
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
