Small Cart with Shelves and Handles Daughter Cart
Small Cart with Shelves and Handles Daughter Cart

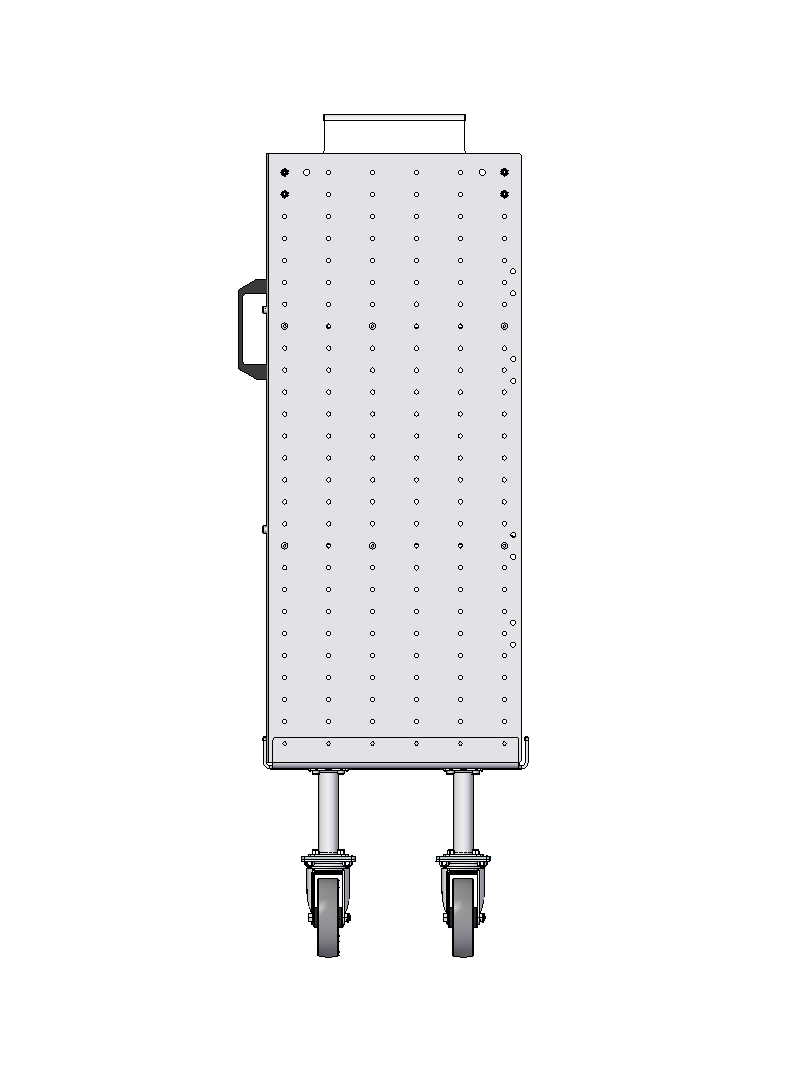

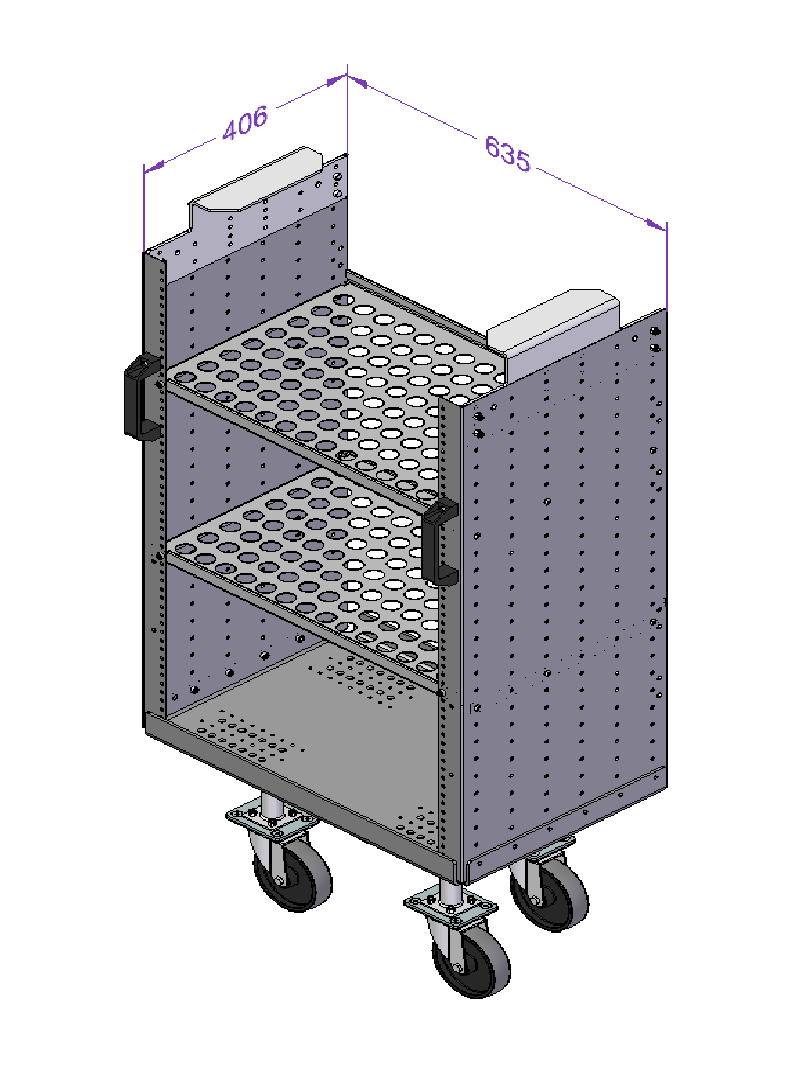

Daughter cart with Handlebar
Daughter cart with Handlebar
Q-100-0421

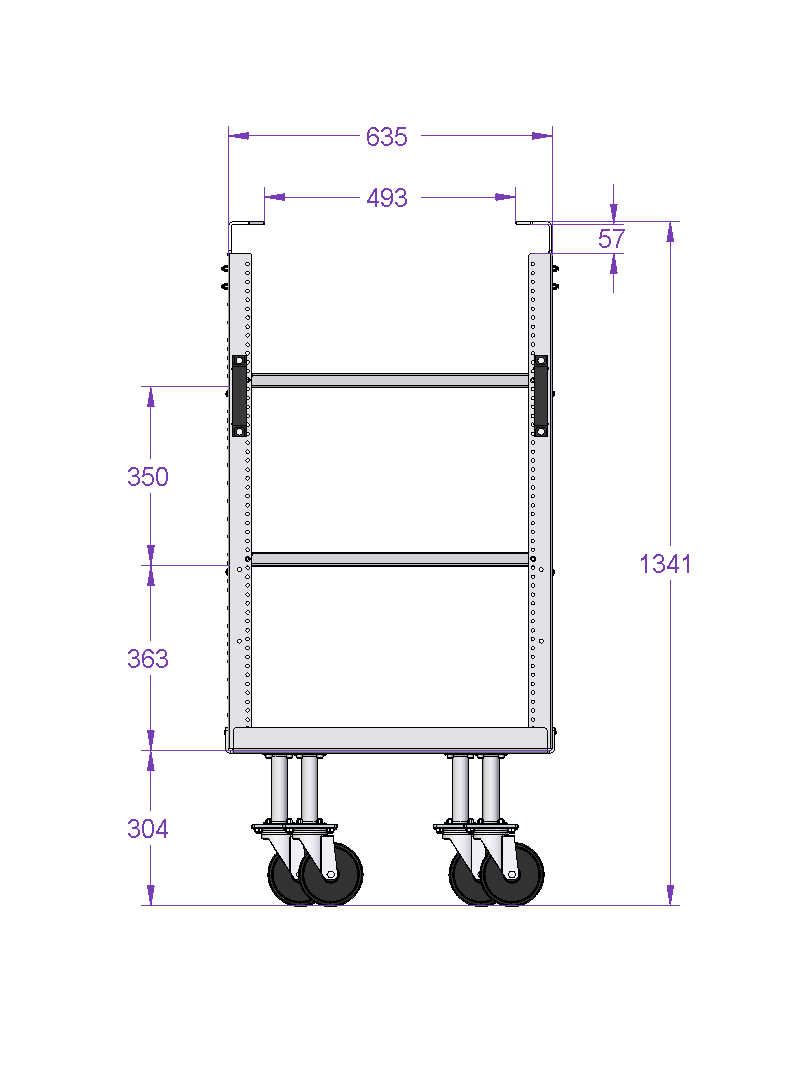

Small Cart with Shelves and Handles Daughter Cart

Flat shelf cart designed to be used in a mother daughter system. The cart is equipped with three shelves, four swivel casters and handlebars.

Technical specifications

Transportation method: Manual, Mother-Daughter Cart

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 25 inch

Width: 16 inch

Load Capacity per Level: 66 lbs

Levels: 3

Load capacity: 198 lbs

Caster size: 5 inch

Caster Type: Polyurethane

More info

This shelf cart is designed to be used in a mother daughter system and two to six daughters can be transported in the mother at the same time. The cart is equipped with three flat shelves with a lip, two handlebars and four swivel casters for manual transportation.

Parts included
FlexTube™ 140 mm - Locking Nut 4 Q-000-1102
Swivel Caster - 125 mm 4 Q-004-1363
Daughter Cart Bottom 1 Q-005-1720
Daughter Cart Side 2 Q-005-1721
Wheel Attachment - 80 x 60 mm 4 Q-005-1722
L-Shape Daughter Cart Guide 2 Q-005-1723
Allen Head - M6 x 16 mm 8 Q-006-1011
Hex Head Fully Threaded - M8 x 20 mm 4 Q-006-1019
Locking Nut M6 24 Q-006-1050
Round Head - M6 x 12 mm 12 Q-006-1051
Locking Nut M8 20 Q-006-1181
Countersunk Allen Head - M6 x 16 mm 16 Q-006-1197
M8 x 16 mm Countersunk 16 Q-006-1214
Allen Head - M6 x 8 mm 32 Q-006-1336
M8 Handle - 140 mm 2 Q-015-1409
Daughter Cart Shelf - 632 x 405 mm 2 Q-016-1049
