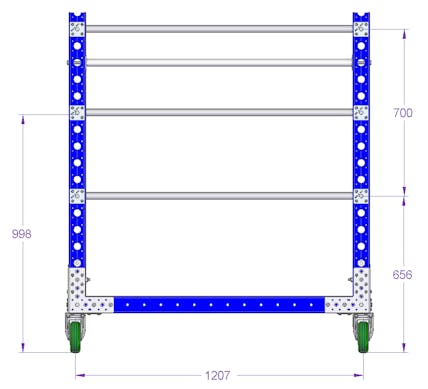

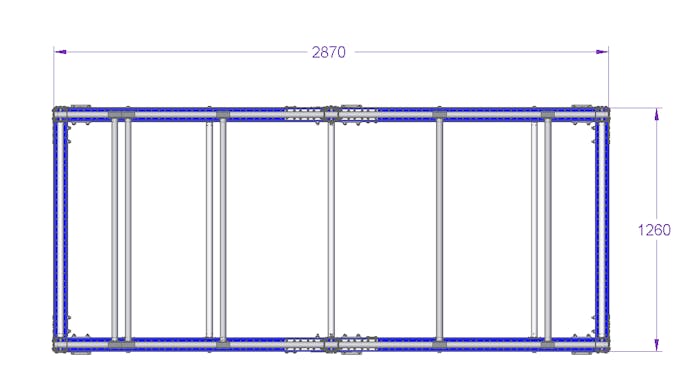

Shelf Cart - 2870 x 1260 mm
Shelf Cart - 2870 x 1260 mm
Shelf Cart - 2870 x 1260 mm
Shelf Cart - 2870 x 1260 mm
Q-100-0761

Shelf Cart - 2870 x 1260 mm

Shelf Cart designed to hold long and large parts.

Technical specifications

Category: Specialized Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 113 inch

Levels: 4

Load capacity: 705 lbs

Load Capacity per Level: 176 lbs

Width: 50 inch

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

More info

This shelf cart was a custom design to hold long parts. The parts are placed on the tubes to keep them in place. There are also six high quality polyurethane casters attached to this cart.

Parts included
Outer Tube (No Plate) - 1150 mm 15 Q-000-0117
Outer Tube (No Plate) - 2870 mm 6 Q-000-0118
FlexTube™ 1120 mm 7 Q-000-1258
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1190 mm 16 Q-001-1300
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 16 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Flexplate™ 30,5 mm hole 4 Q-002-1320
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
L Bracket Joint 4 Q-005-0031
T-Joint 2 Q-005-0065
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Spring Threaded Tube Connectors 56 Q-005-0469
C Profile 30 Q-005-0505
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 20 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Locking Nut M10 32 Q-006-1042
Hex Head - M10 x 90 mm 2 Q-006-1132
Locking Nut M8 24 Q-006-1181
Countersunk - M8 x 20 24 Q-006-1282
Hex Head - M10 x 100 mm 14 Q-006-1302
Extra Low Head - M10 x 90 mm 26 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 250 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 46 Q-006-1410
