Shelf Cart 1260 x 840 mm for Plastic Containers
Shelf Cart 1260 x 840 mm for Plastic Containers
Shelf Cart 1260 x 840 mm for Plastic Containers
Shelf Cart 1260 x 840 mm for Plastic Containers
Shelf Cart 1260 x 840 mm for Plastic Containers
Q-100-0205

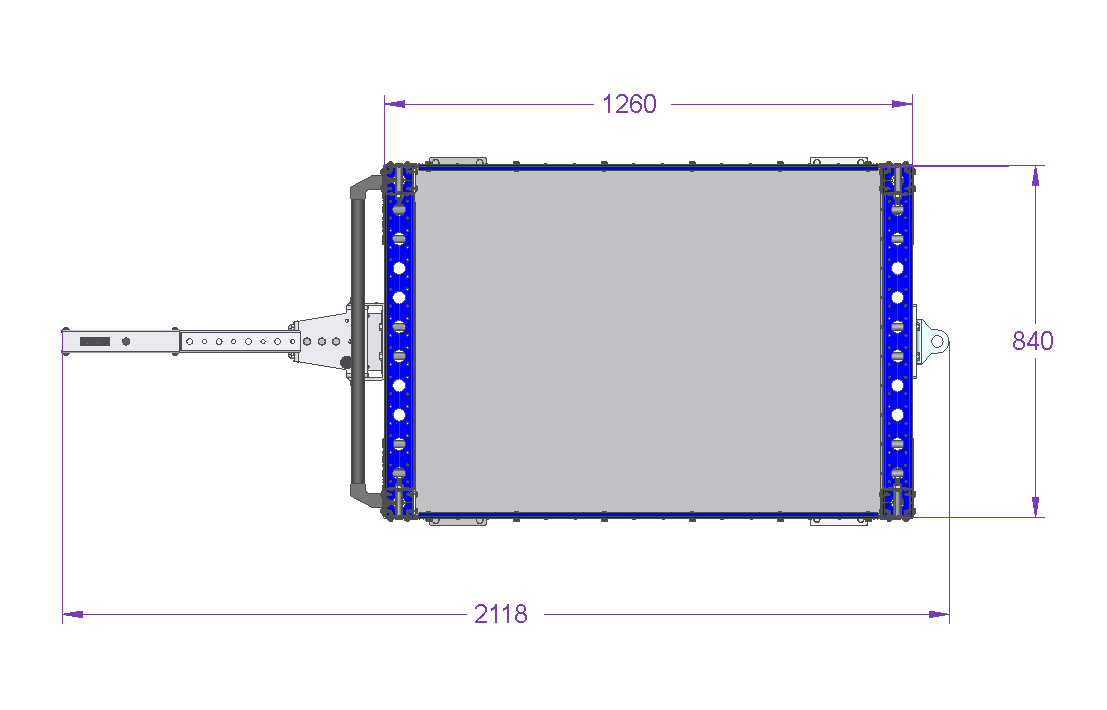

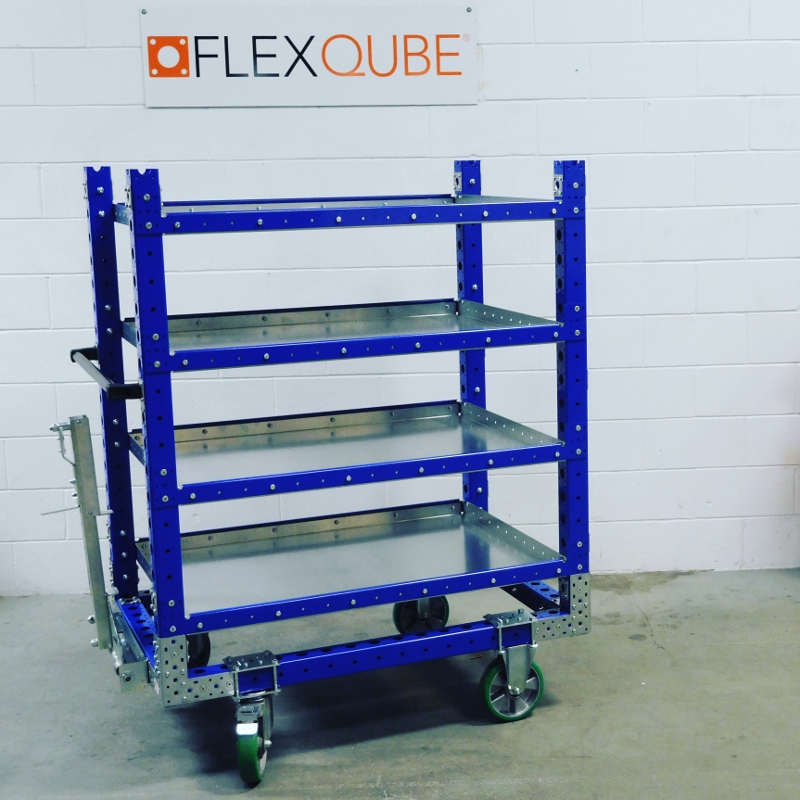

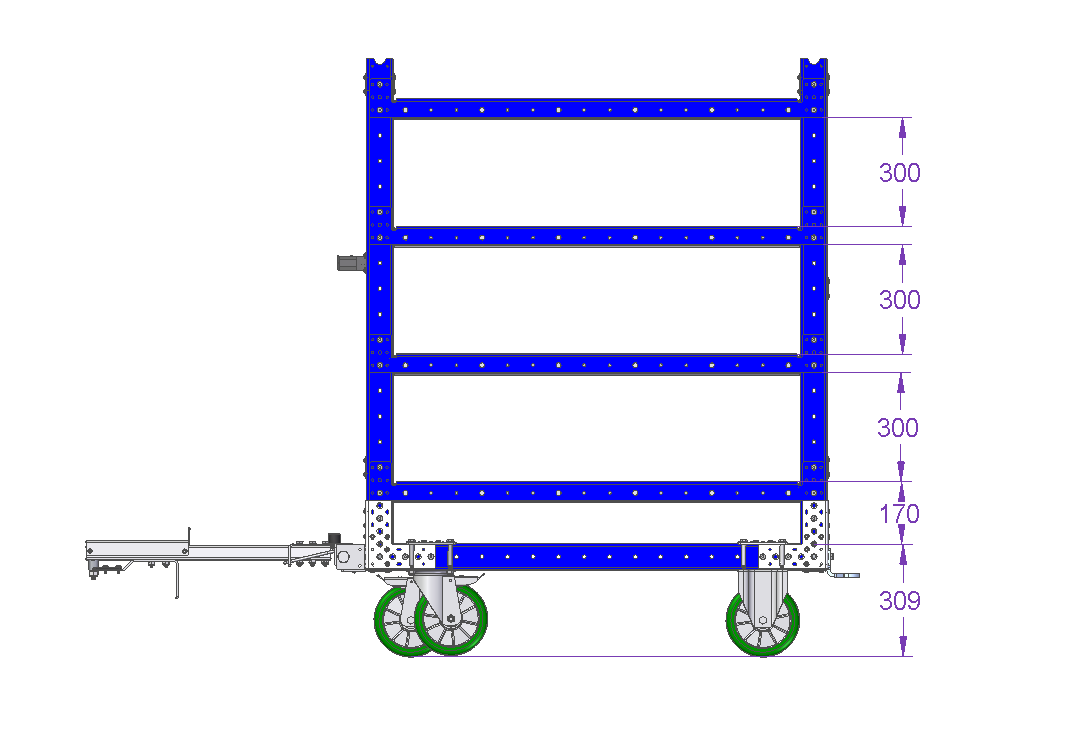

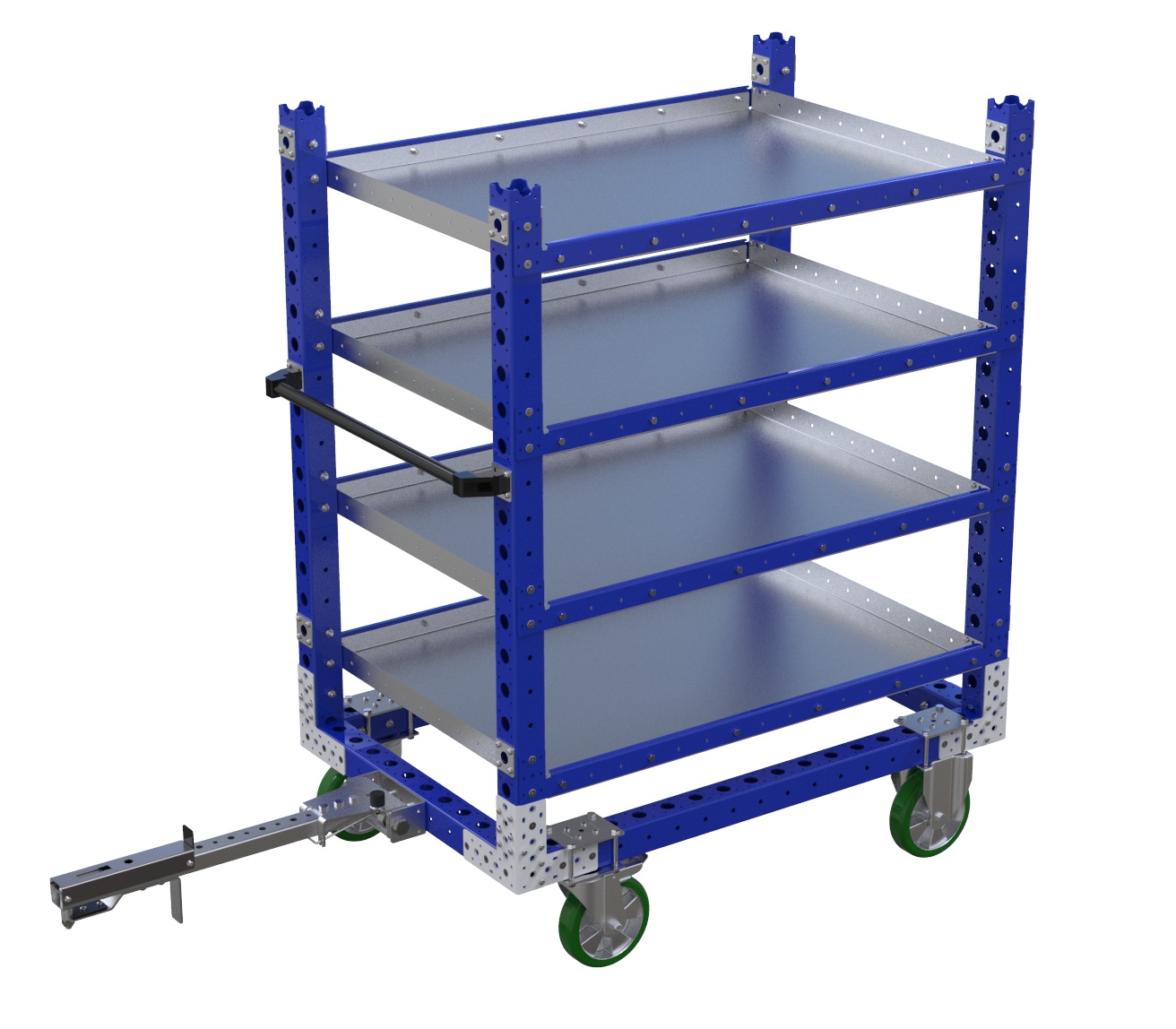

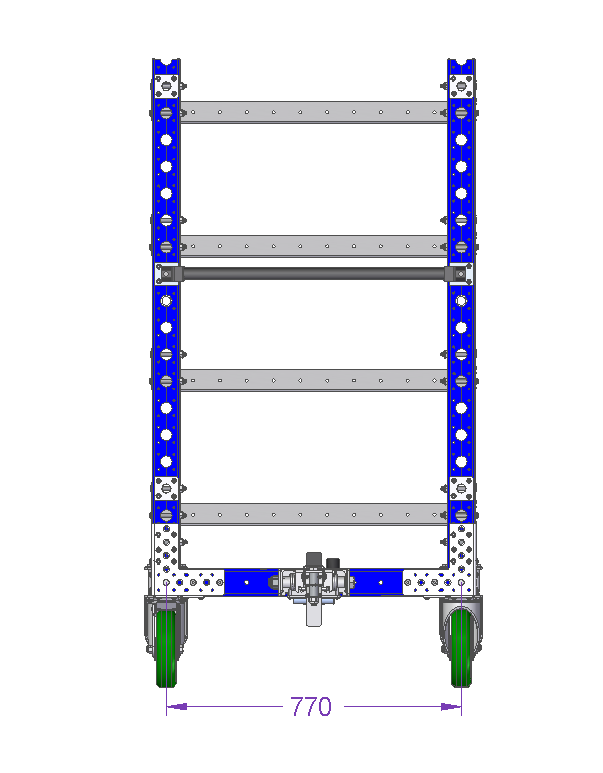

Shelf Cart 1260 x 840 mm for Plastic Containers

Four-level tuggable flat shelf cart designed to transport totes, bins or boxes.

Technical specifications

Transportation method: Manual, Tugger

Category: Flat Shelf

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Length: 50 inch

Width: 33 inch

Load capacity: 882 lbs

Levels: 4

Load Capacity per Level: 220 lbs

Caster size: 8 inch

Caster Type: Polyurethane

More info

Four level tuggable flat shelf cart is most commonly used for the transportation of totes, bins or boxes. The cart is equipped with four high-quality polyurethane casters, two fixed and two swivel giving it excellent tracking properties and silent movement when connected in a train.

Parts included
Outer Tube (No Plate) 950 mm 1 Q-000-1472
FlexBeam™ - 1330 mm 8 Q-001-1298
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 22 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Spring Cover Plate 1 Q-005-1025
Handle for 30 mm Tube 2 Q-005-1240
Beam to Beam Corner Plate 4 Q-005-1356
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 25 Q-005-1426
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Locking Nut M14 1 Q-006-1039
Locking Nut M10 83 Q-006-1042
Washer M10 2 Q-006-1043
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M8 x 16 mm 48 Q-006-1120
Hex Head - M10 x 90 mm 18 Q-006-1132
Locking Nut M8 49 Q-006-1181
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 52 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 186 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 5 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Flat Shelf - 1119 x 840 mm 4 Q-016-1237
Angled Plate - 1248 mm 8 Q-016-1238
US Modular Tow Bar VKR - Foot Release - 670 mm 1 Q-017-0012
Foot Release Locking Lip 1 Q-017-0024
Tow Hinge Module 1 Q-017-0059
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
