Q-100-1294

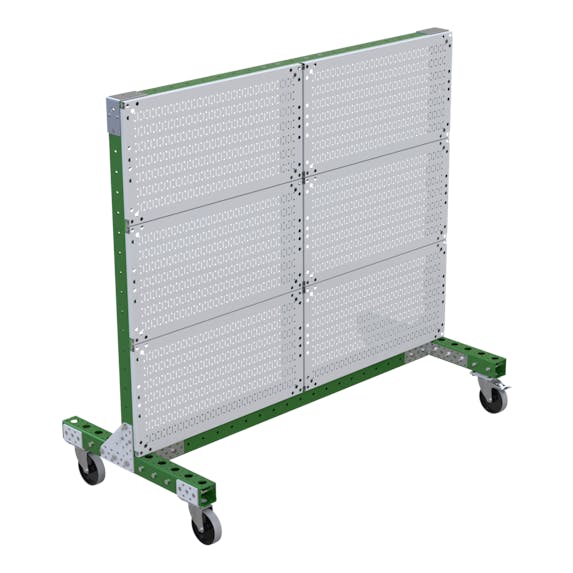

Shadow Board Cart - 1260 x 1610 mm

Shadow board cart used for storing tools. The cart is equipped with four swivel casters where as two have brakes to allow for easy handling in smaller areas.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 63 inch

Load capacity: 150 lbs

Width: 50 inch

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

More info

Shadow board cart most commonly used for storing tools. The flexible hole pattern of the shadow board allows you to place various inserts anywhere on the board to store tools for quick access when needed. The cart is equipped with four swivel casters where as two have brakes to allow for easy handling in smaller areas.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 770 mm FE 4 Q-001-1406
FlexBeam™ - 1470 mm FE 2 Q-001-1503
FlexBeam™ - 1610 mm FE 2 Q-001-1505
FlexPlate™ 1 Q-002-1001
Stiffener - Outside 2 Q-002-1050
Swivel Caster - 125 mm 2 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
L Bracket Joint 8 Q-005-0031
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Triangle Joint 3 Q-005-0483
64 mm FlexBeam™ Collet 20 Q-005-1426
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 47 Q-006-1042
Hex Head - M10 x 90 mm 21 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 86 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 14 Q-006-1410
Shadow Board - 418 x 803 mm 6 Q-016-0296
