Shadow Board Cart - 91 x 64.5

Custom designed shadow board cart.

Technical specifications

Category: Hanging Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

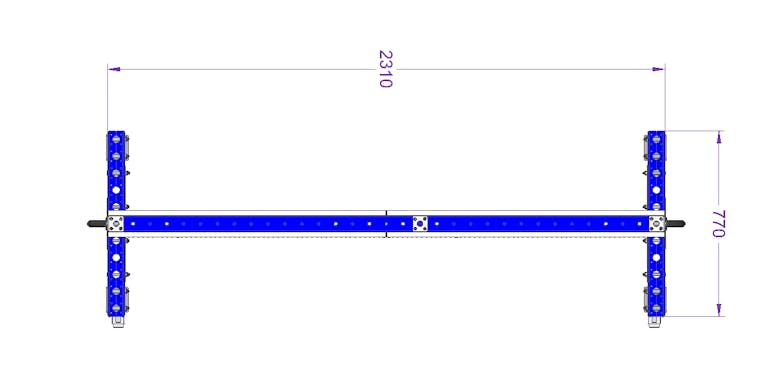

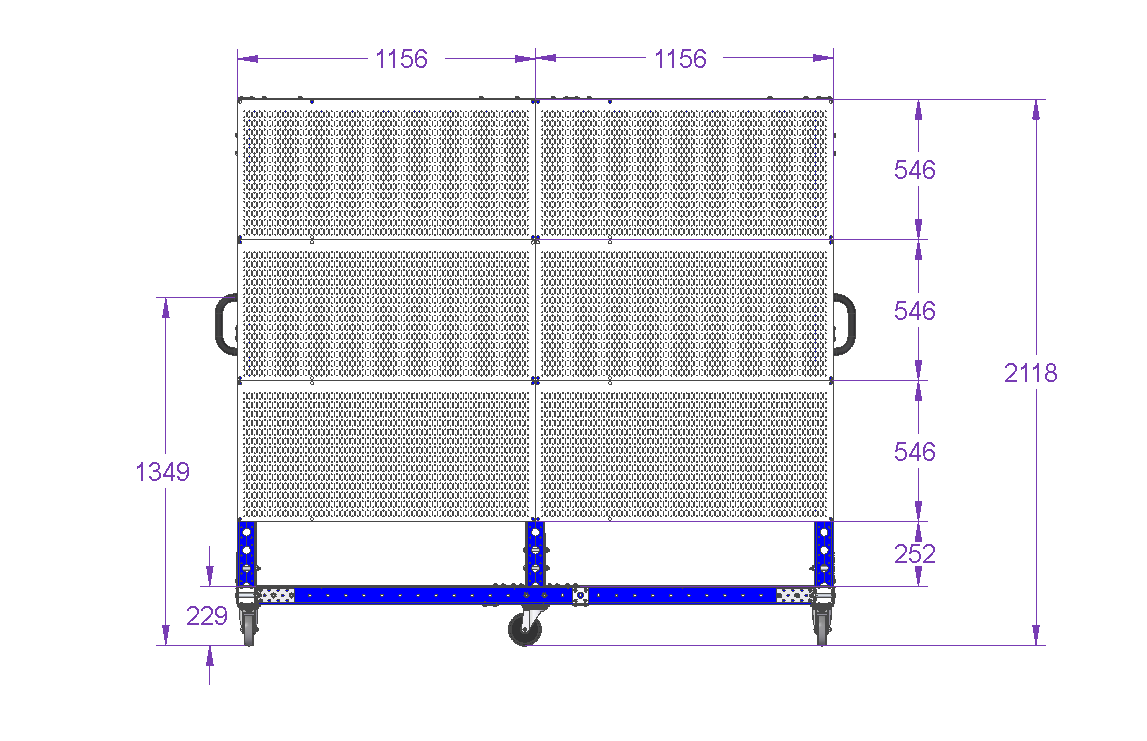

Length: 91 inch

Width: 30 inch

Load capacity: 300 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Nylon, Polyurethane

Type of Load: Misc parts

More info

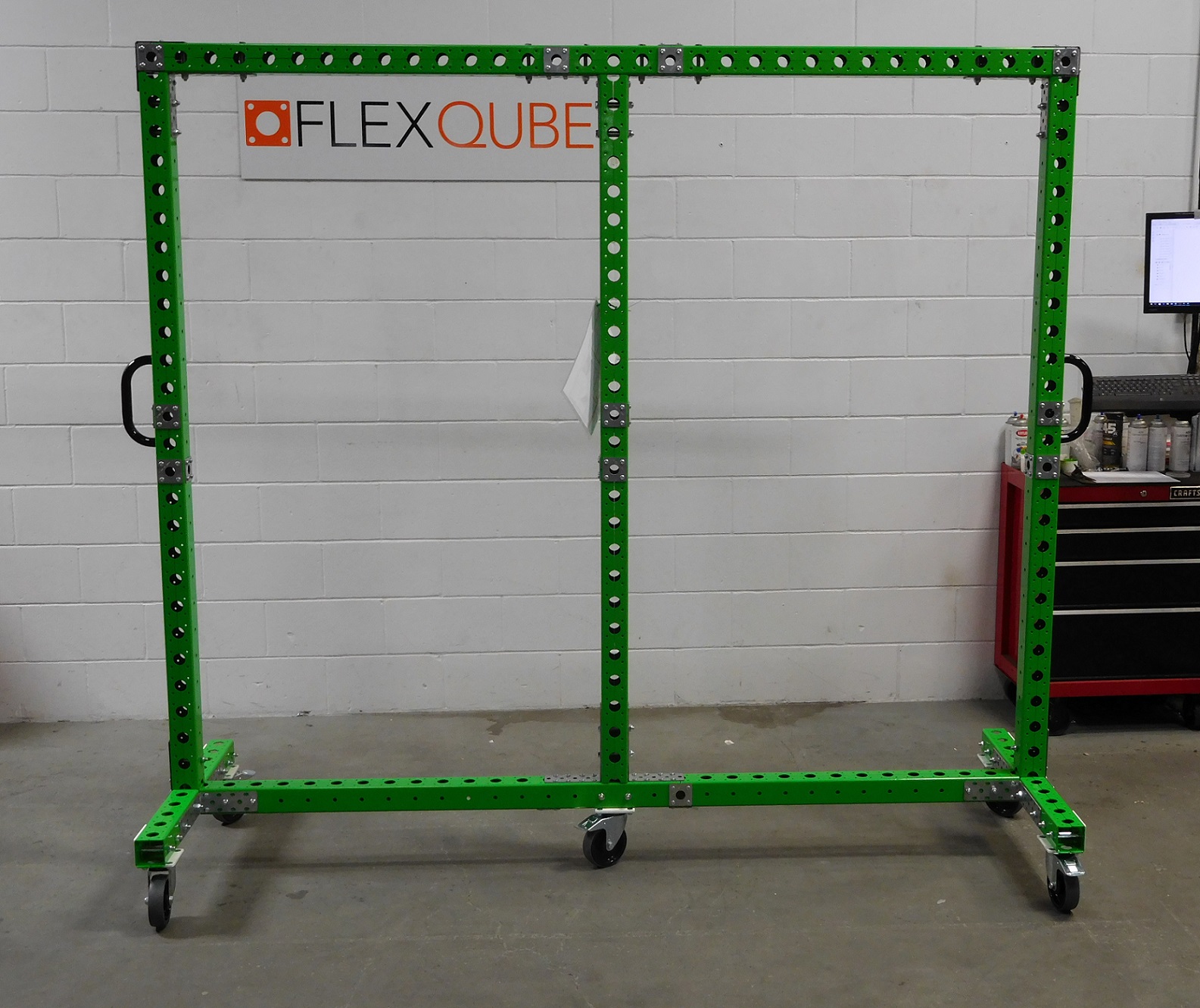

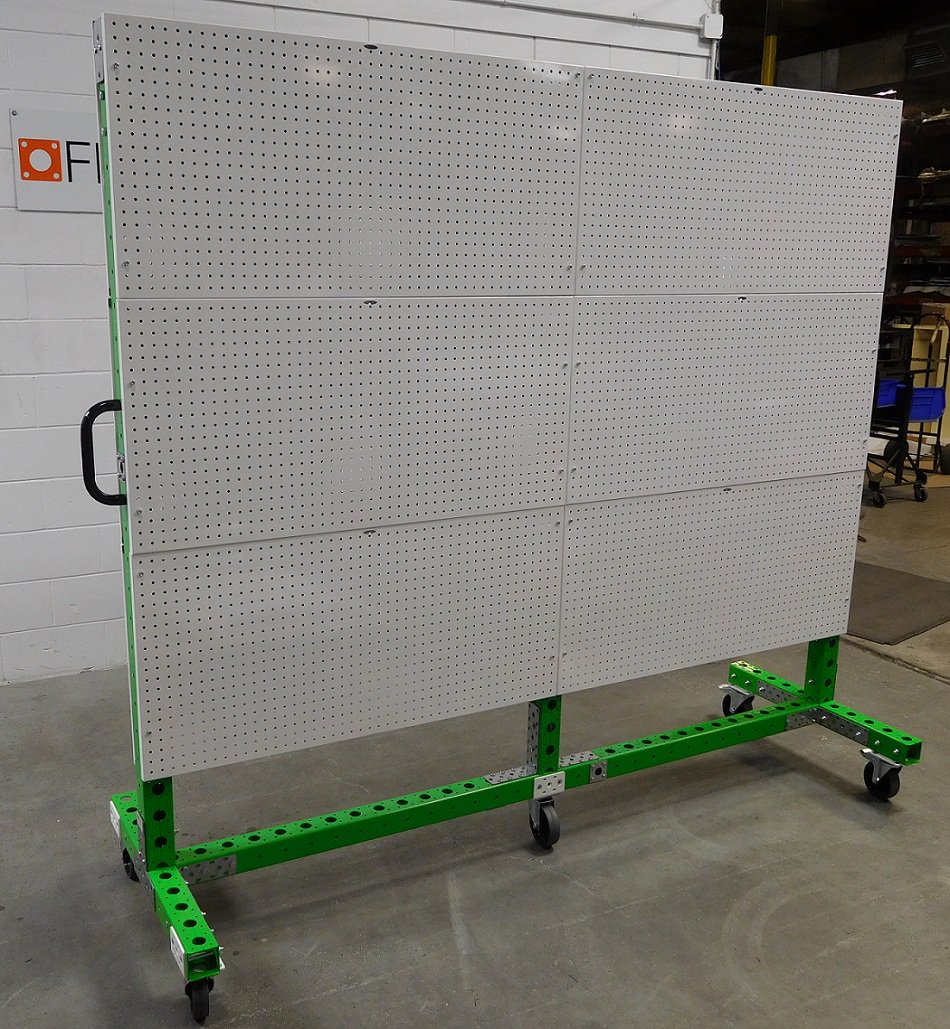

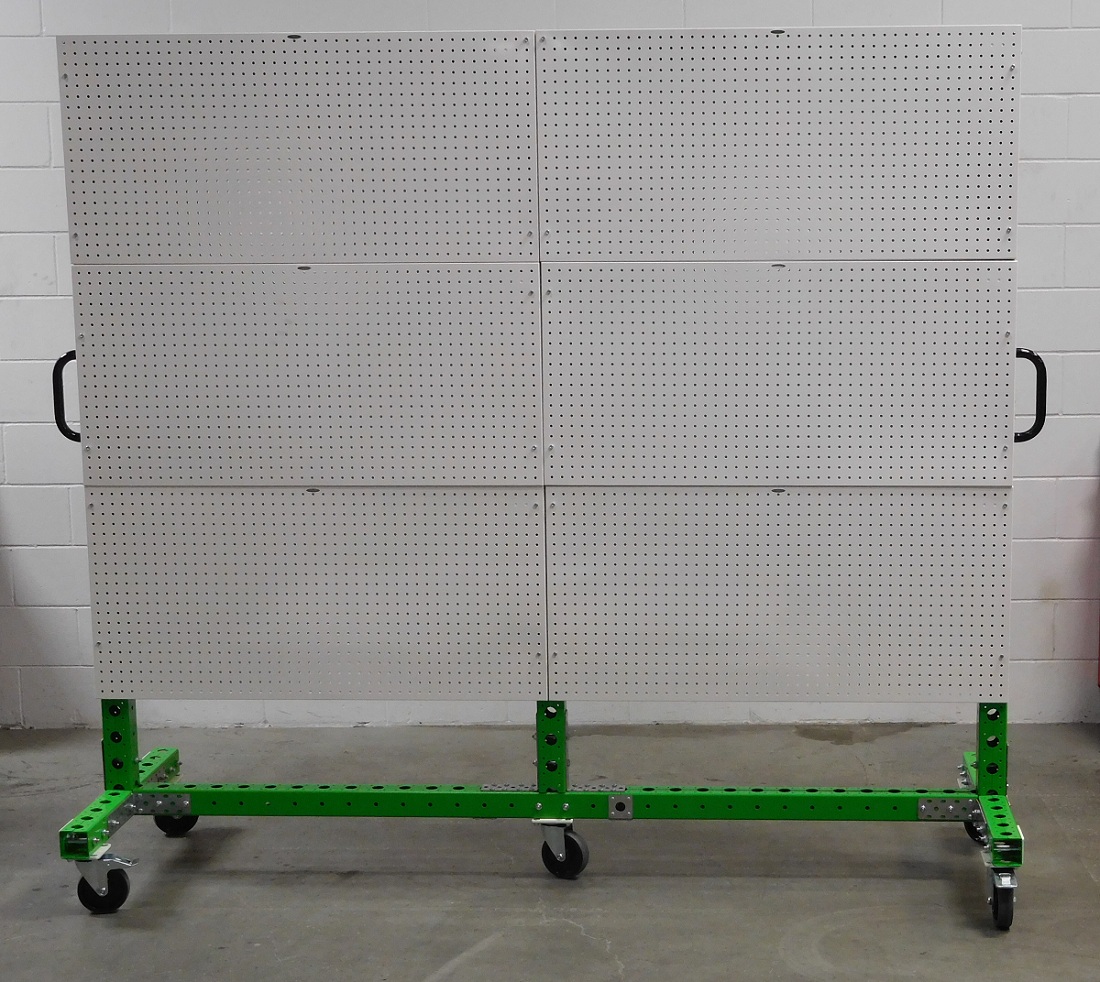

This large shadow board cart is designed for tools to be hung up on each side of the board. This is so the operators can access the tools at a more ergonomic height and is used along the assembly line. It comes with five swivel casters for easier handling.

Parts included
FlexQube 2 Q-001-1078
FlexBeam™ - 1260 mm 4 Q-001-1299
FlexBeam™ 980 mm 8 Q-001-1303
FlexBeam™ 910 mm 2 Q-001-1304
FlexBeam™ 840 mm 6 Q-001-1305
FlexBeam™ 770 mm FE 4 Q-001-1406
FlexPlate™ 13 Q-002-1001
Swivel Caster - 125 mm 1 Q-004-1363
125 mm Swivel Caster with Brake 4 Q-004-1364
L Bracket Joint 10 Q-005-0031
T-Joint 2 Q-005-0065
Caster to Beam Attachment - 80 x 60 mm 5 Q-005-0265
64 mm FlexBeam™ Collet 24 Q-005-1426
Locking Nut M10 42 Q-006-1042
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 20 Q-006-1132
Locking Nut M8 20 Q-006-1181
M8 Washer 4 Q-006-1183
M8 x 16 mm Countersunk 20 Q-006-1214
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 92 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Pegboard 21.5 x 0.8 x 45.5 inches 12 Q-016-0250
