Shadow Board Cart - 1260 x 840 mm
Shadow Board Cart - 1260 x 840 mm
Shadow Board Cart - 1260 x 840 mm
Shadow Board Cart - 1260 x 840 mm
Shadow Board Cart - 1260 x 840 mm
Shadow Board Cart - 1260 x 840 mm
Q-100-0554

Shadow Board Cart - 1260 x 840 mm

Custom designed shadow board cart.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Length: 50 inch

Levels: 2

Load capacity: 500 lbs

Transportation method: Manual

Load Capacity per Level: 251 lbs

Caster size: 5 inch

Caster Type: Gray

Type of Load: Bins, Boxes, Misc parts, Totes

More info

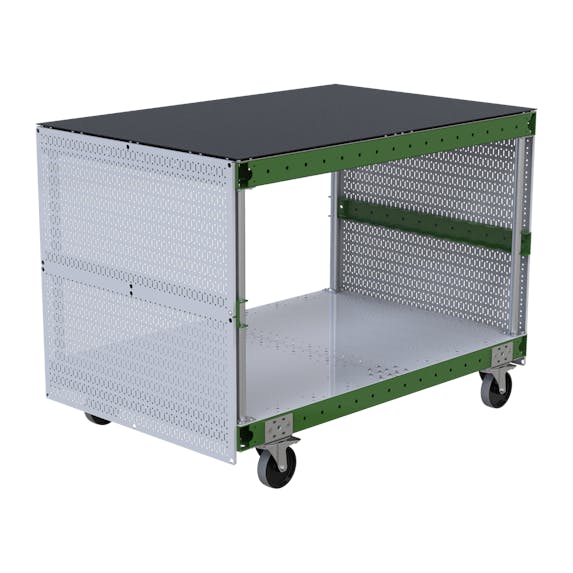

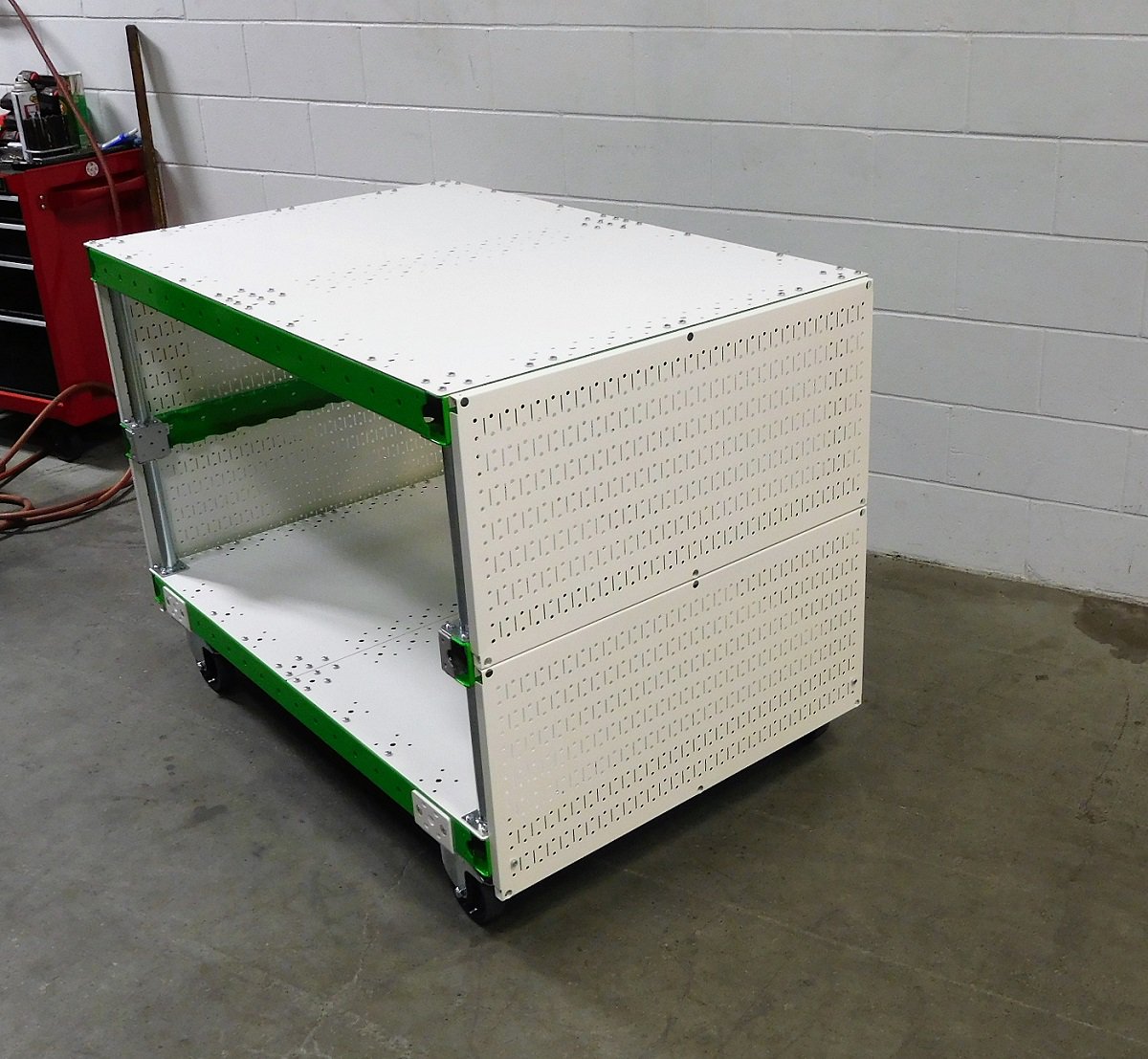

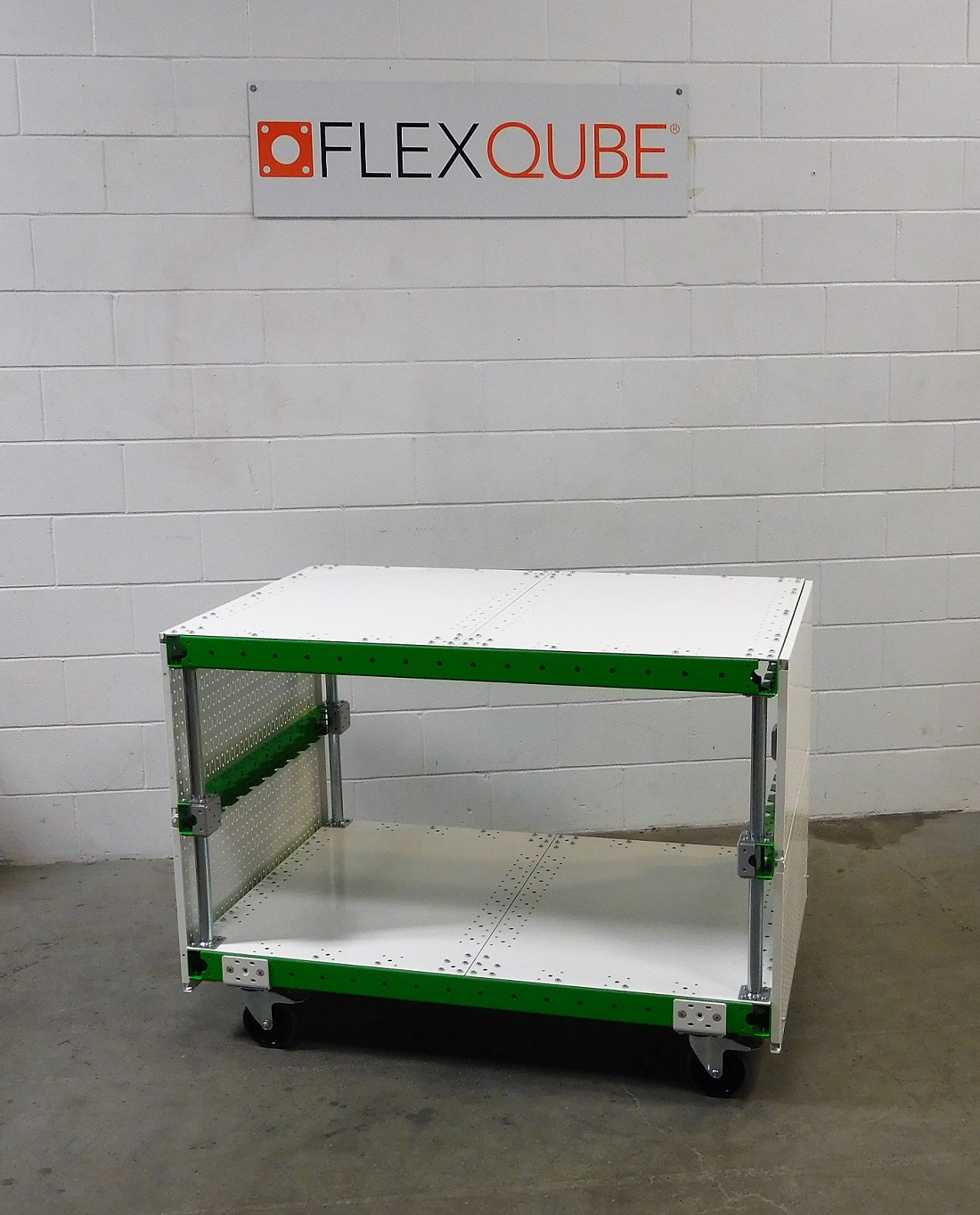

This shadow board cart was designed to help operators along the assembly line. The top surface is equipped with rubber protection so as not to damage the materials/parts. Totes, bins and boxes can be stored on the lower shelf. On each end the cart is equipped with galvanized metal pegboard from which tools can be hung.

Parts included
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 700 mm 2 Q-001-1307
FlexBeam™ 840 mm FE 6 Q-001-1405
FlexPlate™ 4 Q-002-1001
125 mm Swivel Caster with Brake 4 Q-004-1364
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
64 mm FlexBeam™ Collet 8 Q-005-1426
Rubber carpet - 1260 x 840 mm 1 Q-005-3301
Locking Nut M10 8 Q-006-1042
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384
Pegboard 32 x 16 inch 4 Q-016-0236
Top plate - 840 x 630 mm 4 Q-016-0262
