Shadow Board Cart - 1260 x 1610 mm
Shadow Board Cart - 1260 x 1610 mm
Shadow Board Cart - 1260 x 1610 mm
Shadow Board Cart - 1260 x 1610 mm
Shadow Board Cart - 1260 x 1610 mm
Q-100-1605

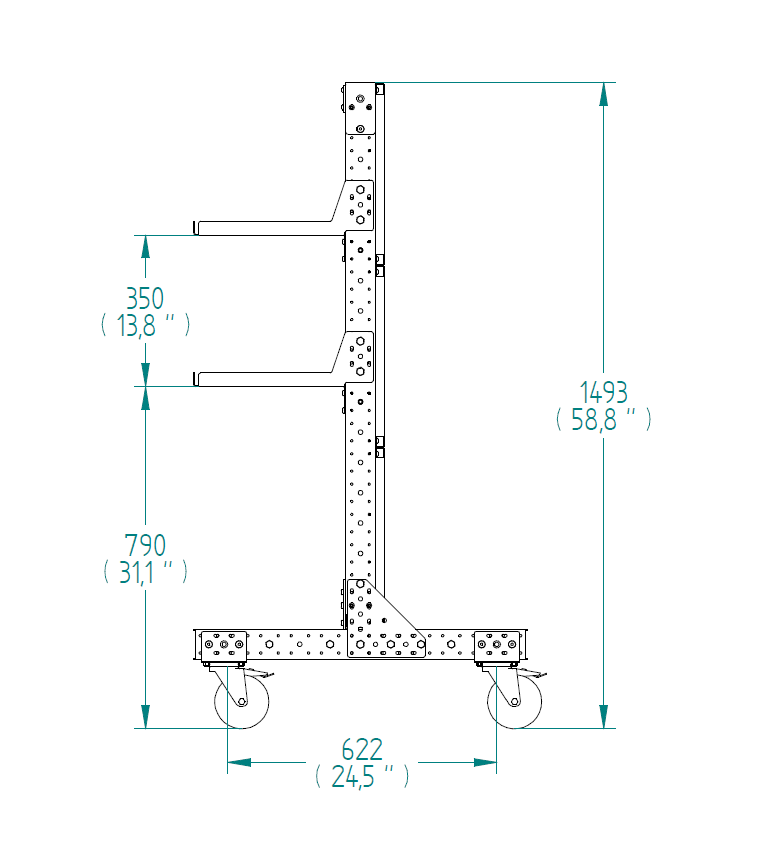

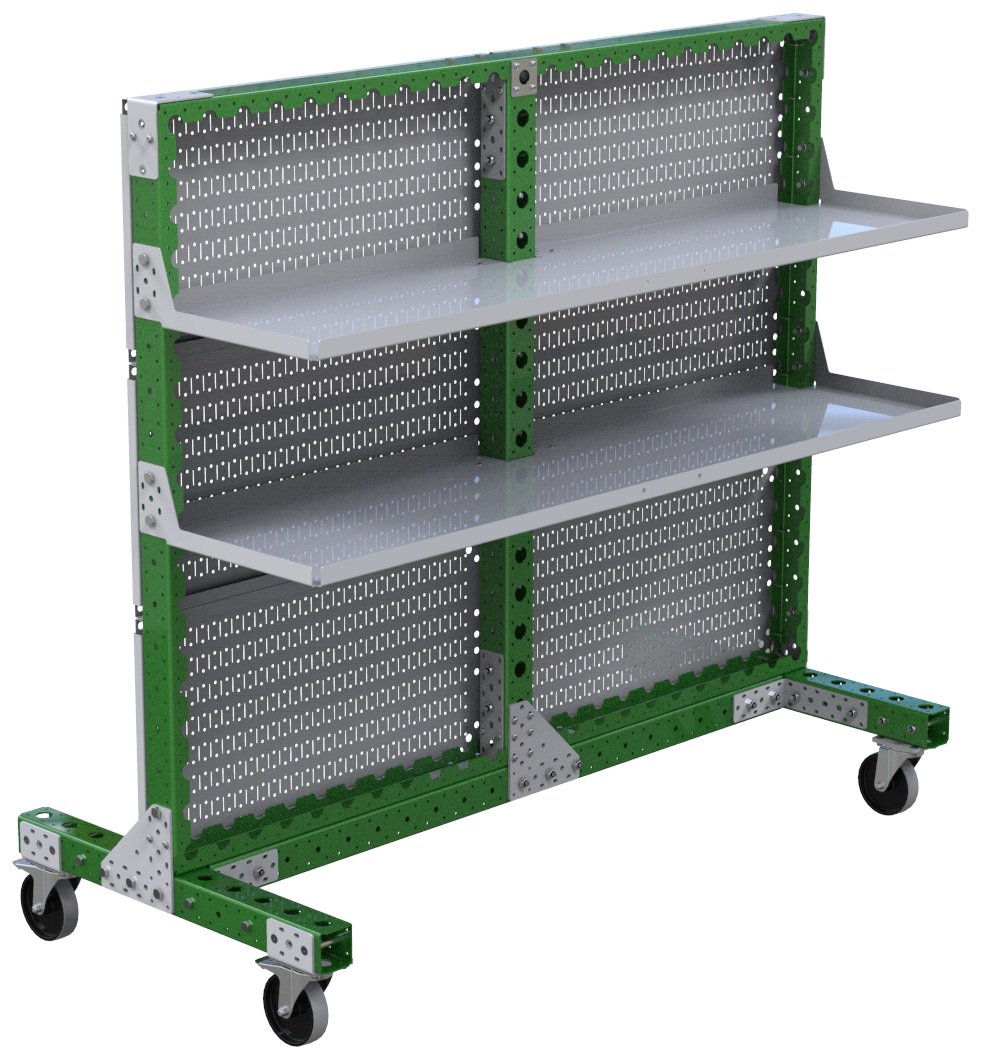

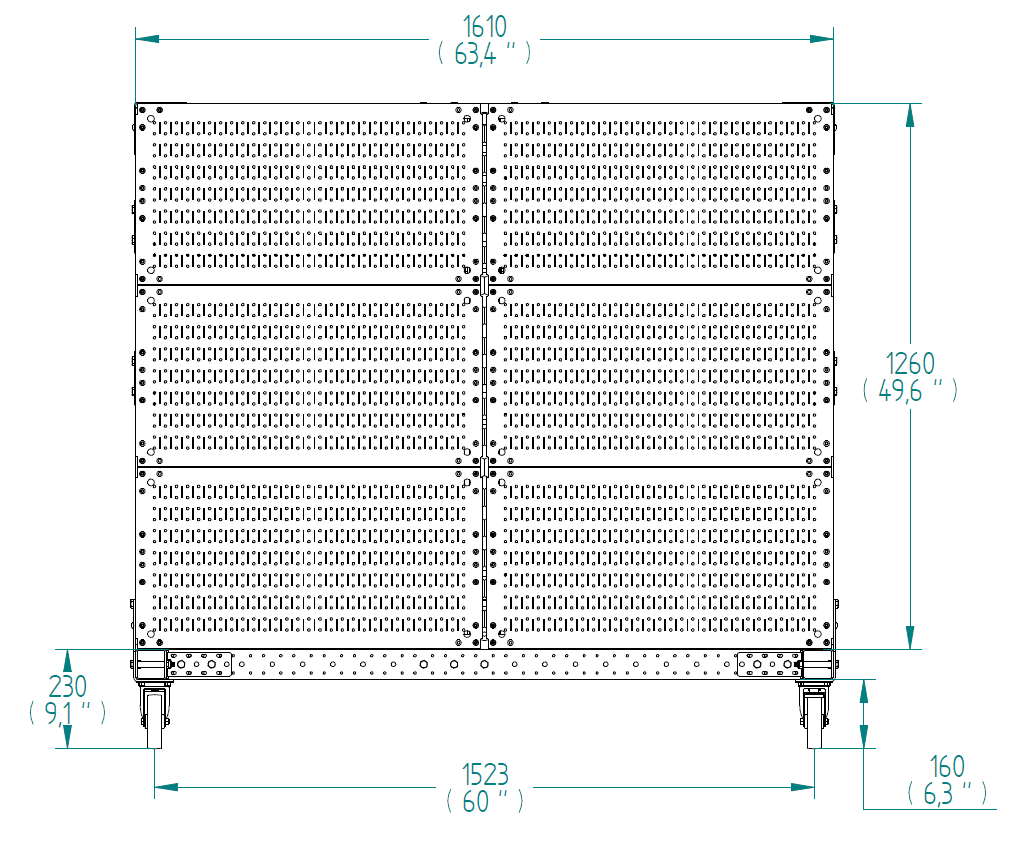

Shadow Board Cart - 1260 x 1610 mm

Tool cart with pegboard designed to hang tools from, with two flat shelves attached.

Technical specifications

Category: Specialized Carts

Transportation method: Manual

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 50 inch

Length: 63 inch

Load capacity: 287 lbs

Caster size: 5 inch

Caster Type: Gray

More info

This cart is used to transport tools in an easy and ergonomic way. It is designed to be used along assembly lines, and the shadow boards are used to hang the tools on. On the rear, the cart is equipped with two lightweight application shelves where some small parts or also instruments can be placed. The cart uses four polyurethane/nylon casters.

Parts included
FlexPlate™ 1 Q-002-1001
Stiffener - Outside 2 Q-002-1050
Swivel Caster - 125 mm 2 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
L Bracket Joint 8 Q-005-0031
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
L-Bracket Joint - 70 x 70 mm 4 Q-005-0429
Triangle Joint 3 Q-005-0483
64 mm FlexBeam™ Collet 20 Q-005-1426
M6 x 20 K6S 10.9 Round Head (black) 8 Q-006-1018
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 57 Q-006-1042
Locking Nut M6 8 Q-006-1050
Hex Head - M10 x 90 mm 23 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 94 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 14 Q-006-1410
Shadow Board - 418 x 803 mm 6 Q-016-0296
Flat Shelf Fixed - 420 x 1610 mm 2 Q-016-0897
FlexBeam™ - 1190 mm 4 Q-020-1190
FlexBeam™ FE - 1610 mm 2 Q-021-1610
