Panel Cart – 1470 x 1470 mm
Panel Cart - 1470 x 1470 mm
Panel Cart - 1470 x 1470 mm
Panel Cart - 1470 x 1470 mm
Q-100-1618

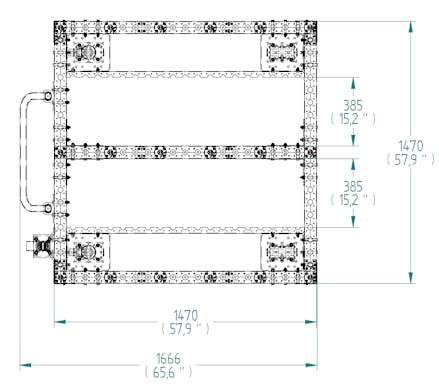

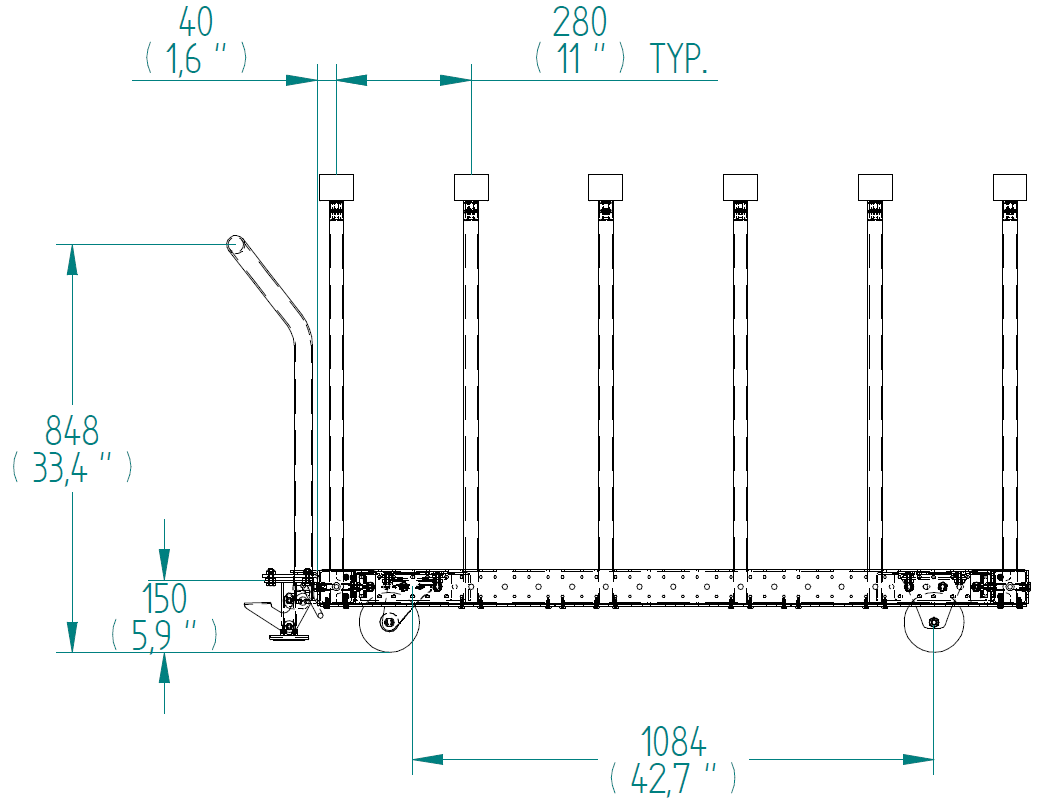

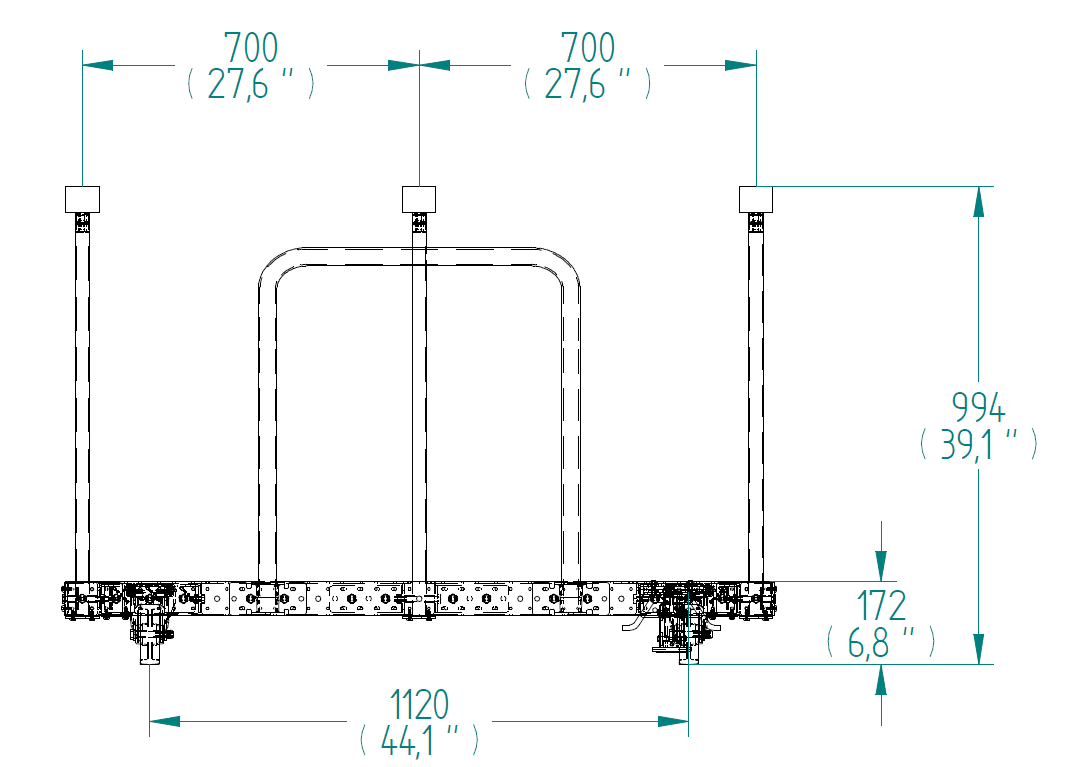

Panel Cart - 1470 x 1470 mm

This cart is designed for panels and uses tubes as dividers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 58 inch

Width: 58 inch

Load capacity: 551 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Nylon

Type of Load: Misc parts

More info

This cart is designed to transport panels and uses tubes as dividers with a rubber tube end for protection to avoid damage to the panels. Five big panels or several narrower ones can be placed in this heavy duty cart. This cart comes with a top bent handlebar, a floor friction brake, and 4 high-quality polyurethane casters.

Parts included
FlexPlate™ 4 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 12 Q-002-1162
Flexplate™ 30,5 mm hole 18 Q-002-1320
FlexPlate™ half 12 Q-002-1369
Floor lock COLSON - 4 x 4-1/2 - 125 - 150 mm 1 Q-004-0031
Polyamide Caster - 125 mm 2 Q-004-1356
Polyamide Caster 125 mm Fixed 2 Q-004-1358
L Bracket Joint 4 Q-005-0031
Floor brake plate 1 Q-005-0275
Spring Threaded Tube Connectors 36 Q-005-0469
Rubber Damper Threaded Stud - 70 x 55 mm 18 Q-005-0743
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 26 Q-005-1426
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 74 Q-006-1042
Washer M10 76 Q-006-1043
Hex Head - M10 x 90 mm 34 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 120 Q-006-1384
Low Allen Head - M10 x 16 mm 4 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
FlexBeam FE - 1330 mm 6 Q-021-1330
Outer Tube (No Plate) - 840 mm 18 Q-025-0840
