Pallet Cart - 980 x 630 mm

Pallet cart used for heavy plates stacked on top of each other, can be pushed manually or transported in an E-Frame

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 39 inch

Width: 25 inch

Load capacity: 661 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

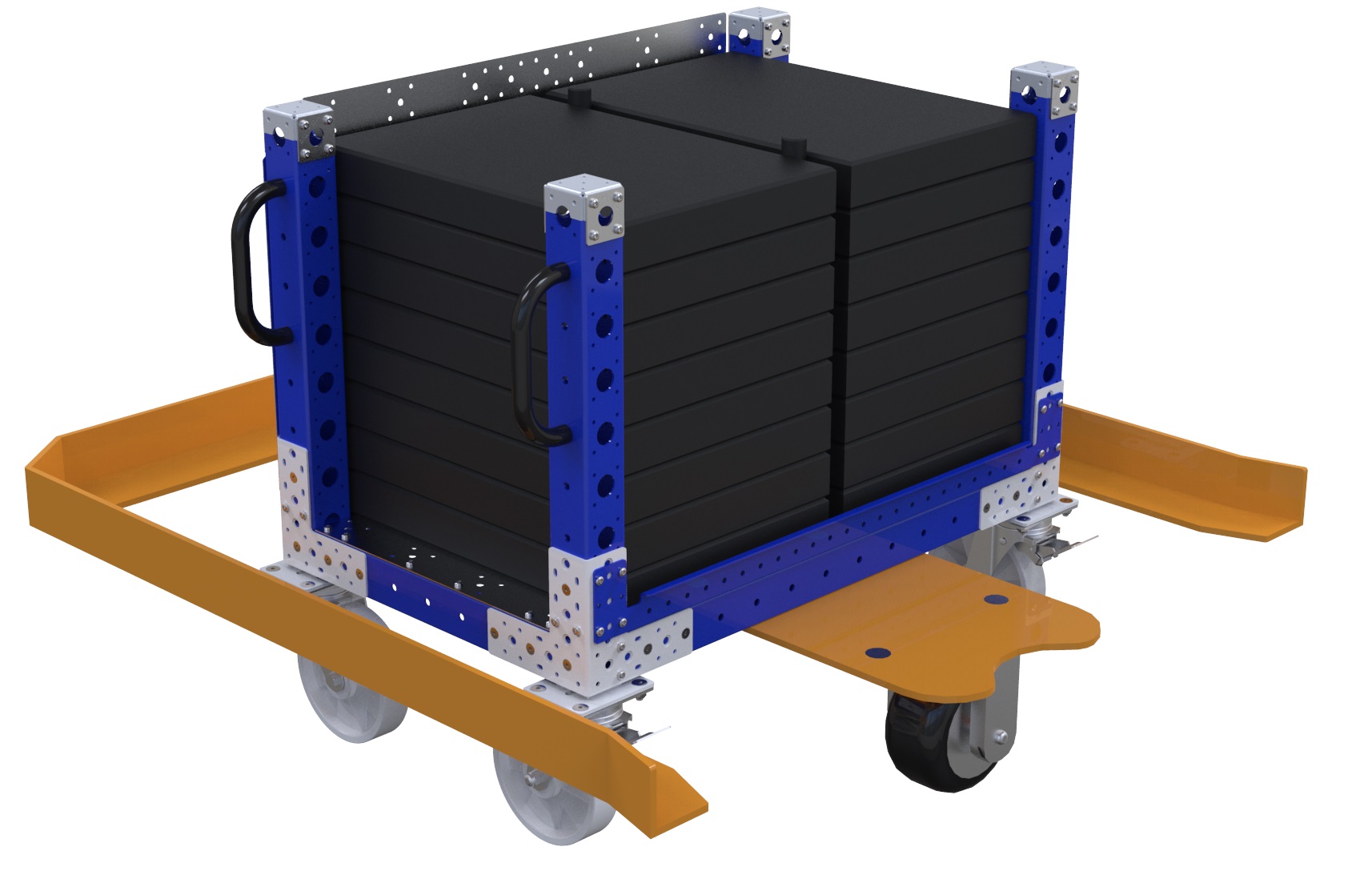

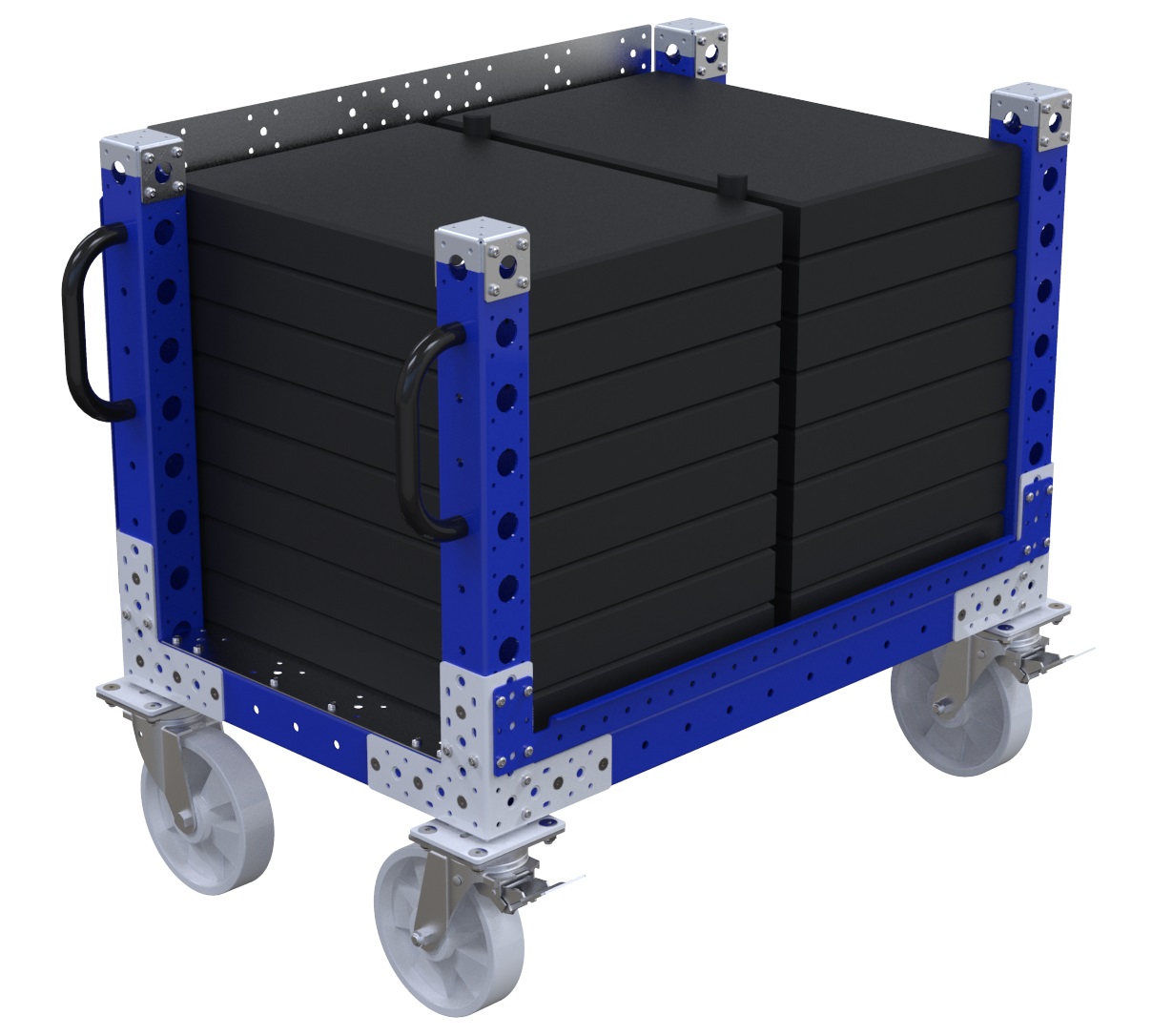

This pallet cart is another prime example of how the FlexQube concept can be used to create custom solutions designed for your materials. It was designed to hold heavy plates stacked on top of each other and specially designed to fit the STILL Liftrunner tugger train system. This cart comes equipped with two handlebars to ease manually transportation.

Parts included
FlexQube 4 Q-001-1078
FlexBeam™ 910 mm 4 Q-001-1304
FlexBeam™ 560 mm 8 Q-001-1309
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexBeam™ 490 mm FE 1 Q-001-1410
FlexPlate™ 22 Q-002-1001
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
L Bracket Joint 1 Q-005-0031
Spring Threaded Tube Connectors 2 Q-005-0469
Countersunk Wheel Attachment - 105 x 77.5 mm 4 Q-005-0647
Flexible Vinyl Push - On Round Caps 2 Q-005-0728
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 45 Q-006-1042
Washer M10 16 Q-006-1043
Countersunk 16 Q-006-1082
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 2 Q-006-1132
M8 Washer 4 Q-006-1183
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 132 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
Low Allen Head - M10 x 16 mm 3 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Shelf attachment plate - 980 mm 1 Q-016-0239
Top plate - 980 x 630 mm 2 Q-016-0595
Outer Tube (No Plate) - 554 mm 2 Q-025-0554
