Pallet Cart - 980 x 630 mm
Pallet Cart - 980 x 630 mm
Pallet Cart - 980 x 630 mm
Pallet Cart - 980 x 630 mm
Pallet Cart - 980 x 630 mm
Pallet Cart - 980 x 630 mm
Q-100-1727

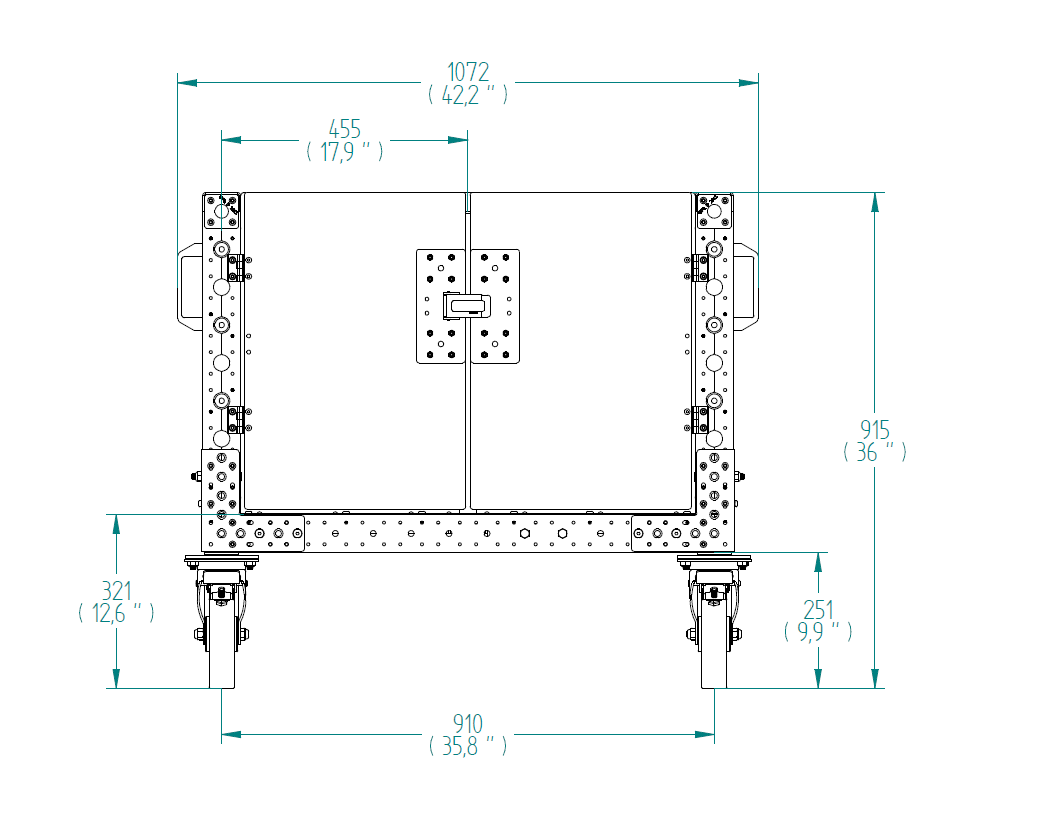

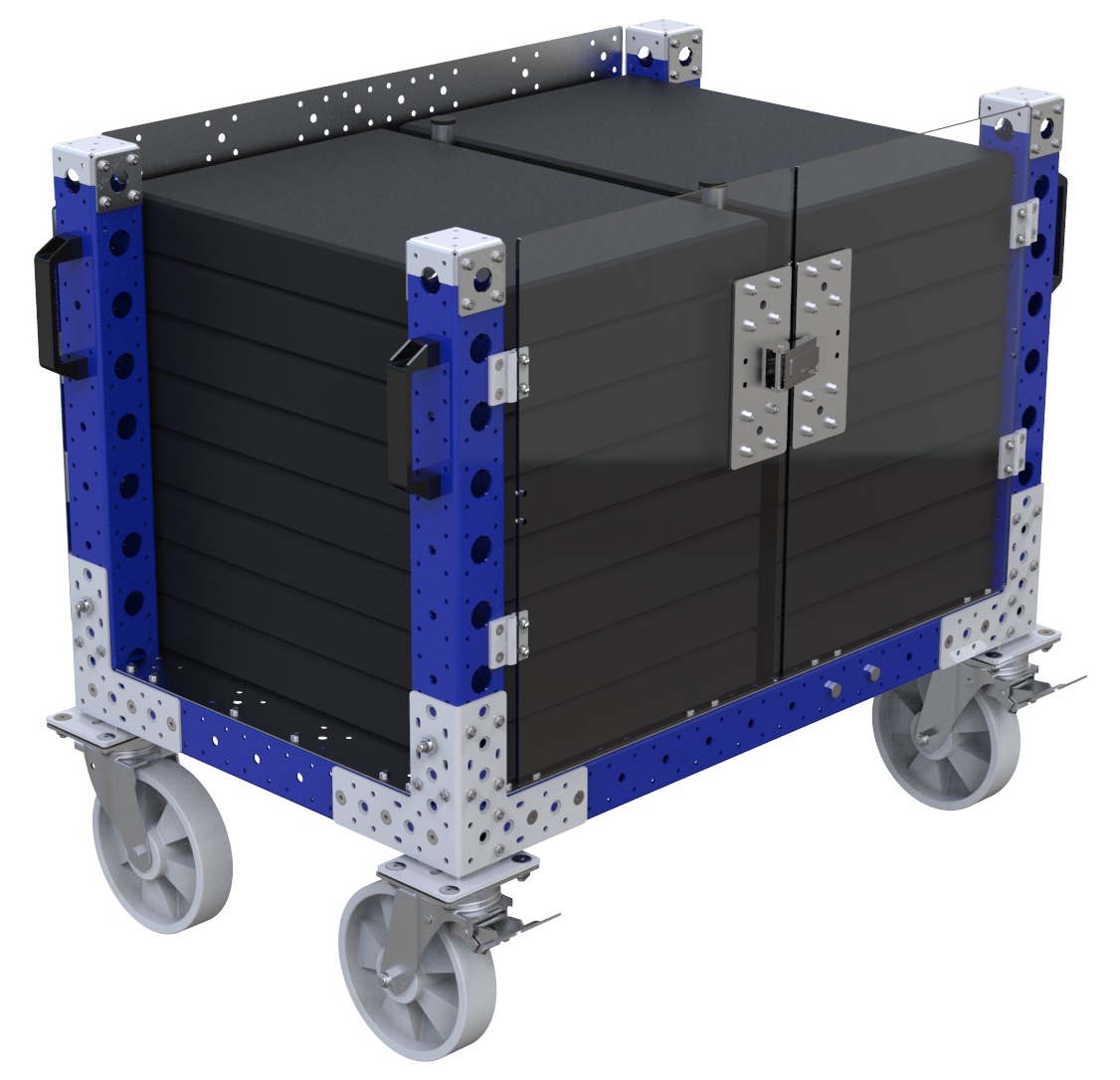

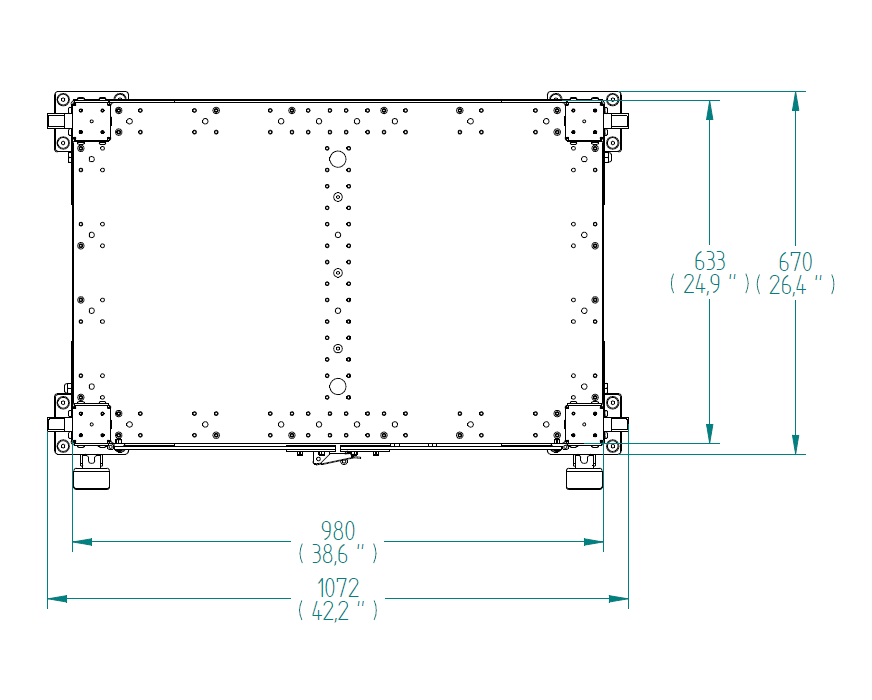

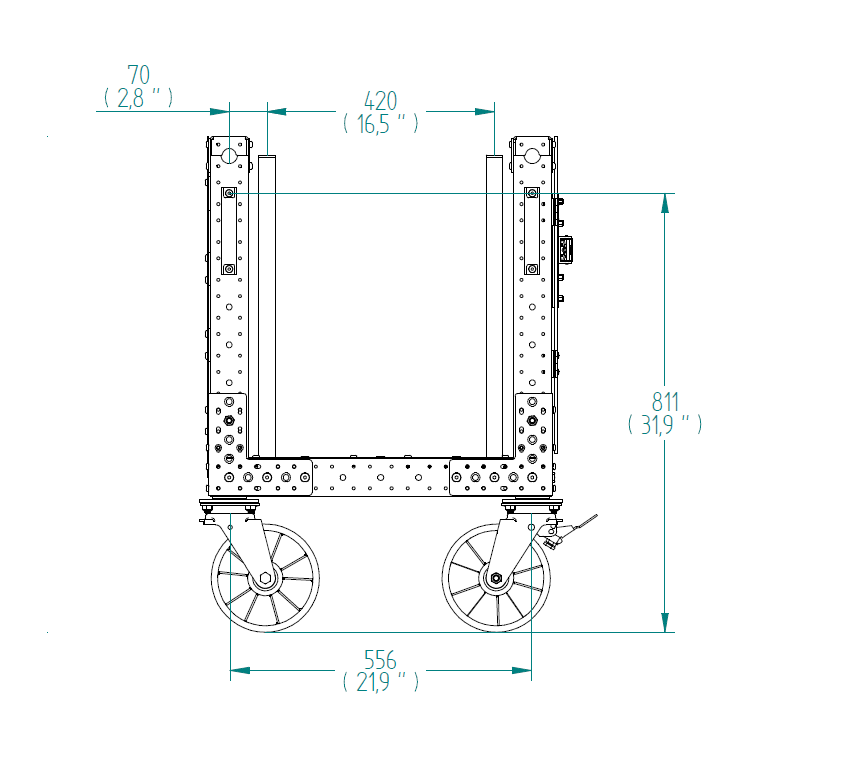

Pallet Cart - 980 x 630 mm

This cart is designed to transport flat parts or boxes with plexiglass doors.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 25 inch

Length: 39 inch

Load capacity: 661 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This cart can hold flat parts or boxes inside its enclosure, keeping them safe during transportation. The cart is equipped with plexiglass doors, tubes as dividers, and two small handles on each side. It also has nylon casters for easy and smooth transportation.

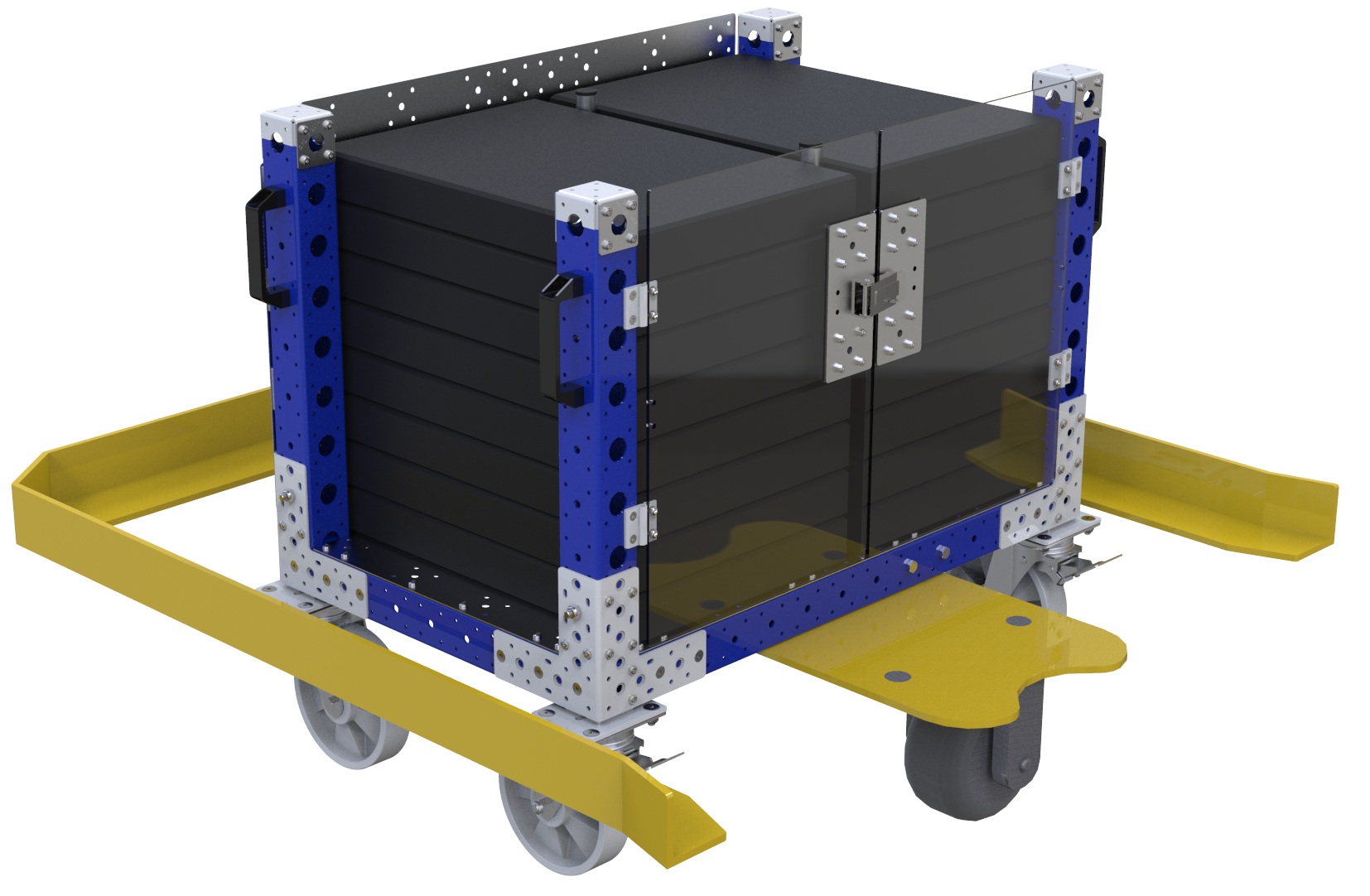

The cart is also designed to be transported by a Liftrunner Frame.

Parts included
FlexQube 4 Q-001-1078
FlexPlate™ 22 Q-002-1001
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
L Bracket Joint 1 Q-005-0031
Adjustable Lock Attachment Plate - 210 x 90 mm 4 Q-005-0421
Adjustable Hook Clamp 1 Q-005-0422
Spring Threaded Tube Connectors 4 Q-005-0469
Countersunk Wheel Attachment - 105 x 77.5 mm 4 Q-005-0647
Tube end plug GN 991-D30 2 Q-005-1118
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
Hinge Assembly 4 Q-005-2351
M6 x 20 K6S 10.9 Round Head (black) 8 Q-006-1018
Locking Nut M10 45 Q-006-1042
Washer M10 16 Q-006-1043
M8 x 20 mm MELC6S 10.9 Allen Head 8 Q-006-1044
Countersunk - M6 x 20 mm 16 Q-006-1049
Locking Nut M6 24 Q-006-1050
Countersunk 16 Q-006-1082
Hex Head - M10 x 90 mm 2 Q-006-1132
Locking Nut M8 8 Q-006-1181
M8 Washer 8 Q-006-1183
Hex Head - M10 x 40 2 Q-006-1208
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 110 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 24 Q-006-1385
Low Allen Head - M10 x 16 mm 3 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Plexiglass - 410 x 585 mm 2 Q-009-0020
M8 Handle - 140 mm 4 Q-015-1409
Top plate - 980 x 630 mm 2 Q-016-0595
FlexBeam™ - 560 mm 8 Q-020-0560
FlexBeam - 910 mm 4 Q-020-0910
FlexBeam™ FE - 630 mm 2 Q-021-0630
Outer Tube (No Plate) - 554 mm 2 Q-025-0554
