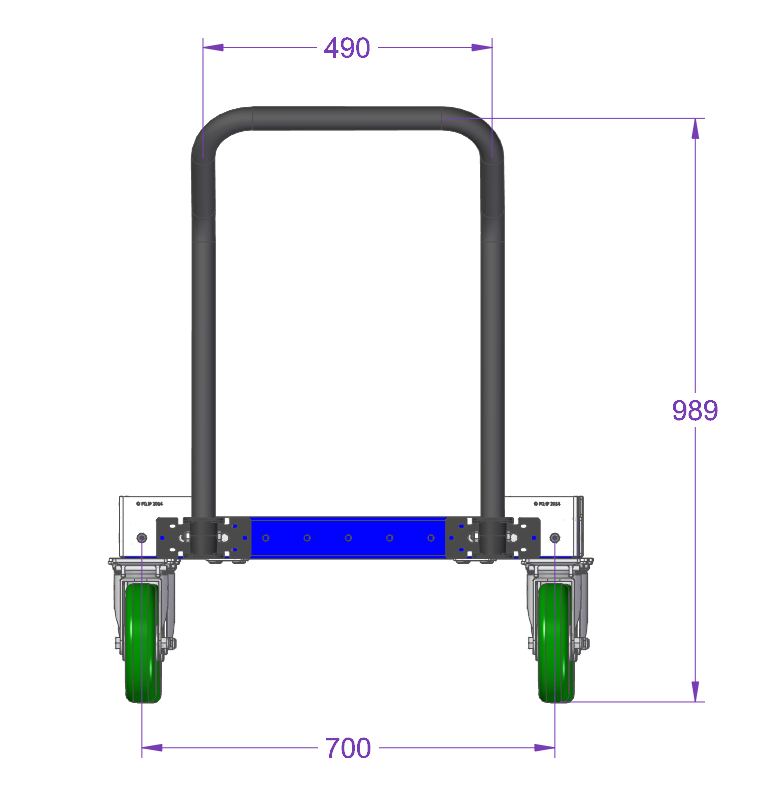

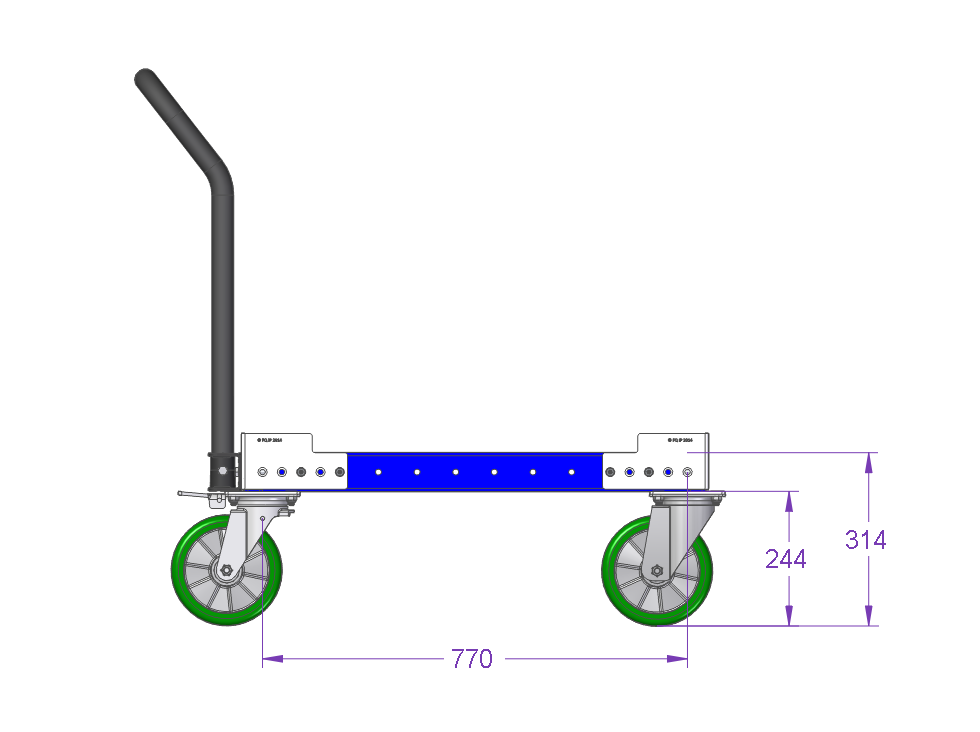

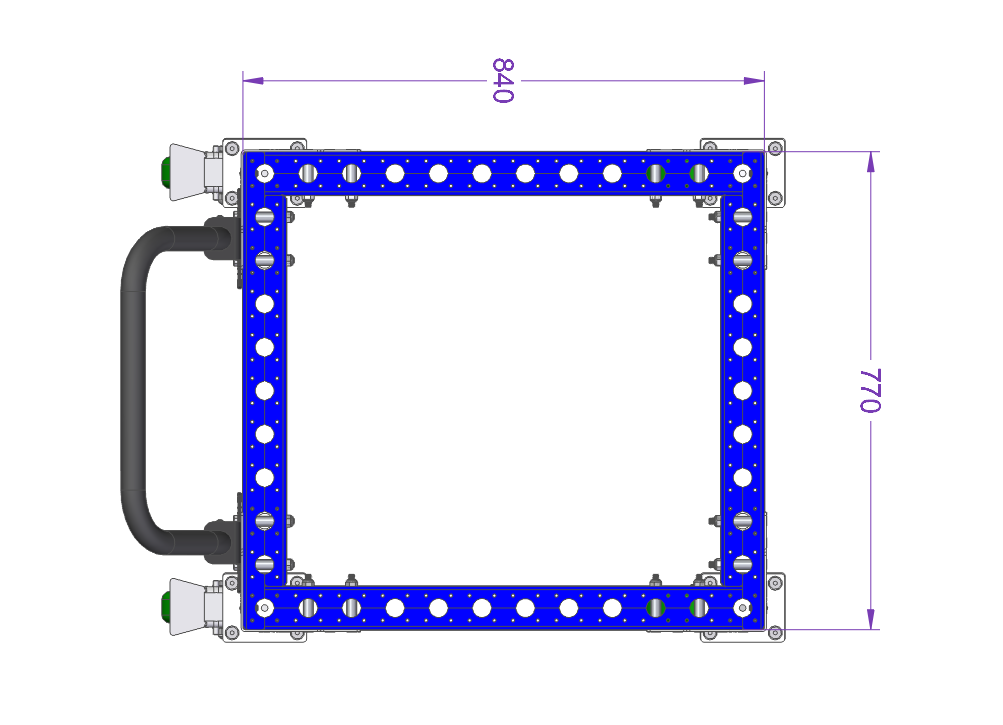

Pallet Cart - 30 x 33 Inch

Pallet push cart equipped with a handlebar and rubber bumpers to prevent carts from hitting one another.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Length: 33 inch

Load capacity: 2205 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This pallet push pallet cart was designed to be transported either by hand or in a frame. Since the cart isin’t equipped with a flat deck it can only hold one pallet/container size. The bumpers in the back has been added to prevent carts from hitting each other when parked. It comes equipped with a handlebar and four polyurethane casters, two fixed and two swivel with brake making it easy to maneuver.

Parts included
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexPlate™ 4 Q-002-1001
Caster Polyurethan Fix Brake - 200 mm 2 Q-004-1111
Caster Polyurethane - 200 mm Swivel 2 Q-004-1211
Countersunk Wheel Attachment - 105 x 77.5 mm 4 Q-005-0647
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 16 Q-005-1426
Locking Nut M10 38 Q-006-1042
Countersunk 16 Q-006-1082
Hex Head - M10 x 90 mm 4 Q-006-1132
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Handlebar Attachment US 2 Q-015-0031
Tube for handlebar US - 490 mm 1 Q-015-0075
