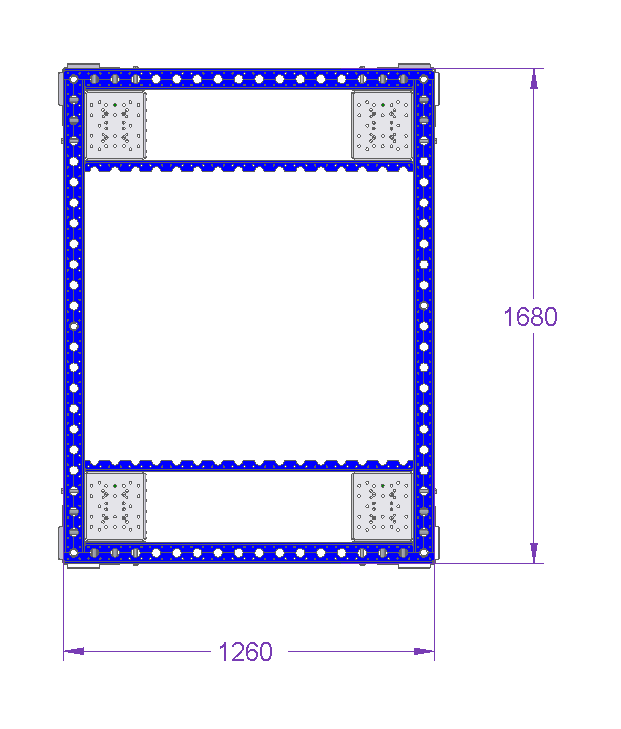

Pallet Cart - 1260 x 1680 mm
Pallet Cart - 1260 x 1680 mm
Pallet Cart - 1260 x 1680 mm
Q-100-1503

Pallet Cart - 1260 x 1680 mm

Pallet cart used for a specific pallet or container size. Equipped with four swivel polyurethane casters and angled pallet guides.

Technical specifications

Category: Flat Deck, Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 66 inch

Load capacity: 1102 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

More info

This frame is used for the transportation of pallets or containers. Since it doesn’t have a flat deck it only works for a certain container size. The cart is equipped with four swivel polyurethane casters making it easy to maneuver in tight areas and angled pallet guides to ease the loading process.

Parts included
FlexPlate™ 10 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Wheel Attachment Box 4 Q-005-1079
Angled Corner Plate 4 Q-005-1098
64 mm FlexBeam™ Collet 16 Q-005-1426
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 36 Q-006-1042
Hex Head - M10 x 90 mm 8 Q-006-1132
Locking Nut M8 16 Q-006-1181
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 40 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
FlexBeam™ FE - 1610 mm 4 Q-020-1610
