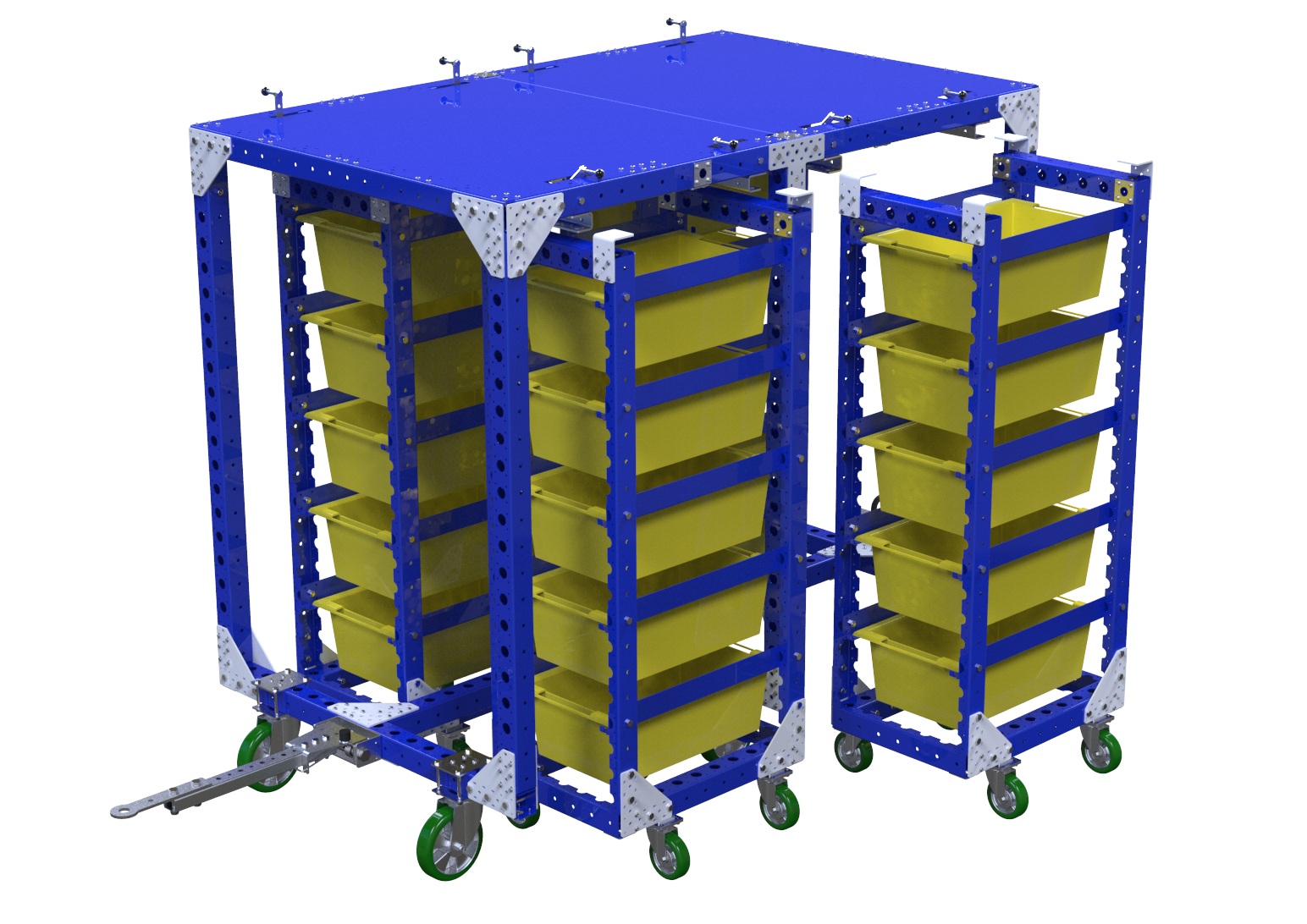

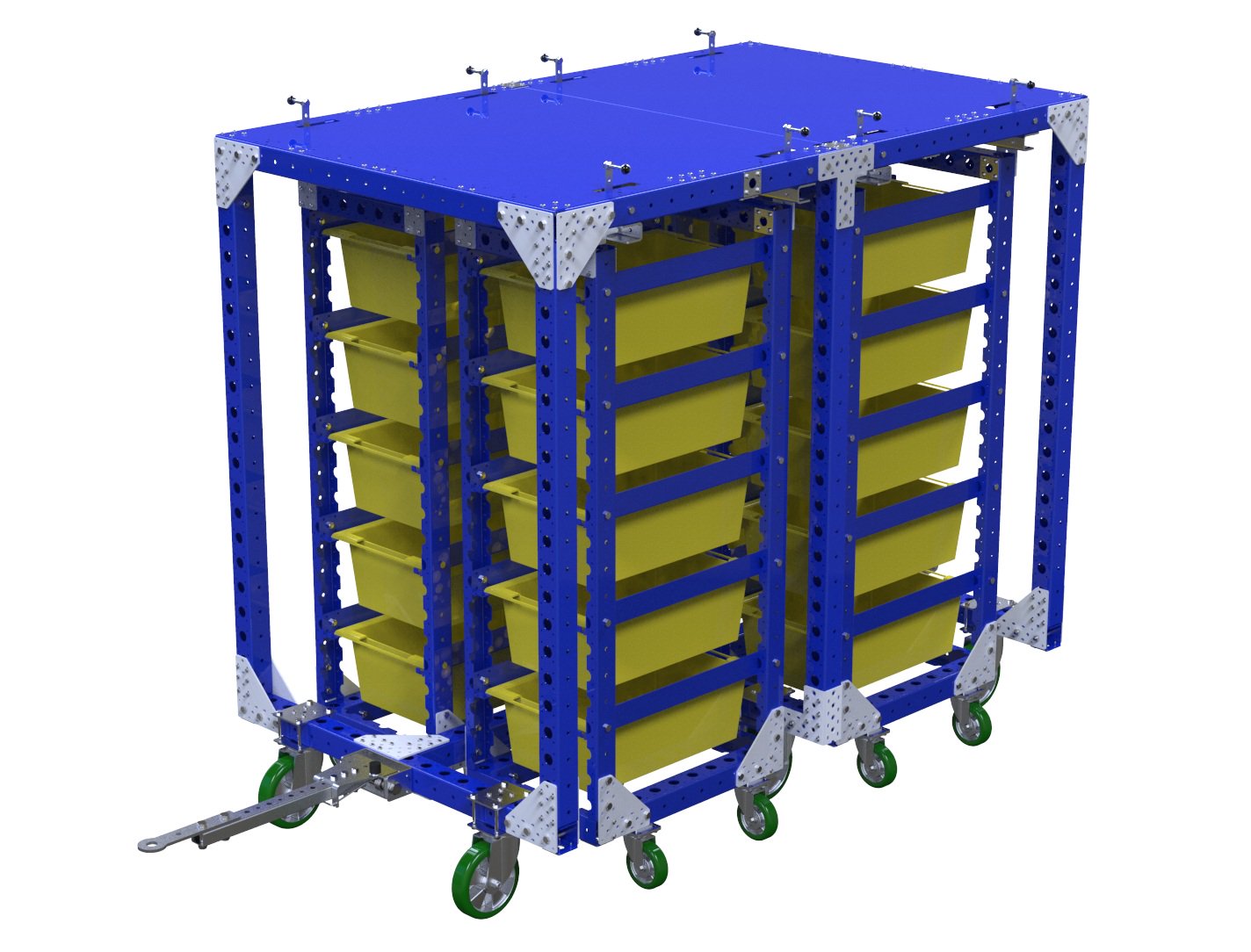

Back Back Q-100-1002 Mother Cart - 2030 x 1260 mm Mother frame that can hold four smaller daughter carts. Get a quote 100% free. No commitment. Get a quote Close Mother Cart – 2030 x 1260 mm Email Phone Location Comments (optional) Attach a file (optional) Upload Maximum file size is 10mb. We will get back to you within 24 hours. (Unless it’s during holidays.) Create your own cart Boost Efficiency Heavy-duty & modular Technical specifications Transportation method Mother-Daughter Cart, Tugger Industry Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy Width 50 inch Height 76 inch Caster size 8 inch Type of tow bar Tongue and Hitch Parts included FlexBeam™ - 1330 mm 4 Q-001-1298 FlexBeam™ 630 mm 4 Q-001-1308 FlexBeam™ 560 mm 4 Q-001-1309 FlexBeam™ 1260 mm FE 6 Q-001-1500 FlexBeam™ - 1470 mm FE 10 Q-001-1503 FlexBeam™ 1540 mm FE 2 Q-001-1504 FlexBeam STS FE - 1890 mm 2 Q-001-1509 FlexPlate™ 12 Q-002-1001 Flexplate™ M10 2 Q-002-1162 Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065 Caster Polyurethane - 200 mm Swivel 4 Q-004-1211 Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212 Cross Joint - 240 x 240 mm 2 Q-005-0021 T-Joint 2 Q-005-0065 M10 - Collet - 6 mm 8 Q-005-0105 Daughter cart catcher - 1260 mm 4 Q-005-0165 Spring Threaded Tube Connectors 2 Q-005-0469 Triangle Joint 20 Q-005-0483 M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648 Towing Hole 2 Q-005-1056 Spherical Knob 8 Q-005-1146 64 mm FlexBeam™ Collet 40 Q-005-1426 Heavy Duty Joint M10 2 Q-005-1580 Daughter Cart Locking Plate 8 Q-005-1730 Allen Head - M6 x 30 mm 1 Q-006-1012 Washer 10,5 x 30 x 2,5 1 Q-006-1030 Hex Head - M14 x 60 mm 2 Q-006-1036 Locking Nut M14 2 Q-006-1039 Hex Head - M10 x 25 mm 20 Q-006-1041 Locking Nut M10 99 Q-006-1042 Washer M10 6 Q-006-1043 Locking Nut M6 1 Q-006-1050 Hex Head - M10 x 95 mm 20 Q-006-1088 Hex Head - M8 x 16 mm 6 Q-006-1120 Hex Head - M10 x 90 mm 36 Q-006-1132 Hex Head - M10 x 30 mm 2 Q-006-1161 Locking Nut M8 7 Q-006-1181 Nut M10 8 Q-006-1195 Hex Head - M10 x 20 mm 8 Q-006-1232 Extra Low Head - M10 x 90 mm 10 Q-006-1381 Self Tapping Screw M6 Torx H60 x 16 388 Q-006-1384 Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410 Hex Head Fully Threaded - M10 x 60 mm 11 Q-006-1502 Compression Spring for US Tow Hitch 1 Q-012-0007 Top shelf for mother - 1260 x 1010 mm 2 Q-016-0539 US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014 Handle for Tow Hole 1 Q-017-0022 Tow Hinge Module 1 Q-017-0059 Towing Lip - 28 mm 1 Q-017-1010 Show all More info This small mother cart can have 4 smaller daughter carts placed within this frame. This cart is designed to hold 4 small shelf carts which can be disconnected from this mother frame and left at different work and assembly stations (learn more about Mother-Daughter solutions). This cart is equipped with a drop pin and hitch tow bar and is designed to be transported using a tugger train (learn more about transitioning from forklifts to tugger trains here).
