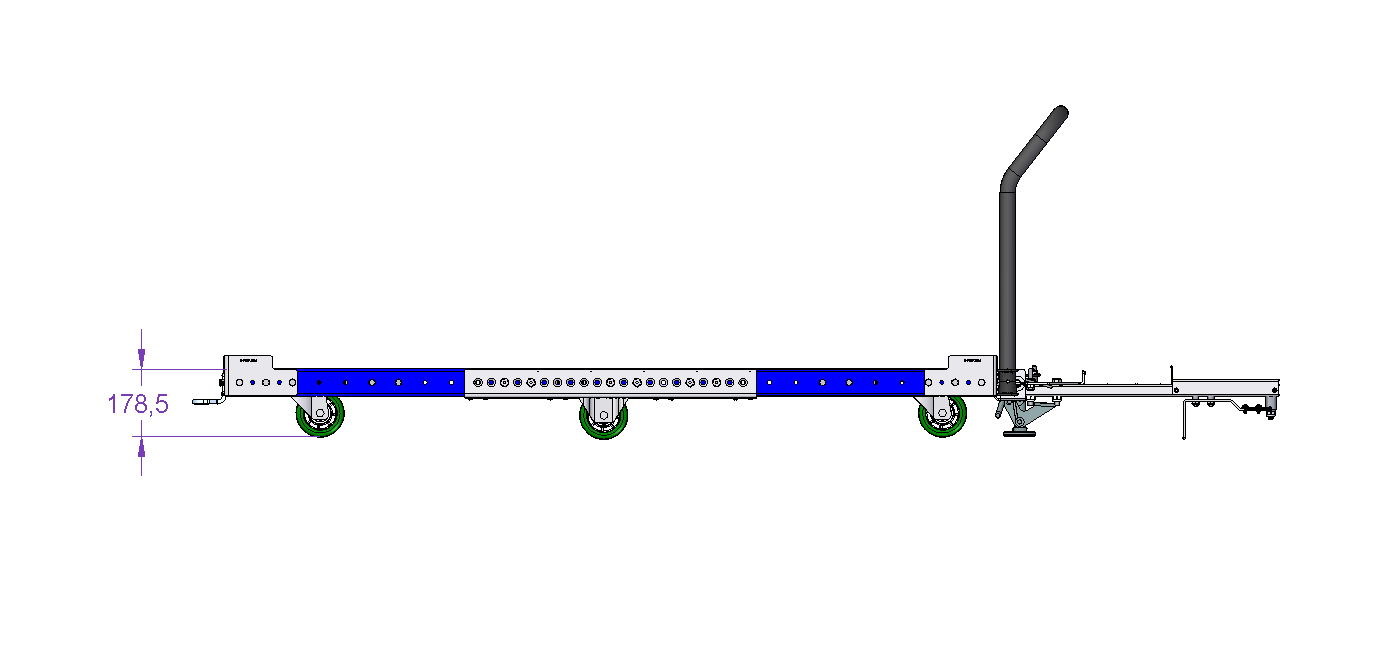

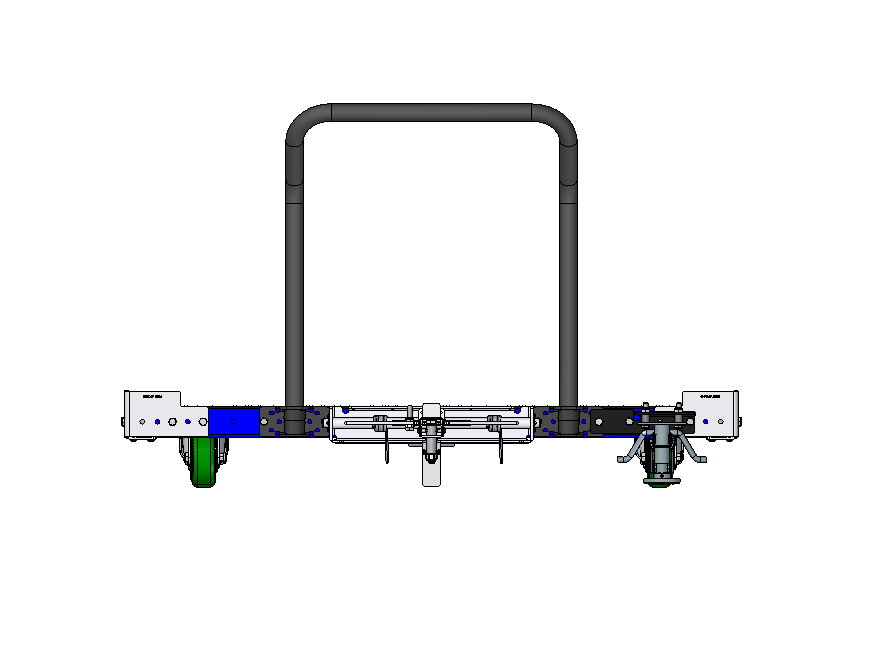

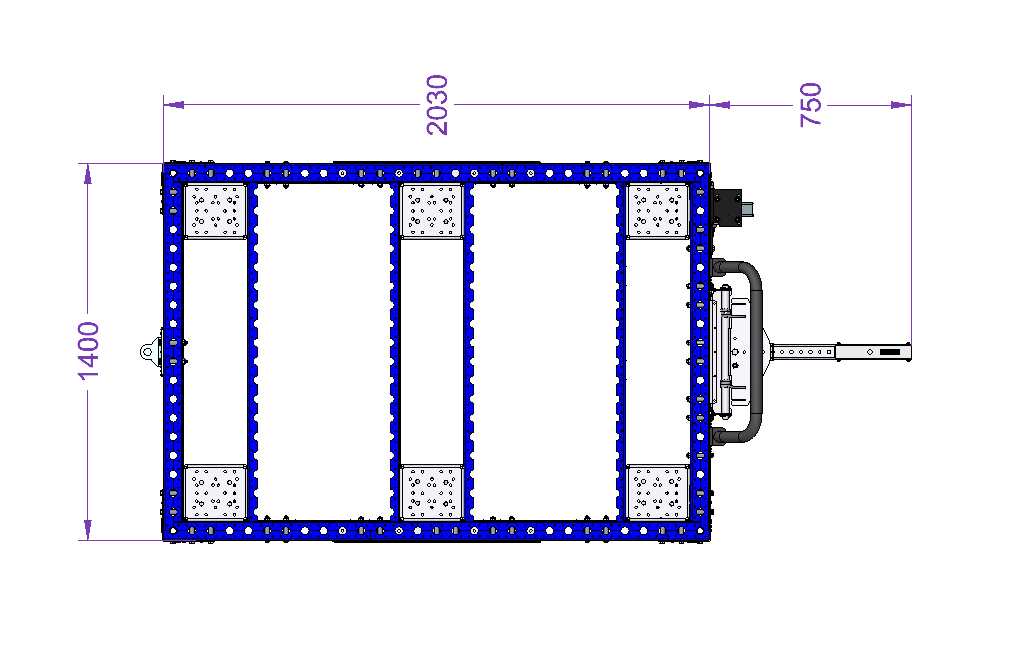

Low Rider Pallet Cart 80 x 55 inch
Low Rider Pallet Cart 80 x 55 inch
Low Rider Pallet Cart 80 x 55 inch
Low Rider Pallet Cart 80 x 55 inch
Q-007-3082

Low Rider Pallet Cart 80 x 55 inch

Tuggable pallet/container equipped with a handlebar, floor brake and six polyurethane casters, two fixed and two swivel.

Technical specifications

Category: Standard

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 80 inch

Load capacity: 220 lbs

Width: 55 inch

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

Tuggable platform cart most commonly used for transporting larger pallets and containers. The cart is equipped with a tow bar and a floor brake as well as six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train

Parts included
FlexBeam™ - 1330 mm 2 Q-001-1298
FlexBeam™ 1050 mm 2 Q-001-1302
FlexBeam™ 910 mm 2 Q-001-1304
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexBeam™ 1260 mm FE 8 Q-001-1500
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 8 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
L Bracket Joint 8 Q-005-0031
Wheel Attachment Box - 5 mm 6 Q-005-0046
Spring Cover Plate 1 Q-005-1025
Spring for Tow Bar 2 Q-005-1070
Reinforcement Plate - 770 mm 2 Q-005-1112
Caster Distance Collet - 18 mm 4 Q-005-1396
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 46 Q-005-1426
Pallet Guide Heavy - 5 mm 4 Q-005-1645
Washer M20 2 Q-006-0016
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 3 Q-006-1039
Hex Head - M10 x 25 mm 20 Q-006-1041
Locking Nut M10 96 Q-006-1042
Washer M10 32 Q-006-1043
Hex Head - M10 x 95 mm 17 Q-006-1088
Hex Head - M10 x 90 mm 15 Q-006-1132
Countersunk MF6S - M10 x 90 mm 12 Q-006-1135
Nut M10 1 Q-006-1195
Hex Head - M10 x 100 mm 2 Q-006-1302
Hex Head Fully Threaded - M10 x 50 mm 5 Q-006-1343
Extra low head [1,5 mm] M10x40 mm 8 Q-006-1361
Self Tapping Screw M6 Torx H60 x 16 54 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Low Rider Floor Brake Plate 1 Q-015-0019
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR - Foot Release - 670 mm 1 Q-017-0012
Cotter Pin - 3,2 x 32 mm 2 Q-017-0023
Foot Release Locking Lip 1 Q-017-0024
Locking lip attachment 1 Q-017-1043
Tow Bar Lock Tube - 498 mm 1 Q-017-1061
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
